Ürün Bilgileri

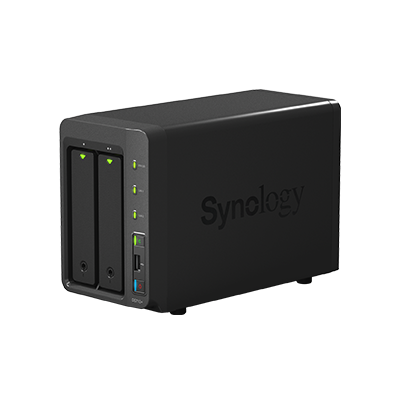

DS713+ Özellikler Orta ve Büyük Ölçekli İşletmeler için Çok Yüksek Performanslı 2 adet SATA Yuvalı NAS Sunucusu. Dual Core 2.13 GHz CPU, 1GB RAM, 2 adet Internal 3,5" SATAII veya 2,5" SATA/SSD HDD Yuvası, 1 adet USB 2.0, 2 Adet USB 3.0, 1 adet eSATA Arayüz, Maksimum 25 adet IP Kamera Desteği, 2 adet Gigabit Ethernet, FTP, Kriptolanmış Ağ Yedekleme, EXT3-4 desteği, Harici Disk için FAT, NTFS desteği, maksimum 2048 adet kullanıcı ve 256 adet kullanıcı grubu tanımı, 256 adet paylaşım klasörü, 512 adet aynı anda bağlantı desteği, maksimum 2 adet yazıcı paylaşım desteği. Türkçe kolay web arayüzü. Windows ADS ve DataReplicator desteği. Domain kullanıcıları Samba/AFP/FTP ile girebilir. JBOD, Raid 0/1 desteği. Synology DX510 ile kapasite artırma desteği. iSCSI Desteği. Ürünle birlikte Disk gelmemektedir, Disk ayriyetten satın alınmalıdır.

Donanım

• CPU Frequency : Dual Core 2.13 GHz
• Floating Point
• Memory : DDR3 1 GB
• Internal HDD/SSD : 3.5" or 2.5" SATA(II) X 2 (Hard drive not included)
• Max Internal Capacity : 8TB (2X 4TB HDD) (Capacity may vary by RAID types) (See All Supported HDD)
• Hot Swappable HDD
• External HDD Interface : USB 3.0 Port X 2, USB 2.0 Port X 1, eSATA Port X 1
• Size (HxWxD) : 157 x 103.5 x 232 mm
• Weight : 1.69 kg
• LAN : Gigabit X 2
• Link Aggregation
• Wake on LAN/WAN
• System Fan : 92 x 92 mm X 1
• Wireless Support (dongle)
• Noise Level : MAYIS.2 dB(A)
• Power Recovery
• AC Input Power Voltage : 100V to 240V AC
• Power Frequency : 50/60 Hz, Single Phase
• Power Consumption : 30.72 W (Access); 17.88W (HDD Hibernation);
• Operating Temperature : 5°C to 35°C (40°F to 95°F)
• Storage Temperature : -10°C to 70°C (15°F to 155°F)
• Relative Humidity : 5% to 95% RH
• Maximum Operating Altitude : 6,500 feet
• Certification : FCC Class B, CE Class B, BSMI Class B
• Warranty : 2 Years

• Virtual Drive
• Remote Folder

• Network Backup
• Local Backup
• Desktop Backup (Windows: Synology Data Replicator 3, Mac: Apple Time Machine backup application)
• Shared Folder Sync - Max task number : 8
• Configuration Backup

• Supported Protocols : POP3, SMTP, IMAP

• Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log

• Virtual Host (up to 30 websites)
• PHP/MySQL
• 3rd party Applications Support.

• Max Printer # : 2
• Printing Protocols : LPR, CIFS, IPP, Apple AirPrint, Google Cloud Print, Multi Functional Print Sunucu (for Windows PC only)

• DS photo+
• DS audio
• DS cam
• DS file
• DS finder
• DS download (Only available on iOS)
• DS video (Only available on iOS)

• DS audio
• DS finder
• DS photo+


• MAX IP cam # (Licenses required) : 25 (1 Free License) (See All Supported IP Cameras)
• Total frame rate (FPS) : 750 FPS @ 720p (1280 x 800)

• LDAP Directory Sunucu
• Backup and Restore LDAP Database

• Maximum Connections : 20
• VPN Method: PPTP, OpenVPN

• Independent DHCP Sunucu on Different Network Interfaces
• Multiple Subnets Support
• Address Reservation

• SSL Connection
• Log Rotation: 6 months, 1 year, 2 years, 3 years
• Email Notification

• Webmail Interface for Mail Sunucu
• Receiving Mails from Multiple POP3 Mailboxes
• Customizable SMTP Sunucu

• Full System Scan
• Scheduled Scan
• White List Customization
• Virus Definition Auto Update

• Maximum Task Number : 8
• Multiple File Versions Retained
• Instant File Restoration

• Maximum User Accounts : 32
• Retain Historical and Deleted File Versions

• Backup Diskİstasyonu data to STRATO HiDrive online storage

• Supported Image Format : BMP, JPG (jpe, jpeg), GIF, RAW (arw, srf, sr2, dcr, k25, kdc, cr2, crw, nef, mrw, ptx, pef, raf, 3fr, erf, mef, mos, orf, rw2, dng, x3f)
• Supported Video Format : 3G2, 3GP, ASF, AVI, DAT, DivX, FLV, M4V, MOV, MP4, MPEG, MPG, QT, WMV, XviD, RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3
  User can click and download the following video formats: RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3, but not able to play it in Photo İstasyonu as compressed Flash video.

• Supported Audio Format (USB Mode) : AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR
• Supported Audio Format (Streaming Mode) : MP3, M4A, M4B
• Supported Playlist Format : M3U, WPL
• Internet Radio : SHOUTcast, Radioio

• Supported Audio Format : MP3, M4A, M4P, WAV, AIF, The music in WAV and AIF format can be streamed, but the metadata (ex: title, album) may not be indexed on the iTunes
• Supported Video Format : M4V, MOV, MP4
• Supported Playlist Format : M3U, WPL
• Supported Client : iTunes for Windows and Mac

• PS3/Xbox 360 Support
• Supported Audio Format : AAC, AIFF, APE, FLAC, M4A, Apple Lossless, MP3, Ogg Vorbis, PCM, WAV, WMA, WMA VBR, WMA PRO, WMA Lossless
• Supported Video Format : 3GP, 3G2, ASF, AVI, DAT, DivX, DVR-MS, ISO, M2T, M2TS, M4V, MKV, MP4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, XviD, RMVB (The actual playback capabilities may vary depending on the DLNA/UPnP client)
• Supported Image Format : BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO

• Supported Download Protocols : BT/HTTP/FTP/NZB/eMule
• Maximum Concurrent Download Tasks : 80

• phpMyAdmin
• HASP
• Webalizer
• Logitech Media Sunucu
• WordPress
• OpenERP


• CIFS

• AFP
• NFS
• FTP
• WebDAV
• CalDAV
• iSCSI
• Telnet
• SSH
• SNMP
• VPN (PPTP, OpenVPN)

• EXT4
• EXT3 (External Disk Only)
• FAT (External Disk Only)
• NTFS (External Disk Only)

• Max File System Size : 108TB
• Max Internal Volume # : 512
• Max iSCSI Target # : 32
• Max iSCSI LUN # : 256
• Supported RAID Type : Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1
• RAID Migration : Basic to RAID 1
• Volume Expansion with Larger HDDs : Synology Hybrid RAID, RAID 1
• Synology Expansion Unit Support : DX513/DX213

• Max User Accounts : 2048
• Max Groups : 256
• Max Shared Folder : 256
• Max Concurrent CIFS/AFP/FTP Connections : 512

• Domain Users login via Samba/AFP/FTP/File İstasyonu

• FTP over SSL/TLS
• IP Auto-Block
• Firewall
• Encrypted Network Backup over Rsync
• HTTPS Connection

• Auto DSM Upgrade
• Administrator Group
• Push Notification – MSN/Skype/Mobile Devices
• Email/SMS Notification
• Customized User Quota
• Syslog Support
• DDNS Support
• IPv6 Support
• VLAN support
• PPPoE
• Hotspot
• Resource Monitor
• Connection Manager
• UPS Management
• Scheduled Power On/Off
• Custom Management UI HTTP/HTTPS Ports

• HDD Hibernation
• S.M.A.R.T.
• Dynamic Bad Sector Mapping

• Synology Assistant
• Synology Data Replicator

• Windows XP onward
• Mac OS X 10.5 onward
• Ubuntu 9.04 onward

• Chrome
• Firefox
• Internet Explorer : 8, 9
• Safari (MAC) : 5

• English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český.

• RoHS Compliant

• Main Unit X 1
• Installation Disc X 1
• Welcome Note X 1
• Assembling Kit X 1
• AC Power Adapter X 1
• AC Power Cord X 1
• RJ-45 LAN Cable X 2

• Remote
• Camera License Pack
• Expansion Unit : DX513/DX213
• VS80
