Draytek Vigor 3300V Multifunction Router | Simet Bilişim Teknolojileri A.Ş.

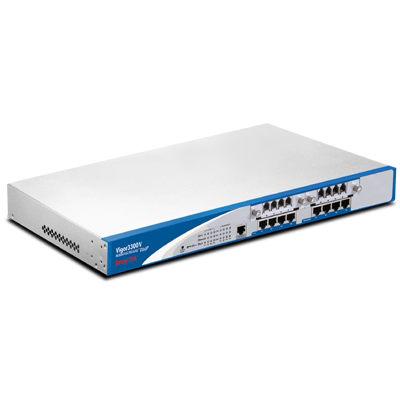

Draytek Vigor 3300V Multifunction Router

DrayTek

Kurumsal kullanıcıların tüm internet ihtiyaçlarına cevap verebilecek, üstün özellikleri olan yüksek seviye, Firewall, VPN konsantratör,QoS Sağlayıcı, yük paylaşımı ve dengelemesi sağlayan broadband router cihazıdır. 4 adet WAN, 4 adet LAN standart.

MultiWAN VoIP VPN Load Balance Security Router Vigor3300V kurumsal kullanıcıların tüm internet ihtiyaçlarına cevap verebilecek, ilave ve üstün özellikleri olan Yüksek Seviye, Firewall, VPN Konsantratör, QoS Sağlayıcı, Yük Paylaşımı ve Dengelemesi sağlayan Broadband Router cihazıdır.4xWAN, 4xLAN standart, 8xFXS/FXO opsiyonel.200 VPN Tunel sonlandırabilir.

The Vigor 3300 series routers combine VPN enhancements like robust firewall, WEB content filtering, Guaranteed Bandwidth, remote management and administrative functions to meet increasing demands for higher security and reliability in today's broadband environment.

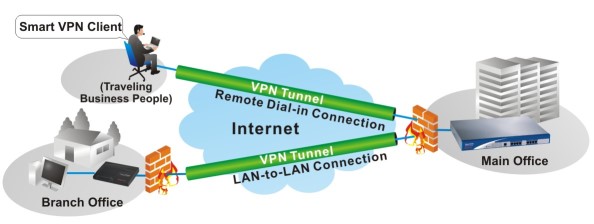

The Vigor 3300 Security router provides additional IPSec VPN benefits that achieve highly scalable, confidential e-business objectives including branch office interconnectivity and remote access applications. By deploying the latest versions of encryption accelerators (i.e., DES/DES3-SHA-1/HMAC-MD-5), the Vigor 3300 series routers affords low latency and higher performance IPSec VPN.

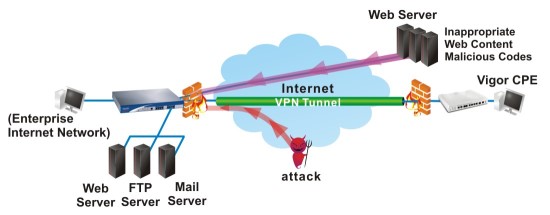

The series'robust firewall offers a rich suite of security features like stateful packet inspection (i.e., examines the contents of individual packets at ALL layers of the OSI stack), access control, packet filtering, blocks intrusions/attacks and Denial of Service (DoS). Additional protection is provided via programmable integrated content filtering that blocks inappropriate WEB content for home or business environments.

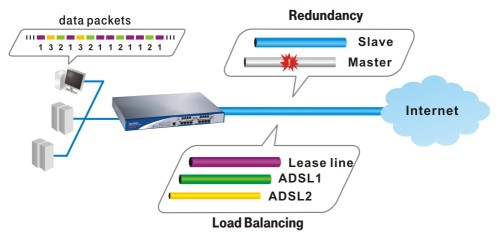

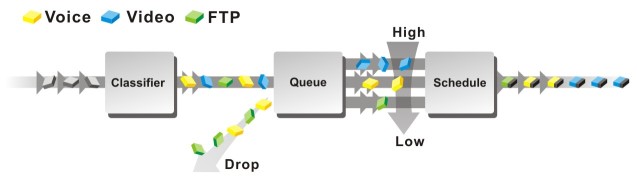

The QoS function (Quality of Service) ensures prioritized, dedicated bandwidth, controlled jitter and latency and reduced packet-loss characteristics.Load balancing or redundancy configurations provide reliable, un-interrupted traffic flows. Bandwidth can be increased (up to 400mbps) and traffic can be shared using multi-port WAN connections via the load balance feature. Simple re-configuration of WAN ports easily provides redundant, back-up capability.

Optional 4/8 port VoIP modules provide connection with any PBX, key system or simple analog phone.

The load balancing and high availability applications improve the network performance, scalability, reliability in Internet network and infrastracture utilization.

The SNMP-based of VigorCMS is the management software to offers an easy way to remotely set up configurations, update system status, display alarm events, monitor system behaviors, perform diagnostics and download firmware and email attacking alert. For installation, status monitor, and management of Vigor 3300 series of routers, it will be easily accomplished through a built-in Web user interface or Telnet command line interface.

Yararları
  • Single platform for integration of  data, voice (IP Telephony) and video.
  • Robust firewall for securing against intruders/attackers and  Denial-of-Service (DoS).
  • High performance hardware-based VPN device for small and medium level business companies.
  • DHCP over VPN IPSec (Automatic provisioning of proxy IP addresses).
  • NAT-T of VPN IPSec.
  • Remote, secure access VPN for e-commerce, mobile and telecommuting applications.
  • Web content filtering (Blocks access to inappropriate and non-productive venues).
  • Port-based and 802.1Q tag-based VLAN.
  • Bandwidth-guaranteed for VoIP and online game applications as well as critical business networking-zone.
  • Up to 3(3300B+/3300)/4(3300V) WAN interfaces for load sharing and load balancing.
  • Physical DMZ (De-Militarized Zone) ports for isolated security zones.
  • Easy installation, configuration, and management through user-friendly WEB interface and VigorCMS.
  • QoS (Quality of Service) feature monitors, analyzes and allocates bandwidth  in real time for business critical traffic.
  • Load Balancing solution ensures high availability for network and applications.
  • EMS management (VigorCMS) for configuration management, topology management, security management, fault management and backup/restore storage management.

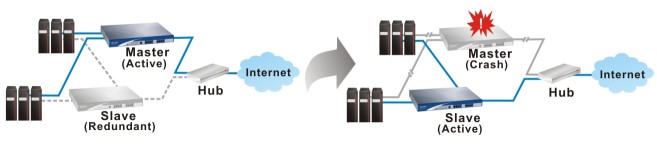

  • High availability provides a non-stop and reliability network access devices.
  • Fail-over provides a backup service for users to Internet.



Özellik Açıklama
Ağ İzleme ve Görüntüleme Smart Monitör
Ağ Yönetimi Web Tabanlı kullanıcı Ara yüzü (HTTP / HTTPS), Hızlı Başlangıç Sihirbazı, CLI (Command Line Interface, Telnet/SSH) , Yönetim Erişim Kontrolü, Ayar yedekleme/arşivleme, Gömülü Tanı Fonksiyonu, TFTP / FTP üzerinden gömülü yazılım güncelleme, Syslog üzerinden Kayıt, SNMP Yönetimi MIB-II.
Firewall Servisler WEB Content Filter (Opsiyonel)
Firewall Özellikleri Access Control, Packet Filtering, Denial of Service Prevention, Stateful Packet Inspection for TCP, Stateful Packet Inspection for FTP
LAN Port Adeti 4 Port
LAN Port Tipi Bakır Ethernet
LAN Port Veri Hızı 10/100Mbps
Load Balance Outbound Policy-based Load-balance, BoD ( Bandwidth on Demand ), WAN Connection Fail-over
WAN Port adeti 4 Adet
WAN Port Fiziksel Tipi Ethernet
WAN Protokolleri DHCP İstemci,Statik IP, PPPoE, PPTP
WAN Arayüzü RJ-45
VPN Adeti 200 Adet
VPN Kimlik Doğrulama MD5, SHA-1
VPN Protokol PPTP, IPSec, DHCP over IPSec
VPN Şifreleme AES,DES/3DES
VoIP Desteği Var
VoIP Arayüzü FXS-FXO
Desteklediği VoIP Codec Tipi Kodek G.711, 729A, 723.1, G.726
VoIP Port Adeti 8 Adet
Loglama Router Tools,Syslog Tools
Form Factor 1U
Smart Monitor Var
RackMount Aparat (Opsiyonel) Var
Wireless Yok
Yönetim Web Yönetim, UPnP (Basit Cihaz), SNMP: v1, v2, v2c, Ether Like MIB, MIB II, 802.11MIB , Watchdog Timer to WARM boot system
QoS Özelllikleri Guarantee Bandwidth for VoIP,Class-based Bandwidth Guarantee by User-defined Traffic Categories,DiffServ Code Point Classifying ,4-level Priority for Each Direction (Inbound/Outbound),Bandwidth Borrowed
Bantgenişliği Yönetimi QoS, Kullanıcı tanımlı trafik kontrolleriyle sınıf tabanlı bant genişliği, DiftServ Kod Nokta Sınıflandırma, Her yöne(gelen/giden) için 4-seviye öncelik, Bandwidth Borrowed, Bantgenişliği/ Oturum kısıtlama
Firmware güncelleme Var
Dil Desteği English
Çevresel Standartlar RoHS
Module Sayısı 2 Adet
Multi WAN Var
Boyutlar (En/Boy/Yükseklik) L443 * W297 * H44 (mm)
Satış Garanti Süresi (Ay) 24
Ürünün Web Sayfası http://www.draytektr.com
