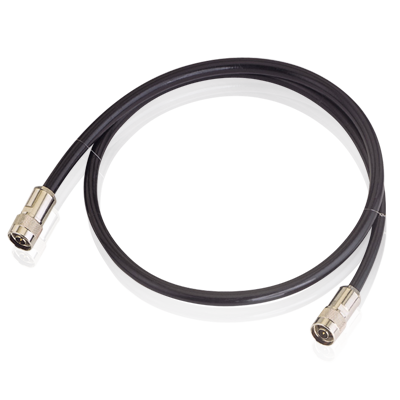

AirLive RG213-NN-3 Outdoor Antenna Cable

AirLive

Antenler ile AP'ler arası bağlantı için 3m lik Male N-Type dan Male N-Type a kablo.

AirLive RG213-NN-3 3m Male N-Type Anten Kablosu Antenler ile AP'ler arası bağlantı için 3m lik Male N-Type dan Male N-Type a kablo.

Connector type

Male N-Type to Male N-Type
Connect directly to most outdoor APs and outdoor Antennas
RG316-SNF cable required to connect with indoor AP

Length 3 meter
Special length available upon request
Impedance 50 Ohms nominal
Capacitance 98 pF/ft
Cut Off Frequency 65 GHz
Structure
Conductor
- Composition (No./mm): 7/030752mm
- Material: strand bare copper wire
- Diameter: 2.3mm
Insulation
- Thickness: 2.45mm
- Material: Solid Polyethylene
- Diameter: 2.45mm
Shield
- Material: bare copper wire
- Construction: 24x8/0.18
- Coverage: 95%
- Diameter: 0.18mm
Jacket
- Color: Black
- Material: NC-PVC
- Diameter: 10.30mm
Attenuation 2.5dBi at 3m with 2 connectors
100Mhz: 6.2 dB/100ft
200Mhz: 8.9 dB/100ft
400Mhz: 13.4 dB/100ft
700Mhz: 21.4 dB/100ft
900Mhz: 25 dB/100ft

Özellik Açıklama
Anten Bağlantı Tipi Male N-Type to Male N-Type, Connect directly to most outdoor APs and outdoor Antennas, RG316-SNF cable required to connect with indoor AP
Uzunluk 3 metre
Direnç 98 pF/ft
Frekans Bandı 65 GHz
Yapısı Conductor: Composition (No./mm): 7/030752mm, Material: strand bare copper wire, Diameter: 2.3mm, Insulation: Thickness: 2.45mm, Material: Solid Polyethylene, Diameter: 2.45mm, Shield: Material: bare copper wire, Construction: 24x8/0.18, Coverage: 95%, Diameter: 0.18mm, Jacket: Color: Black, Material: NC-PVC, Diameter: 10.30mm
Ürünün Web Sayfası http://www.airlivetr.com
Satış Garanti Süresi (Ay) 24
