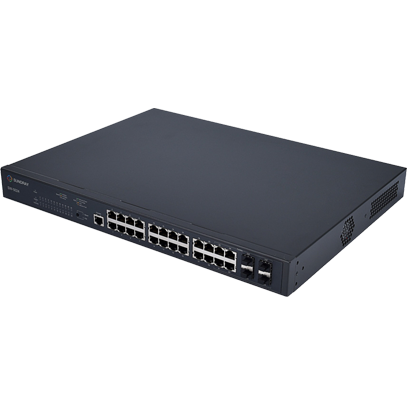

Sundray SI3200-24H-PWR 24 Gigabit PoE Switch

Sundray

Tam Gigabit ve yüksek performans özellikleri ile SUNDRAY SI3200-24H-PWR, yeni nesil anahtar yongasını benimser ve tüm SUNDRAY kablosuz çözümünün bir bileşeni olarak hizmet eder; Kablosuz AP için kablo vasıtasıyla güç sağlayabilir ve 30 W'a kadar tek bir bağlantı noktası sağlar ve yeni nesil kablosuz AP gereksinimini tam olarak karşılar, işletmeler için daha güvenli, daha hızlı ve katma değerli bir WLAN ağı oluşturur.

With full Gigabit and high performance characteristics, SUNDRAY SI3200-24H-PWR adopts the new generation switch chip and serves as one component of the entire SUNDRAY wireless solution; it can supply power for the wireless AP through cable, and provides single port up to 30W power, and fully satisfies the requirement of the new generation wireless AP, and establishes a safer, faster and value-added WLAN network for the enterprises.

  • Maximum supporting 15.4W output power/af with 21 ports or 30W output power/at with 10 ports;
  • Supporting IEEE802.3at(30W) standard, and being compatible with IEEE802.3af (15.4W) powered device (PD)
  • The traditional mode is broken; not only the data can be transferred, but also the electric power can be transmitted via the cable.
  • The powered device complying with the IEEE 802.3at and IEEE 802.3af standard can be automatically detected;
  • Advanced self-sensing arithmetic only supplies power for the terminal equipment with IEEE 802.3af/at standard; it is not necessary to worry about the Non-POE equipment or POE equipment with private





Specifications of SUNDRAY Gigabit POE switch(8 ports)

Model

SI3200-08T-PWR-UN

Type

DUMP PoE Switch

Ports

eight 10/100M/1000M electrical ports(eight POE ports)

Standard of power supply

IEEE802.3af/at

PoE output power

eight ports 802.3af(15.4W)full load or four ports 802.3at(30W)power supply

forwarding rate

full speed filtration forwarding

forwarding mode

full speed storage forwarding

address table

8K

Dimension

280mm*180mm*44mm

Input power

Alternative current:90-264V ~ 50-60Hz/150W

light indicators

Power,Link/Act,POE Status

Working circumstance

operation: 0-50℃,storage: -40-70℃,0-90% no condensation
