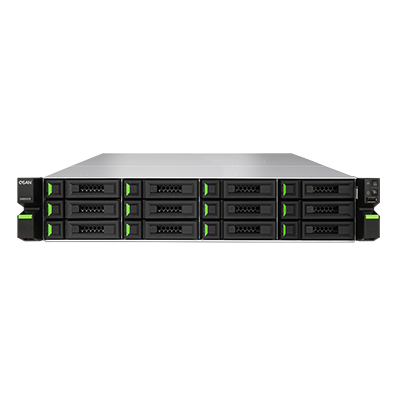

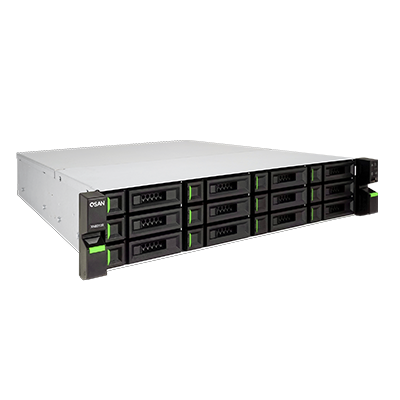

QSAN XCubeNAS XN5012R 12+6 Bay 2U Rackmount NAS

QSAN

Rackmount 2U 12+6(4+2) Bay with Intel Celeron 2.9 GHz Dual-Core CPU, 8GB DDR4 RAM (Max 64GB).

QSAN XCubeNAS XN5012R Özellikler

Hardware Specifications

Architecture All-in-one
Storage OS QSM Specification Details
CPU
Processor Intel® Celeron®
CPU Architecture 64-bit
CPU Frequency Dual-Core 2.9GHz
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 8GB DDR4 U-DIMM
Total Memory Slots 4
Memory Expandable up to 64 GB
Notes -
Storage
Drive Bays

3.5" Slot x 12

2.5" Slot x 6

Maximum Drive Bays with Expansion Unit 210
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

2.5" NVMe SSD

Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)

Maximum Internal Raw Capacity 216TB
Maximum Raw Capacity with Expansion Units 3288TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • 2.5 slots including SATA SSD drive x 4 and NVMe SSD drive x 2
  • Maximum internal raw capacity= 16 TB drive x 12 + 3.84 TB drive x 4 + 3.84 TB drive x 2
  • Capacity may vary by RAID types

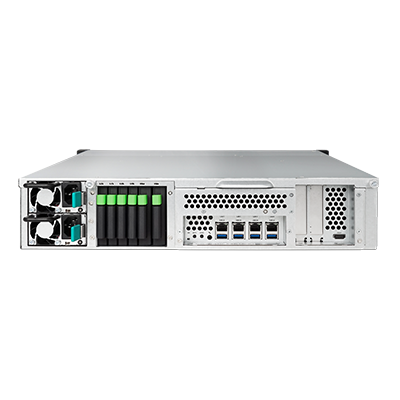

External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 4 (Rear)
HDMI Port 1
Others Console Port x1
Notes -
{0}GbE RJ45 LAN Port
1GbE RJ45 LAN Port 4 (Onboard)
10GbE RJ45 LAN Port 2 (Option: THBE10R2)
10GbE SFP+ LAN Port 2 (Option: XN-E1002)
Thunderbolt 3 2 (Option: XN-TB302)
16Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port 2 (Option: XN-S1202)
Notes For more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot 1
Gen3x4 Slot 1
Notes For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 88.5 x 438 x 510
Chassis Form Factor 19 Rackmount 2U 12+6 Bay
Net Weight (kg) 13.5
Gross Weight (kg) 14.9
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 60mm x 60mm x 3 pcs
40mm x 40mm x 1 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 250W x2
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 332 W (Access)
179 W (HDD Hibernation)
British Thermal Unit 1132 BTU/hr (Access)
611 BTU/hr (HDD Hibernation)
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM

SASO

EAC

Notes -
Warranty
Standard Warranty 2 years
Notes -
