Ürün Bilgileri

Bir adet RJ-45 Ethernet bağlantı noktasına ve bir adet RJ-45 VDSL bağlantı noktasına sahip yüksek hızlı, Uzun Erişimli Ethernet Genişletici. Ethernet'i tek çift telefon hattı üzerinden genişletmek için köprü modlu bir modemdir. Mevcut bakır kablolar üzerinden 100 Mbps simetrik veri hızı aktarır. Aynı zamanda hem simetrik hem de asimetrik iletimi destekler ve 1Km uzun menzilli bağlantılar için 300M dahilinde 100/100 Mbps bant genişliğine (hat hızı) veya 10/10 Mbps'ye (hat hızı) ulaşabilir.

KEY FEATURES

• Cost effective bridge function to connect two Ethernet LAN
• Easy installation via simple plug-and-play
• Provide 100/100 Mbps up to 300m over CAT 5e
• Provide 10/10 Mbps up to 1km over CAT 5e
• Configurable SNR profile for noisy environment

PRODUCT OVERVIEW

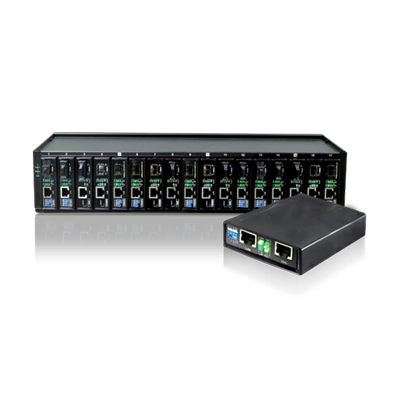

VX100 VDSL2 Ethernet Extender is a high-speed, Long Reach Ethernet Extender with one RJ-45 Ethernet port and one RJ-45 VDSL port. It is a bridge mode modem, well accommodating VDSL2 (Very-high-data-rate Digital Subscribe Loop) technology to extend Ethernet service over single-pair phone line. Compliant to ITU-T G.993.2 standard and supports up to VDSL2 30a profile, VX100 VDSL2 Ethernet Extender features 100Mbps of symmetric data rate over the existing copper wires. It also supports both symmetric and asymmetric transmission, and can reach up to 100/100 Mbps bandwidth (line rate) within 300M or 10/10 Mbps (line rate) for 1Km long range connections.

The VX100 VDSL2 Ethernet Extender also supports selectable CPE and CO mode. By selecting operation modes: one with CO mode and the other with CPE mode, users can connect two VX100 VDSL2 Ethernet Extenders to establish a point-to-point connection.

With its high performance and plug-n-play design, VX100 VDSL2 Ethernet Extender is the ideal Long Reach Ethernet solution for ISPs and carriers to quickly deploy a high-speed IP-based network for triple play (video, voice and data) services.
