Draytek Vigor 2130n Broadband Router | Simet Bilişim Teknolojileri A.Ş.

Draytek Vigor 2130n Broadband Router

DrayTek

Draytek Vigor 2130n Broadband Router Yüksek güçlü yeni nesil entegre genişbant kablosuz Gigabit yönlendiricidir. Metro Ethernet gibi yüksek bantgenişliğine sahip bağlantılar için kullanılır. 4 adet 1000Mbps ethernet portu, USB Portu (USB 3G Modem, FTP ve Print server desteği)

Vigor 2130n High Speed Wireless Gigabit Router Yüksek güçlü yeni nesil entegre genişbant Gigabit Wireless yönlendiricidir. ADSL, G.SHDSL, VDSL2, Metro Ethernet, FTTB, FTTH gibi bağlantılar için modeminizin arkasına bağlayabilirsiniz. 4 adet 1000Mbps lik ethernet portu mevcuttur. USB 3G Modem, FTP ve Print server desteği mevcuttur.802.11n Desteği mevcuttur

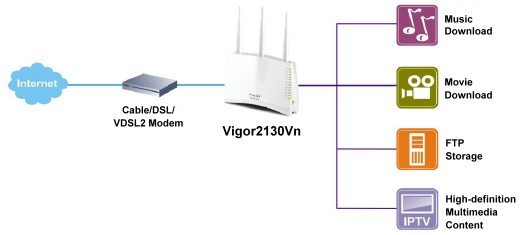

Triple Play for home entertainment and SOHO
The entertainment applications running over the home network infrastructure and home-based productivity for SOHO are growing while the broadband bandwidth is increasingly available within affordable budget along with deployment of DSL or FTTx. The gigabit WAN port of Vigor2130 series optimize the throughput performance and flexibility for time-critical console gaming, multimedia streaming (compatible with Euro-DOCSIS 3.0 and DOCSIS 3.0 for high-speed data transfer to an existing cable TV system provided by cable TV operators) and P2P downloading as well as IP telephony. The four Gigabit Ethernet (10/100/1000 LAN ports) auto-sensing ports facilitate home networking with width-intensive applications! Through the combination of Gigabit WAN and Gigabit LAN ports to optimize the bandwidth usage, the downstream data and voice packets for Triple play can be flawlessly displayed in endpoint devices, such as HDTV, desktop/laptop or analog/IP phone.

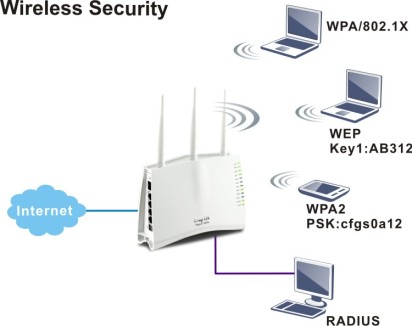

Wireless coverage & security
The Vigor2130n router gives you the 802.11n standards for coverage. For wireless security, Vigor2130n router is also efficient for wireless network management. For instance, its "Wireless LAN isolation" can easily isolate wireless network for friends or guests. Then, the access rights of various wireless clients can be managed by "MAC address control" and deployed "WEP/WPA/WPA2" authentication. No need to remember passwords, your simply press "WPS" button on router and then enable users to securely connect laptop or computers to the router!

3.5G USB modem as the backup Internet access
DrayTek understand users want to have Internet access at the moment moving into new premise (e.g. home) and keep online even during the downtime of the fixed broadband line. Therefore, DrayTek lets Vigor2130 series have 2 USB ports to connect USB printer and 3G USB modem as second WAN for back up if the installation of DSL/cable Internet is not ready yet or the fixed broadband line drops. Why not just subscribing 3G USB modem to share broadband Internet with your family or friends ?

Note: DrayTek USB supports HSDPA, UMTS, WCDMA, CDMA2000 and TDS-CDMA.

1. IP Version

  • IPv4
  • IPv6

2. Dual WAN

  • 3.5G Backup

3. Switch

  • 4 Gigabit LAN Ports
  • Port-based VLAN
  • Layer-2 (802.1p) QoS
  • IGMP Snooping
  • Bind IP to MAC Address

4. Wireless Access Point

  • IEEE802.11n Draft 2.0 Compliant
  • 64/128-bit WEP
  • WPA/WPA2
  • Hidden SSID *
  • Access Point Discovery
  • MAC Address Access Control
  • WPS
  • Wireless Client List *
  • WMM (Wi-Fi Multimedia) *

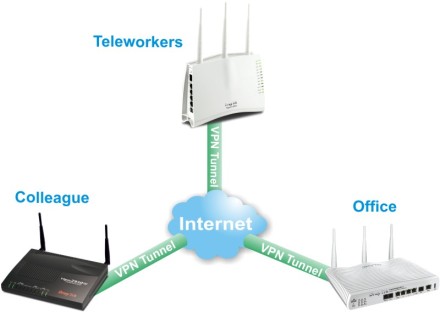

5. VPN

  • 2 VPN Tunnels
  • IPSec LAN to LAN, L2TP over IPSec * and PPTP Remote Dial in
  • Encryption : 3DES, AES
  • Authentication : MD5, SHA-1
  • IKE Authentication : Pre-shared Key
  • DPD
  • VPN Pass-through
  • PPTP MPPE
  • VPN Aggressive Mode

6. Firewall

  • DMZ Host, Open Port, Port-redirection
  • ACL (Access Control List)
  • MAC Address Filter
  • SPI (Stateful Packet Inspection)
  • DoS / DDoS Prevention
  • IP Address Anti-spoofing
  • Web Syslog
  • Logging via Syslog
  • E-mail Alert *

7. USB

  • File System :
    • Support FAT32/FAT16 File System
    • Support FTP Function for File Sharing
    • Support Samba for Windows File Sharing
  • BT Client *

8. WAN Protocol

  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • L2TP

9. Bandwidth Management

  • Layer 2/3 QoS by Ethernet Type, VLAN ID, TCP/UDP Port, DSCP, ToS, Tag Priority
  • QCL (QoS Control List)
  • Bandwidth / Session Limitation

10. Network Feature

  • DHCP Server
  • Dynamic DNS
  • NTP Client
  • UPnP
  • IGMP Proxy V2
  • DNS Cache/Proxy
  • Static Routing

11. Network Management

  • Web-based user Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface, Telnet/SSH)
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via WUI
  • 2-level User Management (admin/user)
  • Administration Access Control
  • Dataflow Monitor
  • Logging via Syslog
  • Management Session Time out
  • SNMP Management MIB-II *

* Yazılım Güncellenebilir

Özellik Açıklama
Ağ İzleme ve Görüntüleme Smart Monitör
Ağ Yönetimi Web Tabanlı kullanıcı Ara yüzü (HTTP / HTTPS), Hızlı Başlangıç Sihirbazı, CLI (Command Line Interface, Telnet/SSH) , Yönetim Erişim Kontrolü, Ayar yedekleme/arşivleme, Gömülü Tanı Fonksiyonu, TFTP / FTP üzerinden gömülü yazılım güncelleme, Syslog üzerinden Kayıt, SNMP Yönetimi MIB-II.
LAN Port Adeti 4 Port
LAN Port Veri Hızı 10/100/1000Mbps
LAN Port Tipi Bakır Ethernet
Dual WAN Var
WAN Port adeti 1 Adet
WAN Arayüzü RJ-45
WAN Protokolleri DHCP İstemci,Statik IP, PPPoE, PPTP, L2TP, PPP
SSL VPN Yok
VPN Adeti 2 Adet
VPN Kimlik Doğrulama MD5, SHA-1
VPN Protokol PPTP, IPSec, L2TP, IPSec üzerinden L2TP
VPN Şifreleme AES,DES/3DES
VoIP Desteği Yok
VoIP Port Adeti Yok
VoIP Arayüzü Yok
Desteklediği VoIP Codec Tipi Yok
Wireless
WPS Button Var
Wireless Protokolleri 802.11n
Frekans Bandı USA (FCC) 11 Channels: 2.412GHz~2.462GHz, Europe (ETSI) 13 Channels : 2.412GHz~2.472GHz
Uzak Yönetim Telnet, Web, SSH
Firmware güncelleme Var
3G Backup Var
USB Arabirim Adeti 2 Adet
USB Cihaz Desteği 3.5G USB Modem,USB Printer,USB Flash Disk,USB external Storage,
Loglama Router Tools,Syslog Tools
Smart Monitor Var
Form Factor Desktop
Firewall Servisler WEB Content Filter (Opsiyonel)
Firewall Özellikleri DMZ Host, Port-redirection and Open Port,ACL,MAC Address Filter,SPI(Stateful Packet Inspection),Dos/DDos Prevention,IP Address Anti-spoofing,E-mail Alert and Logging via Syslog
QoS Özelllikleri QCL (QoS Control List), Bandwidth / Session Limitation, Layer 2/3 QoS by Ethernet Type, VLAN ID, TCP/UDP Port, DSCP, ToS, Tag Priority,
VLAN Var
Güvenlik 64/128bit WEP, WPA, WPA2, MAC address Erişim Kontrolü
Anten 3 adet 3 dBi Omni Anten
Harici Anten Desteği Var
Çevresel Standartlar RoHS
Uyumlu Olduğu Standartlar FCC Class B, CE Class B
Boyutlar (En/Boy/Yükseklik) L216.4 * W147.8 * H53.5 (mm)
Dil Desteği English
Ürünün Web Sayfası http://www.draytektr.com
Satış Garanti Süresi (Ay) 24
