Draytek Vigor 3200 FOUR GigaBit WAN Load Balance VPN Security Router Firewall 4 adet GigaBit WAN Portu bulunan Load Balance yönlendiricidir. 32 adet VPN Tünel sonlandırabilir. (40Mbps Performans) USB portundan USB 3G Modem ile WAN bağlantıları GSM şebekesinden yedeklenebilir veya Load Balance yapılabilir. 4 adet GigaBit WAN Portu ve 1 adet GigaBit LAN Portu mevcuttur. USB Printer ve USB Disk Desteği mevcuttur. Obje tabanlı güçlü firewall özellikleri ve ilave alınabilecek Content Filter Servisleri (CFS) ile daha fazla güvenlik sağlar.
.jpg)
Teknik Özellikler
Desteklenen WAN bağlantı şekilleri
• ADSL2+(WAN-1)
• DHCP Client
• Static IP
• PPPoE / PPPoA
• BPA
• Giga Ethernet (WAN-2)
• DHCP Client
• Static IP
• PPPoE
• PPTP
• L2TP
• BPA
• USB (WAN-3)
• PPP

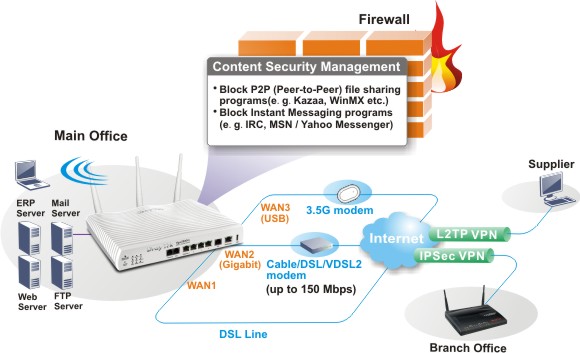

Multi-WAN
• Outbound Policy-based Load-balance ( Kural bazlı yönlendirme )
• BoD (Bandwidth on Demand)
• WAN Connection Failover
USB
• 3.5G/4G* as WAN-3
• Printer Sharing
• File System :
• Support FAT32/FAT16 File System
• Support FTP Function for File Sharing
Wireless AP (n model)
• Support Dual Band 2.4/5G Configurable (Configurable/Not Simultaneous)
• IEEE802.1 In Compliant
• Wireless Client List
• Wireless LAN Isolation
• 64/128-bit WEP
• WPA/WPA2
• Hidden SSID
• WPS
• MAC Address Access Control
• Access Point Discovery
• WDS (Wireless Distribution System)
• 802.lx Authentication
• Multiple SSID
• Wireless Rate-control
• IEEE802.il e: WMM (Wi-Fi Multimedia)
• SSID VLAN Grouping with LAN Port
Firewall
• Multi-NAT, DMZ Host, Port-redirection and Open Port
• Object-based Firewall
• MAC Address Filter
• SPI (Stateful Packet Inspection) (Flow Track)
• DoS/DDoS Prevention
• IP Address Anti-spoofing
• E-mail Alert and Logging via Syslog
• Bind IP to MAC Address
• Time Schedule Control
• Firewall v3
CSM ( İçerik filtreleme ve güvenlik sistemi )
• IM/P2P Application V3 (App Enforcement)
• GlobalView Web Content Filter (Powered by com touch )
• User Management
• URL Content Filter:
• URL Keyword Blocking (Whitelist and Blacklist)
• Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
• Excepting Subnets
• Time Schedule Control
VPN
• Up to 32 VPN Tunnels
• Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
• Encryption : MPPE and Hardware-based AES /DES/3DES
• Authentication : MD5, SHA-1
• IKE Authentication : Pre-shared Key and Digital Signature (X.509)
• LAN-to-LAN, Teleworker-to-LAN
• DHCP over IPSec
• IPSec NAT-traversal (NAT-T)
• Dead Peer Detection (DPD)
• VPN Pass-through
• VPN Wizard
• mOTP
Bandwidth Management
• QoS:
• Guarantee Bandwidth for VoIP
• Class-based Bandwidth Guarantee by User-defined Traffic Categories
• DiffServ Code Point Classifying
• 4-level Priority for Each Direction (Inbound /Outbound)
• Bandwidth Borrowed
• Bandwidth/Session Limitation
• Layer-2 (802.1 p) and Layer-3 (TOS/DSCP) QoS Mapping
Network Feature
• Packet Forwarding Acceleration
• DHCP Client/Relay/Server
• IGMP Version 2 and Version 3
• Dynamic DNS
• NTP Client
• Call Scheduling
• RADIUS Client
• DNS Cache/Proxy
• UPnP 30 sessions
• Multiple Subnets
• VLAN Tagging (802.1 q) on LAN
• Routing Protocol:
• Static Routing
• RIPV2
Switch
• Port-based VLAN
• Triple-Play Application
• IGMP Snooping
• Tag-based (802.1 q) VLAN
• Layer-2 (802.1 p) QoS
VoIP (Vn model)
• Protocol: SIP, RTP/RTCP
• 12 SIP Registrars
• G. 168 Line Echo-cancellation
• Automatic Gain Control
• Jitter Buffer (180ms)
• Voice codec:
• G.711 •G.723.1 •G.726 •VAD/CNG •iLBC
• DTMF Tone :
• Inband • Outband (RFC-2833) • SIP Info
• FAX/Modem Support:
• Tone Detection • G.71 Pass-Through
• Supplemental Services :
• Call Hold/Retrieve/Waiting
• Call Waiting with Caller ID
• Call Transfer
• Call Forwarding (Always, Busy and No Answer)
• Call Barring (Incoming/Outgoing)
• DND (Do Not Disturb)
• MWI (Message Waiting Indicator) (RFC-3842)
• Hotline
• Dial Plan :
• Phone Book
• Digit Map
Network Management
• Web-based User Interface (HTTP/HTTPS)
• Quick Start Wizard
• CLI (Command Line Interface, Telnet/SSH)
• Administration Access Control
• Configuration Backup/Restore
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP/HTTP/TR-069
• Logging via Syslog
• SNMP Management MIB-II
• Management Session Time Out
• 2-level Management (Admin/User Mode)
• TR-069
• TR-104

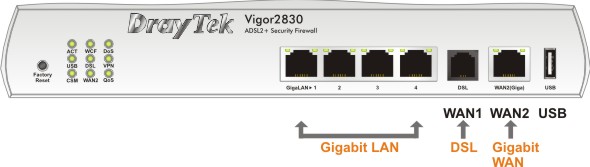

Donanım arayüzleri
• 4 x lOOOBase-TX LAN Switch, RJ-45
• 1 x ADSL2/2+WANl Port, RJ-11
• 1 x lOOOBase-TX WAN2 Port, RJ-45
• 3 x Detachable Antennas (n model)
• 2 x FXS Port, RJ-11 (V model)
• 1 x Life line Port, RJ11 (V model )
• 1 x USB Host 2.0 (for Printer/3.5G/4G* USB Modem)
• 1 x Factory Reset Button
• 1 x Wireless On/ Off/ WPS Button
| Özellik | Açıklama |
|---|---|
| ADSL Uyumu | ANSI T1.413 Issue2, ITU-T G.992.1 G.dtm, ITU-T G.922.2 G.lite, ITU-T G.922.3 ADSL2 G.dmt.bis, ITU-T G.922.5 ADSL2+, Annex M, Multi-PVC* |
| WAN Port | 1 Port Gigabit (RJ45) / 1 Port ADSL (RJ11) / 1 Port USB |
| Eşzamanlı WAN Bağlantısı | 3 |
| Ağ Özellikleri | Packet Forwarding Acceleration, DHCP Client / Relay / Server, IGMP Version 2 and Version 3, Dynamic DNS, NTP Client, Call Scheduling, RADIUS Client, DNS Cache/Proxy, UPnP 30 sessions, Multiple Subnets, VLAN Tagging (802.1q) on LAN, Routing Protocol : Static Routing, RIP V2. |
| Multi-subnets | Var |
| Tag-base (802.1q) VLAN | Var |
| Wireless | Yok |
| FTP Sunucu Desteği | Var |
| VoIP Desteği | Yok |
| VoIP Port Adeti | Yok |
| Bantgenişliği Yönetimi | QoS, Kullanıcı tanımlı trafik kontrolleriyle sınıf tabanlı bant genişliği, DiftServ Kod Nokta Sınıflandırma, Her yöne(gelen/giden) için 4-seviye öncelik, Bandwidth Borrowed, Bantgenişliği/ Oturum kısıtlama |
| Firewall | Var |
| Firewall Servisler | WEB Content Filter (Opsiyonel) |
| Firewall Özellikleri | Çoklu NAT, DMZ host. SPI(Stateful Packet Inspection)Dinamik Paket İnceleme, DoS/DDos Önleme |
| LAN Switch | 4 Port Gigabit |
| LAN Port Tipi | Bakır Ethernet |
| USB Arabirim Adeti | 1 Adet |
| USB Cihaz Desteği | 3.5G USB Modem,USB Printer,USB Flash Disk,USB external Storage, |
| Load Balance | Outbound Policy-based Load-balance, BoD ( Bandwidth on Demand ), WAN Connection Fail-over |
| Ağ Yönetimi | TR-104 Management ,Web-Based User Interface (HTTP/HTTPS), Quick Start Wizard, CLI (Command Line Interface, Telnet/SSH) ,Administration Access Control, Configuration Backup/Restore, Built-in Diagnostic Function, Firmware Upgrade via TFTP/FTP/HTTP/TR-069, Logging via Syslog, SNMP Management with MIB-II, Management Session Time Out, 2-level management (Admin/User Mode), TR-069 Management |
| Form Factor | Desktop |

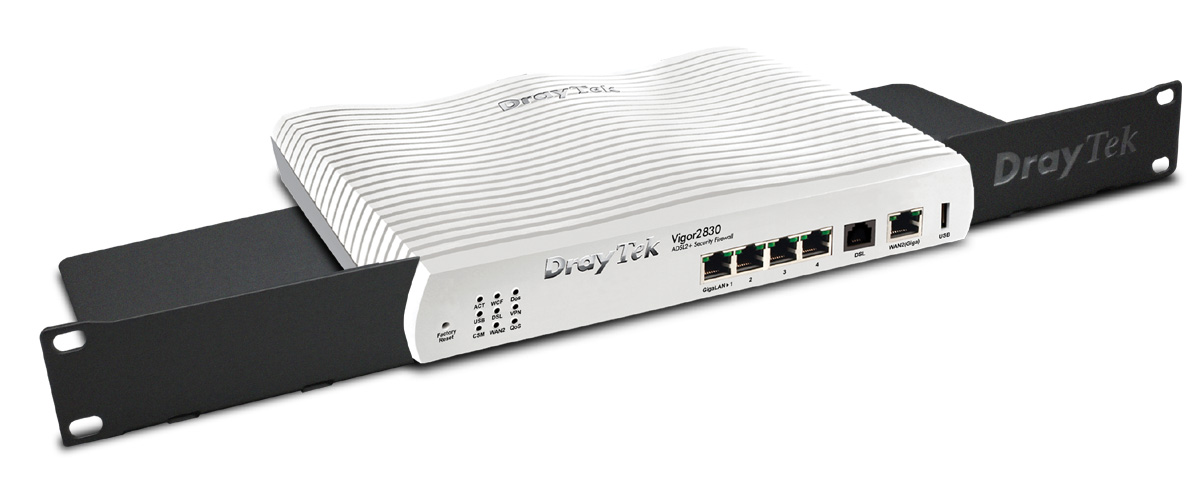

| RackMount Aparat (Opsiyonel) | Var |
| VPN Adeti | 32 Adet |
| Güvenlik | MAC Address Erişim Kontrolü, 64/128bit WEP, WPA, WPA2, 802.11x Authentication. |
| VPN Kimlik Doğrulama | MD5, SHA-1 |
| SSL VPN | Yok |
| VPN Protokol | PPTP, IPSec, L2TP, IPSec üzerinden L2TP |
| VPN Şifreleme | AES, MPPE ve donanım tabanlı DES/3DES |
| WAN Protokolleri | DHCP İstemci,Statik IP, PPPoE, PPTP, L2TP, BPA |
| Yönetim | Web Yönetim, UPnP (Basit Cihaz), SNMP: v1, v2, v2c, Ether Like MIB, MIB II, 802.11MIB , Watchdog Timer to WARM boot system |
| WPS Button | Yok |
| QoS Özelllikleri | Guarantee Bandwidth for VoIP,Class-based Bandwidth Guarantee by User-defined Traffic Categories,DiffServ Code Point Classifying ,4-level Priority for Each Direction (Inbound/Outbound),Bandwidth Borrowed |
| Uyumlu Olduğu Standartlar | CE, FCC |
| Çevresel Standartlar | RoHS |
| Anten | Yok |
| Loglama | Syslog Tools,Router Tools,5651 Sayılı Kanuna Uygun Loglama(Opsiyonel Ücretli) |
| Internet Bağlantı Paylaşımı | Var |
| Firmware güncelleme | Var |
| Yazıcı Sunucu Desteği | Var |
| Uzak Yönetim | Telnet, Web, SSH, Vigor ACS SI |
| Grafik Kullanıcı Arayüzü | Var |
| Dil Desteği | English |
| Boyutlar (En/Boy/Yükseklik) | L241 * W165 * H44 (mm) |
| Ürünün Web Sayfası | http://www.draytektr.com |
| Satış Garanti Süresi (Ay) | 24 |
Bu ürüne alternatif bir ürün bulunmamaktadır.
