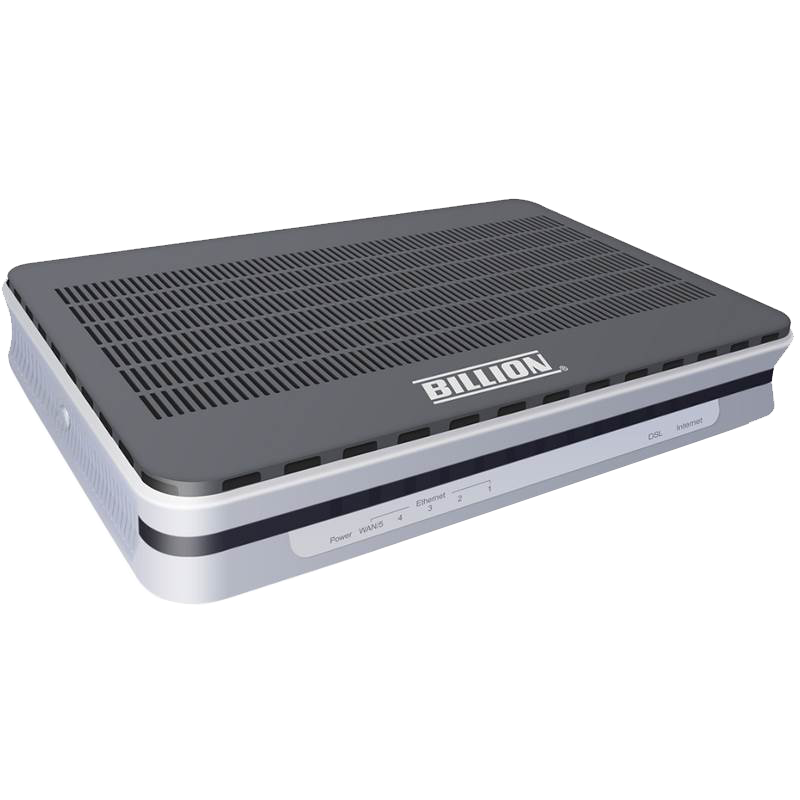

Billion BiPAC 8900X-R3 VDSL2/ADSL2+ Multi WAN Security VPN Router

Billion

Billion BiPAC 8900X-R3 VDSL2/ADSL2+ Dual WAN Security VPN Router üzerinde bir adet ADSL2+/VDSL2 port, 1 adet Ethernet WAN Portu, 1 adet USB2.0 portu, 4 adet LAN Ethernet portu bulunan 16 adet IPSec VPN Tunel yapabilen güçlü bir firewall router modem cihazıdır.

Billion BiPAC 8900X-R3 VDSL2/ADSL2+ Multi WAN Security VPN Router üzerinde bir adet ADSL2+/VDSL2 port, 1 adet Giga Ethernet WAN Portu, 1 adet USB2.0 portu (LTE USB Dongle Takılabilen), 4 adet Giga Ethernet LAN portu bulunan 16 adet IPSec VPN Tunel yapabilen güçlü bir firewall router modem cihazıdır.

Billion BiPAC 8900X-R3 VDSL2/ADSL2+ Multi WAN Security VPN Router üzerinde bir adet ADSL2+/VDSL2 port, 1 adet Giga Ethernet WAN Portu, 1 adet USB2.0 portu (LTE USB Dongle Takılabilen), 4 adet Giga Ethernet LAN portu bulunan 16 adet IPSec VPN Tunel yapabilen güçlü bir firewall router modem cihazıdır.

The Billion BiPAC 8900X R3 is a multi-service VDSL2 router. It features fiber-ready triple-WAN VDSL2 supports backward compatibility to ADSL2+ for a longer reach distance, an all-in-one advanced device including Gigabit Ethernet, connections to LTE and NAS (Network Attached Storage) in one unit. As well as being IPv6-capable, the BiPAC 8900X R3 VDSL2 router supports superfast fibre connections via a Gigabit Ethernet WAN port. It also has one USB port, allowing the device to act as a NAS (Network Attached Storage) device with DLNA (Digital Living Network Alliance) and FTP (File Transfer Protocol) access. Moreover, the USB port can host a LTE modem connecting to the LTE network for Internet access. With an array of advanced features, the Billion BiPAC 8900X R3 delivers a future-proof solution for VDSL2 connections, superfast FTTC and ultra-speed FTTH (Fiber-To-The-Home) network deployment and services.
Key Features
  • Triple-WAN ports for LTE, VDSL2/ADSL2+ fallback, Gigabit Ethernet WAN (EWAN) for broadband connectivity
  • Gigabit WAN and LAN
  • IPv6 ready (IPv4/IPv6 dual stack)
  • Fibre (FTTC/FTTP/FTTH) ready with high WAN throughput
  • NBN (National Broadband Network) ready* Note -1
  • USB port for NAS, DLNA media server, and LTE USB modem
  • SNR adjustments to achieve highest sync speeds
  • Monitoring of individual LAN ports
  • SNR adjustments to achieve highest sync speeds
  • Monitoring of individual LAN ports
  • QoS for traffic prioritization and bandwidth
  • management
  • 16 IPSec VPN tunnels
  • SOHO firewall security
  • Auto failover
  • Supports IPTV application* Note -2
  • Ease of use with quick installation wizard (EZSO)
  • Broadcom chipset for better stability
  • Ideal for SOHO and office users
Benefits
Pathway to the Future
IPv6 (Internet Protocol Version 6), launched as the current IPv4 is getting filled up, gradually becomes the indispensible addressing system for the savvy cloud computing users. Equipped with IPV6, the BiPAC 8900X R3 eagerly provides users a better working environment to work with, a shortcut to upgrade and a more efficient solution to save budget. For the customers during this transition period, dual stack (IPv4 and IPv6) feature enables the hosts a convenient way to reserve both address to smooth over this coexistent period.

LTE Mobility and Always-On Connectivity
With the BiPAC 8900X R3 you can connect a  LTE USB modem to its built-in USB port, allowing you to watch movies, download music or access e-mail no matter where you may be. You can even share your Internet connection with others, when away on business, at a show, or wherever there is mobile signal but no fixed line access. The auto fail-over feature ensures maximum connectivity and minimum interruption by quickly and smoothly connecting to a LTE network in the event that your DSL/fibre/cable line fails. The BiPAC 8900X R3 will then automatically reconnect to the DSL/fibre/cable connection when it's restored, reducing connection costs. These features are perfect for office situations where a constant and uninterrupted connection is critical.

Experience Gigabit
The BiPAC 8900X R3 has four Gigabit LAN ports and one Giga Ethernet WAN port that can be configured as a WAN interface for broadband connectivity. This EWAN offers another broadband connectivity option for connecting to a cable, DSL, fibre modem. The BiPAC 8900X R3 again offers users convenience and optimal network performance with data rates reaching up to 1Gbps.

Secure VPN Connections
The BiPAC 8900X R3 supports comprehensive and robust IPSec VPN (Virtual Private Network) protocols for business users to establish private encrypted tunnels over the public Internet to secure data transmission between headquarters and branch offices. With a built-in DES/3DES VPN accelerator, the router enhances IPSec VPN performance significantly.

VPN Özellikleri
Max. Throughput on VDSL 150 Mbps
NAT Throughput 1Gbps (HW accelerator)
IPsec VPN Performance 27 Mbps
SSL VPN Performance N/A
Max. Concurrent VPN Tunnels 20
Concurrent IPSec VPN Tunnels 16
Concurrent PPTP VPN Tunnels Server : 8 / Client : 4
Concurrent L2TP VPN Tunnels Server : 8 / Client : 4
Concurrent OpenVPN Tunnels Server : 8 / Client : 8
Concurrent GRE VPN Tunnels 8

*Notes:
1. This is only applicable for Australia and New Zealand.
2. IPTV application may require subscription to IPTV services from a Telco / ISP.
3. On request for Telco / ISP projects
4. Specifications on this datasheet are subject to change without prior notice.



Specifications

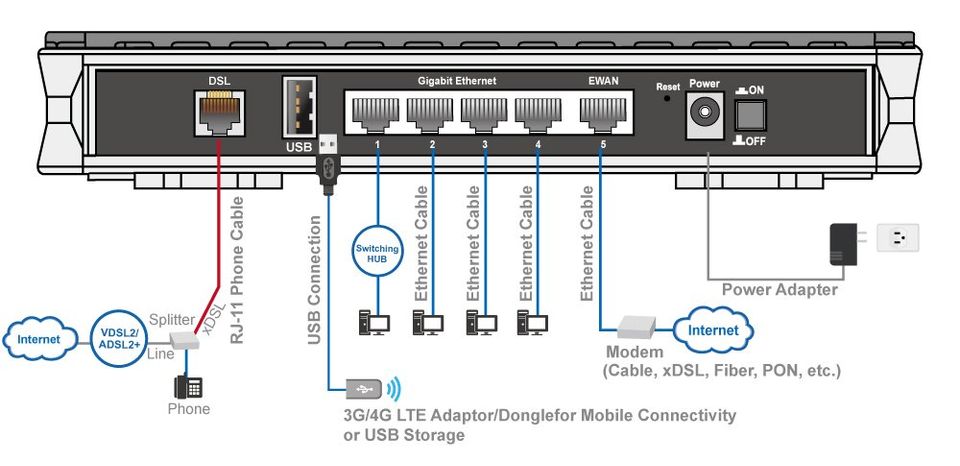

WAN Interface



V/ADSL

EWAN

● (GbE)

LTE

● (via USB)

Hardware Interface



SIM slot

-

Fast Ethernet

-

Gigabit Ethernet

4+1

USB 2.0

1

Features



VPN

IPv4 / IPv6

VLAN_MUX

Failover / Fallback

Load balance

Hardware Specifications



Physical Specifications

Dimensions: 9.04" x 6.10" x 1.46" (229.5mm x 155mm x 37mm)

Power Requirements

Input : 15V DC, 2.0A

Operating Environment

Operating temperature: 0℃ ~ 40℃

Humidity

20﹪~ 95﹪non-condensing
