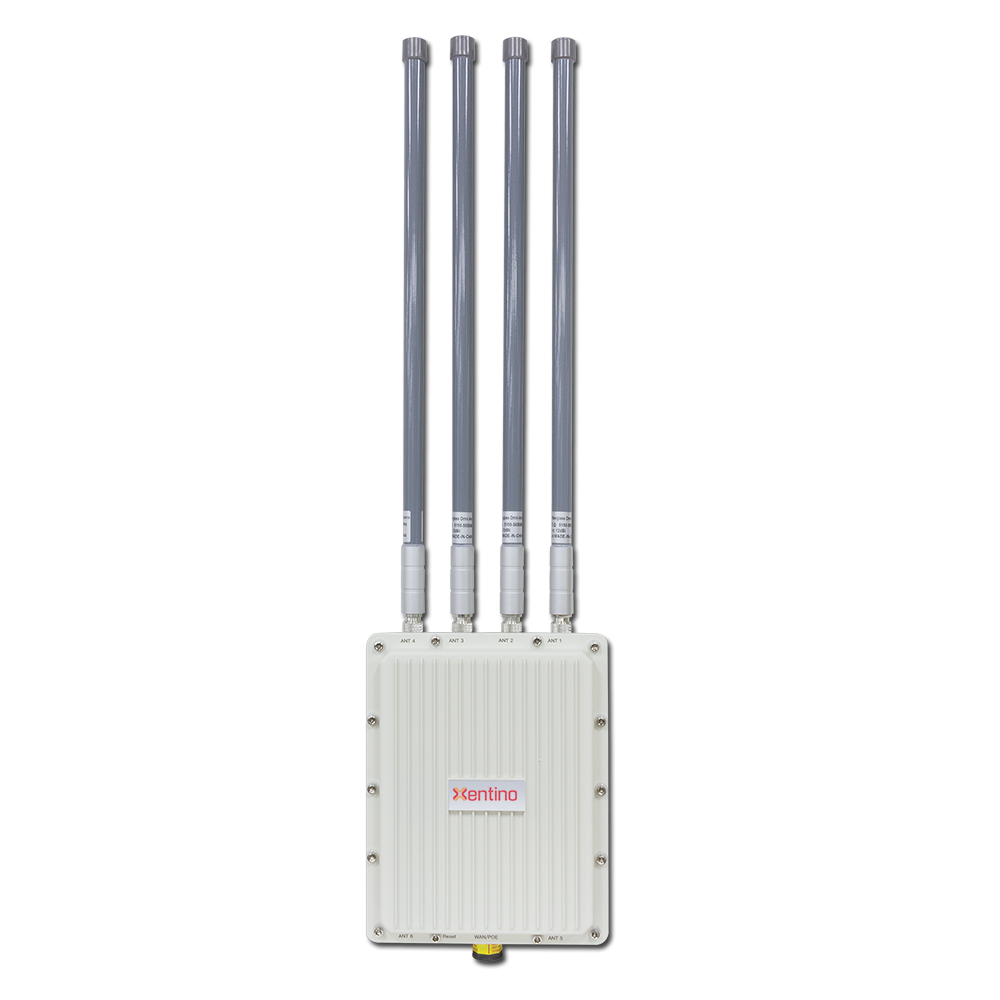

Xentino DA840 11ax 1800Mbps Outdoor Wireless AP.
DA840 is an 11ax Wi-Fi standard Outdoor Wireless AP with Qualcomm Chipset, it support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming. Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2)+5GHz (1200Mbps 2*2), equipped 1G WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation.
Main Features
- Comply with IEEE 802.11ax/ac/b/g/n, dual band, 1800Mbps Data Rate
- With IPQ6000 , Flash: SPI NOR 8MB (1.8v) + NAND 128MB, greatly improved the data processing performance.
- 1*10/100/1000Mbps RJ45 Port, faster Ethernet.
- With Skyworks power amplifier and FEM, 300mW high power, N type antenna connector for high gain antenna, stronger signal strength, more wireless coverage.
- Support active IEEE 802.3at 48V PoE standard
- Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
- Support Seamless Roaming, OFDMA,1024-QAM
|
Hardware |
|
|
Chipset |
IPQ6000 |
|
Standard |
802.11ax/ac/b/g/n |
|
Flash |
SPI NOR 8MB (1.8v) + NAND 128MB |
|
RAM |
DDR3L 1GB |
|
2.4G Frequency |
2.4GHz - 2.484GHz |
|
2.4G Wi-Fi standard |
802.11b/g/n |
|
5.8G Frequency |
5150~5850MHz |
|
5.8G Wi-Fi Standard |
802.11 ax/ac |
|
Interface |
1 * 10/100 /1000 RJ45 WAN Port |
|
1 * Reset button, press 10 seconds to revert to default setting |
|
|
Antenna |
N type antenna connector |
|
Data Rate |
1800Mbps |
|
End Users |
160+ |
|
RF Power |
≤ 24dBm |
|
DC |
12V----2A |
|
PoE |
48V (IEEE 802.3at) |
|
LED light |
Sys, WAN, LAN |
|
Power Consumption |
≤ 24W |
|
Size |
|
|
Weight |
|
|
Others |
|
|
Package Contents |
1800Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Installation Accessory |
|
Environment |
Operating Temperature: -20~45 ℃ Limit working temperature: -30~70 ℃ Storage Temperature: 0~70 ℃ Humidity: 5%~95% non-condensing |
