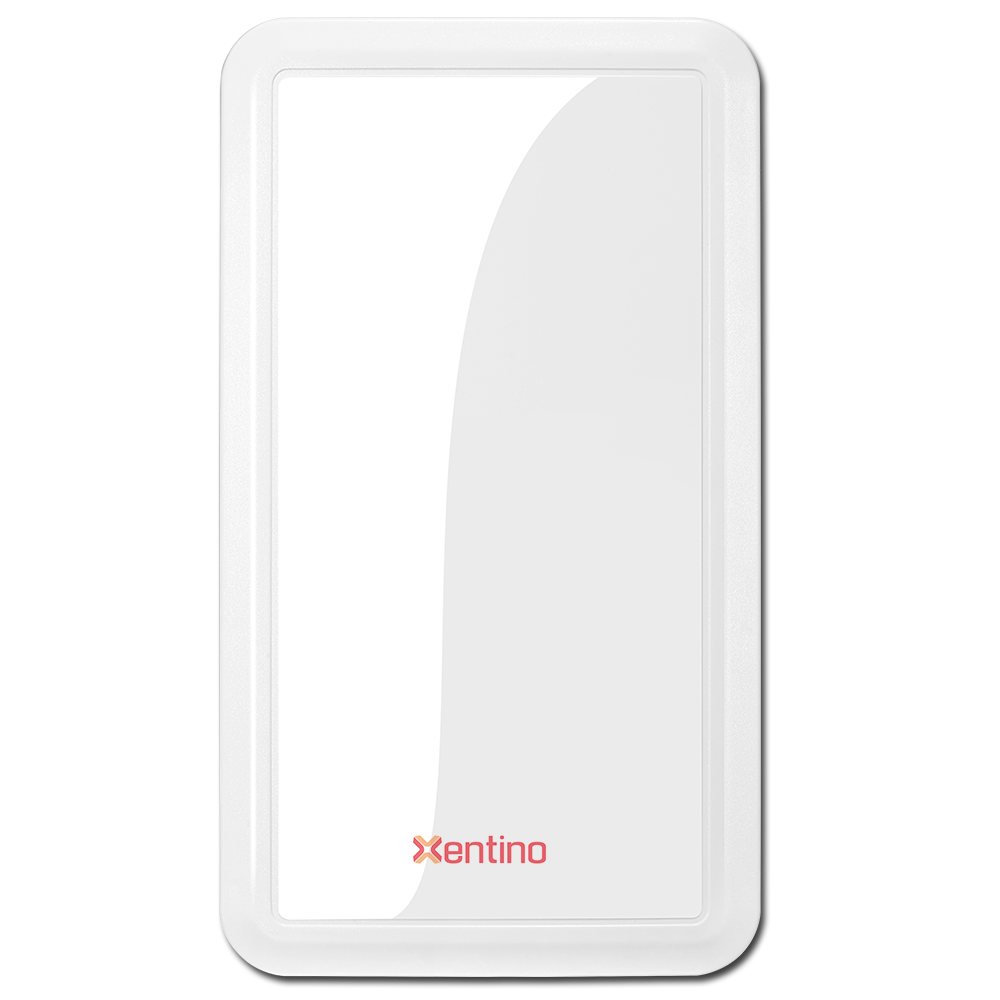

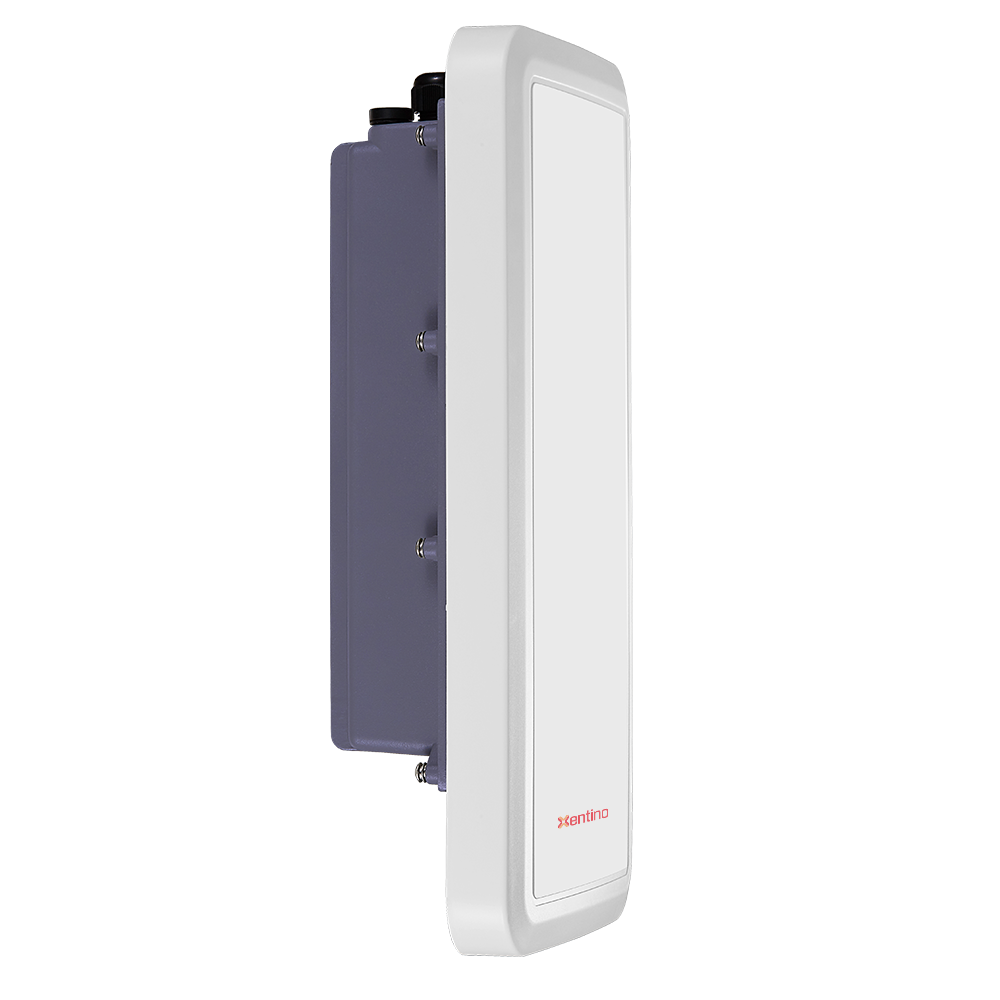

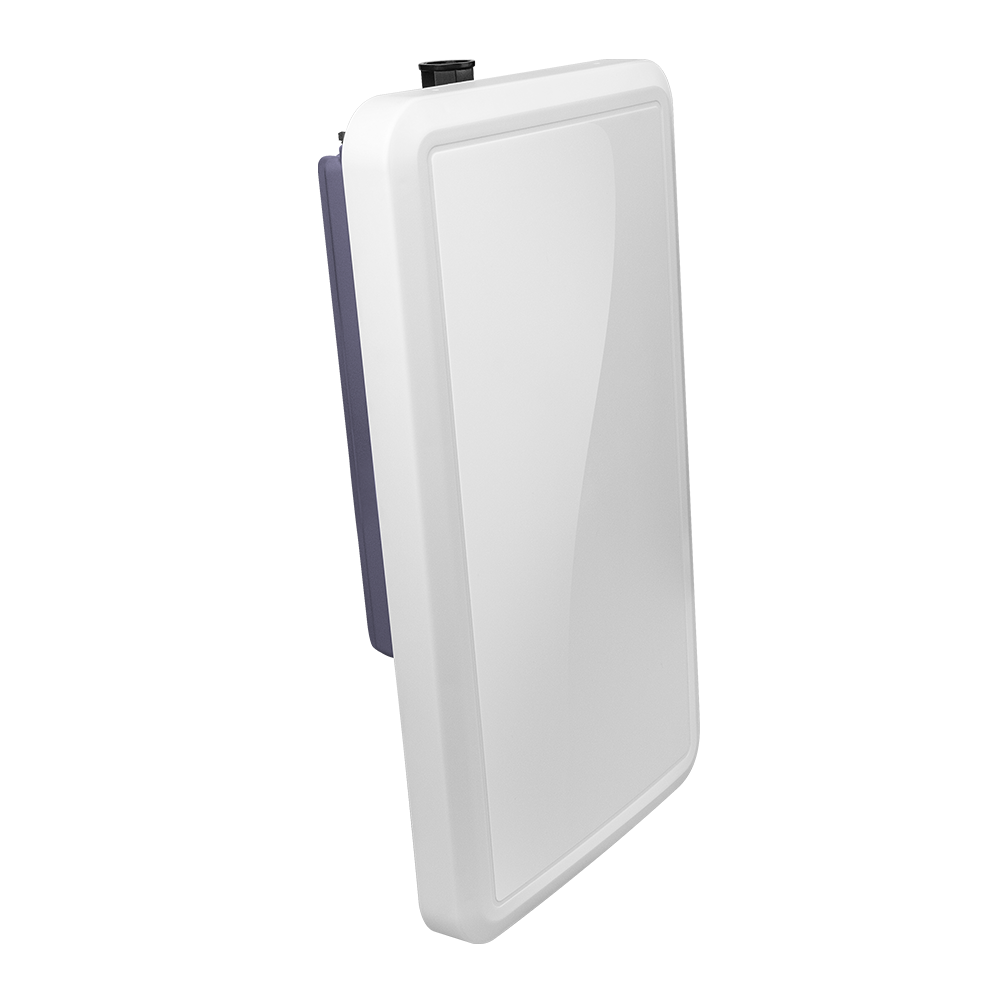

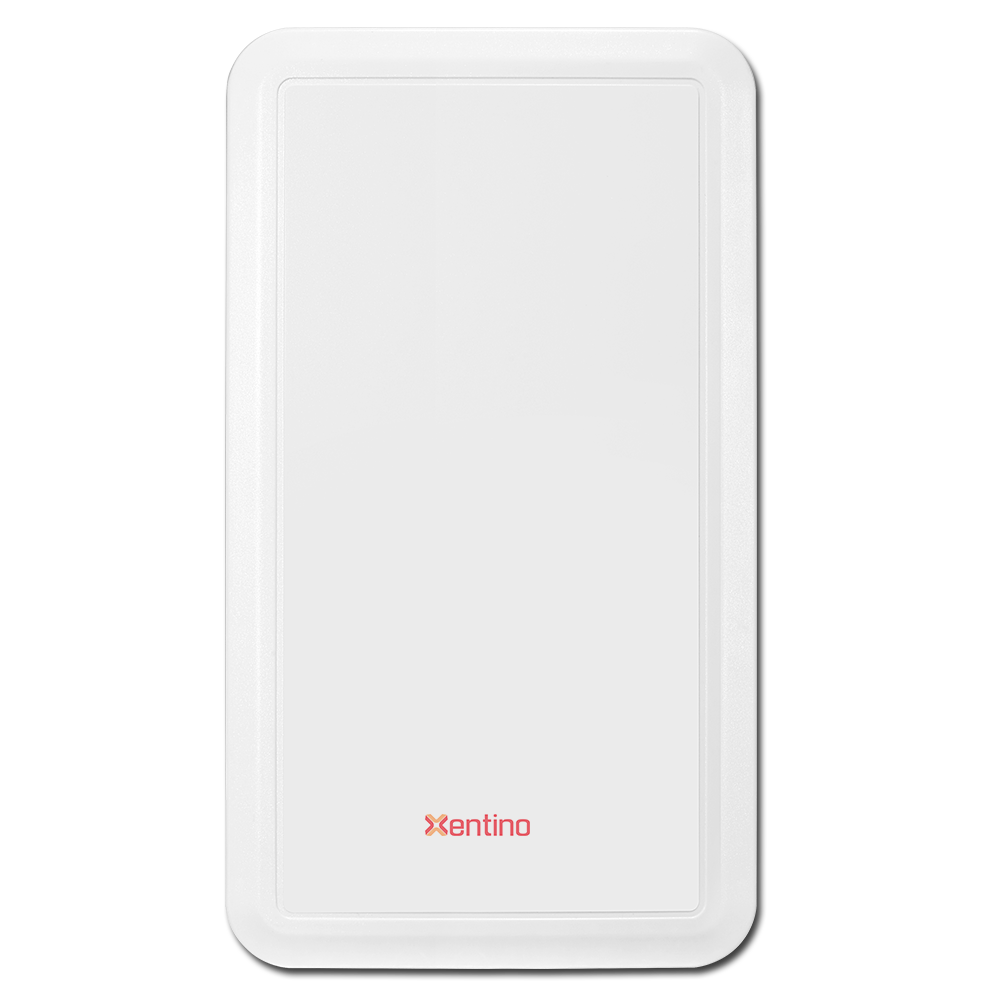

Xentino DC3200 11ac High Power Outdoor CPE (10Km)
DC3200 is an Atheros Solution high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900Mbps), equiped Gigabit WAN port, fast ethernet data rate make more than 100 end users can acccess into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
DC3200 is an Atheros Solution high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900Mbps), equiped Gigabit WAN port, fast ethernet data rate make more than 100 end users can acccess into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
DC3200 is an Atheros Solution high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900Mbps), equiped Gigabit WAN port, fast ethernet data rate make more than 100 end users can acccess into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
Main Features
- Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
- 1 10/100/1000Mbps WAN Port，faster Ethernet.
- 1000mW high power, build in 18dBi MIMO antenna, stronger signal strenght, more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
- Support IEEE 802.3at PoE standard
- Support SSID broadcasting, Muiti SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
- Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
- With function of build in firewall, IP filter, URL filter and MAC filter
- Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
- Support DDNS, VPN pass through, Port forwarding and DMZ host
- Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security

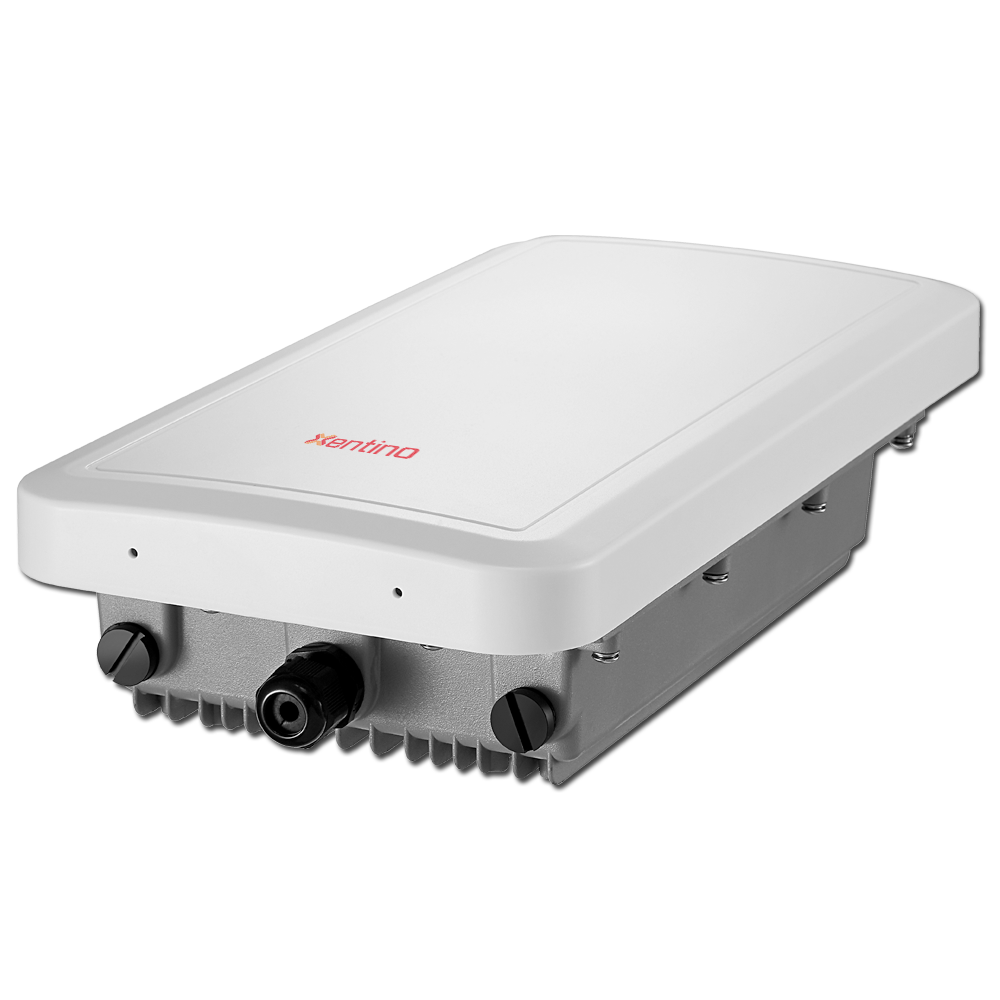

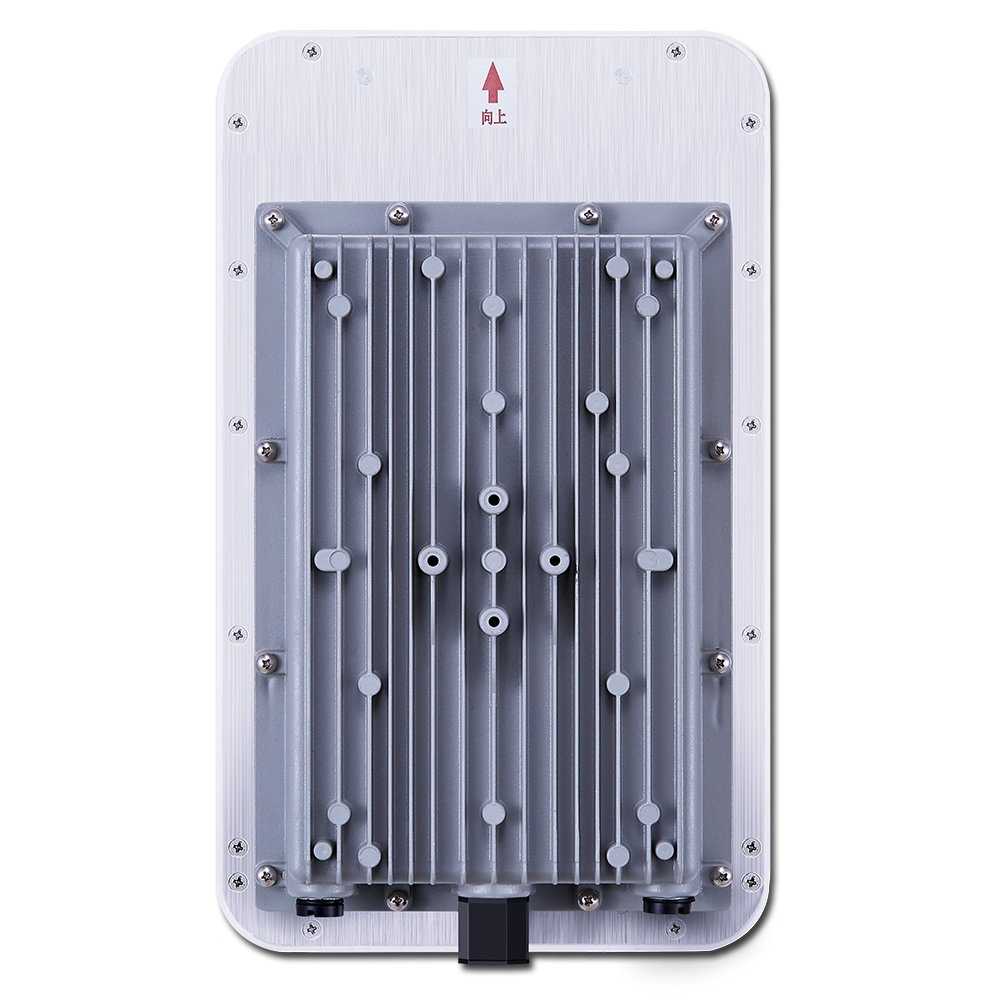

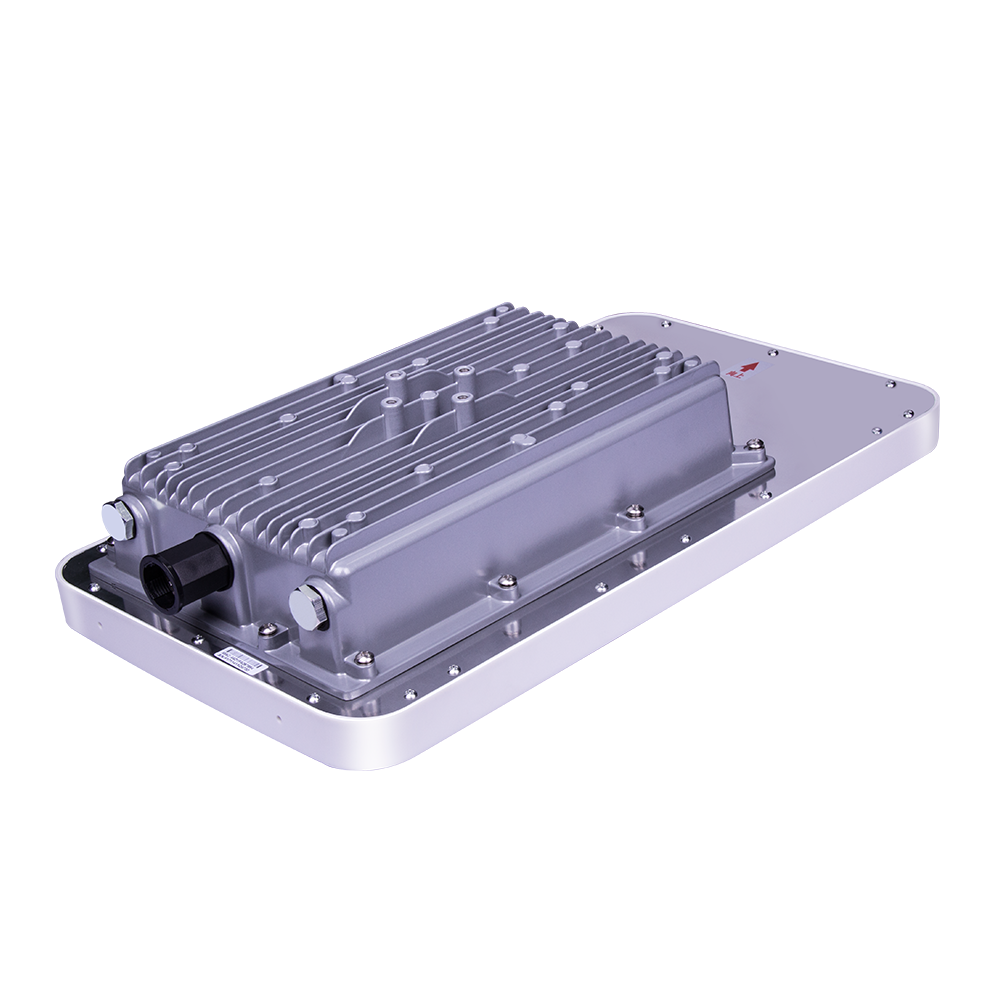

ABS + Metal case, waterproof, dust proof and sunscreen shell, temperature adaptive and board protective
DC3200 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 70℃. Suit for any country.
High Power for more range and stable signal
Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 18dBi MIMO high gain antenna,the wifi range is can be 10KM distance, greatly increase the wifi range and supply the stable wifi signal for users.
Power over Ethernet
DC3200 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Access Controller System & Cloud Management System
Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore...Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in WiFi Projects.
|
Hardware |
||||||||
|
Chipset |
Atheros QCA9563 + QCA9882 +QCA8334 |
|||||||
|
Standard |
802.11ac/b/g/n, MIMO technology |
|||||||
|
Memory |
128MB DDR2 RAM |
|||||||
|
Flash |
16MB |
|||||||
|
Interface |
1 * 10/100 /1000Mbps RJ45 WAN Port |
|||||||
|
1 * Reset button, press 15 seconds to revert to default setting |
||||||||
|
Antenna |
Build in 18dBi Panel Antenna |
|||||||
|
Power consumption |
48V PoE<30W |
|||||||
|
Size |
L: 410mm, W: 20.5mm, H: 105 mm |
|||||||
|
Weight |
3KGS |
|||||||
|
RF Data |
||||||||
|
Frequency |
2.4G:802.11b/g/n: 5GHz：802.11a/n/ac |
|||||||
|
2.4GHz、5GHz |
||||||||
|
Country code |
FCC、IC、ETSI、MKK、MKK1、MKK2、MKK3、NCC、RUSSIAN、CN |
|||||||
|
Modulation |
OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
|||||||
|
DSSS = DBPSK, DQPSK, CCK |
||||||||
|
Throughput |
1200 Mbps |
|||||||
|
Receive Sensitivity & RF Power |
||||||||
|
Frequency |
Mode |
Data Rate |
Standard |
Result(dBm) |
RF Power (±1.0dBm) |
|||
|
CH1 |
CH6 |
CH11 |
||||||
|
2.4GHz |
11b |
1Mbps |
≤-83 |
-99 |
-99 |
-99 |
29dBm |
|
|
11Mbps |
≤-76 |
-92 |
-92 |
-92 |
||||
|
11g |
6Mbps |
≤-85 |
-95 |
-95 |
-95 |
29dBm |
||
|
54Mbps |
≤-68 |
-82 |
-82 |
-82 |
27dBm |
|||
|
11n HT20 |
MCS0/8 |
≤-85 |
-95 |
-95 |
-95 |
28dBm |
||
|
MCS7/15 |
≤-67 |
-79 |
-77 |
-78 |
26dBm |
|||
|
11n HT40 |
MSC0/8 |
≤-82 |
-93 |
-93 |
-93 |
28dBm |
||
|
MCS7/15 |
≤-64 |
-75 |
-75 |
-75 |
26dBm |
|||
|
5GHz |
|
CH36 |
CH100 |
CH149 |
|
|||
|
11a |
6Mbps |
≤-85dBm |
-92 |
-92 |
-92 |
26dBm 23dBm |
||
|
54Mbps |
≤ -68dBm |
-75 |
-75 |
-75 |
||||
|
11n HT20 |
MCS0/8 |
≤ -85dBm |
-91 |
-91 |
-91 |
26dBm |
||
|
MCS7/15 |
≤ -64dBm |
-72 |
-72 |
-72 |
23dBm |
|||
|
|
CH38 |
CH110 |
CH151 |
|
||||
|
11n HT40 |
MCS0/8 |
≤ -82dBm |
-88 |
-88 |
-88 |
26dBm |
||
|
MCS7/15 |
≤ -61dBm |
-70 |
-70 |
-70 |
23dBm |
|||
|
|
CH36 |
CH100 |
CH149 |
|
||||
|
11ac HT20 |
MCS0 |
≤-82 |
-92 |
-92 |
-92 |
26dBm |
||
|
MCS8 |
≤-60 |
-70 |
-70 |
-69 |
23dBm |
|||
|
|
CH38 |
CH110 |
CH151 |
|
||||
|
11ac HT40 |
MCS0 |
≤-79 |
-90 |
-89 |
-89 |
25dBm |
||
|
MCS9 |
≤-60 |
-66 |
-65 |
-65 |
22dBm |
|||
|
|
CH42 |
CH106 |
CH155 |
|
||||
|
11ac HT80 |
MCS0 |
≤-79 |
-87 |
-87 |
-87 |
24dBm |
||
|
MCS9 |
≤-54 |
-62 |
-61 |
-61 |
21dBm |
|||
|
Firmware Features |
|
|
Operation mode |
Wireless AP, Gateway, WISP, WiFi Repeater |
|
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
|
Wireless Security |
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
|
SSID |
Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) |
|
Firewall |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter |
|
Protocols |
IPv4 |
|
Others |
|
|
Package Contents |
1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
|
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
|
Environment |
Operating Temperature: 0~40 ℃(32 ℉~104℉) Storage Temperature: -40~70 ℃ (-40 ℉~158℉) |
|
Management |
Firmware GUI , Remote Management, WLAN Controller, Cloud Management System |
Antenna Specifications
|
Electrical Specifications |
|
|
Frequency range（MHz） |
2400～2500 / 5725～5850 |
|
Polarization |
Vertical and Horizontal |
|
Gain（dBi） |
2×15 / 2×18 |
|
Half-power beam width（°） |
H: 60/14 V:60/7 |
|
Front-to-back ratio（dB） |
≥25 |
|
Input Impedance（Ω） |
50 |
|
VSWR |
≤1.5 |
|
Isolation between ports |
≥28dB |
|
Cross-polar ratio |
≥15dB@0º ≥10dB@+/-60º |
|
Sidelobe suppression for first sidelobe above horizon |
15 dB |
|
Maximum input power（W） |
100 |
|
Lightning protection |
DC Ground |
|
Mechanical Specifications |
|
|
Input connector type |
4-N Female |
|
Dimensions-mm (Height/Width/Depth) |
450*253*35 |
|
Packing size（mm） |
485*280*70 |
|
Antenna weight （kg） |
1.8 |
|
Radome material |
ABS |
|
Radome color |
White |
|
Mechanical tilt（°） |
0～10 |
|
Operating temperature（°c） |
-40～60 |
|
Rated Wind Velocity（m/s） |
60 |
|
Mounting hardware（mm） |
￠30～￠50 |
