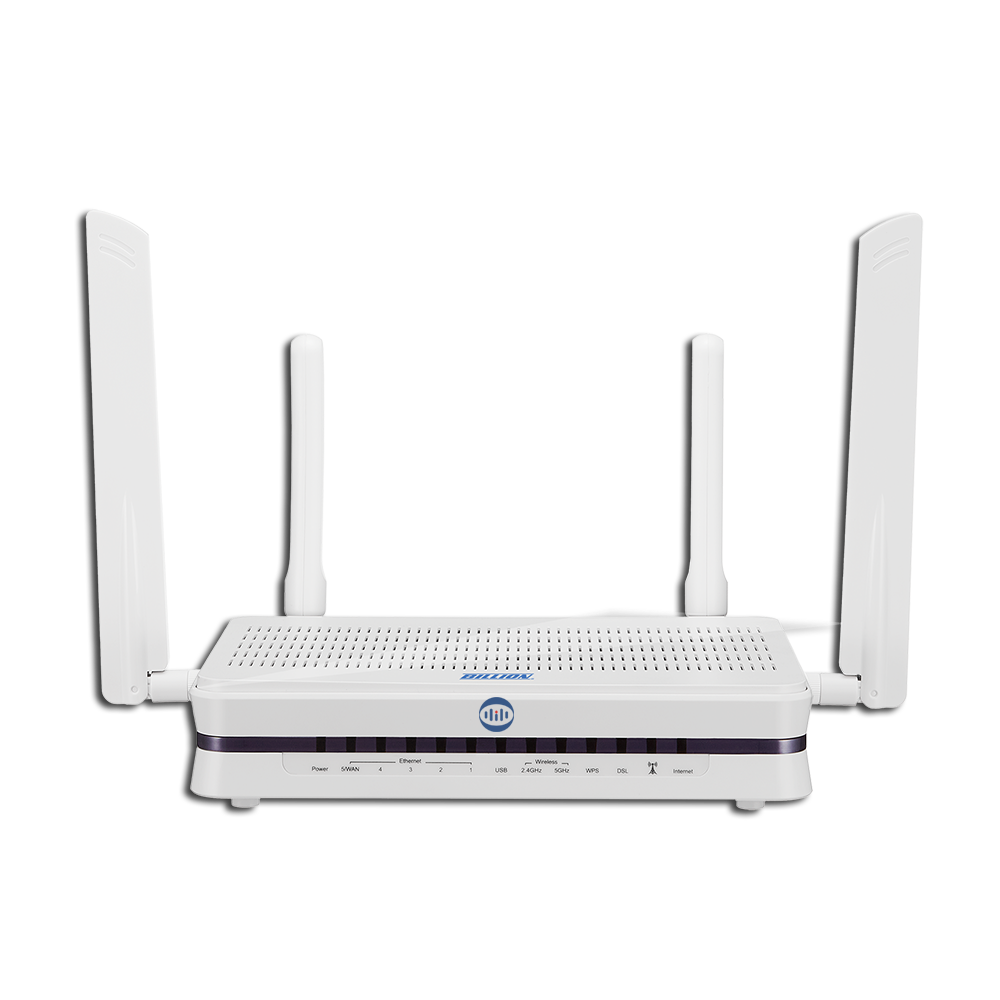

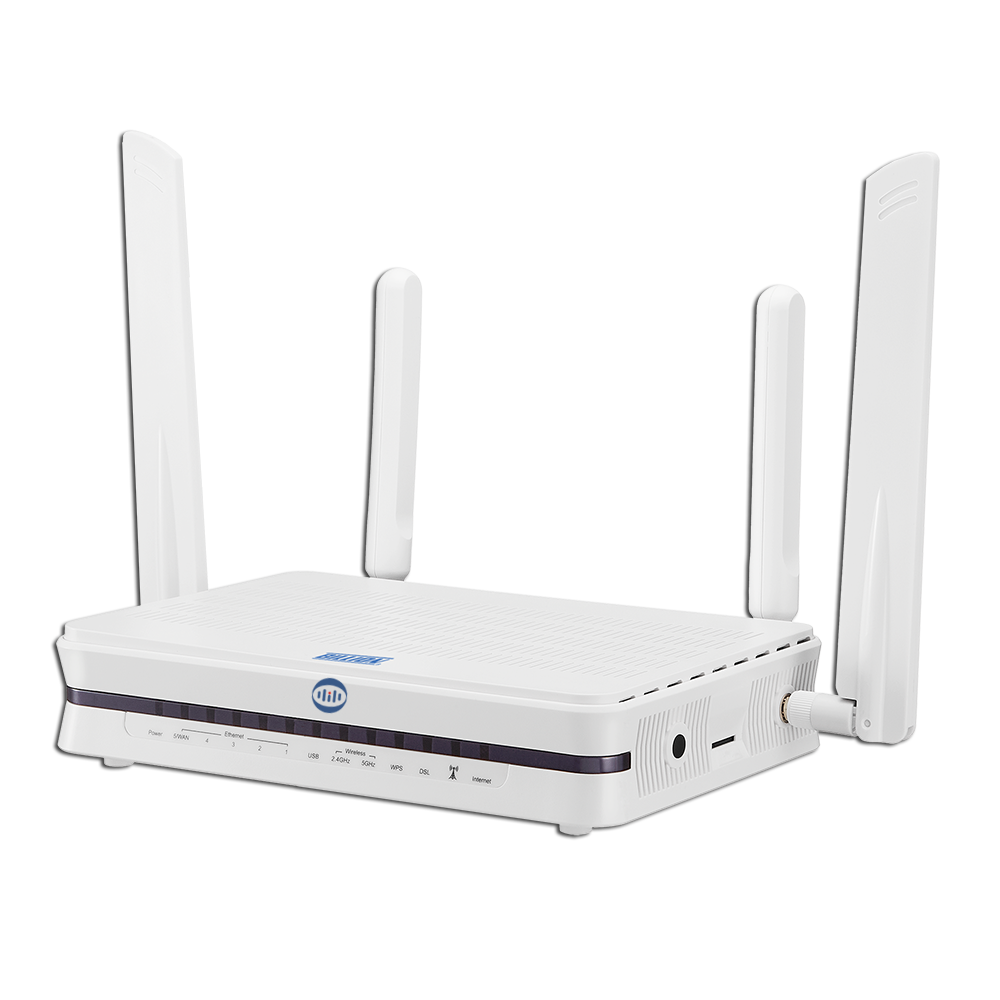

Billion BiPAC 8206AZ-Cat6 4G/LTE VDSL2/ADSL2+ Wireless VPN Firewall Load Balance Router
Billion BiPAC 8206AZ-Cat6 4G/LTE VDSL2/ADSL2+ Wireless VPN Firewall Router üzerinde bir adet ADSL/VDSL port, 1 adet Giga Ethernet WAN Portu, 4 adet Giga Ethernet LAN Portu, 1 adet Gömülü LTE (Cat6) SIM Yuvası bulunan Dual Band Kablosuz (WiFi-802.11ac) LAN özelliğine sahip, 6adet IPSec, 20adet PPTP,L2TP,OpenVPN ve 2adte GRE VPN yapabilen güçlü bir firewall router modem cihazıdır.
Billion BiPAC 8206AZ-Cat6 4G/LTE VDSL2/ADSL2+ Wireless VPN Firewall Router üzerinde bir adet ADSL/VDSL port, 1 adet Giga Ethernet WAN Portu, 4 adet Giga Ethernet LAN Portu, 1 adet Gömülü LTE (Cat6) SIM Yuvası bulunan Dual Band Kablosuz (WiFi-802.11ac) LAN özelliğine sahip, 6adet IPSec, 20adet PPTP,L2TP,OpenVPN ve 2adte GRE VPN yapabilen güçlü bir firewall router modem cihazıdır.
Billion BiPAC 8206AZ 4G/LTE VDSL2/ADSL2+ Wireless VPN Firewall Router üzerinde bir adet ADSL/VDSL port, 1 adet Giga Ethernet WAN Portu, 4 adet Giga Ethernet LAN Portu, 1 adet Gömülü LTE (Cat6) SIM Yuvası bulunan Dual Band Kablosuz (WiFi-802.11ac) LAN özelliğine sahip, 6adet IPSec, 20adet PPTP,L2TP,OpenVPN ve 2adet GRE VPN yapabilen güçlü bir firewall router modem cihazıdır.
The BiPAC 8206AZ, triple-WAN, EWAN, LTE, and VDSL&ADSL2+ firewall router is integrated with the 802.11ac (5GHz) + 802.11n (2.4GHz) Wireless Access Point and 4-port Giga switch. It is a cutting-edge networking product for SOHO and residential users. Uniquely, the router allows users to directly insert the LTE SIM card into its built-in SIM slot instead of requiring external USB modems. This design will avoid compatibility issues of many different LTE USB modems. With the increasing popularity of the LTE standard, communication via the BiPAC 8206AZ is becoming more convenient and widely available - enabling users to use LTE, and UMTS Internet connection, making downstream rates of up to 300Mbps possible. Users can watch movies, download music, or access e-mail wherever an LTE connection is available.
- Compliant with VDSL2/ADSL2+ standards
- Triple-WAN ports for 3G/4G LTE, VDSL2/ADSL2+ fallback, Gigabit Ethernet WAN (EWAN) for broadband connectivity
- Load balance among multiple WAN interfaces
- Embedded LTE and SIM slot
- SMS remote management
- Simultaneous dual-band Wireless 867Mbps (5GHz) and 300Mbps (2.4GHz)
- Gigabit EWAN and LAN ports
- IPv6 ready (IPv4/IPv6 dual stacks)
- Fibre (FTTC/FTTP/FTTH) ready with high WAN throughput via EWAN port
- NBN (National Broadband Network) ready*1
- USB port for storage.
- QoS for traffic prioritization and bandwidth management
- Secure VPN with powerful DES/3DES/AES
- Compliant with IEEE 802.11a/b/g/n and 802.11ac standards
- WPS (Wi-Fi Protected Setup) for easy setup
- Wireless security with WPA-PSK/WPA2-PSK
- Multiple wireless SSIDs with wireless guest access and client isolation
- Supports Bridge Grouping
- SOHO firewall security
- Auto failover and fallback
- Supports IPTV application*2
- Ideal for home, SOHO, retail stores
LTE Mobility and Always-On Connection
The BiPAC 8206AZ router allows you to insert an LTE SIM card to its built-in SIM slot, enabling you to use an LTE Internet connection, which makes downstream rates of up to 150Mbps*3 possible. With the increasing popularity of the LTE standard, communication via the BiPAC8206AZ is becoming more convenient and widely available - allowing you to watch movies, download music on the road, or access e-mail no matter where you are. You can even share your Internet connection with others, no matter if you're in a meeting, or speeding across the country on a train. The BiPAC 8206AZ provides failover & fallback feature. These features are perfect for office situations where constant connection is paramount. To manage this device remotely efficiently and conveniently to save labor cost being on-site support, two ways are supported, one is via the TR-069 management protocol and the other is via the SMS. Via the SMS, the user could easily send a message with a smartphone to BiPAC 8206AZ to configure the device and retrieve information. Those commands include getting router status, WAN IP address, turning Internet UP or DOWN, enabling/disabling remote WEB access, configuring APN, rebooting the device, rebooting the device with factory default, and etc.
Smooth, Responsive Net Connection
Quality of Service (QoS) gives users full control over outgoing data traffic. Priority can be assigned by the router to ensure that important transmissions like gaming packets, VoIP calls, or IPTV/streaming content passes through the router at lightning speed, even when there is heavy Internet traffic. The speed of different types of outgoing data passing through the router is also controlled to ensure that users do not saturate bandwidth with their browsing activities.
Maximum Performance Dual-band Wireless Router
Featured with simultaneous dual-band technology, the BiPAC 8206AZ can run both 2.4GHz and 5GHz frequency bands at the same time, offering ultra-fast wireless speeds of up to 867Mbps (5GHz) and 300Mbps (2.4GHz), and SSIDs on both bands. The BiPAC 8206AZ, by adopting this state-of-the-art technology, allows for multiple-demand applications, such as streaming HD videos and multiplayer gaming simultaneously. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over wireless LAN. The router also supports the Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button.
Experience Gigabit

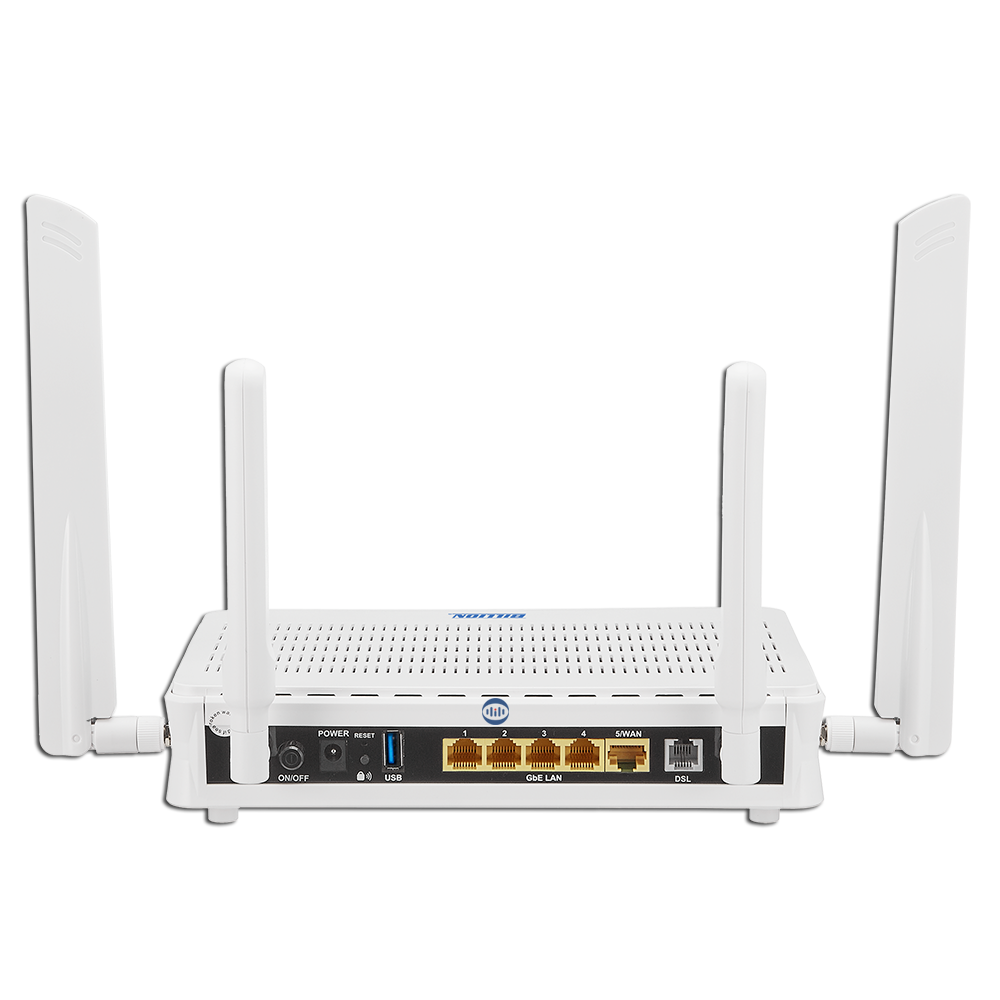

The BiPAC 8206AZ has four Gigabit LAN ports and one Giga Ethernet port as an Ethernet WAN port. This EWAN offers another broadband connectivity option for connecting to a cable, DSL, fiber modem.
Secure VPN Connections
The BiPAC8206AZ supports embedded IPSec VPN (Virtual Private Network) protocols, allowing users to establish encrypted private connections over the Internet. You can access your corporate Intranet and transmit sensitive data between branch offices and remote sites anytime; even when you are out of office, thus enhancing productivity.
| VPN Özellikleri | |
| Max. Throughput on VDSL | 300 Mbps |
| NAT Throughput | 1Gbps (HW accelerator) |
| IPsec VPN Performance | 63 Mbps |
| SSL VPN Performance | 20 Mbps (OpenVPN SSLVPN) |
| Max. Concurrent VPN Tunnels | 20 |
| Concurrent IPSec VPN Tunnels | 6 |
| Concurrent PPTP VPN Tunnels | Server : 20 / Client : 2 |
| Concurrent L2TP VPN Tunnels | Server : 20 / Client : 2 |
| Concurrent OpenVPN Tunnels | Server : 20 / Client : 4 |
| Concurrent GRE VPN Tunnels | 2 |
VDSL2/ADSL2+ Compliance
- Compliant with xDSL standard
- ITU-T G.993.2 (VDSL2)
- ITU-T G.998.4 (G.inp)
- ITU-T G.993.5 (G.vector)
- ITU-T G.992.3 (G.dmt.bis) Annex A, B, I, J, L and M.
- ITU-T G.992.5 (G.dmt.bis plus)
- Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1 (G.dmt) Annex A, B
- ITU-T G.992.2 (G.lite) Annex A, B - Supports VDSL2 band plan: 997 and 998
- ADSL/2/2+ fallback modes
- Supports VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a and 35b.
- Supports ATM and PTM modes
- Supports Dying Gasp
LTE *3
LTE: peak downlink speed of up to 300Mbps and peak uplink speed of up to 100Mbps
- Supports multi-band
FDD LTE: B1/B3/B5/B7/B8/B20
TDD LTE: B38/B40/B41
- Supports multi-band WCMDA: B1/B5/B8
Network Protocols and Features
- IPv4 or IPv4/IPv6 dual stack
- NAT, static (v4/v6) routing and RIP-1/2
- IPv6 stateless/stateful address auto-configuration
- IPv6 router advertisement
- IPv6 over PPP
- DHCPv6
- IP tunnel IPv6 in IPv4 (6RD)
- IP tunnel IPv4 in IPv6 (DS-Lite)
- Universal Plug and Play (UPnP) compliant
- Dynamic Domain Name System (DDNS)
- Virtual server and DMZ
- SNTP, DNS relay, IGMP proxy and IGMP snooping for video service
- MLD proxy and MLD snooping for video service
- Management based on IP protocol, port number and address
- Supports Bridge Grouping
Firewall
- Built-in NAT firewall
- Stateful Packet Inspection (SPI)
- Prevents DoS attacks including Land Attack, Ping of Death, etc
- Remote access control for web based access
- Packet filtering - port, source IP address, destination IP address
- URL content filtering - string or domain name detection in URL string
- MAC filtering
- Password protection for system management
Virtual Private Network (VPN)
- IPSec VPN tunnels (6Tunnel)
- IKE key management
- DES, 3DES and AES encryption for IPSec
- IPSec pass-through
- GRE (Generic Routing Encapsulation) tunnel (2Tunnel)
- Supports L2TP, PPTP, and L2TP over IPsec (20Tunnel)
- Supports OpenVPN (20Tunnel)
Quality of Service Control
- Supports the DiffServ approach
- Traffic prioritization and bandwidth management based on IP protocol, port number and address
ATM and PPP Protocols
- Compliant with xDSL standard
- ATM Adaptation Layer Type 5 (AAL5)
- Multiple protocol over AAL5 (RFC 2684, formerly RFC 1483)
- Bridged or routed Ethernet encapsulation
- VC-based and LLC-based multiplexing
- PPP over Ethernet (PPPoE)
- PPP over ATM (RFC 2364)
- Classical IP over ATM (RFC 1577)
- MAC encapsulated routing (RFC 1483 MER)
- OAM F4/F5
IPTV Applications*2
- IGMP snooping and IGMP proxy
- MLD snooping and MLD proxy
- Bridge Grouping
- Supports VLAN MUX
- Quality of Service (QoS)
Wireless LAN
- Compliant with IEEE 802.11a/b/g/n/ac standards
- 2.4 GHz and 5 GHz frequency range
- Up to 1200Mbps wireless operation rate
- WPS (Wi-Fi Protected Setup) for easy setup
- Supports WPS
- 64/128 bits WEP supported for encryption
- Wireless security with WPA-PSK/WPA2-PSK
- Multiple wireless SSIDs with wireless guest access and client isolation
USB Application Server
- Storage/NAS: FTP server, samba server
Management
- Web-based GUI for remote and local management (IPv4/IPv6)
- Firmware upgrade and configuration data upload and download via web-based GUI
- Embedded Telnet server for remote and local management
- Supports DHCP server/client/relay
- Supports SNMP
- Supports SMS
- TR-069*4 supports remote management
- Load balance
- Auto failover and fallback
*Notes:
1. This is only applicable for Australia and New Zealand.
2. Only upon request for Telco / ISP tender projects.
3. The 3G/4GLTE data rate is dependent on the embedded module and your local service provider.
4. On request for Telco / ISP projects
5. Specifications in this datasheet are subject to change without prior notice
