Xentino S4804GP 52Port (48GEPoE/4SFP) Gigabit POE 4Port SFP L2+ Managed Switch (600W)

Xentino

Xentino S4804GP üzerinde 48adet 10/100/1000Mbps PoE desteğine sahip ethernet portu, 4adet 100/1000Mbps SFP yuvası bulunan L2+ yönetilebilir network switchtir. 600W PoE güç kaynağı, 368Gbps Anahtarlama Kapasitesi, 16K MAC desteği, standart 1U Rack montantajlı yapıya sahip orta segment güçlü PoE switchtir.

Açıklamalar
Özellikler
Belgeler
Alternatif Ürünler
İlişkili Ürünler
Görseller

OVERVIEW

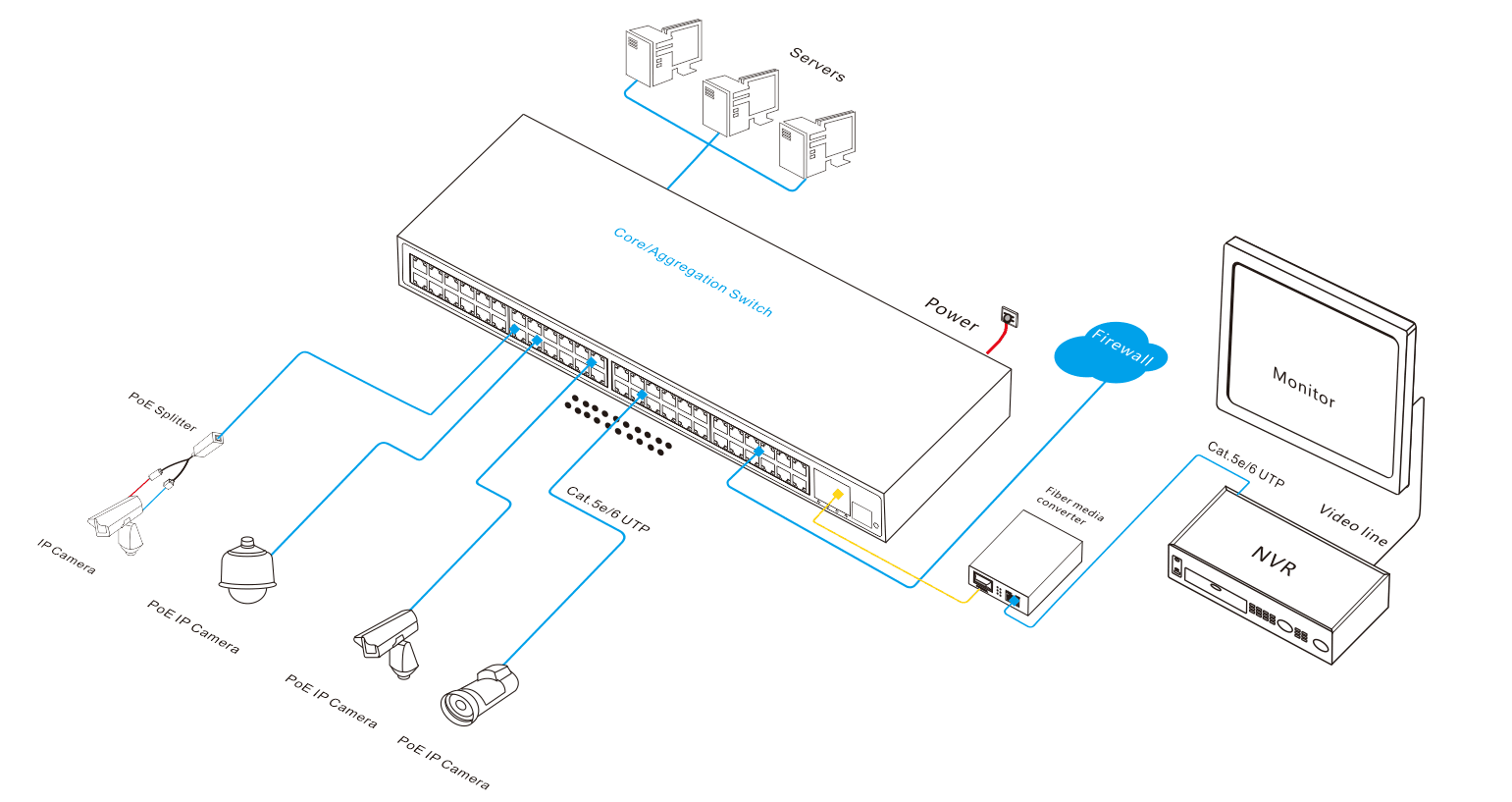

The S4804GP is a full gigabit managed PoE switch independently developed by Xentino. It has 48*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Port 1-48 can support IEEE802.3af/at standard PoE power supply. single port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom, etc. through network cable, to meet the network environment that needs high-density PoE power supply.It is suitable for hotels, campuses, parks, shopping malls, scenic spots, hospitals, factory dormitory and small and medium-sized enterprise.

The S4804GP has L2+full Web management function, supports IPV4 management, static route full line rate forwarding, complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) to improve Link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web management mode.

FEATURES

Gigabit wire speed access, SFP port uplink

Supports Gigabit Ethernet port and gigabit SFP uplink port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Support non-blocking wire-speed forwarding.
Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply

48*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
IEEE802.3af/at PoE standard, without damaging non-PoE devices.
Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

Strong business processing capability

IEEE802.1Q VLAN, flexible VLAN division, and QinQ configuration.
QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.
ALC, filter data packet through configuring matching rules, processing operation &time permission, and provide flexible and safe access control.
IGMP V1/V2 and IGMP Snooping.
STP/RSTP/MSTP.
Static and dynamic aggregation.

Security

802.1X authentication.
Port isolation,Storm control.
IP-MAC-VLAN-Port binding.

Stable and reliable

Low power consumption, galvanized steel casing, The Fan active cooling.
Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
CCC,CE, FCC, RoHS.
The user-friendly pane can show the device status through the LED indicator of PWR, Link ,PoE.

Easy operation and maintenance management

Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
HTTPS, SSLV3, and SSHV1/V2.
RMON, system log, LLDP, and port traffic statistics.
CPU monitoring, memory monitoring, Ping test, and cable diagnose.

TECHNICAL SPECIFICATION

XENTINO S4804GP
Interface Characteristics

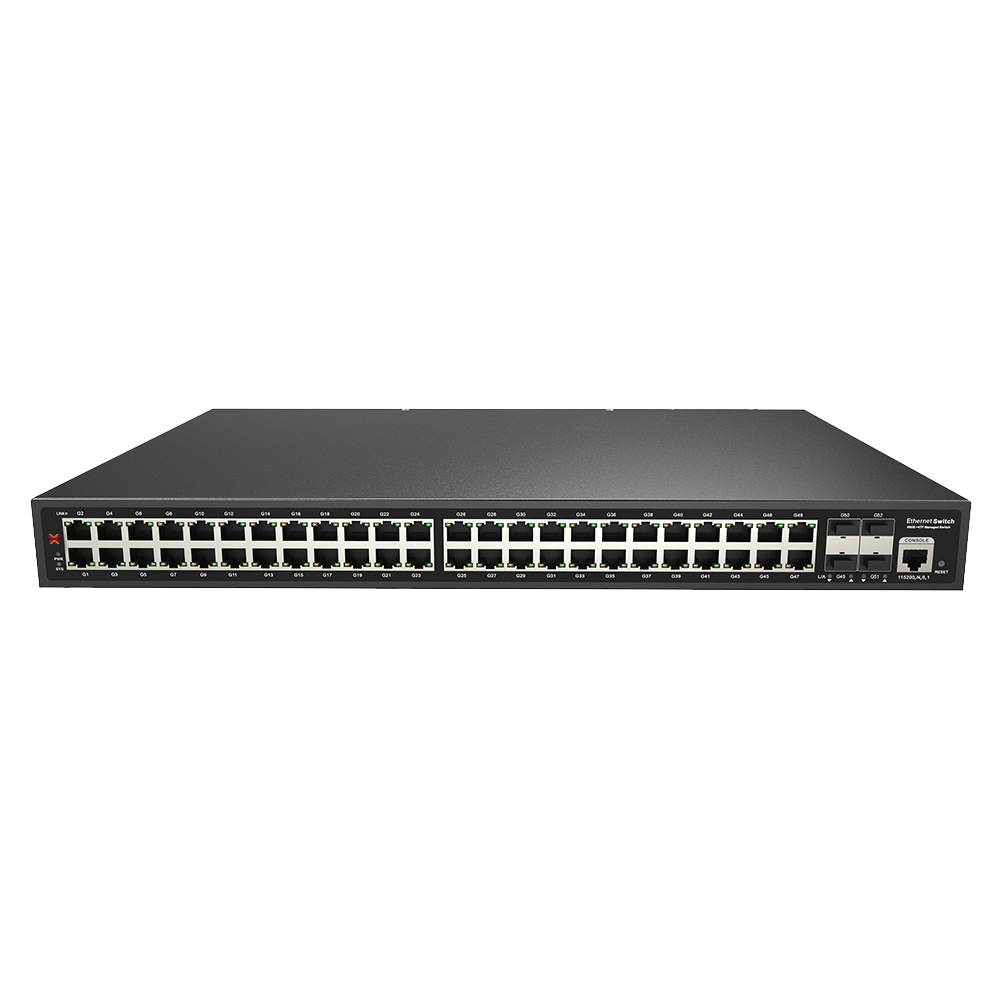

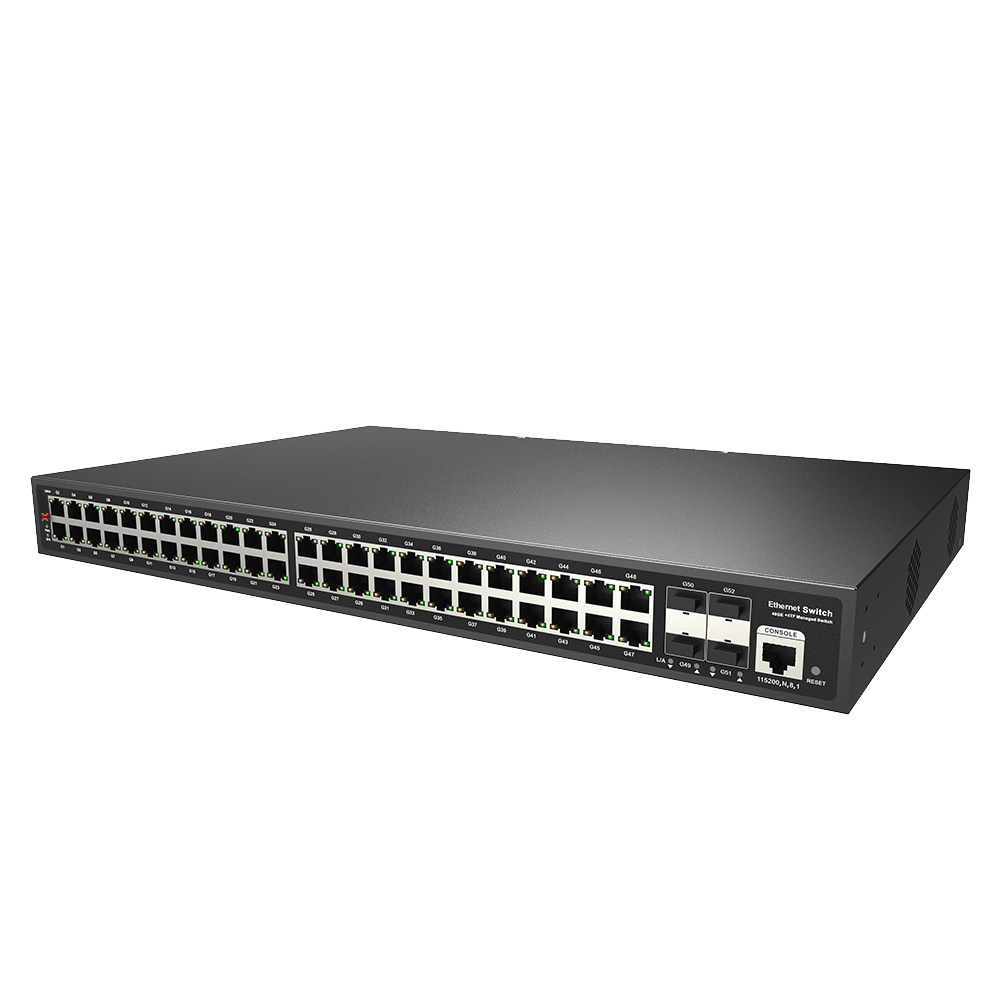

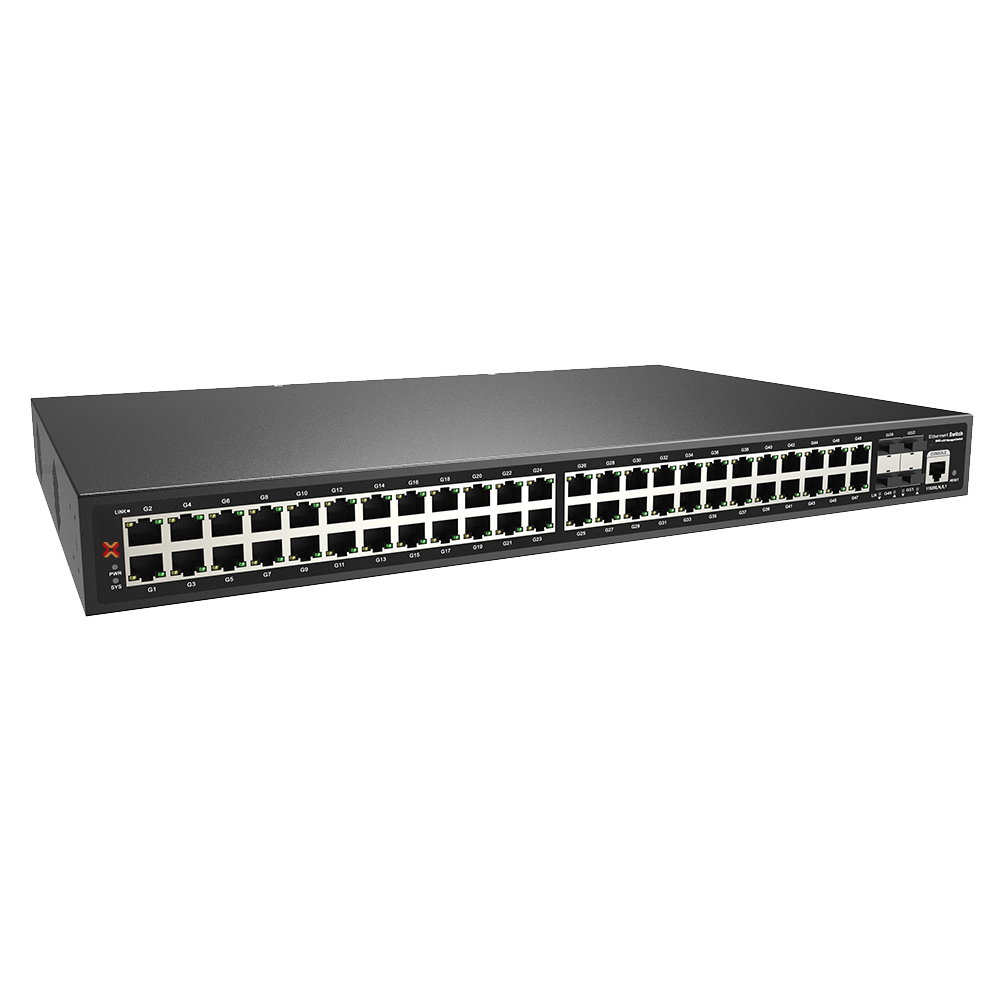

Fixed Port	4810/100/1000Base-T PoE ports (Data/Power) 4100/1000Base-X uplink SFP slot ports(Data) 1*RS232 console port(115200,N,8,1)
Ethernet Port	Port 1-48 can support 10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter)
SFP Slot Port	Gigabit SFP optical fiber interface, default optical modules (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode:850nm / 0~500M (1.25G), Single-mode:1310nm / 0~40KM, 1550nm / 0~120KM.
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	368Gbps (Non-blocking)
Forwarding Rate	77.38Mpps (@64byte)
CPU	750MHz
DRAM	1G
FLASH	256M
MAC	16K
Buffer Memory	12M
Jumbo Frame	10K
LED Indicator	Power: PWR (Yellow), System: SYS (Yellow), Network: Link/Act (Yellow), PoE: PoE (Green), Fiber port: L/A(Green)
Reset Switch	Yes, One-button factory reset
PoE & Power Supply
PoE Port	Port 1 to 48
PoE Management	PoE working status Delay start of power supply PoE output priority configuration Scheduling of PoE operation and time Total power limit of PoE power supply PoE output power allocation, off& af &at
Power Supply Pin	Default 1/2 (+), 3/6 (-)
Max Power Per Port	30W; IEEE802.3af/at
Total PWR / Input Voltage	600W (AC100-240V)
Power Consumption	Standby<35W, Full Load<600W

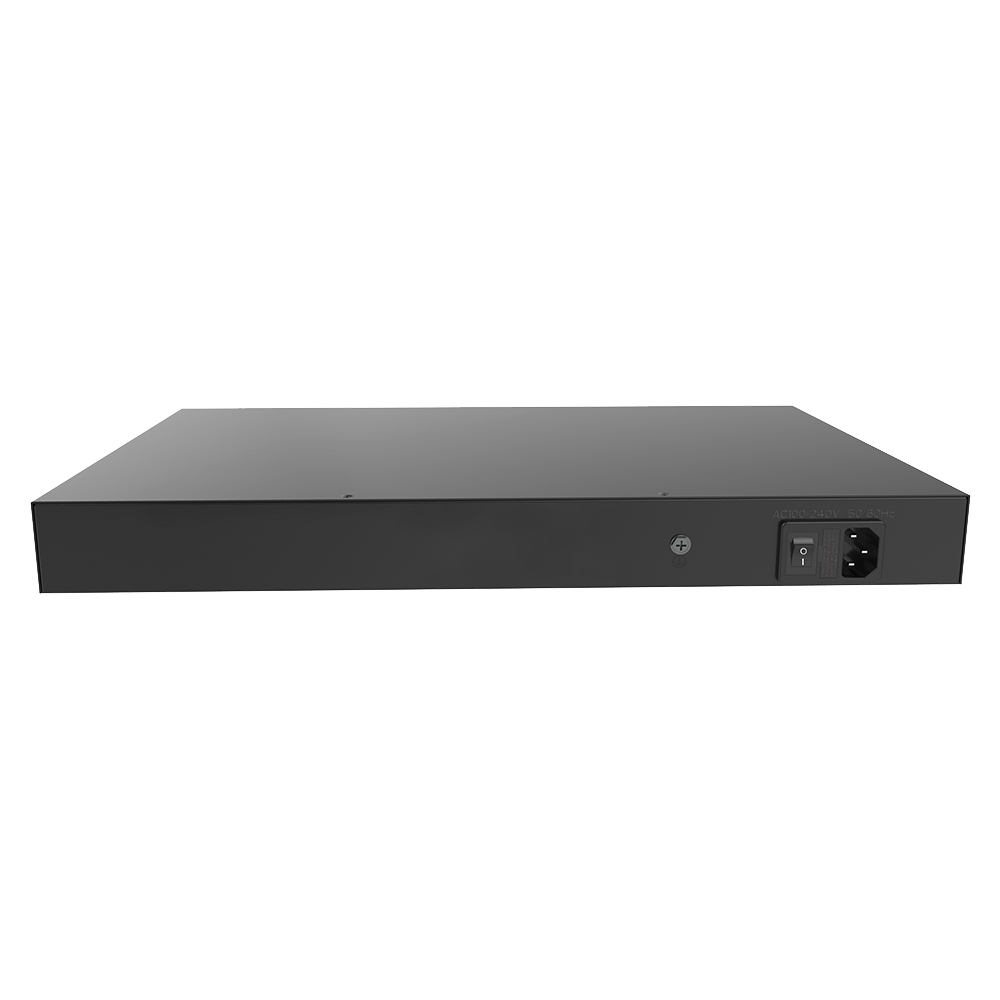

Power Supply	Built-in power supply, AC 100~240V 50-60Hz 6.6A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C, 5%~95% RH Non condensing
Dimension	44029044.5mm (LWH)
Net /Gross Weight	<4.8kg / <5.5kg
Form Factor	Desktop, 19 inch 1U cabinet
Certification & Warranty
Lightning Protection / Protection Level	Lightning protection: 4KV 8/20us; Protection level: IP30
Certification	CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B;RoHS
Warranty	3 years, lifelong maintenance.
Network Management Features
Interface	IEEE802.3X (Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps.
Layer 3 Features	IPV4 static route/default route, maximum 128 entries L2+ network management, ARP protocol, maximum 1024 entries
VLAN	VLAN based on MAC, QinQ configuration Port configuration of Access, Trunk, Hybrid 4K VLAN based on port, IEEE802.1q,VLAN based on the protocol
Port Aggregation	LACP, Static aggregation Max 26 aggregation groups and 8 ports per group.
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Multicast	MLD Snooping v1/v2,Multicast VLAN IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out
Port Mirroring	Bidirectional data mirroring based on port
QoS	Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL	Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.
Security	IP-MAC-VLAN-Port binding ARP inspection,Anti-DoS attack AAA & RADIUS,MAC learning limit Mac black holes,IP source protection IEEE802.1X & MAC address authentication Broadcast storm control,Backup for host datum SSH 2.0,SSL,Port isolation,ARP message speed limit User hierarchical management and password protection
DHCP	DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay
Management	One-key recovery Cable Diagnose,LLDP Web Management (HTTPS) NTP,System work log,Ping Test CPU instant utilization status view Console/AUX Modem/Telnet/SSH2.0 CLI Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 ONV NMS - smart network management system platform(LLDP+SNMP)
System	Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network
