Ürün Bilgileri

Xentino SI420P 4adet Gigabit PoE ve 2 adet Gigabit Ethernet (RJ45) Portu bulunan Endüstriyel Switchtir. 4adet PoE+ portu IEEE 802.3at/af uyumludur. Her bir port 30W desteğe sahiptir. Cihazın, güç hatasında veya port probleminde akıllı alarm fonksiyonuna sahip iki adet yedekli güç girişi mevcuttur. DIN-Rail ve DuvarMontaj kitine ve IP40 Alüminyum Kasaya sahip cihazın geniş birçalışma sıcaklığı vardır.

OVERVIEW

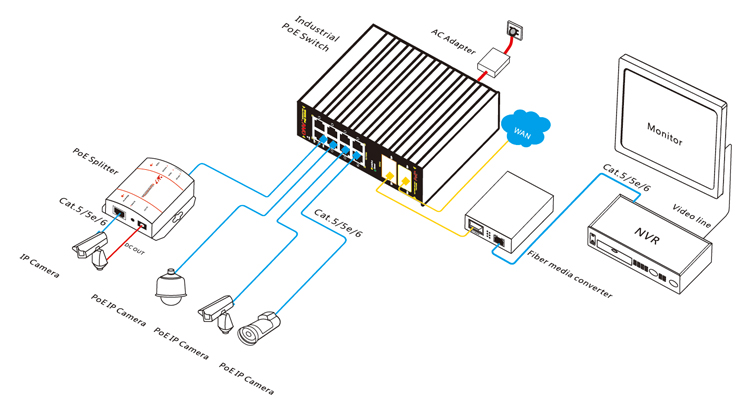

The SI420P series is a full gigabit industrial PoE switch independently developed by XENTINO. It has 6*10/100/1000Base-T RJ45 ports. Port 1-4 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 60W (at-120W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.

FEATURES

Gigabit wire speed forwarding

• All series supports full gigabit Ethernet ports, high speed and high bandwidth connection to meet the needs of various scenarios.
• Support non-blocking wire-speed forwarding.
• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Powerful port lightning protection, wide voltage input

• Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
• Industrial dual power input
• DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V.

Intelligent PoE power supply

• 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable

• Low power consumption, No fan, aluminum casing.
• CCC, CE, FCC, RoHS.
• The user-friendly panel, it can show the device status through the LED indicator of PWR, SYS, Link, L/A, PoE.

TECHNICAL SPECIFICATION
