Xentino SI420PB 6Port (4GEPoE+/2GE) Gigabit POE+ 2Port Gigabit (RJ45) UM Industrial HP Switch

Xentino

Xentino SI420PB 4adet Gigabit PoE ve 2 adet Gigabit Ethernet (RJ45) Portu bulunan Endüstriyel Switchtir. 4adet PoE+ portu IEEE 802.3at/af/bt uyumludur. Her bir port 71W desteğe sahiptir. Cihazın, güç hatasında veya port probleminde akıllı alarm fonksiyonuna sahip iki adet yedekli güç girişi mevcuttur. DIN-Rail ve DuvarMontaj kitine ve IP40 Alüminyum Kasaya sahip cihazın geniş birçalışma sıcaklığı vardır.

Xentino SI420PB 4adet Gigabit PoE ve 2 adet Gigabit Ethernet (RJ45) Portu bulunan Endüstriyel Switchtir. 4adet PoE+ portu IEEE 802.3at/af/bt uyumludur. Her bir port 71W desteğe sahiptir. Cihazın, güç hatasında veya port probleminde akıllı alarm fonksiyonuna sahip iki adet yedekli güç girişi mevcuttur. DIN-Rail ve DuvarMontaj kitine ve IP40 Alüminyum Kasaya sahip cihazın geniş birçalışma sıcaklığı vardır.

OVERVIEW

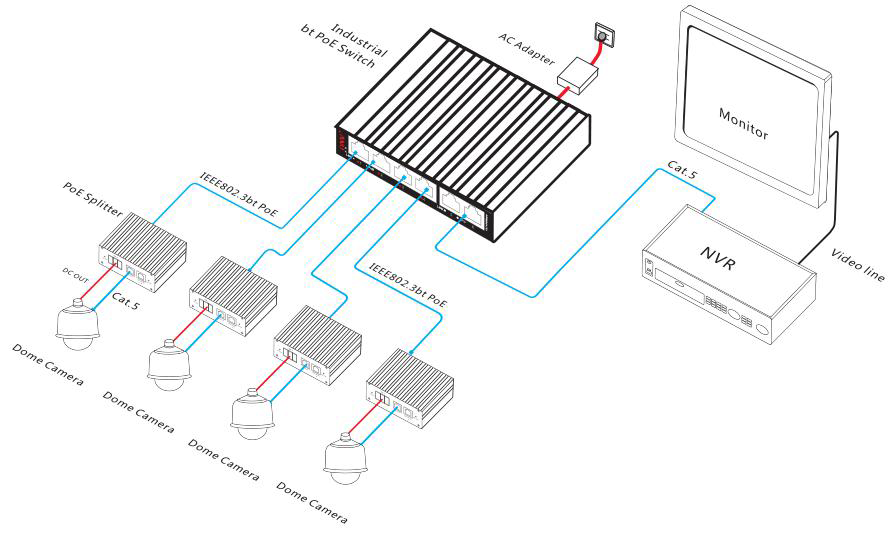

The SI420PB is a full gigabit unmanaged bt industrial PoE switch independently developed by XENTINO. It has 6*10/100/1000M RJ45 ports Port 1-4 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power output is 95W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURES

Gigabit wire speed forwarding

  • All series supports full gigabit Ethernet ports, high speed and high bandwidth connection to meet the needs of various scenarios.
  • Support non-blocking wire-speed forwarding.
  • Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Smart PoE power supply function

  • 4*10/100/1000Base-T RJ45 ports can support bt PoE power supply, meeting the demand for super high power PoE power supply in various scenarios.
  • The maximum output power of single-port POE is 95W, and the backwards compatibility IEEE802.3af/at PoE power supply standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
  • Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable

  • CCC, CE, FCC, RoHS.
  • Low power consumption, aluminum alloy casing, No fan.

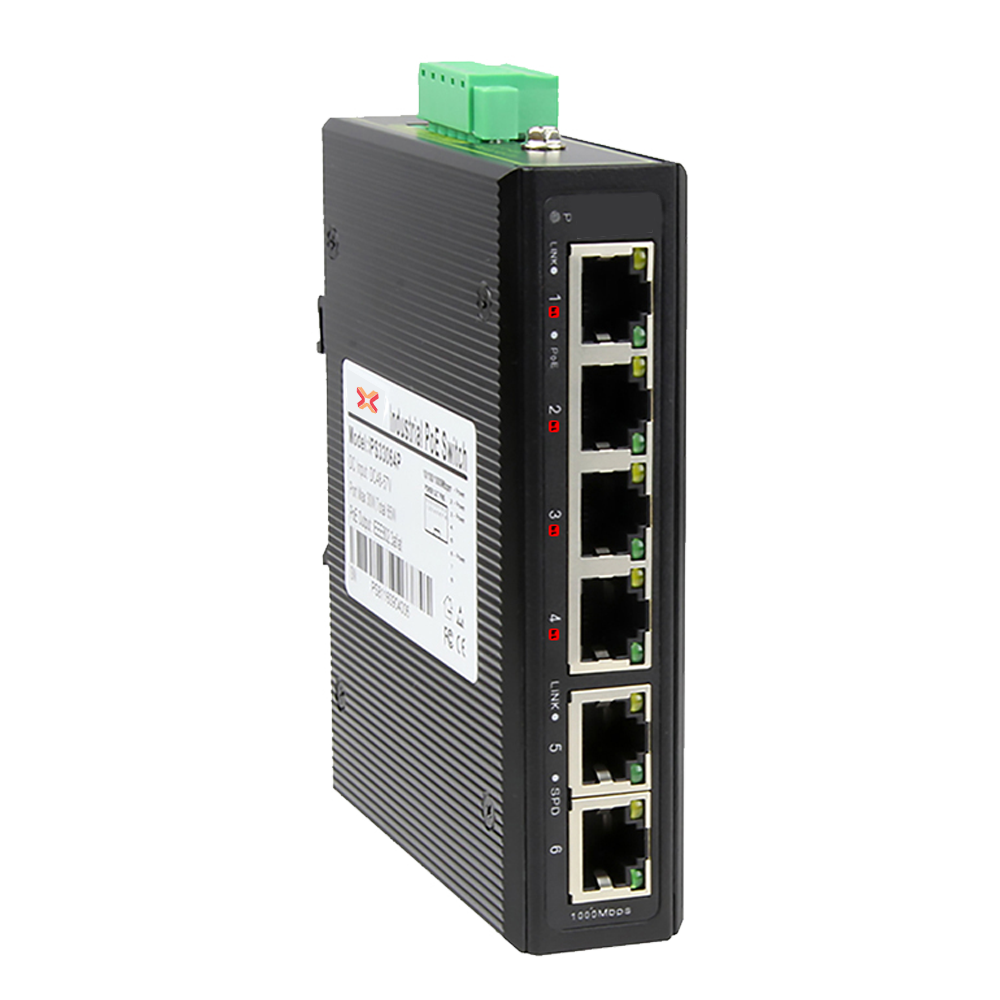

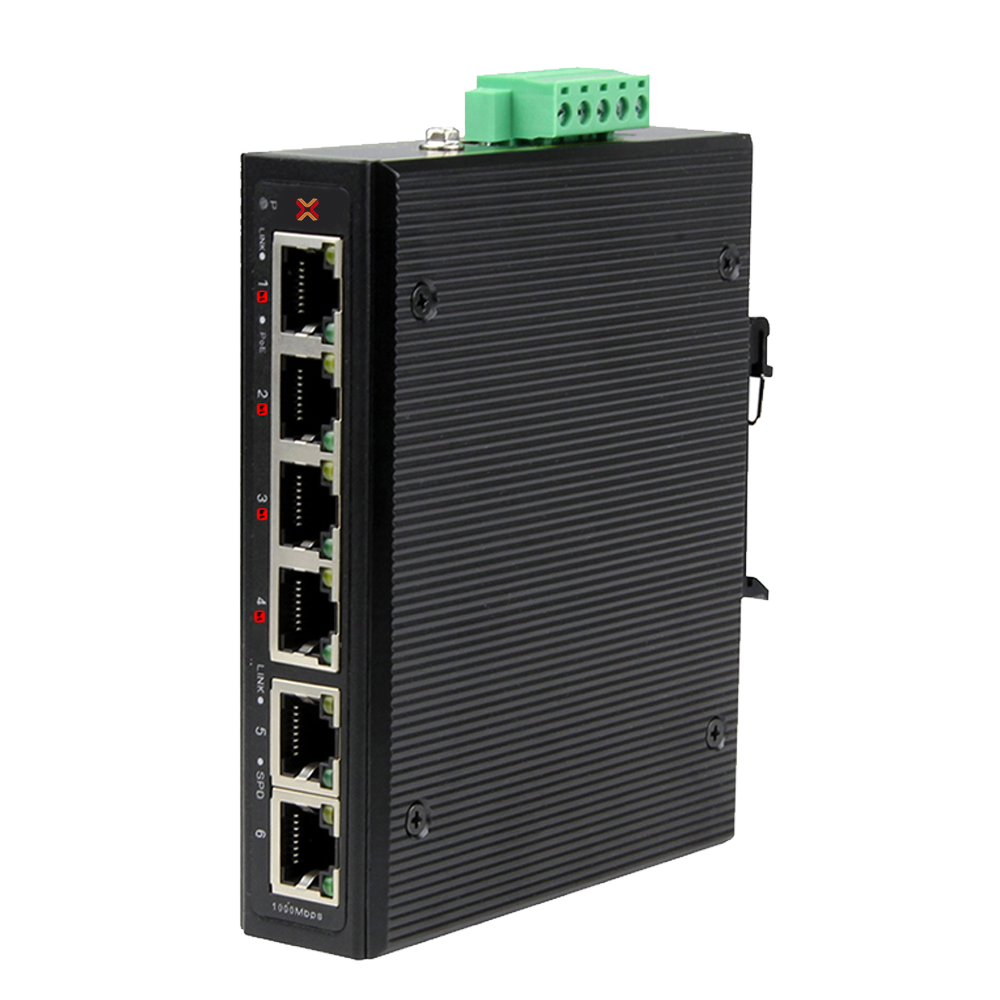

  • The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

TECHNICAL SPECIFICATION

XENTINO SI420PB

Interface Characteristics

Fixed Port

4*10/100/1000Base-T PoE ports (Data/Power)

2*10/100/1000Base-T uplink RJ45 ports(Data)

2 set of V+, V- redundant DC power interface (5P Phoenix terminal)

Ethernet Port

Port 1-6 support 10/100Base-TX,auto-sensing, Full/half duplex MDI/MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)

Chip Parameter

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,

IEEE802.3u 100Base-TX,IEEE802.3ab 1000Base-T

IIEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

12Gbps (Non-blocking)

Forwarding Rate

8.93Mpps (@64byte)

MAC

2K

Buffer Memory

2M

Jumbo Frame

9.2K

LED Indicator

Power: PWR (green), network: Link (yellow), PoE: PoE (green)

PoE & Power Supply

PoE Port

Port 1 to 4 IEEE802.3af/at @ POE

Power Supply Pin

Default :1/2 (+), 3/6 (-),optional:4/5 (+), 7/8 (-)

Max Power Per Port

95W; IEEE802.3af/at/bt

Total PWR / Input Voltage

240W / (DC48-57V)

Power Consumption

Standby:<6W;Full load:<240W

Power Supply

No, optional 48V/60W or 48V/120W industrial power supply

Working Voltage

48-57VDC, 5P industrial phoenix terminal, anti-reverse protection

Physical Parameter

Operation TEMP / Humidity

-20~+55°C, 5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+75°C, 5%~95% RH Non condensing

Dimension

119*100*30mm (L*W*H)

Net /Gross Weight

<0.5kg /<1.2kg

Form Factor

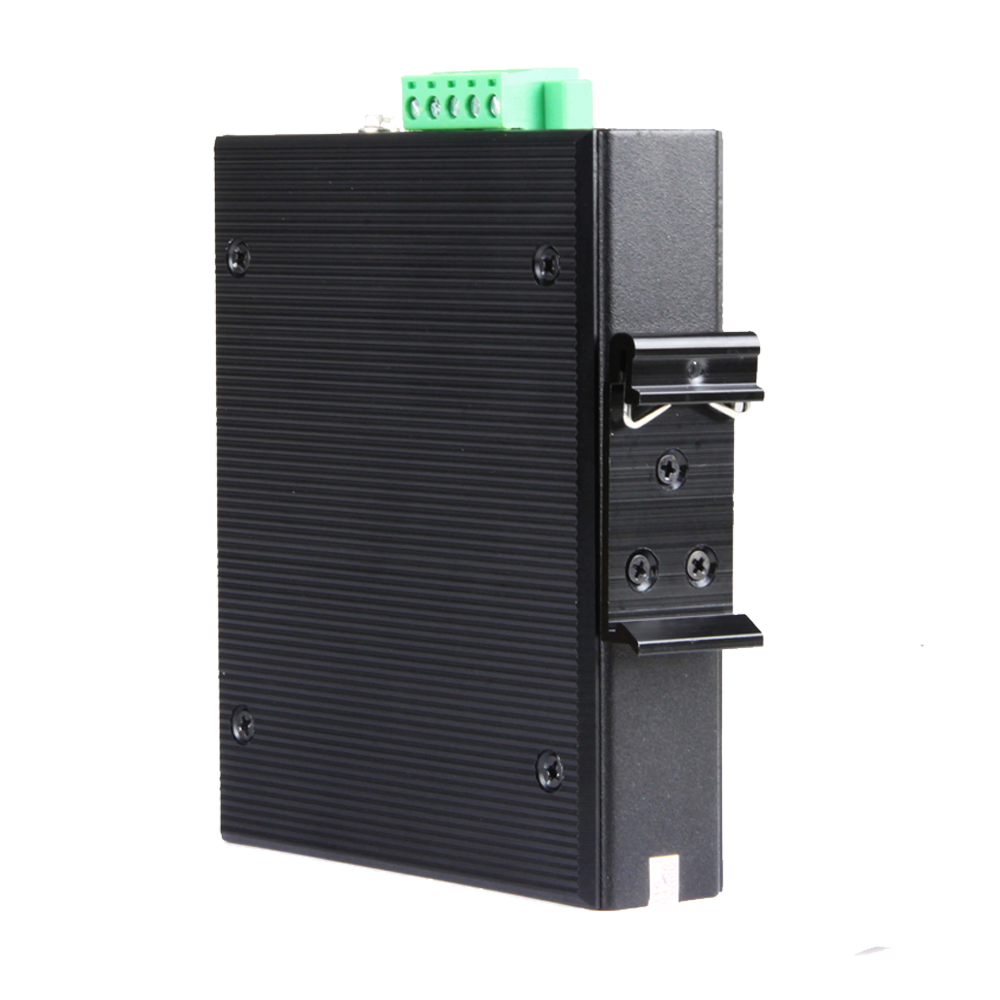

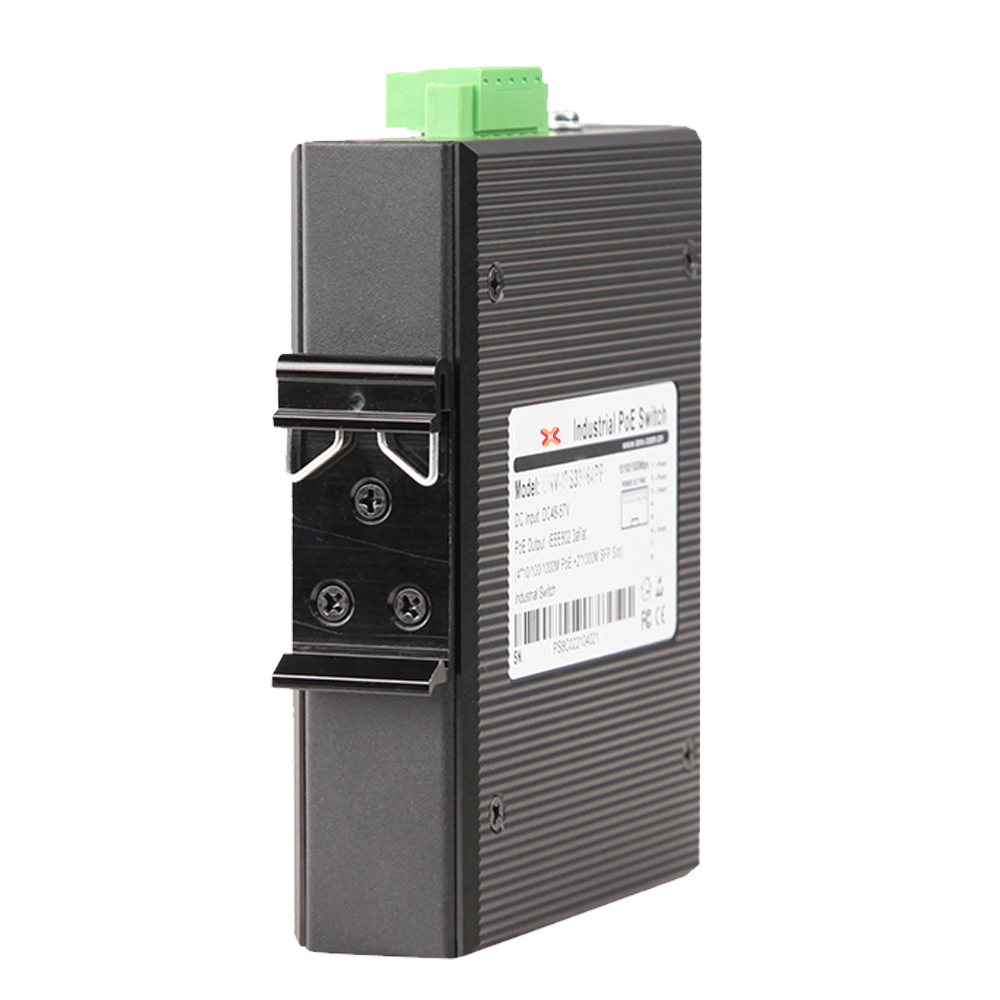

Desktop, 35mm DIN rail mounting

Certification & Warranty

Lightning Protection / Protection Level

Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV

IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class A

IEC61000-6-2(Common Industrial Standard)

Mechanical Properties

IEC60068-2-6 (anti vibration)

IEC60068-2-27 (anti shock)

IEC60068-2-32 (free fall)

Certification

CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;

Warranty

2 years, lifelong maintenance.
