Xentino AN-FM-120-4ETH 4xE1(G.703)+4xEth. Fiber Multiplexer

Xentino

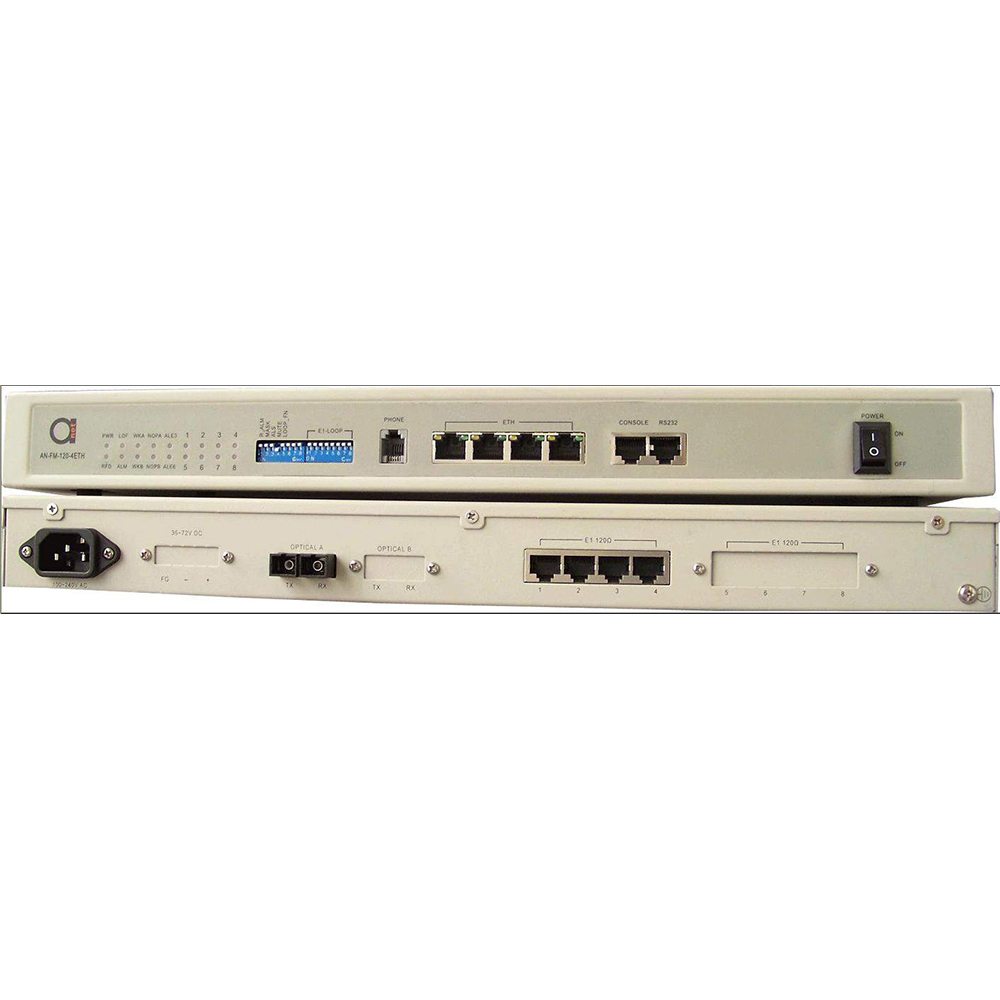

Xentino AN-FM-120-4ETH 4xE1(G.703)+4xEth. Fiber Multiplexer 1U 19 inch rack type, 4xE1 ports, RJ-45 or BNC interface, 4x10/100M Ethernet ports, single mode dual fiber 20 km, SC or FC connector, NMS (RS-232 port), 220VAC+48VDC power supply

Xentino AN-FM-120-4ETH 4xE1(G.703)+4xEth. Fiber Multiplexer (Must use 2pcs) 1U 19 inch rack type, 4xE1 ports, RJ-45 or BNC interface, 4x10/100M Ethernet ports, single mode dual fiber 20 km, SC or FC connector, NMS (RS-232 port), 220VAC+48VDC power supply

AN-FM-120-4ETH is state-of-art 4 x E1 G.703 + Ethernet 10/100BaseT fiber multiplexer with logical bandwidth control, QoS, and dot1Q VLAN's which allows effective transmission of those protocols over fiber optical cable over distances more than 120 km. Single mode, dual mode and WDM (BiDi) versions. AN-FM-120-4ETH can provide up to 4 E1 interfaces and 4 Fast Ethernet interface. The Ethernet interface can be operated in 10M/100M, half duplex or full duplex mode by either auto-negotiation or manual setting. The AN-FM-120-4ETH is a fiber media transport for 4E1 + 4 x 10/100BaseT transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring.
All media muxes are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are available in up to 120 km versions reach, which will provide the ability to transmit and receive data using only a single optical fiber pair. AN-FM-120-4ETH provides RS232 interface for Network Management. Supported by AN-NM-PDH GUI network manager utility, users can observe the status of Local and Remote, as well as other alarm information unable to be displayed by LEDs in the front panel. Also, with AN-NM-PDH, user can make certain E1 loop back for testing purpose.

  • Provides 4 x E1 G.703 transparent transmission over the fiber;

  • Provide 4 x 100 Mbit/s Ethernet ports;

  • Provides one RS232 channel for option;

  • Provide one hotline channel for option (enginering ordewire);

  • Speed of optical port is 155Mbps, transmission range can reach 25KM, 40KM, 60KM, 80KM or 100km,120KM;

  • E1 interface code is HDB3; E1 vibration characteristic conforms to ITU-T G.703, G.823 and G.742;

  • Ethernet port supports full/half duplex, 10M/100M auto-ataptable, throughput is full duplex 100 Mubit/s;

  • Ethernet port supports dot1Q VLAN setting possibility and port based VLAN's.

  • Simultaneous 4 E1 & 100 Mbit/s full duplex operation;

  • Complete alarm function and can monitor remote device status;

  • Supports E1 loop from remote so as to detect and manage device conveniently;

  • The combination AC220V and DC-48V for redundant options;
