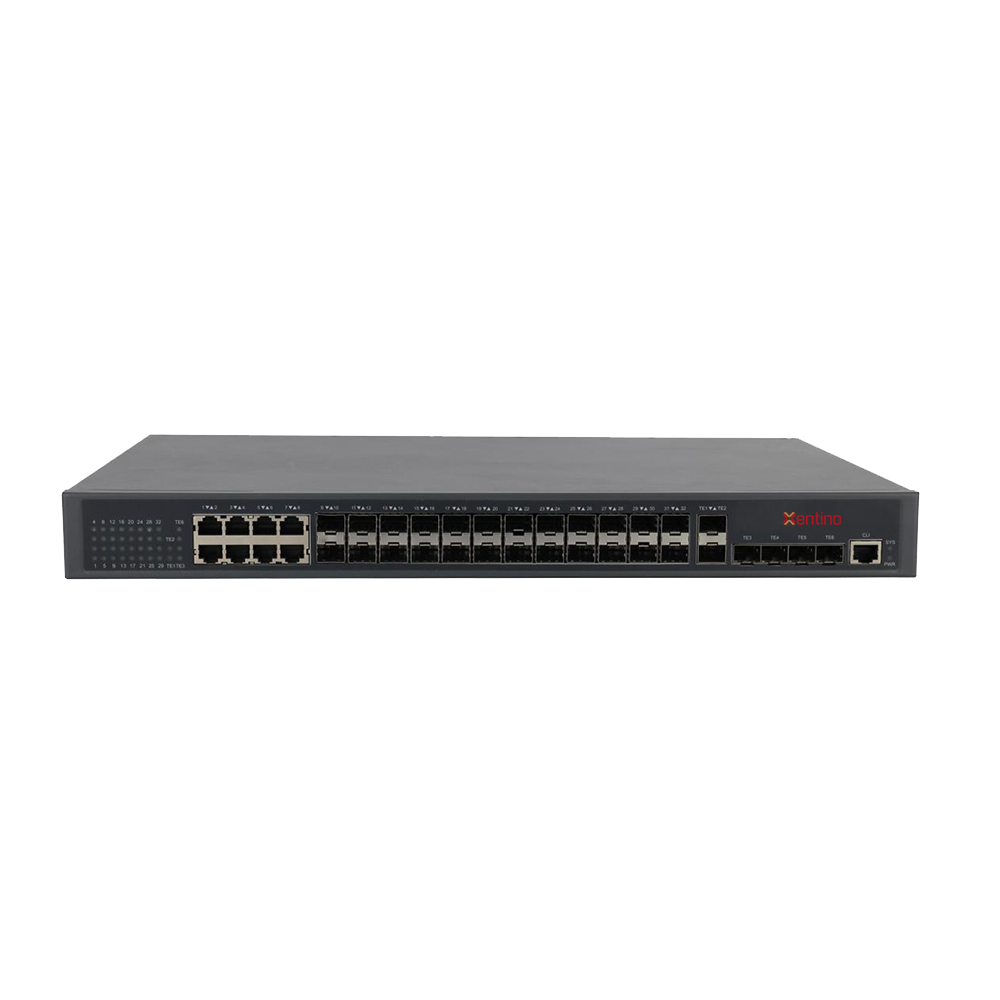

S8246TGL3 is a high-performance multi-optical port L3 managed switch, which is a new generation convergence 10G switch for next-generation IP metropolitan area networks, large-scale campus networks, and enterprise networks. It has 8*10/100/1000M RJ45 ports and 24*100/1000M SFP ports and 6*1/10G SFP+ fiber ports.
OVERVIEW
S8246TGL3 is a high-performance multi-optical port L3 managed switch, which is a new generation convergence 10G switch for next-generation IP metropolitan area networks, large-scale campus networks, and enterprise networks. It has 8*10/100/1000M RJ45 ports and 24*100/1000M SFP ports and 6*1/10G SFP+ fiber ports.
S8246TGL3 is equipped with complete L3 management functions, with comprehensive protocols and applications. On the basis of providing high-performance L2/L3/L4 wire-speed switching service deployment and management, it further integrates IPv6, MPLS VPN, and network Multiple network services such as security, traffic analysis, virtualization, etc., combined with multiple data center high-reliability technologies such as uninterrupted upgrades, uninterrupted forwarding, graceful restart, redundancy protection, etc., to ensure the longest uninterrupted communication capability of the network. The switch supports advanced functions such as RIP, OSPF, BGP, PIM-DM/SM, and is ideal for traditional or fully virtualized big data transmission. Network application managers can flexibly choose the appropriate optical fiber connection according to the transmission distance or required transmission speed, effectively expanding the 1G/10G network. In addition, S8246TGL3 has a switching capacity of up to 598Gbps, 6*1/10G uplink SFP+ ports, greatly increasing the network bandwidth converged to the core, meeting the high bandwidth requirements of users' voice, video, and data triple play, suitable for application requirements for smart campuses, large smart communities, smart cities, smart transportation, and other fields.
FEATURES
Advanced hardware architecture, powerful processing capabilities
Strong data service guarantee
Rich business features
Security
Stable and reliable
Easy maintenance
TECHNICAL SPECIFICATION
XENTINO S8246TGL3 |
|
Interface Characteristics |
|
Fixed Port |
8*10/100/1000M RJ45 ports (Data) 24*100/1000M SFP ports (Data) 6*1/10G SFP+ fiber ports(Data) 1* Mini USB console port |
Ethernet Port |
10/100/1000Base-T, auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
Optical Fiber Port |
1/10GSFP+ optical fiber interface, optical module is not included by default and needs to be purchased (Optional single-mode/multi-mode, single-fiber/dual-fiber optical module, LC) |
Optical Cable/Distance |
Multi-mode: 850nm / 0 ~ 500m, single mode: 1310nm/ 0 ~ 40km, 1550nm/ 0 ~ 120km. |
Chip Parameter |
|
Network |
L3 |
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-SR/LR, IEEE802.3x |
Forwarding Mode |
Store and Forward(Full Wire Speed) |
Switching Capacity |
598Gbps |
Forwarding Rate |
222Mpps (@64byte) |
MAC |
32K |
Buffer Memory |
32M |
Jumbo Frame |
9K |
LED Indicator |
Power: PWR (Green), System: SYS (Green), Network:1-32 (Green), Fiber port: TE1-6 (Green) |
Power Supply |
|
Total PWR / Input Voltage |
75W (AC100-240V), Default AC input single power supply, expandable AC/DC input dual power supply |
Power Consumption |
Standby<35W, Full Load<70W |
Power Supply |
Built-in power supply AC100~240V 50-60Hz 2A |
Physical Parameter |
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
Dimension |
442.5*350*44.5mm (L*W*H) |
Net /Gross Weight |
<6.0kg / <6.3kg |
Form Factor |
Desktop, 19 inch 1U cabinet |
Certification & Warranty |
|
Lightning Protection / Protection Level |
Lightning protection: 6KV 8/20us, Protection level: IP30 |
Certification |
CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS |
Warranty |
2 years, lifelong maintenance. |
Network Management Features |
|
Virtualization and Stacking |
Virtualization Distributed equipment management, distributed link aggregation, distributed flexible routing Stacking via standard Ethernet interface Local stacking and remote stacking MAD stack split detection based on LACP, BFD, ARP |
IPv4 |
PBR, ECMP BFD for OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP,IS-IS,BEIGRP |
IPv6 |
MLD V1/V2, MLD snooping ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet IPv6 Static Routing, RIPng, OSPFv3,BGP4+ Manual tunnel, ISATAP tunnel, 6 to 4 tunnel IPv6 neighbor discovery, Path MTU Discovery |
MAC Switching Capacity |
Black-hole MAC items IEEE 802.1AE MacSec MAC address filtering function Check and delete MAC address Configuring MAC address aging time Limit on MAC address learning number Static configuration and dynamically learning of MAC address |
VLAN |
GVRP Private VLAN 4K Active VLAN QinQ & selective QinQ 1:1 and N:1 VLAN Mapping |
Link Aggregation |
10GE port aggregation, Static aggregation, Dynamic aggregation |
Flow Monitoring |
sFLOW |
DHCP |
DHCP server/relay/client/snooping DHCP auto-config and CWMP-TR069 DHCP Snooping option82/DHCP Relay option82 |
STP/ERPS |
ERPS(G.8032) 802.1D (STP), 802.1W (RSTP),802.1S (MSTP) BPDU protection, root protection and ring protection |
Multicast |
IGMP V1/v2/v3 IGMP Snooping IGMP Fast Leave PIM-SM and PIM-DM Multicast traffic cross VLAN duplication Multicast group policy and multicast number limit |
Mirroring |
Flow mirroring, N:4 port mirroring, Local and remote port mirroring |
ARP |
Free ARP, Static entry, ARP anti-attack Standard proxy ARP and local proxy ARP Dynamic ARP Inspection, ARP source suppression ARP inspection (check according to DHCP Snooping, 802.1x table entry, or IP/MAC static binding) |
MPLS VPN |
MCE MPLS TE MPLS OAM LDP protocol P/PE of MPLS VPN |
QoS/ACL |
CAR flow limit Tail-Drop and WRED 802.1p/DSCP priority mapping Traffic policing and traffic shaping DRR, SP, and DRR+SP queue scheduling algorithms Hash load balancing to ensure the integrity of the traffic output session Traffic classification based on each field of the L2/L3/L4 protocol header Ingress and Egress ACL, matching L2, L3, L4, and IP quintuple, copy, forward, and discard |
Security |
uRPF Port isolation Radius and BDTacacs+ IEEE 8021x certification DHCP Snooping, DHCP Option 82 Command line hierarchical protection Port security, IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Suppression of broadcast, multicast, and unknown unicast packet Defend against DDoS attack, SYN Flood attack of TCP, and UDP Flood attack |
Energy Saving |
IEEE802.3az green energy Ethernet |
Reliability |
ISSU EAPS, ERPS HSRP, VRRP GR for OSPF and BGP BFD for OSPF and BGP Power supply 1+1 backup Static/LACP link aggregation and cross service card link aggregation |
Management |
NTP ISSU Track System logs Ping, Tracert Power alarm, Graded alarm SNMP v1/v2/v3 RMON event history 802.1AG and 802.3AH Fan, temperature alarm Console, Telnet, SSH 2.0 Debug information output Web browser management Telnet remote maintenance ZTP(Zero Touch Provisioning) sFLOW and other traffic statistics analysis SNMP(Simple Network Management Protocol) File upload and download management in TFTP mode |
System |
Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or higher TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
