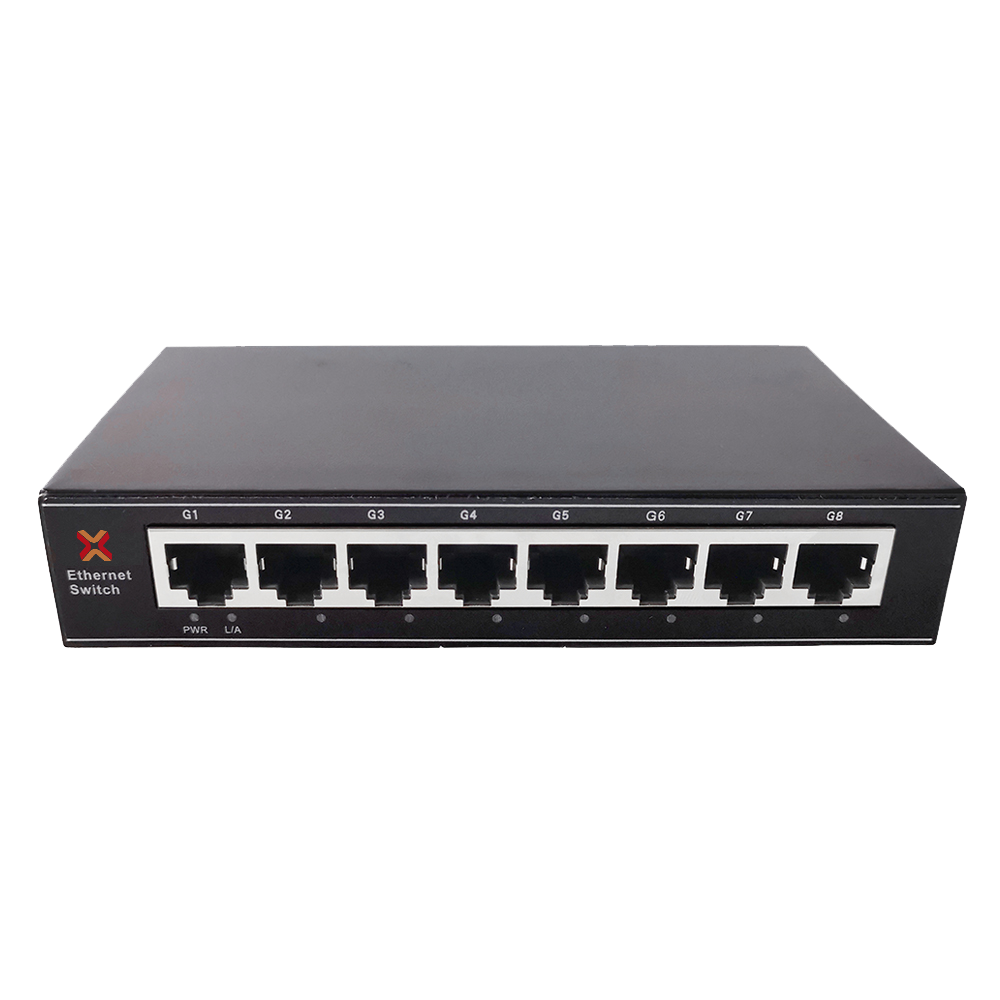

Xentino S08001 8Port Full Gigabit Unmanaged Ethernet Switch with 8* 10/100/1000M RJ45 ports. External 9W power adapter.
OVERVIEW
The Xentino S08001 is an unmanaged gigabit Ethernet switch independently developed by Xentino. It has 8*10/100/1000M RJ45 ports. The scheme of the large backplane and large cache switching chip is preferred to improve the forwarding rate of large files and effectively solve the problems of video freeze and picture loss in the high-definition surveillance environment. It is suitable for hotels, banks, campuses, factory quarters and small and medium-sized enterprises to establish a cost-effective network.
Unmanaged mode, plug and play, no configuration, simple and convenient to use.
FEATURE
Full gigabit rate, high-speed transmission
◇ Support full Gigabit Ethernet port, high speed and fast transmission, convenient for users to flexibly network to meet various high-definition network requirements.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Stable and reliable, easy to operate
◇ CE, FCC, RoHS.
◇ Low power consumption, metal casing, the fan active cooling.
◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, L/A.
TECHNICAL SPECIFICATION
|
Model |
S05001 |
S08001 |
|
Interface Characteristics |
||
|
Fixed Port |
5*10/100/1000Base-T RJ45 ports (Data) |
8*10/100/1000Base-T RJ45 ports (Data) |
|
Ethernet Port |
10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption. |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-TX, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full line speed) |
|
|
Switching Capacity |
10Gbps (Non-blocking) |
16Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
7.44Mpps |
11.9Mpps |
|
MAC |
2K |
|
|
Buffer Memory |
2M |
|
|
Jumbo Frame |
9.2K |
|
|
LED Indicator |
Power: PWR (Green), Network:L/A(Green) |
|
|
Power Supply |
||
|
Total PWR / Input Voltage |
5W (DC9-12V) |
7W (DC9-12V) |
|
Power Consumption |
Standby<1W, Full Load<5W |
Standby<2W, Full Load<7W |
|
Power Supply |
External power adapter, AC100~240V 50-60Hz 0.56A |
|
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
90*70*27mm |
144*77.5*26mm |
|
Net /Gross Weight |
<0.2kg /<0.5kg |
<0.35kg /<0.6kg |
|
Installation |
Desktop, Wall-mounted |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS |
|
|
Warranty |
2 Years |
|
