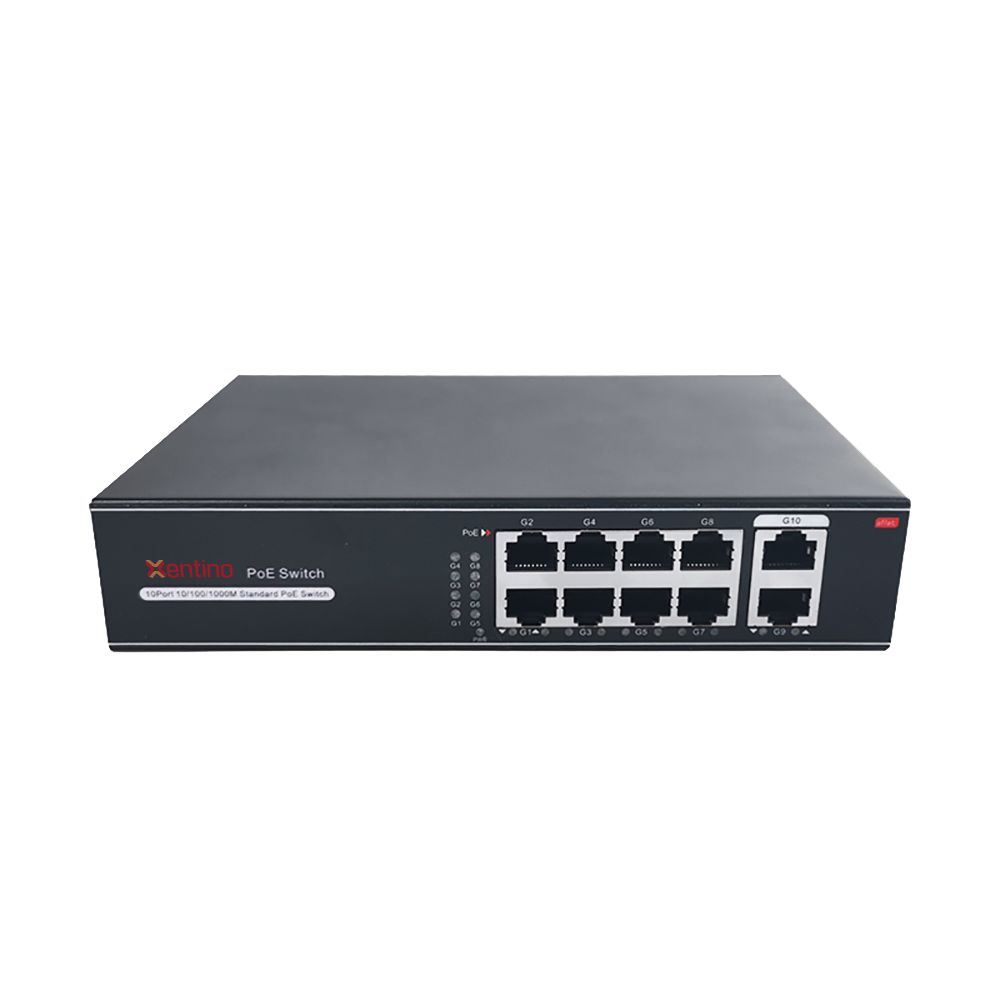

Xentino S0802GPU 10Port Gigabit POE Switch (120W) Unmanaged PoE switch with 8*10/100/1000M PoE ports and 2*10/100/1000M RJ45 ports.Port 1-8 can support IEEE802.3af/at PoE standard. Built-in 120W power supply.
OVERVIEW
The S0802GPU is a full gigabit unmanaged PoE switch independently developed by XENTINO. It has 8*10/100/1000Base-T PoE ports and 2*10/100/1000Base-T uplink RJ45 ports, Port 1-8 can support IEEE802.3af/at standard PoE power supply, single port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy efficient network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURES
Full gigabit rate, dual RJ45 ports uplink
- Provides Gigabit Ethernet ports and dual RJ45 ports uplink for flexible networking and meets the networking requirements of various scenarios.
- All ports support non-blocking wire-speed forwarding for smoother transmission.
- Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
Intelligent PoE power supply
- 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
- IEEE802.3af/at PoE standard, without damaging non-PoE devices.
- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable, easy to use
- CCC, CE, FCC, RoHS.
- Plug and play, no configuration, simple and convenient.
- Low power consumption, galvanized steel casing, no fan.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output
TECHNICAL SPECIFICATION
|
XENTINO S0802GPU |
||
|
Interface Characteristics |
||
|
Fixed Port |
8*10/100/1000Base-T PoE port (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
|
Ethernet Port |
10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption. |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
20Gbps (Non-blocking) |
|
|
Forwarding Rate |
14.88Mpps (@64byte) |
|
|
MAC |
2K |
|
|
Buffer Memory |
2M |
|
|
Jumbo Frame |
1536byte |
|
|
LED Indicator |
Power: PWR (Green), Data:Link(Yellow), PoE: PoE (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1 to 8 |
|
|
Power Supply Pin |
Default 1/2(+),3/6(-) |
|
|
Max Power Per Port |
30W; IEEE802.3af/at |
|
|
Total PWR / Input Voltage |
120W/ (AC100-240V) |
|
|
Power Consumption |
Standby<5W, Full Load<120W |
|
|
Power Supply |

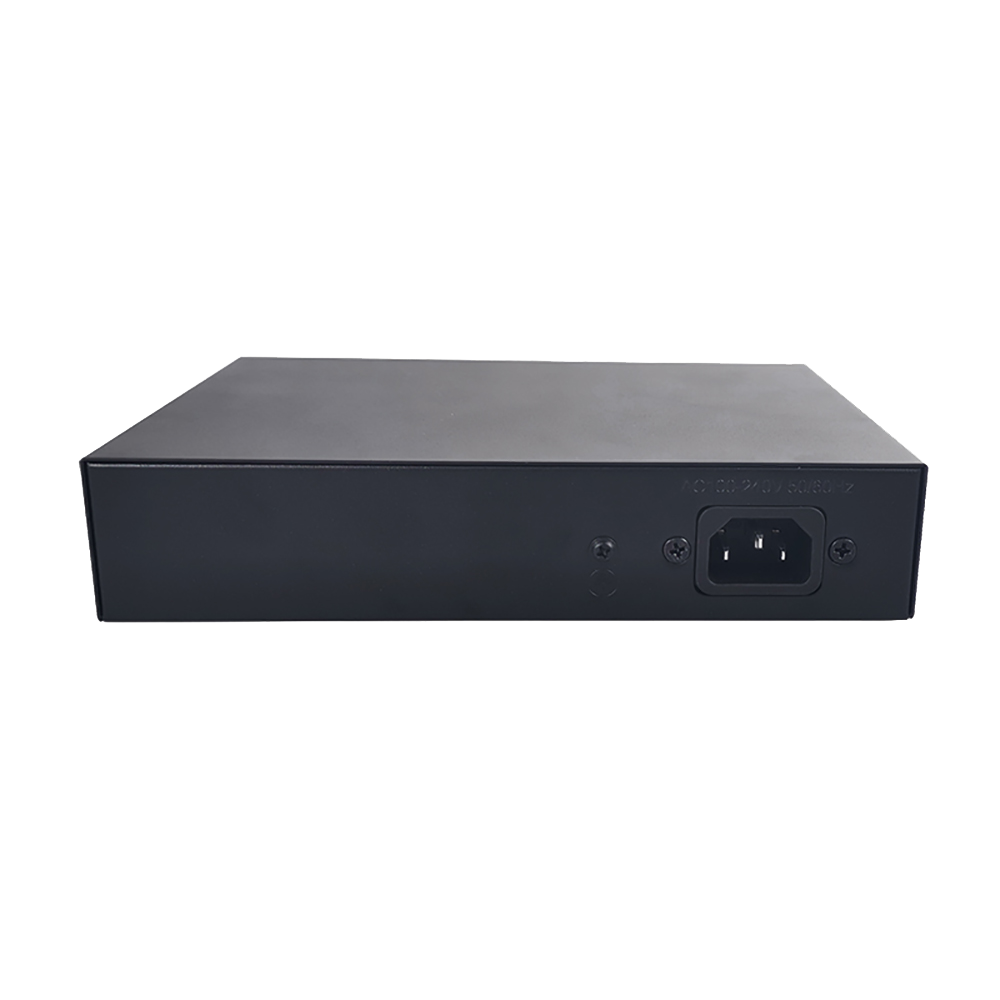

Built-in power supply, AC100~240V 50-60Hz 2.2A |
|
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension |
195*130*40mm (L*W*H) |
|
|
Net /Gross Weight |
<0.9kg /<1.2kg |
|
|
Form Factor |
Desktop, Wall-mounted |
|
|
Certification & Warranty |
||
|
Lightning Protection / Protection Level |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS |
|
|
Warranty |
2 years, lifelong maintenance. |
|
