Ürün Bilgileri

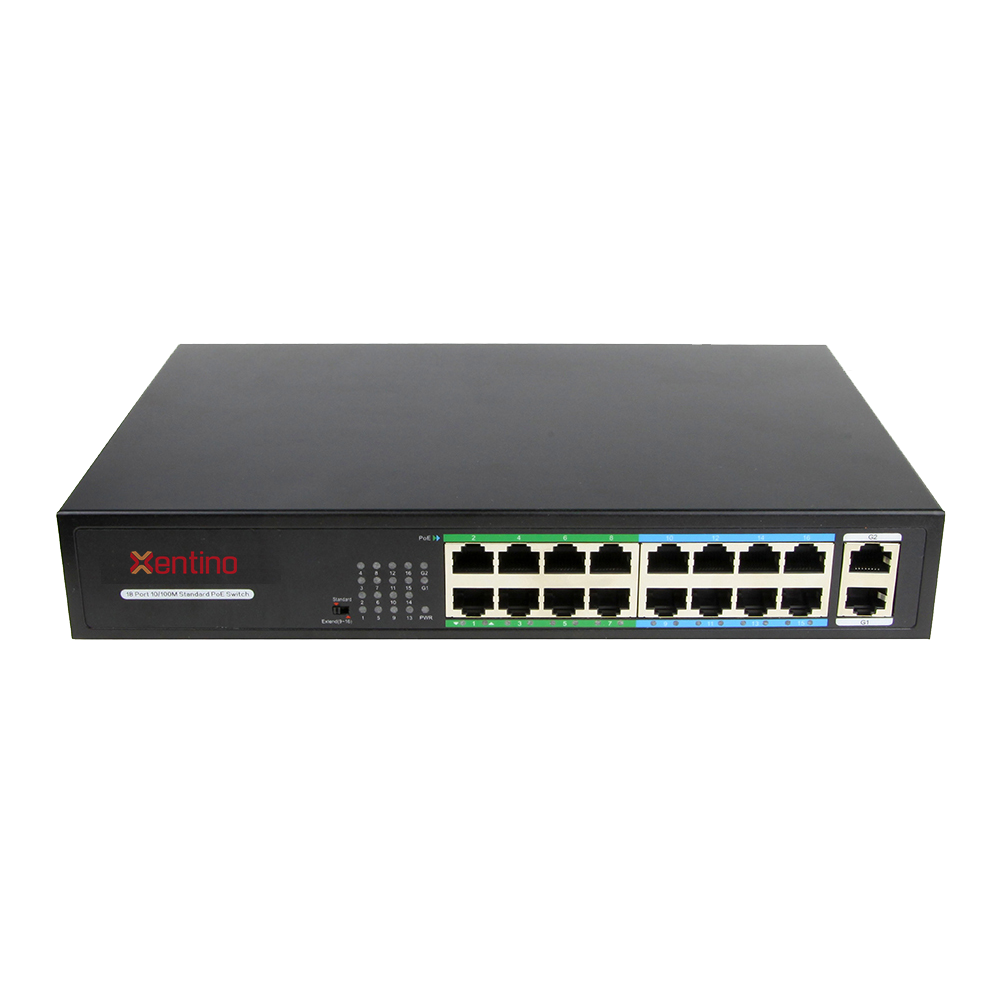

Xentino S1602GPUL 16Port 100M POE (10M/250meter) 2Port Gigabit Unmanaged Switch (200W) Unmanaged PoE switch with 16* 10/100M PoE ports and 2* 10/100/1000M uplink RJ45 ports. Port 1-16 can support IEEE802.3af/at PoE standard. Adjust function switch, Port 9-16 can support 10M/250m long distance transmission. Built-in 200W power supply.

OVERVIEW

The S1602GPUL series is a 10/100Mbps PoE switch independently developed by XENTINO, it has 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports, Port 1-16 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W, and the maximum POE output power less than 200W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy. Efficient network.

Unmanaged mode, plug and play, no configuration, easy to use.

FEATURES

10/100M gigabit uplink

• Provides 16*10/100M PoE ports and 2*10/100/1000M RJ45 ports for flexible networking and meets the networking requirements
• Support non-blocking wire-speed forwarding.
• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply function

• 16*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• IEEE802.3af/at PoE standard, without damaging non-PoE devices.
• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable, easy to use

• CCC,CE, FCC, RoHS.
• Low power consumption, galvanized steel metal casing. No fan.
• Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
• The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
• Support desktop and 1U-19 inch cabinet installation.
• Plug and play, no configuration, simple and convenient.
• With function switch, port 9-16 can support 10M/250 meters long distance transmission mode when one key is opened.

TECHNICAL SPECIFICATION
