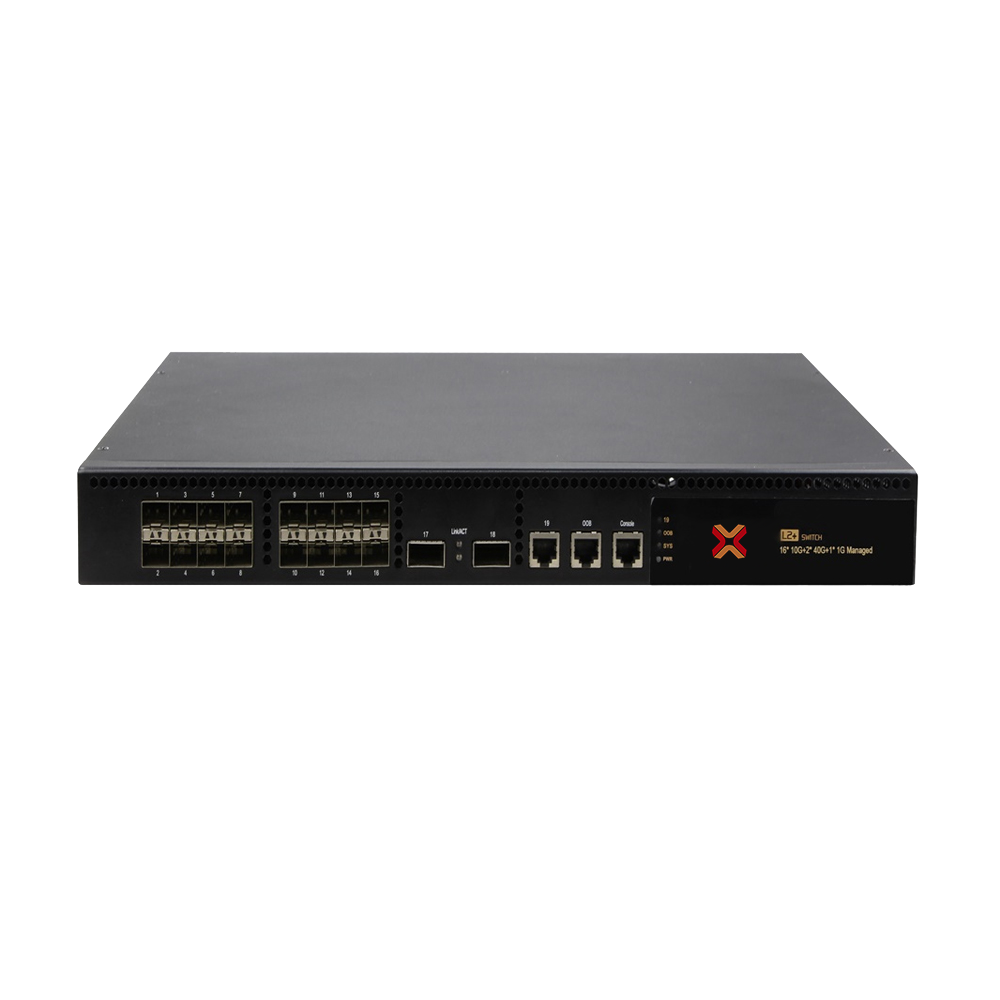

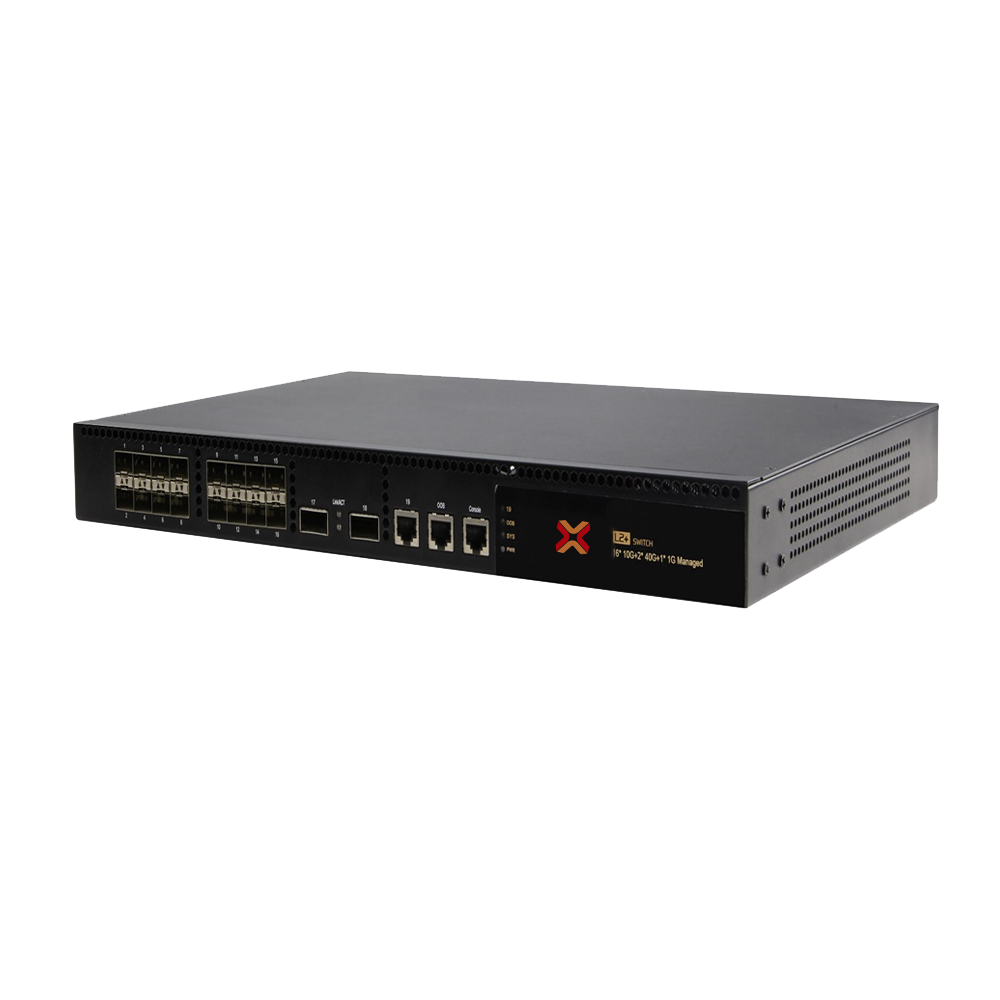

The S16TG2FG is a L2 full 10G managed Ethernet core switch. it has 16*1/10G SFP+ fiber slot ports and 2*40G QSFP+ fiber slot ports. The S16TG2FG is a standard non-blocking Ethernet switch using Broadcom high-performance chips. The switch provides 484Gbps switching capacity and 360Mpps forwarding performance.

OVERVIEW

The S16TG2FG is a L2 full 10G managed Ethernet core switch. it has 16*1/10G SFP+ fiber slot ports and 2*40G QSFP+ fiber slot ports. The S16TG2FG is a standard non-blocking Ethernet switch using Broadcom high-performance chips. The switch provides 484Gbps switching capacity and 360Mpps forwarding performance. It has flexible networking capabilities to ensure stable operation of the network and load balancing of links and to provide sufficient bandwidth for aggregation and core data exchange. Users can choose the appropriate 10G ports to meet the network needs.

The S16TG2FG has rich network management functions, complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, easy management and maintenance, high bandwidth, low latency, and simple network management. High-density access in data centers and cloud computing networks is also widely used in large and medium-sized security monitoring, large and medium-sized Internet cafes, enterprise networks, and the core or aggregation of metropolitan area networks.

FEATURES

High density 10G access, performance is remarkable

• 16*1/10G SFP+ fiber slot ports and 2*40G QSFP+ fiber slot ports to meet the high-density access requirements of 10G cores, which is convenient for users to flexibly set up networks to meet the network requirements of various scenarios.
• Support non-blocking wire speed forwarding.
• Support full duplex based on IEEE802.3x and half duplex based on backpressure.

Strong business processing capability

• IEEE802.1Q VLAN, flexible VLAN division, mac VLAN, protocol VLAN and private VLAN.
• STP, RSTP, and MSTP spanning tree protocols can eliminate layer 2 loops and implement link back up.
• QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm includes EQU, SP, WRR & SP+WRR.
• Static aggregation and dynamic aggregation can increase link bandwidth, achieve load balancing, link back up, and improve link reliability.
• ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
• IGMP V1 / V2 multicast protocol and IGMP Snooping, meet the needs of multi-terminal HD video surveillance and video conference access.

Security

• Port isolation, port broadcast storm suppression.
• Quad binding of IP address, MAC address, VLAN, and port to filter data packets.
• DHCP Snooping put an end to set up a private DHCP server to ensure the legality of the DHCP server.
• DoS protection to prevent attacks includes Land Attack, Scan SYNFIN, Xmascan, Ping Flooding, etc.
• ARP protection, protecting against gateway spoofing, ARP spoofing, and ARP attack in the local area network.
• IP source protection to prevent spoofing of illegal addresses including MAC spoofing, IP spoofing, MAC / IP spoofing, etc.
• 802.1X authentication provides authentication for LAN computers and controls the authorization status of controlled ports based on the authentication results.
• Port security, stop learning when the number of MAC addresses learned by the port reaches the max number, prevent MAC address attacks, and control port traffic.

Green energy saving

• Flexible front and rear air duct design and rear front air duct design.
• Support power and fan redundancy configuration to ensure uninterrupted operation of the business.
• Flexible support for front and rear and rear front air ducts through optional fan and power module.
• Innovative energy-saving technology: Using the industry's latest energy-saving chips, intelligent fan speed control solution, support real-time power consumption detection, reduce operation and maintenance costs for customers, and create a green data center.
• Adopt strict front and rear air duct design to support complete isolation of hot and cold air ducts, improve heat dissipation efficiency, and meet the design requirements of data center equipment room.

Easy maintenance

• Web network management, CLI command line (Console, Telnet), SNMP (V1 / V2 / V3), and other diversified management and maintenance methods.
• HTTPS, SSL V3, TLSV1, SSHV1 / V2, and other encryption methods make management more secure.
• RMON, system logs, and port traffic statistics facilitate network optimization and reconstruction.
• LLDP can facilitate the network management system to query and determine the communication status of the link.
• CPU monitoring, memory monitoring, Ping test, Tracert test and cable diagnose.
• XModem protocol can upgrade software and BootRom through TFTP / ZMODEM
• SFP +, compatible with XFP, etc.
• Provide redundant power supply, fast failover, and fast connection, improve system reliability.
