Xentino S2404TGL3 28Port (24GE/4SFP+) Gigabit 4port 10G Uplink L3 Managed Fiber Switch

Xentino

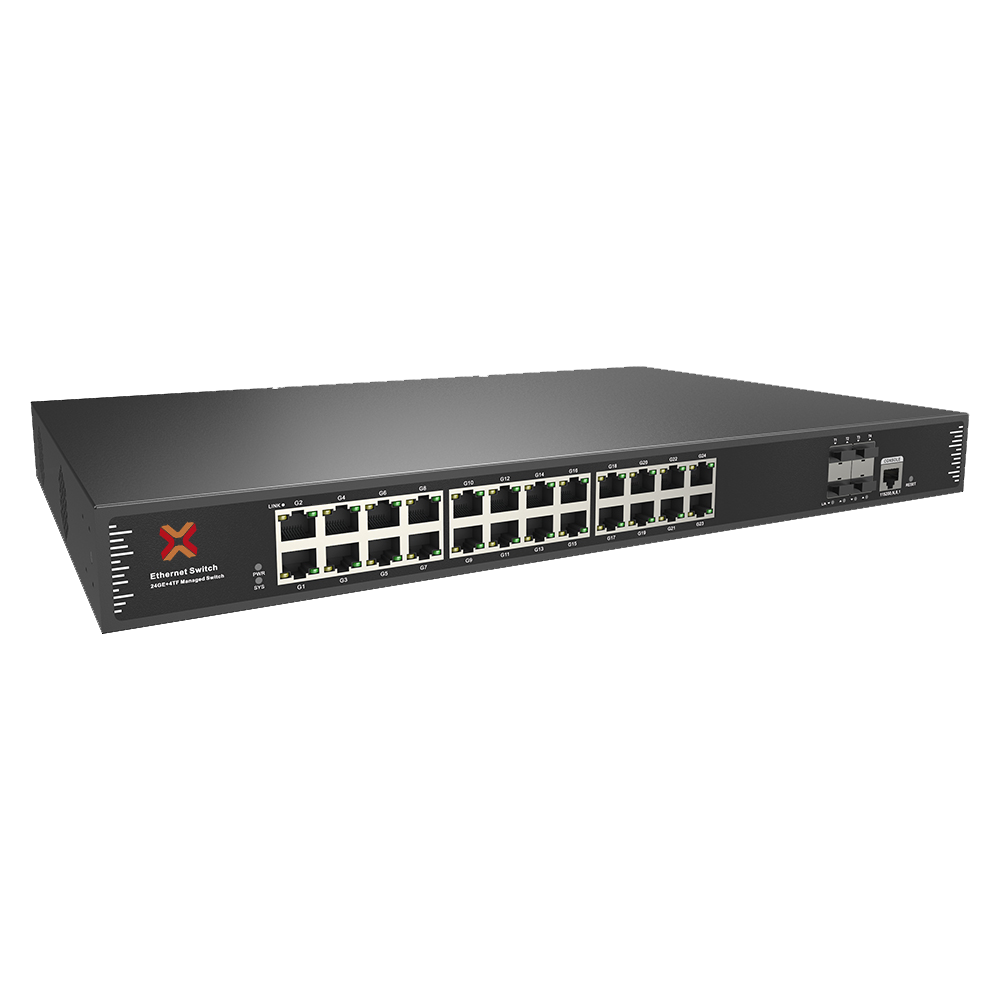

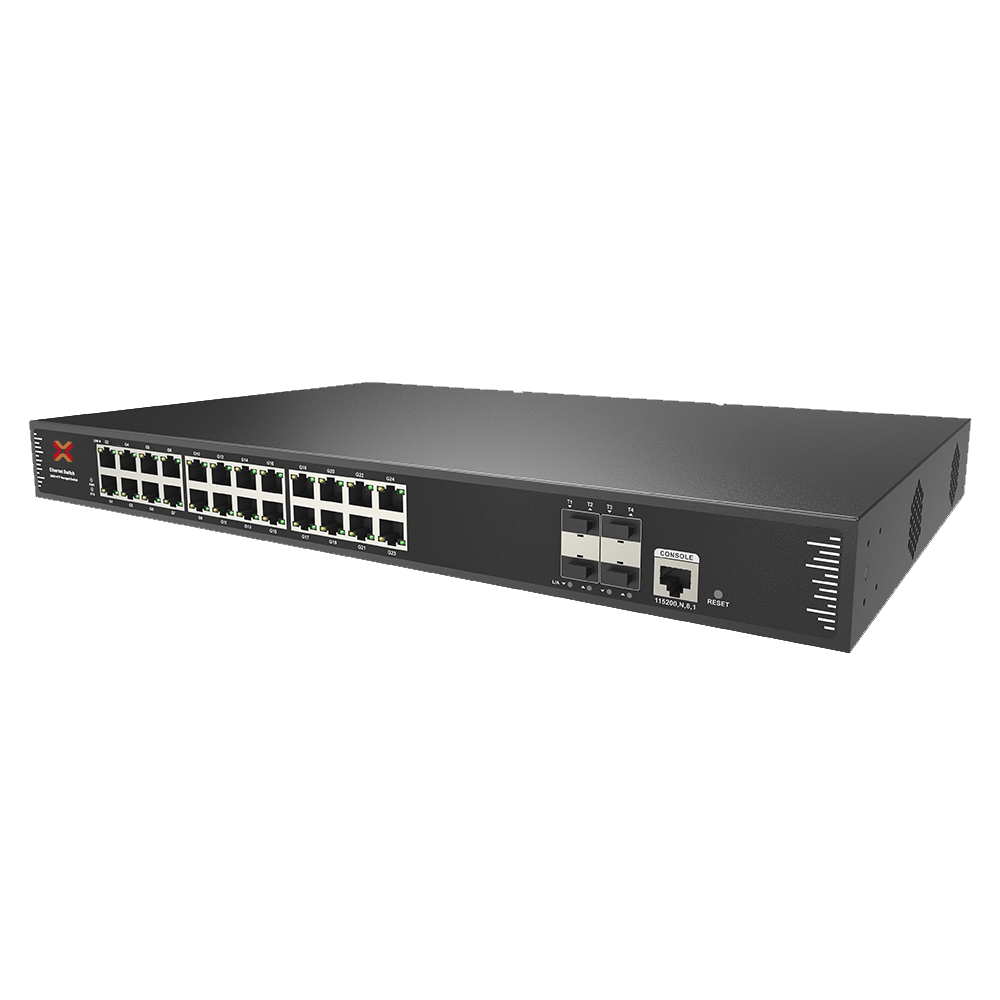

The S2404TGL3 is a 10G uplink L3 managed Ethernet fiber switch independently developed by Xentino. It has 24*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. The S2404TGL3 has L2+ full network management function, supports IPV4/IPV6 management, static route full line rate forwarding,complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain.

The S2404TGL3 is a 10G uplink L3 managed Ethernet fiber switch independently developed by Xentino. It has 24*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. The S2404TGL3 has L2+ full network management function, supports IPV4/IPV6 management, static route full line rate forwarding,complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain.

OVERVIEW

The S2404TGL3 is a 10G uplink L3 managed Ethernet fiber switch independently developed by Xentino. It has 24*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Each port can support wire-speed forwarding. The S2404TGL3 has L2+ full network management function, supports IPV4/IPV6 management, static route full line rate forwarding,complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It satisfies high-density network application environment and is suitable for medium, large-scale scenes such as hotel, campus, park, shopping mall, scenic spot, hospital, bank to form an economical, efficient and reliable communication network.

FEATURES

Full Gigabit access, 10G SFP+ fiber port uplink

◇ Support “Gigabit Ethernet port and 10G Gigabit SFP+ port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Security

◇ 802.1X authentication.

◇ Port isolation, Storm control.

◇ IP-MAC-VLAN-Port binding.

Strong business processing capability

◇ IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP Snooping.

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ Low power consumption, galvanized steel casing. The fan active cooling.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

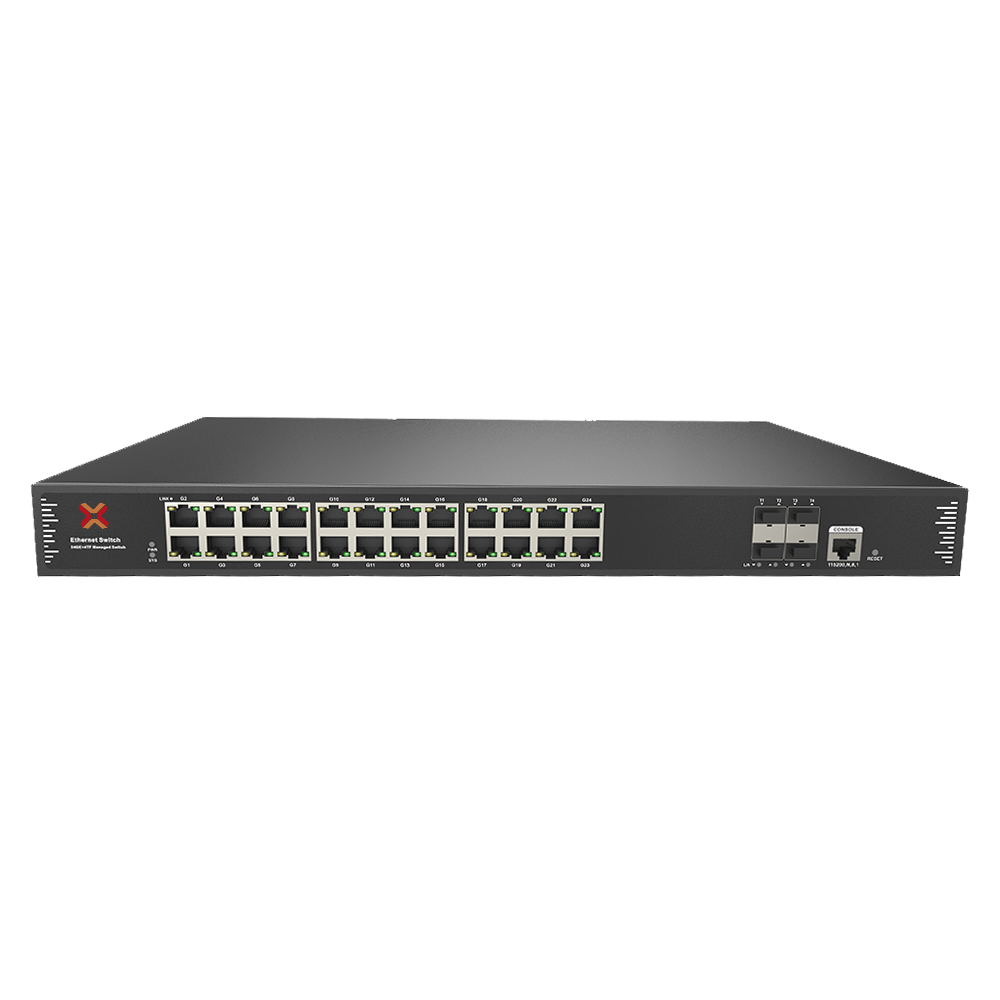

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, SYS, Link, L/A .

Easy operation and maintenance management

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

TECHNICAL SPECIFICATION

XENTINO S2404TGL3

Interface Characteristics

Fixed Port

24*10/100/1000Base-T RJ45 ports (Data)

4*1/10G SFP+ ports (Data)

1*RS232 console port(115200,N,8,1)

Ethernet Port

Port 1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)

SFP Slot Port

1/10Gigabit SFP+ optical fiber port, default NO INCLUDE optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Optical Cable/Distance

Multi-mode: 850nm 0 ~ 550M, 0~300M(10G)

single-mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Optical Fiber Port

Expansion

Support Turbo overclocking 2.5G optical module expansion and ring network

Chip Parameter

Network

L2+

L3

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x , IEEE802.3ae 10GBase-SR/LR

Forwarding Mode

Store and Forward (Full Wire Speed)

Switching Capacity

598Gbps (Non-blocking)

Forwarding Rate

95,23Mpps (@64byte)

MAC

32K

Buffer Memory

32M

Jumbo Frame

9,6K

LED Indicator

Power: PWR(yellow), System: SYS(yellow), Network: Link/Act(yellow), Fiber port: L/A(green)

DRAM

2G

FLASH

128M

CPU

500MHz

Reset Switch

Yes, press and hold the switch for 10 seconds and release it to restore the factory settings

PoE & Power Supply

Total PWR / Input Voltage

60W /(AC100-240V)

Power Consumption

Standby<25W, Full Load<35W

Power Supply

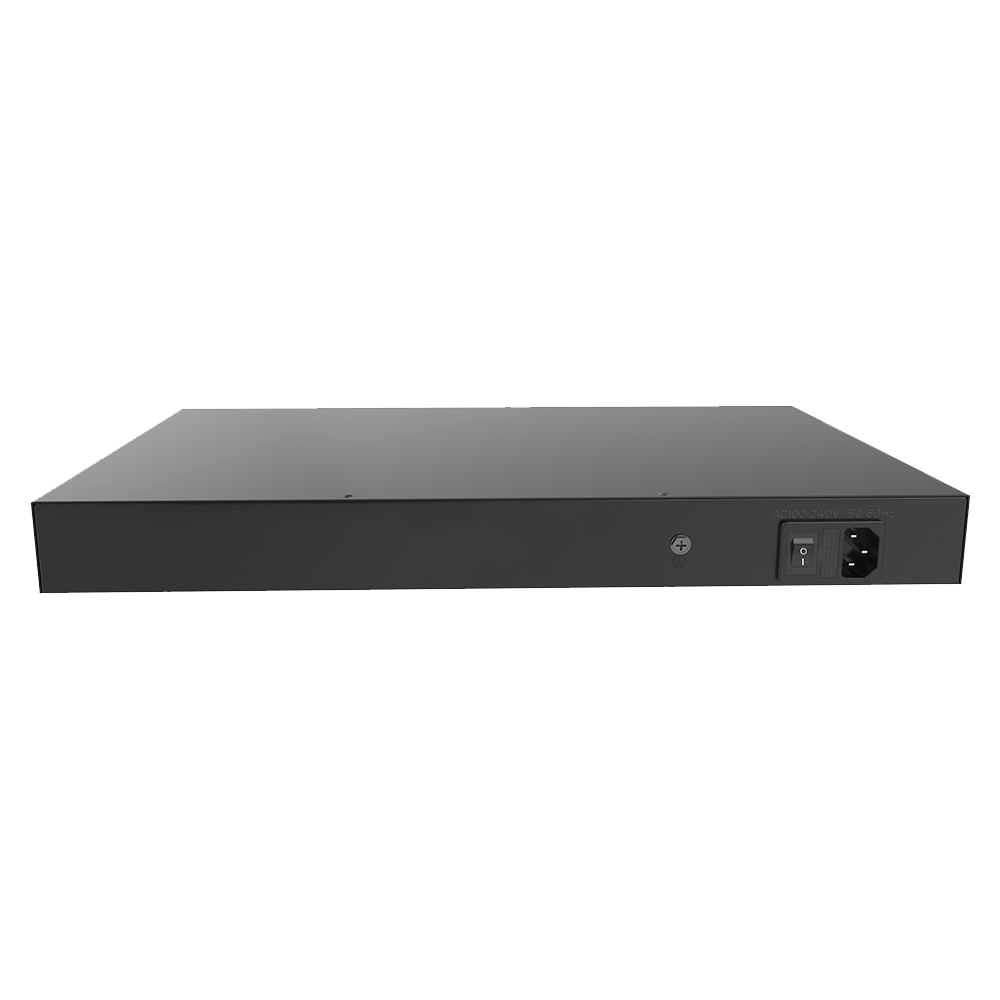

Built-in power supply, AC 100~240V 50-60Hz 1.0A

Physical Parameter

Operation TEMP / Humidity

-20~+55°C, 5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+75°C, 5%~95% RH Non condensing

Dimension

440*290*44.5mm (L*W*H)

Net /Gross Weight

<3.5kg / <4kg

Form Factor

Desktop, 19 inch 1U cabinet , wall-mounted

Certification & Warranty

Lightning Protection / Protection Level

Lightning protection: 4KV 8/20us, Protection level: IP30

Certification

CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS

Warranty

2 years, lifelong maintenance.

Network Management Features

Interface

IEEE802.3X (Full-duplex)

Broadcast storm control based on port speed

The speed limit of the message flow in the access port. The minimum particle size is 64Kbps.

Port temperature protection setting

Port green Ethernet Energy-saving setting

No connection port automatic sleep

SFP+ optical port DDMI real-time digital diagnosis

Layer 3 Features

L2+ network management ARP protocol, maximum 1024 entries

IPV4/IPV6 static route/default route supports up to 128 entries

Layer 3 routing and forwarding, support communication between different network segments and different VLANs

IPV4 Equal Cost Routing NG protocol, maximum 1000 entries ARP protocol, maximum 1000 entries Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6 IPV4/IPV6 VRRP, the maximum group is 255 IPV4/IPV6 VLANIF interface supports up to 128 IPV4/IPV6 static route/default route supports up to 128 entries L3 network management function, IPV4/IPV6 dual-stack management IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries

Layer 3 routing and forwarding, support communication between different network segments and different VLANs

VLAN

Voice VLAN, QinQ configuration

4K VLAN based on port, IEEE802.1q

VLAN based on the protocol

VLAN based on MAC QinQ configuration

Port configuration of Access, Trunk, Hybrid

Port Aggregation

LACP, Static aggregation

Max 14 aggregation groups and 8 ports per group.

Spanning Tree

STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s)

Industrial Ring

Network Protocol

G.8032 (ERPS), Recovery time less than 20ms

250 Ring at most, Max 250 devices per ring.

Multicast

IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out MLD Snooping v1/v2,Multicast VLAN

Port Mirroring

Bidirectional data mirroring based on port

QoS

Diff-Serv QoS,Priority Mark/Remark

8*Output queues of each port

802.1p/DSCP priority mapping

Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Packet Filtering

Flow-based Rate Limiting



Network Management Features

ACL

L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL  based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. Port-based Issuing ACL.

ACL based on port and VLAN

Security

User hierarchical management and password protection

SSH 2.0,SSL,Port isolation,ARP message speed limit

Broadcast storm control,Backup for host datum

IEEE802.1X & MAC address authentication

Mac black holes,IP source protection AAA & RADIUS,MAC learning limit

ARP inspection,Anti-DoS attack

IP-MAC-VLAN-Port binding

DHCP

DHCP Client,DHCP Snooping,DHCP Server,DHCP Relay

Management

Console/AUX Modem/Telnet/SSH2.0 CLI Web Management (HTTPS)

Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3

One-key recovery NTP,System work log,Ping Test Cable Diagnose,LLDP, CPU instant utilization status view Xentino NMS - Smart Network Management System Platform

(LLDP+SNMP)

System

Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; Category 5 Ethernet network cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network



ORDERING INFORMATION

Model

Description

S2404TGL3 (60W)

L3 managed Ethernet aggregation /core fiber switch with 24* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports. Support 1U/19 inch rack installation

Note: The SFP optical module is not included by default and needs to be purchased separately.



PACKAGE CONTENT

QTY

UNIT

CONTENT

1

SET

28-port 10G uplink L3 managed Ethernet Fiber Switch

1

PC

AC Power Cable

1

SET

Mounting Kits(Hanging Ear)

1

PC

User Guide

1

PC

Warranty Card

1

PC

RJ45-DB9 Line
