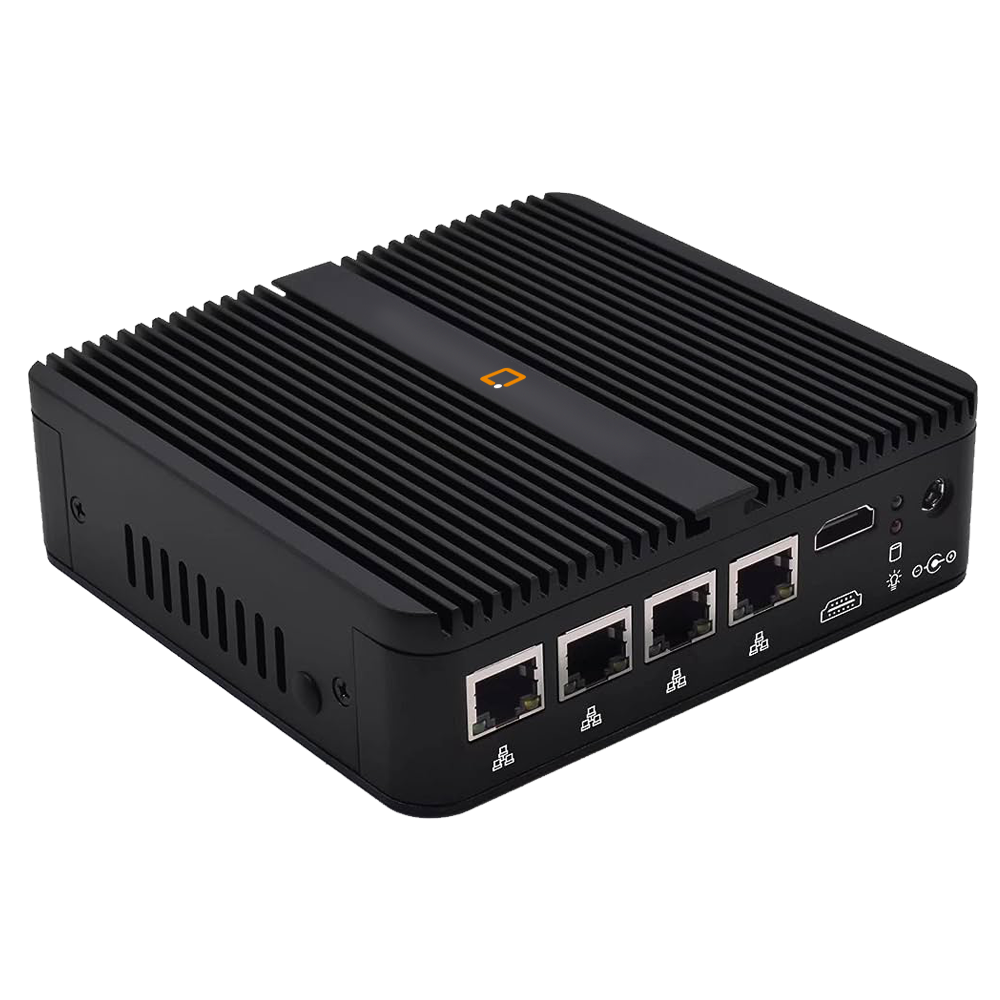

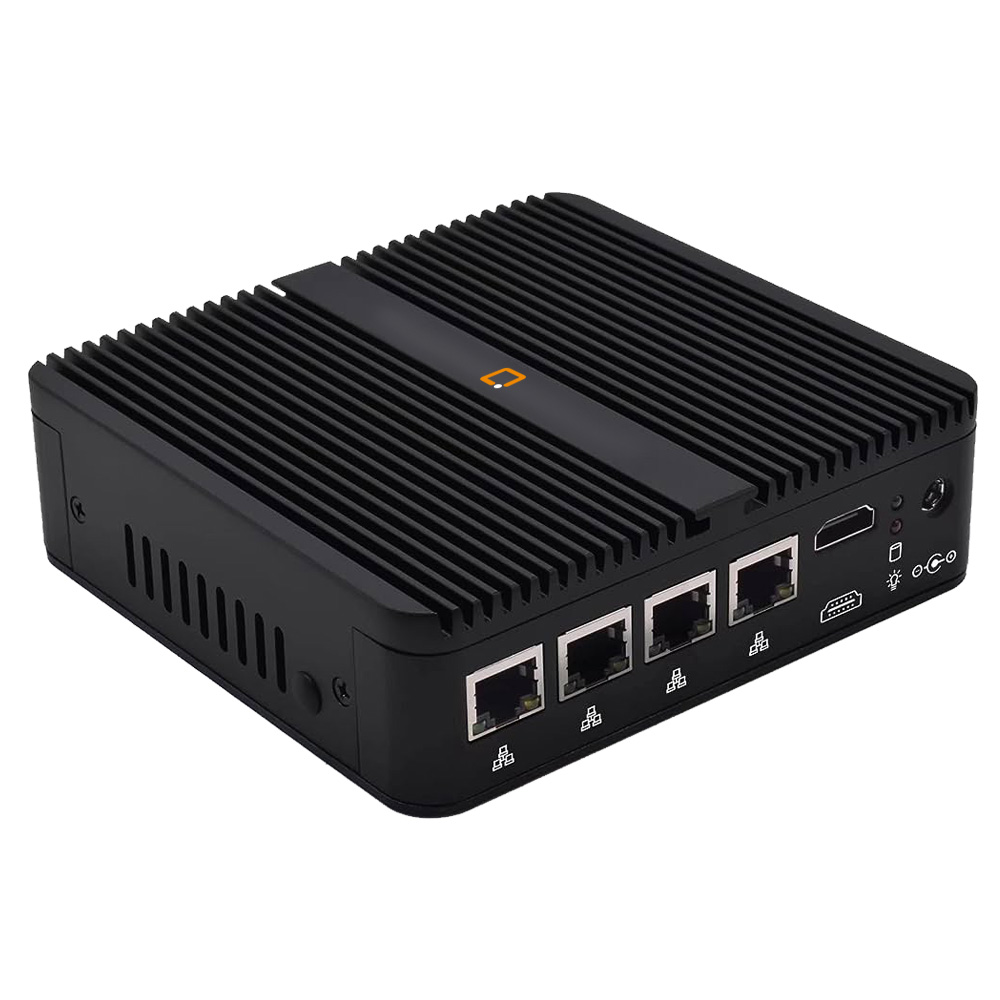

Quedra LightBox LB60 NextGeneration Desktop UTM Firewall, güçlü ve kapsamlı erişim güvenliği sağlayan kurumsal düzeyde yeni nesil güvenlik duvarıdır. Yeni nesil SD-WAN uygulamalarına uygundur. Masaüstü formunda 4x1GbE(RJ45), 1.2 Gbps Firewall, 100Mbps IPSec, 200000 Concurrent Sessions, 60 IPSec Tunnels ve External Power Supply Unit ile gelir. UTM Servisleri ile alınmalıdır.
Quedra LightBox Serisi NextGeneration Desktop UTM Firewall, güçlü ve kapsamlı erişim güvenliği sağlayan kurumsal düzeyde yeni nesil güvenlik duvarıdır. Yeni nesil SD-WAN uygulamalarına uygundur. UTM Servisleri ile alınmalıdır.
Quedra LightBox
Quedra LightBox Serisi, küçük, orta ve orta-büyük işletmeler ve kenar ofisler için ileri seviye ağ güvenliği ve erişimi çözümü sunan yeni nesil Ağ Güvenli çözümüdür. Ağ teknolojilerinden gelen tecrübesi ile Quedra, hem esnek erişim ve erişim denetimi özellikleri sunarken hem de her tür yeni nesil ağ güvenliği tehditlerine karşı ileri seviye ürünler sunar.
Yeni Nesil Ağ Güvenliği
Quedra LightBox NGFW ürünü, Layer 2'den Layer 7'ye kadar uzanan zengin network özellikleri ile yüksek performanslı çözümler sunar. Konfigürasyon esnekliği sayesinde ağınızla tam uyumluluk sağlar. Genel ağ güvenliğini artırarak, güvenlik işlevleriyle ağınızı güçlendirir.
Esnek Ağ Mimarisi
Quedra LightBox Serisi SDWAN özellikleri sayesinde her tür ağ mimarisine uyum sağlar. Hızlı ve performanslı anahtarlama ve yönlendirme yapar. VPN özellikleri sayesinde ağınıza uzaktan kolayca erişir, şubelerinizi merkezde gibi kontrol edebilirsiniz.
Önemli özelliklerinden bazırları :
HotSpot ve İnternet Erişim Denetimi
Ağ ve Güvenlik Katmanları
Kayıt ve Raporlama
Donanım ve Performans Özellikleri
LB30 |
LB60 |
LB100 |
LB300 |
|
Arayüzler |
4xGigabit Ethernet |
4xGigabit Ethernet |
6x2.5Gigabit Ethernet |
6x2.5Gigabit Ethernet |
Oturum (Sessions) |
150.000 |
200.000 |
500.000 |
900.000 |
Açılan Yeni Oturum |
15.000 |
20.000 |
40.000 |
90.000 |
Firewall Throughput |
900Mbps |
1200Mbps |
2000Mbps |
3000Mbps |
UTM/NGFW Throughput |
90Mbps |
120Mbps |
350Mbps |
400Mbps |
IPS Throughput |
100Mbps |
100Mbps |
400Mbps |
400Mbps |
Antivirüs Throughput |
80Mbps |
80Mbps |
350Mbps |
350Mbps |
IPSEC VPN Throughput |
90Mbps |
90Mbps |
450Mbps |
450Mbps |
SSL VPN Throughput |
60Mbps |
60Mbps |
300Mbps |
300Mbps |
IPSEC VPN Sayısı |
30 |
60 |
100 |
300 |
SSL VPN Sayısı |
30 |
60 |
100 |
300 |
Firewall Kural Sayısı |
1000 |
2000 |
5000 |
5000 |
Dahili Saklama Alanı |
240GB SSD |
240GB SSD |
256GB SSD |
256GB SSD |
Çalışma Sıcaklıkları |
-10℃--60℃(14F~140F) |
-10℃--60℃(14F~140F) |
-10℃--50℃(14F~122F) |
-10℃--50℃(14F~122F) |
Boyutlar (Cihaz) |
135mm*127mm*39mm |
135mm*127mm*39mm |
177mm*125mm*55mm |
177mm*125mm*55mm |
Boyutlar (Kutu) |
305mm*205mm*75mm |
305mm*205mm*75mm |
305mm*205mm*75mm |
305mm*205mm*75mm |
Ağırlık (Kg) |
Net 0.6kg / Gross 1.2kg |
Net 0.6kg / Gross 1.2kg |
Net 1.3kg / Gross 2.0kg |
Net 1.3kg / Gross 2.0kg |
Genel Özellikler
Operating Modes |
VPN - Virtual Private Network |
Management Interface Features |
||||||||
• |
OSI Layer 2 Transparent |
• |
SSL VPN |
• |
HTML5 Responsive Web Interface |
|||||
• |
OSI Layer 3 Routing + Stealth Mode |
|
> |
Certificate Verification |
|
> |
SSL Certi cate based authentication |
|||
• |
Virtual Wire |
|
|
User Credentials Verification (+ 2FA ) |
|
> |
2FA - Two-Factor Authentication |
|||
Routing |
|
> |
Authentication: |
|
> |
Customizing the Service Port |
||||
• |
IPv4 / IPv6 Static Routing |
|
|
BLAKE2*, RSA*, SHA*, MD*, SHAKE* |
• |
Out of Band Management Plane |
||||
• |
PBR - Policy Based Routing |
|
> |
Encryption: |
|
> |
Resource Reservation |
|||
• |
OSPF - Open Shortest Path First Protocol |
|
|
AES*, ARIA*, CAMELLIA*, SEED*, SM4* |
• |
SSH Console |
||||
• |
BGP - Border Gateway Protocol |
• |
PPTP / L2TP VPN, L2TP over IPSec |
• |
Physical Console (Monitor, Keyboard) |
|||||
• |
RIP / RIPng - Routing Information Protocol |
• |
IPsec VPN (Both VTI and Legacy Mode) |
• |
Serial Console (If exists on hardware) |
|||||
• |
PIM SM/SSM IGMP v2/v3 Multicast Routing |
• |
Site to Site VPN |
• |
Incident Notification Service |
|||||
• |
Routing Monitor |
• |
GRE Tunnelling |
|
> |
SMS, Email, Brower Notification |
||||
Network Interface Specifications |
Services |
User Authentication Methods |
||||||||
• |
Loopback Interface, IEEE802.1Q VLAN support |
• |
Live Dashboard |
• |
Mernis (NVI) |
|||||
• |
Link Aggregation : |
• |
Automated Update System |
• |
SMS |
|||||
|
> |
LACP, Failover, Load Balance, Round Robin |
• |
Offline Update |
• |
Local User |
||||
• |
Bridging / STP / Ethernet Bypass |
• |
Automatic Configuration Backup |
• |
HTTP (API) |
|||||
• |
Virtual Extensible LAN (VXLAN) |
• |
DHCPv4/v6 Server, Relay and Monitor |
• |
LDAP |
|||||
• |
NAT64, IPv6 6to4 Tunneling |
• |
Authenticated http/https Proxy |
• |
RADIUS |
|||||
• |
Static ARP |
• |
Quedra Shared Management-Virtual System |
• |
POP3 / IMAP |
|||||
• |
PPP ve PPPoE Connection Interface |
• |
QoS - Effective Bandwidth Management |
• |
SSO: Negotiate Kerberos - Active Directory |
|||||
• |
3G/4G/LTE Modem Support |
• |
Time and Quota Adjustable Hotspot(Captive) |
• |
TACACS + |
|||||
Security Specifications |
• |
Bandwidth Monitor |
Product Certifications |
|||||||
• |
Zone Based Firewall |
• |
Quedra Registry Service |
• |
Common Criteria EAL4 + |
|||||
• |
Application Security (AppID) |
• |
Quedra Announcement Service |
• |
TRtest Product Conformity Certificate |
|||||
• |
Honeypot Trapping |
• |
NetFlow Export Service |
• |
MIT (Made in Turkiye) |
|||||
• |
Traffic Rate Limiting |
• |
RADIUS Server and Proxy |
IPsec VPN |
||||||
• |
Multi-Policy, Section and Profile Support |
• |
Domain Based http/https Forwarding |
• |
Encryption: |
|||||
• |
Time Based Security Policy Management |
• |
https SSL Offload Service |
|
> |
AES / CAMELIA / NULL_ENC / SERPENT |
||||
• |
IPS - Intrusion Detection and Prevention |
• |
SNMP v2/v3 Service |
|
> |
TWOFISH /DES / 3DES |
||||
• |
SPI - Statefull Packet Inspection |
• |
RRD Service |
• |
Authentication: |
|||||
• |
DPI - Deep Packet Inspection |
|
> |
Number of Active Users and Bandwidth |
|
> |
MD5, SHA1, SHA256, SHA384, SHA512, AES |
|||
• |
http / https Web Filtering (SNI / DPI) |
• |
http/https Caching |
• |
WildCard ID Support |
|||||
• |
DNS Query Filtering |
• |
Domain Based Bandwidth Limiting |
• |
NAT Traversal Support |
|||||
• |
Interface Based Anti Spoofing (Sym and Asym) |
• |
Log Timestamping |
• |
PKI - Public Key Infrastructure Support |
|||||
• |
MAC Based Quarantine |
• |
Timestamp Integration |
• |
PSK - Pre Shared Key Support |
|||||
• |
MAC - IP Matching Control |
• |
Syslog (TCP/UDP/TLS) - supported formats; |
Email Security |
||||||
• |
ARP Poisoning Protection |
|
> |
RAW, CEF, EWMM, GELF, JSON, WELF, CIM |
• |
Gateway Antispam *** |
||||
• |
Flood Intrusion Prevention |
• |
Black Hole Service |
• |
Anti Virus / Anti Malware *** |
|||||
• |
Gateway Anti Virüs / Anti Malware *** |
• |
Campus Information Service |
• |
Email Rate Limiting |
|||||
• |
SSH Inspection, Anti Botnet |
• |
LLDP Service |
• |
RBL, MX, SPF, DKIM, DMARC Check |
|||||
• |
DoS Prevention - Connection Limiting |
• |
GEO-IP Service |
• |
Email Quarantine |
|||||
• |
XFF Scan - Trusted Proxy Servers |
• |
Quedra Central Management/Logging Integration |
• |
Gray Listing, Phishing Check |
|||||
• |
Service Based Timeout Control |
|
|
|
• |
Category and Rule Based Filtering |
* Not : Donanım ve yazılım özellikleri, ilgili yazılım ve donanımların yaşam döngüsü içerisinde geliştirmeler ve değişimler nedeni ile farklılıklar gösterebilir.
