Prodoct Informations

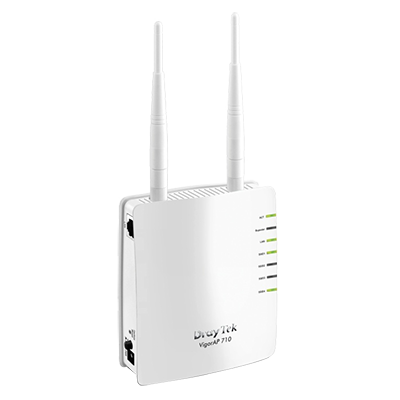

The VigorAP 710 is a Wireless Access Point and it provides the ultimate industry standard access to corporate network, the Internet, e-mail and residential wireless network. With mobile workforce demands, VigorAP 710 delivers reliable and secure wireless local area networks (WLANs). The extended range is enabled through its simplified but robust management and configuration.

WMM for Wi-Fi application prioritization

DrayTek implements intelligent wireless prioritization technology on VigorAP 710 for best utilization of wireless coverage. VigorAP 810 supports Wi-Fi Multi Media standard (WMM). It is a standard created to define Quality of Service (QoS) in Wi-Fi networks. It is a precursor to the upcoming IEEE 802.11e WLAN QoS draft standard, which is meant to improve audio, video and voice applications transmitted over Wi-Fi. WMM adds prioritized capabilities to Wi-Fi networks and optimizes their performance when multiple concurring applications, each with different latency and throughput requirements, compete for network resources.

Wireless AP

• IEEE802.11b/g/n Compliant

Mode:

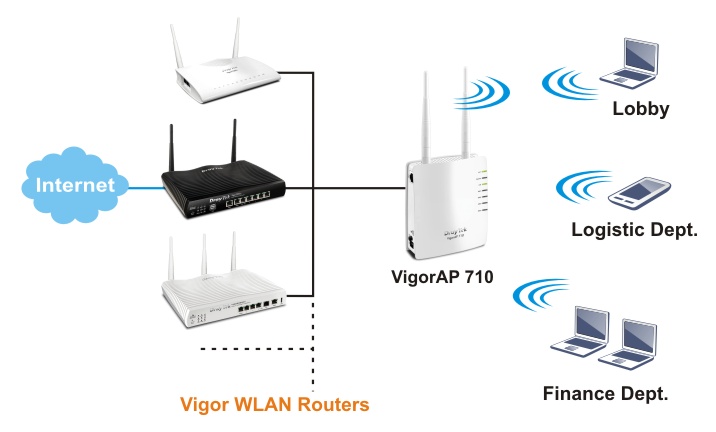

•  AP Mode

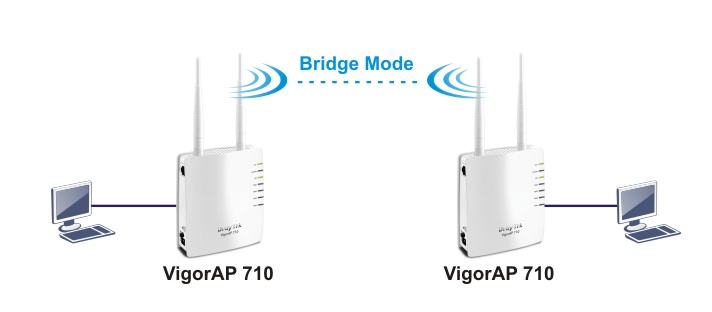

•  AP Bridge Point to Point/Multipoint
•  AP Bridge WDS (Wireless Distribution System)
•  Universal Repeater

Wireless Client List

• 64/128-bit WEP/WPA/WPA2
• Multiple SSIDs
• Hidden SSID/WPS/WMM/Wireless Isolation
• MAC Address Control
• Internal RADIUS Server
• 802.1x Authentication
• DHCP Server & Client
• Limited Wireless Clients

Network Management

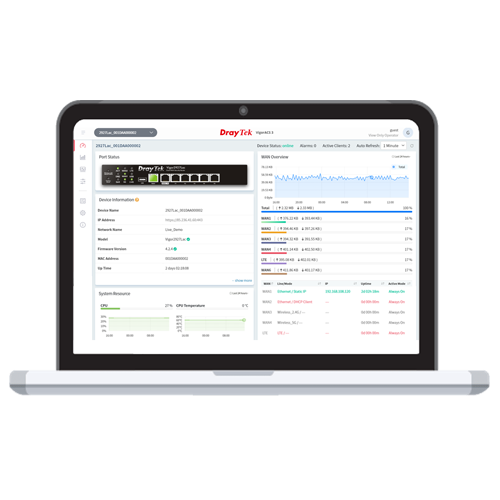

• Web-based User Interface (HTTP/HTTPS)
• TR-069 (Compliant with VigorACS SI)

Hardware Interface

• 1 x 10/100 Base-TX LAN Switch, RJ-45
• 2 x Detached Antennas
• 1 x Factory Reset Button
• 1 x Wireless ON / OFF / WPS Button
• 1 x Power ON / OFF Button
