TSW110, yönetilmeyen bir L2 Ethernet anahtarıdır. Bu küçük ama sağlam profesyonel cihaz, güvenilir bir veri bağlantısıyla endüstriyel yüksek bant genişliğine sahip uygulamalara olanak tanır. Ekipmanı ağa bağlamak için beş Gigabit Ethernet bağlantı noktasına sahiptir ve geniş güç kaynağı voltajlarını (9-30 V) destekler.

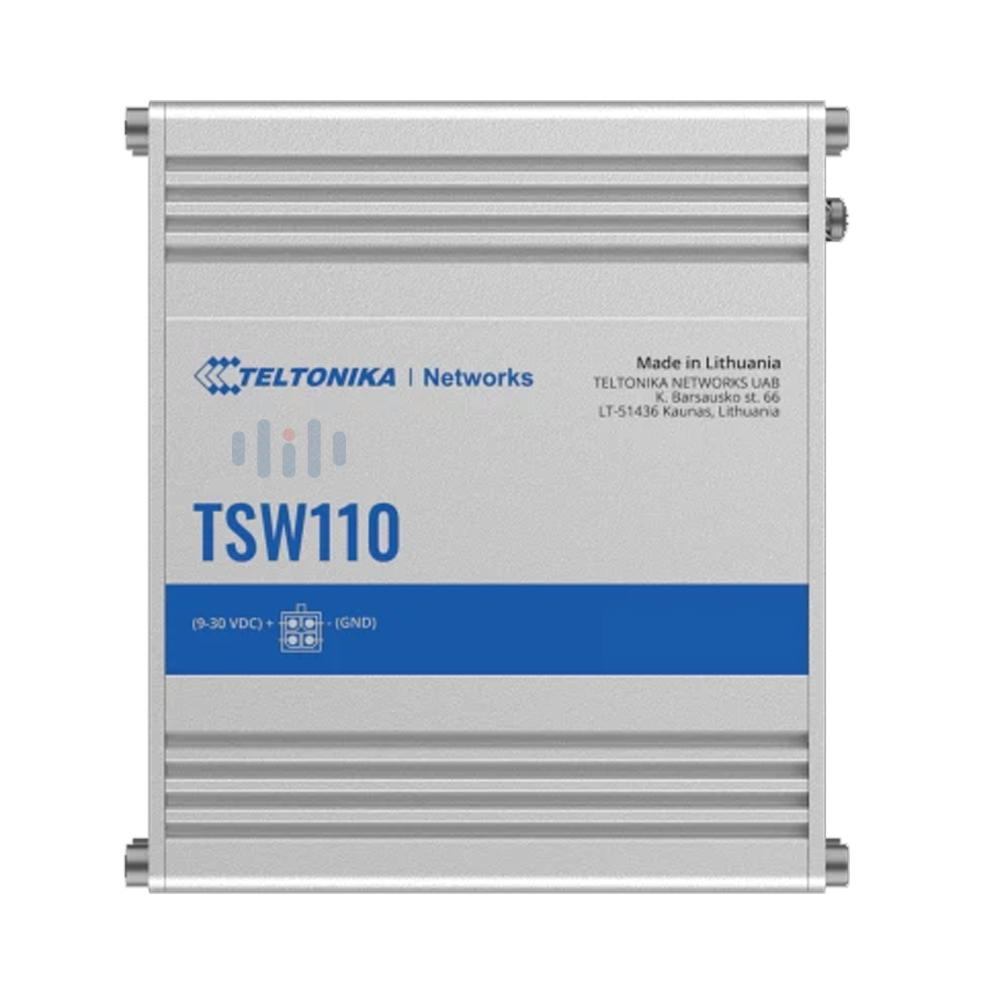

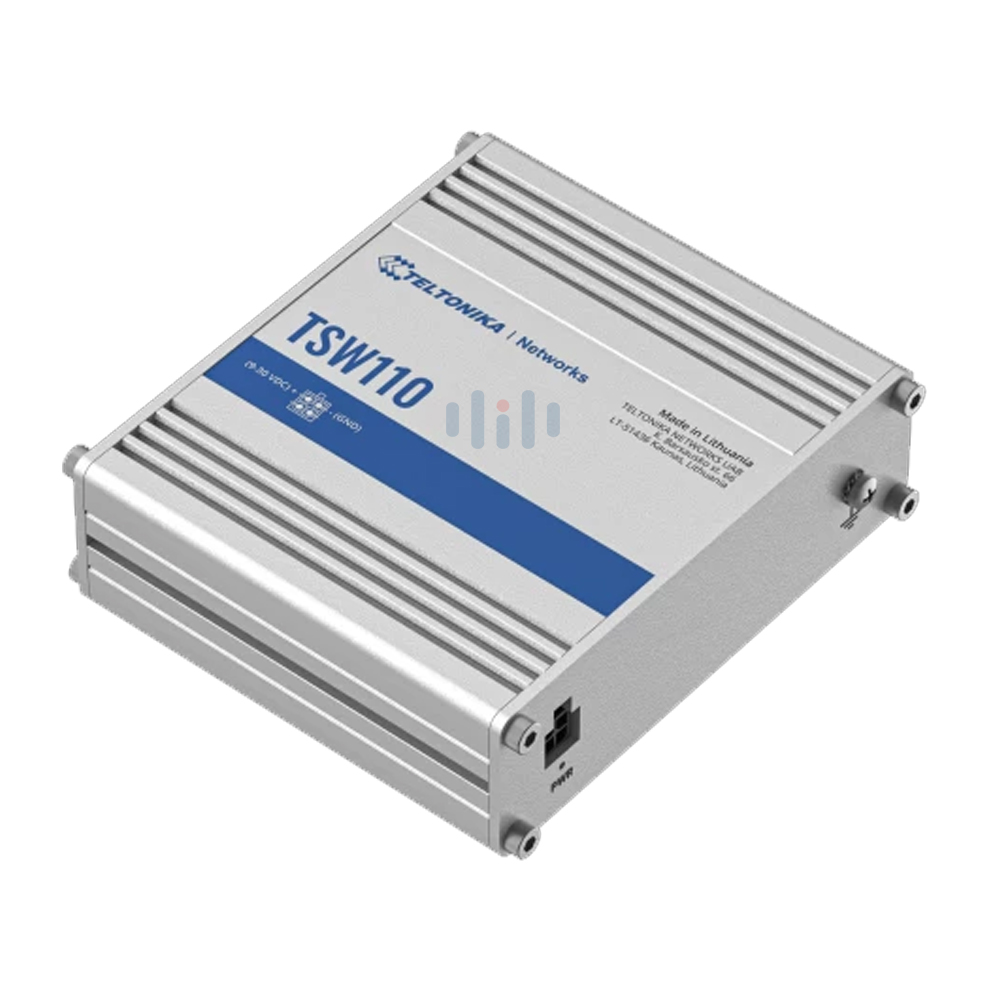

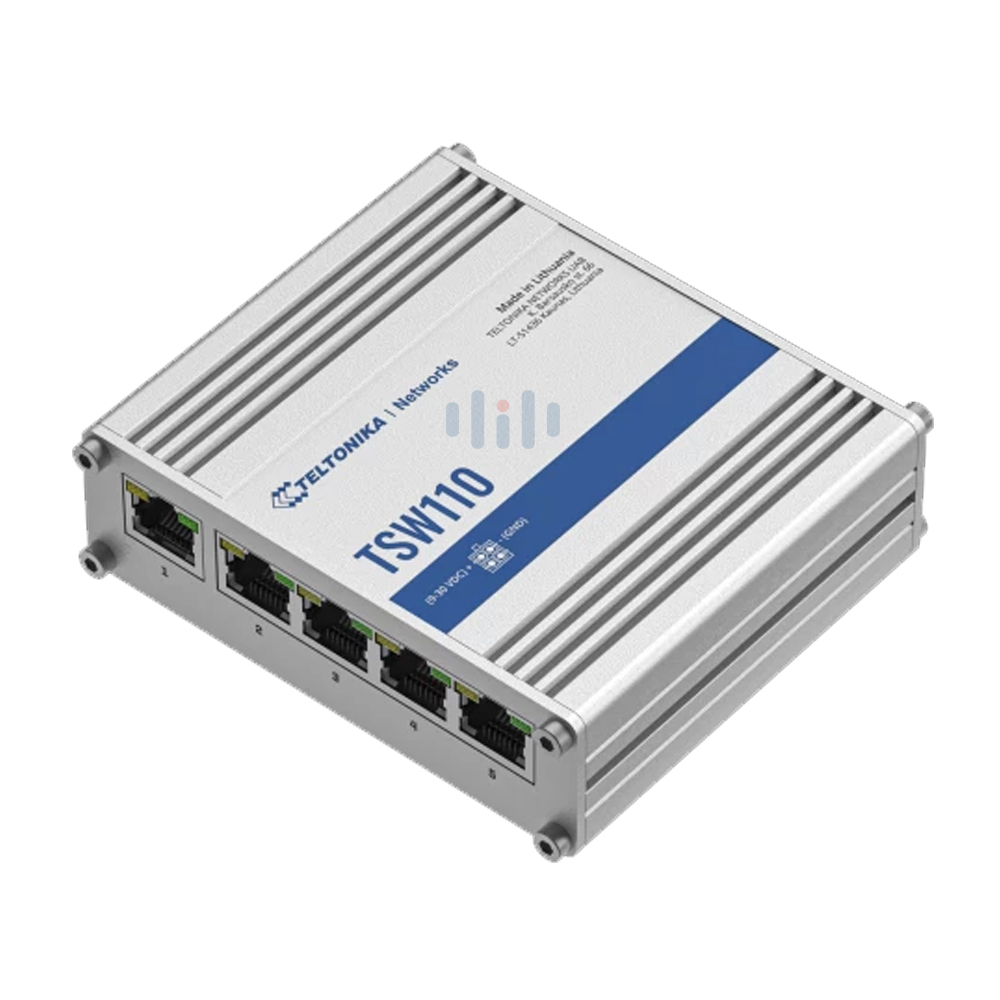

TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Connector
4-pin industrial DC power socket
Input voltage range
9 – 30 VDC
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
< 0.4 W/ < 1.8 W
Ethernet

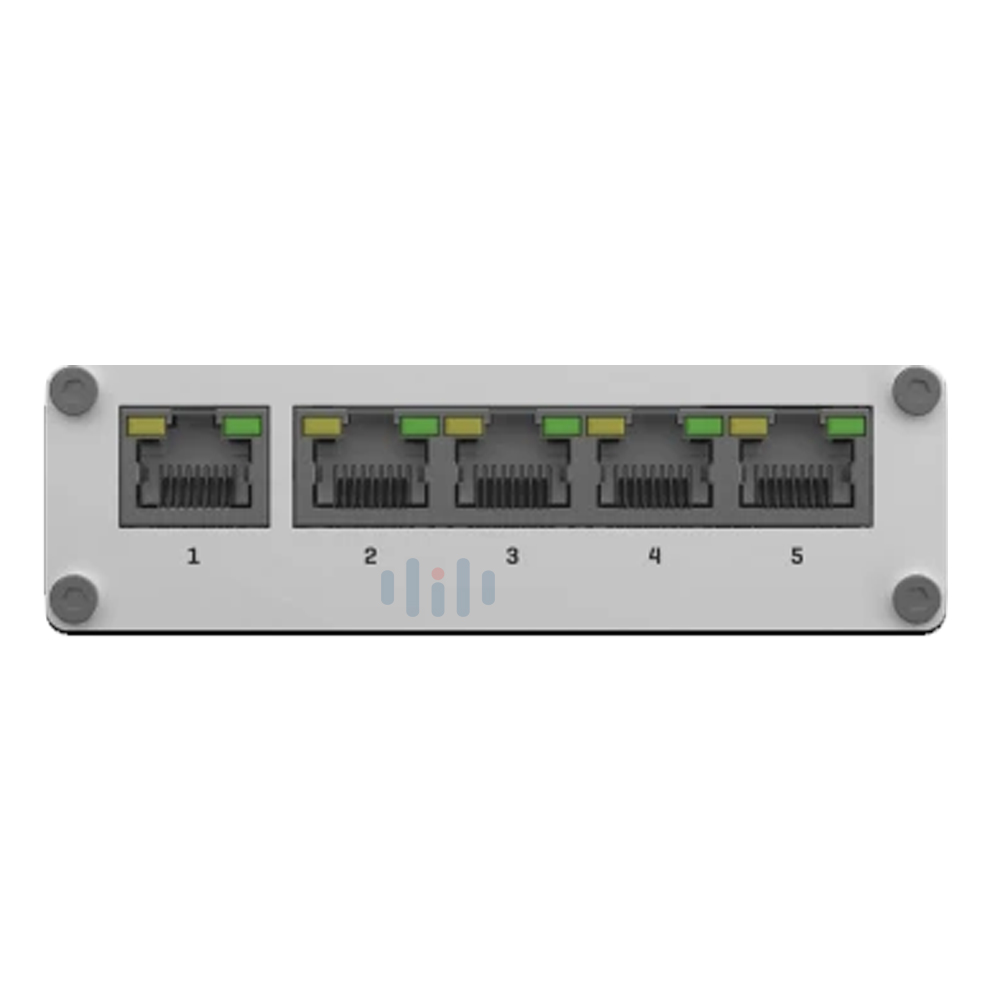

5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power

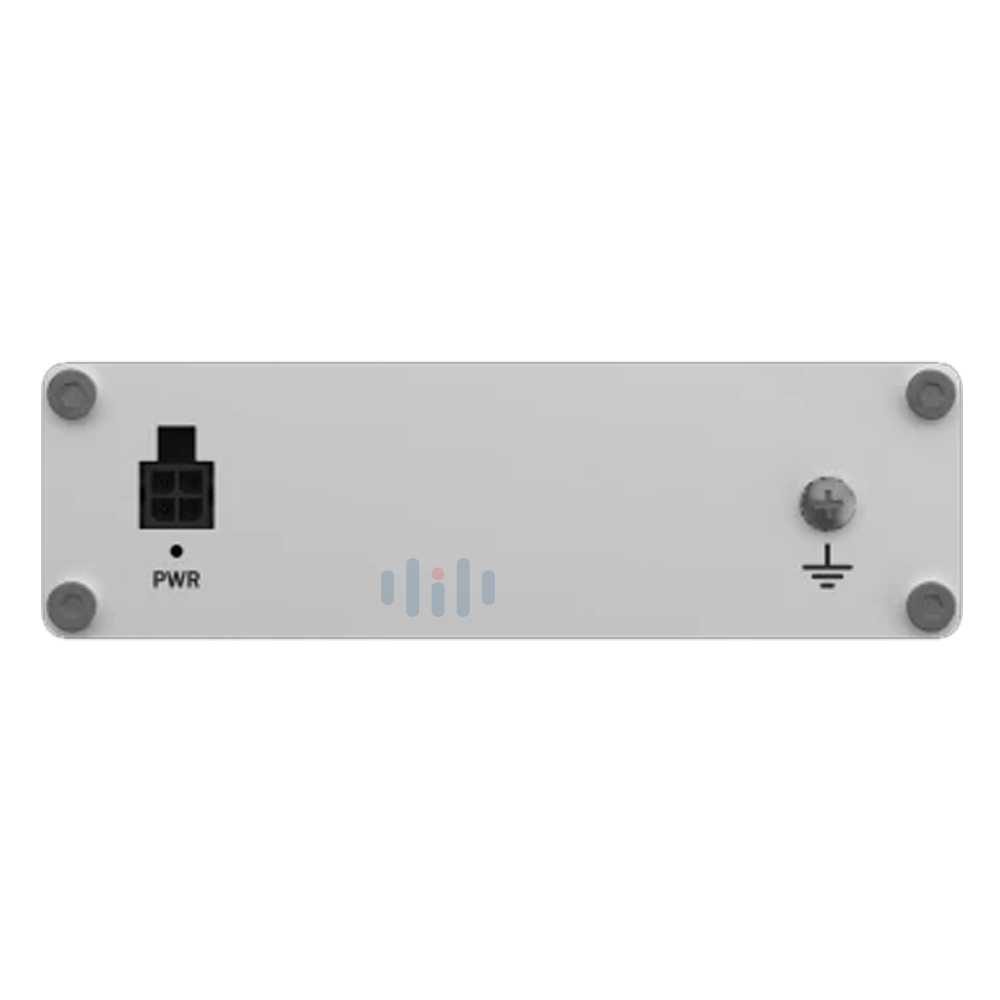

1 x 4-pin power connector
Other
1 x Grounding screw
Casing material
Full aluminum housing
Dimensions (W x H x D)
100 x 30 x 85 mm
Weight
227 g
Mounting options
DIN rail or wall mounting (additional kit needed), flat surface placement
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM, RCM, BSMI, CB
Standards
EN 55032:2015 + A11:2020
EN 61000-3-3:2013 + A1:2019
EN IEC 61000-3-2:2019
EN 55035:2017
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2004 + A1:2017
Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
