Xentino TR104 Mini PC Cihazı, güvenlik duvarı, yönlendirici veya eğitim sunum cihazı gibi benzersiz ofis ve ev ağı uygulamaları için tasarlanmıştır. Intel Celeron J4125, 4GB DDR4 SO-DIMM, Intel UHD Graphics 600, 64GB SSD, 2xUSB 3.0, 2xUSB 2.0, 1xHDMI, 1xVGA, 2xRS232 ve Realtek 8168/8111 ile 2x1GBit Ethernet, 802.11ac ve BT 4.0 WiFi ile donatılmıştır.
Xentino TR104 Mini PC Cihazı, güvenlik duvarı, yönlendirici veya eğitim sunum cihazı gibi benzersiz ofis ve ev ağı uygulamaları için tasarlanmıştır. Intel Celeron J4125, 4GB DDR4 SO-DIMM, Intel UHD Graphics 600, 64GB SSD, 2xUSB 3.0, 2xUSB 2.0, 1xHDMI, 1xVGA, 2xRS232 ve Realtek 8168/8111 ile 2x1GBit Ethernet, 802.11ac ve BT 4.0 WiFi ile donatılmıştır.
Product Overview

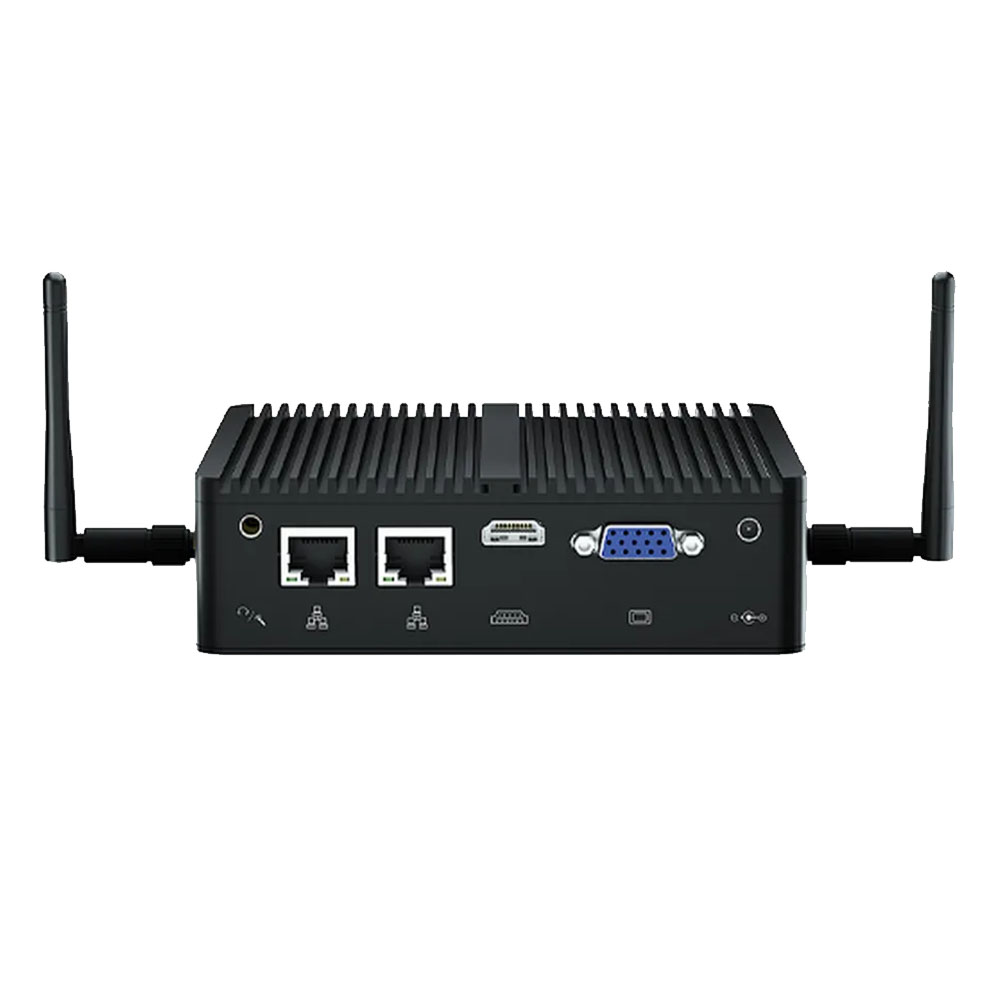

Xentino TR104 Mini PC Appliance are designed for unique, office and home network applications like firewall, router or training presentation device. The minicomputer's compact small size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.
Main Features
Memory & Storage
Memory types : 260 Pin DDR4L SO-DIMM Socket.
Storage : 1 x SATA3.0 for 2.5 inch HDD/SSD,1xmSATA slot.
Faster Running Speed
Equipped with Intel® Celeron® Processor J4125 Quad Core. Powerful hardware makes it run more stable.

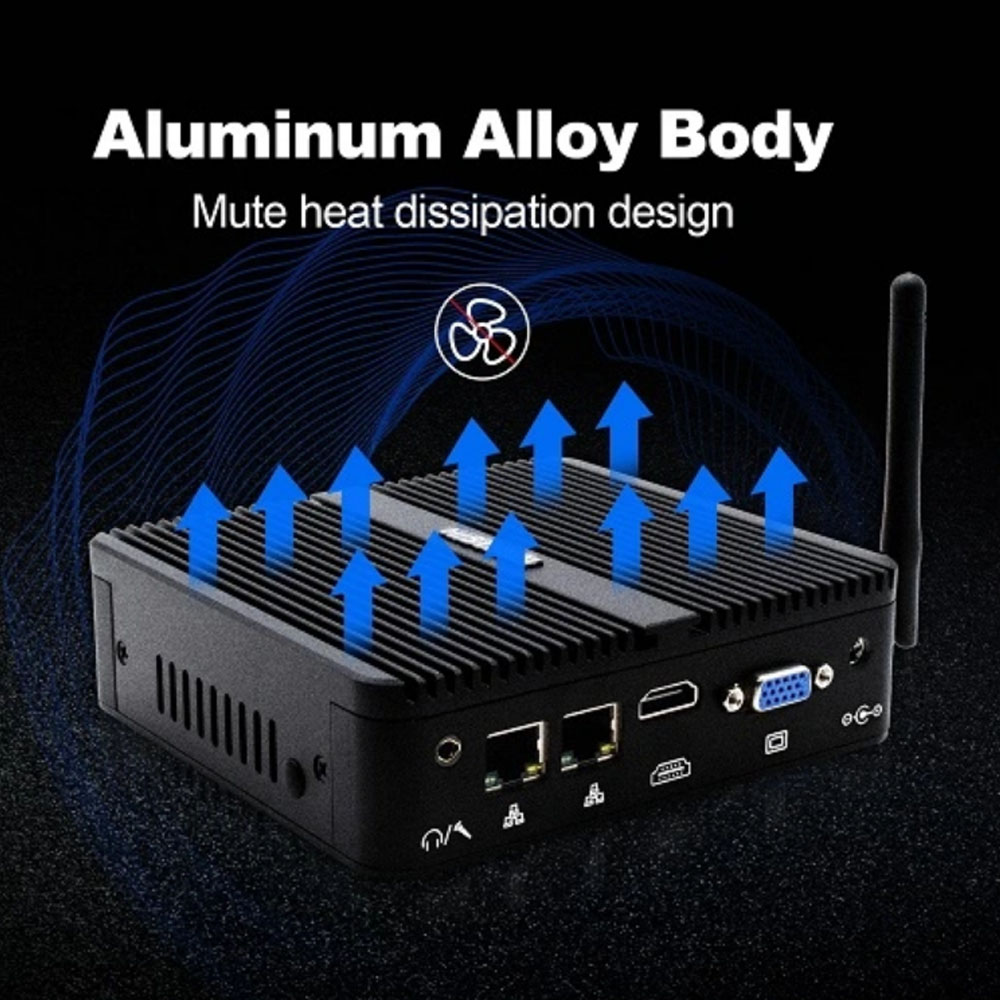

Excellent Waterproof and Dustproof Effect
Brushed full aluminum alloy silver color shell can effectively waterproof and moisture-proof, increasing the service life of the machine. Fanless operation avoids the requirement of air convection, thereby effectively preventing dust from entering the inside of the mini pc.

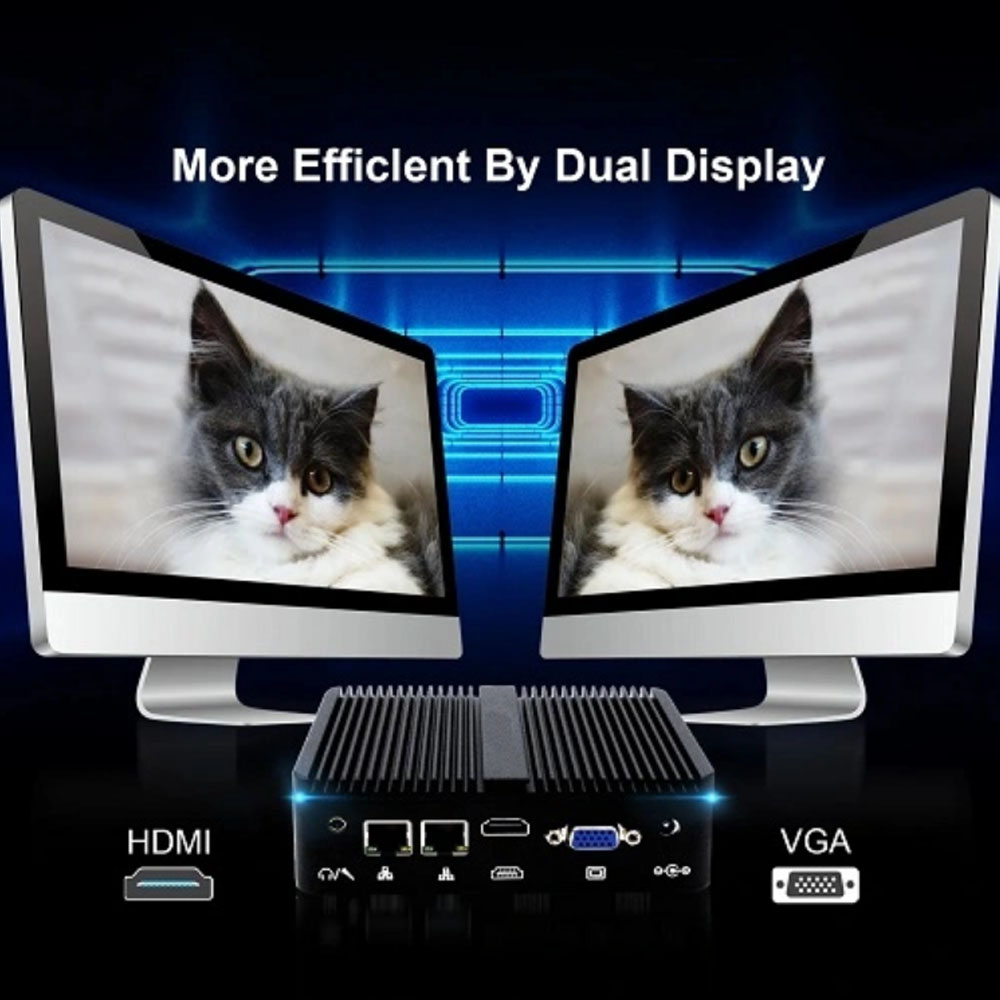

Dual Screen Display
Built with 1xHDMI port and 1xVGA port, seamlessly connecting two monitors. With integrated Intel UHD Graphics 600 to enjoy 4K Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family. Support 2.4G/5.0G Band WiFi.
No noise & portability
The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can save a lot of space.
SPECIFICATIONS
Processor |
|
CPU |
Intel Celeron J4125 (4M Cache, 4 Cores 4 Threads, Base Frequency 2.00 GHz Turbo Frequency 2.70 GHz) |
TDP |
10W |
CPU Lithography |
14 nm |
Memory Specifications |
|
Max Memory Size |
Max 32GB (4GB installed) |
Memory Types |
1*DDR4 SO-DIMM 260 pin |
Memory Speed |
2400 MHz |
Memory Channels |
Single Channels |
Storage Specification |
|
SATA |
1*SATA3.0 Slot for 2.5 inch HDD/SSD (64GB SSD Installed) |
m2 SSD |
1*m2 2280M Key PCIe3.0 |
mSATA |
1*mSATA slot |
Graphics |
|
Processor Graphics |
Intel® UHD Graphics 600 |
HDMI |
1*HDMI 4096*2160@30Hz(4K) |
VGA |
1*VGA 1920x1080@60Hz (1080p) |
Power Specification |
|
Adapter Output |
DC 12V/5A |
Adapter Input |
AC 110-240V, 50/60HZ |
Consumption |
50W |
Auto Power On |
Support Auto Power On Function |

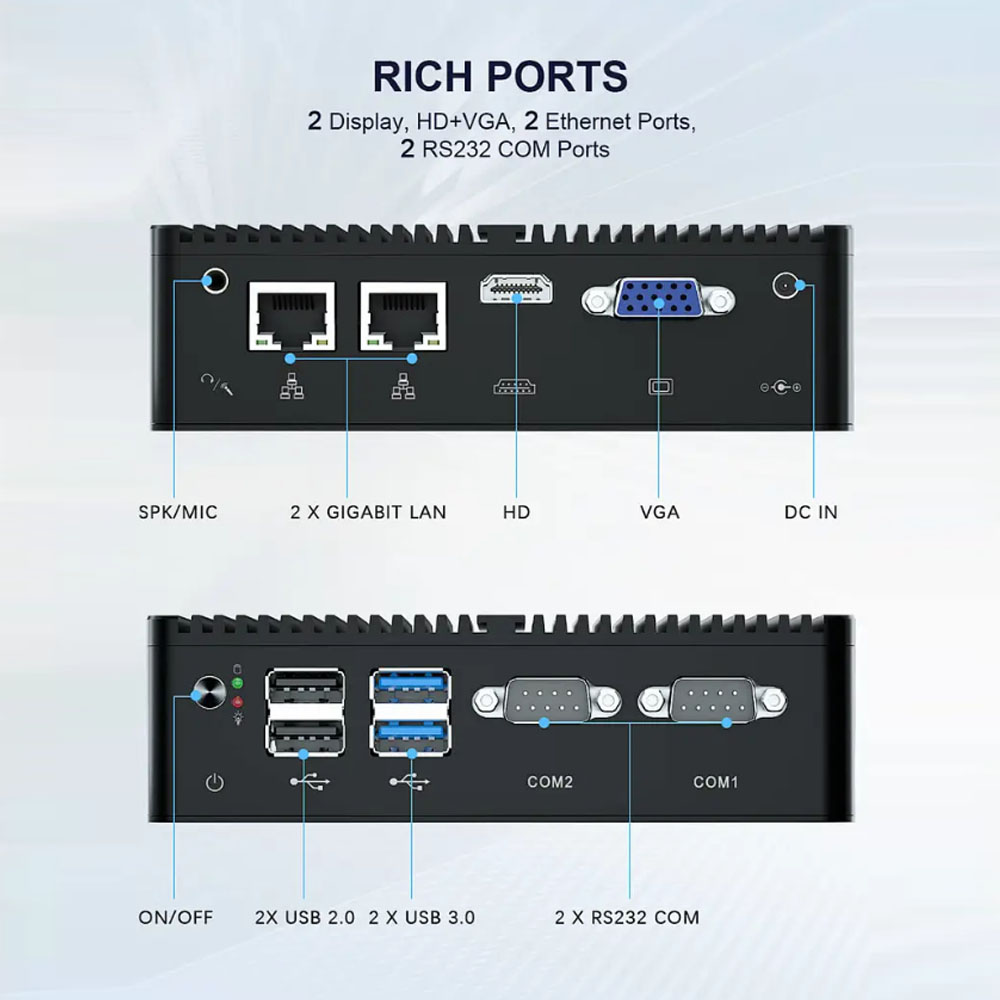

Interfaces |
|
USB Port |
2*USB 3.0 port, 2*USB 2.0 port |
Audio |
1*3.5mm MIC in & SPK out |
Video |
HDMI 4096*2160@30Hz + VGA 1920*1080@60Hz 2 Display Output |
Audio Cards |
USB Audio Device |
Lan Port |
2*1GigaBit RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111 |
Com Port |
2*RS232 Com port |

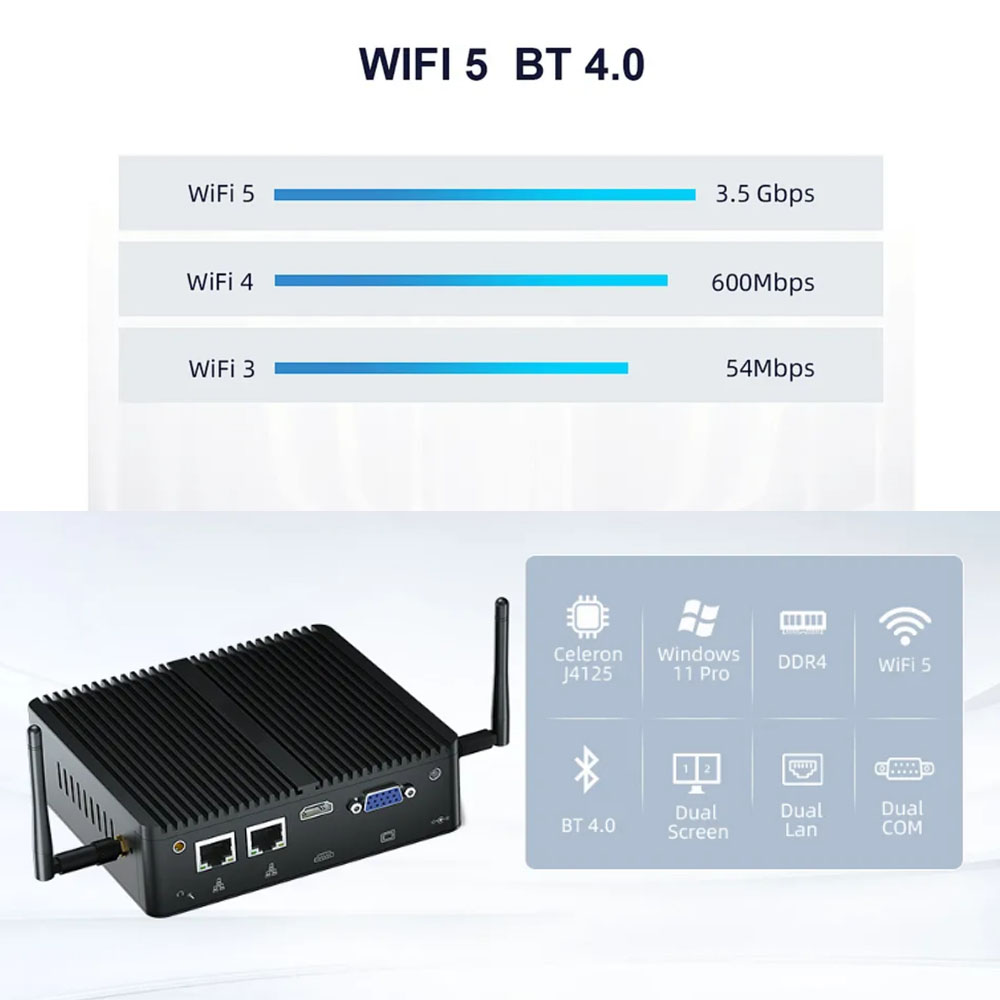

Wi-Fi |
Inside Wifi & Bluetooth Combo (802.11ac/bt4.0 installed) + 2*2dBi Omni Ant |
Others |
|
BIOS |
Support AUTO POWER ON, Wake On LAN, Watchdog, PXE |
MPCIE |
1*MPCIE, Support 3G/4G/Wifi module |
Work Environment |
-10℃--60℃(14F~140F), 30%--90% Humidity |
Case Material |
Full Brushed Aluminum Alloy |

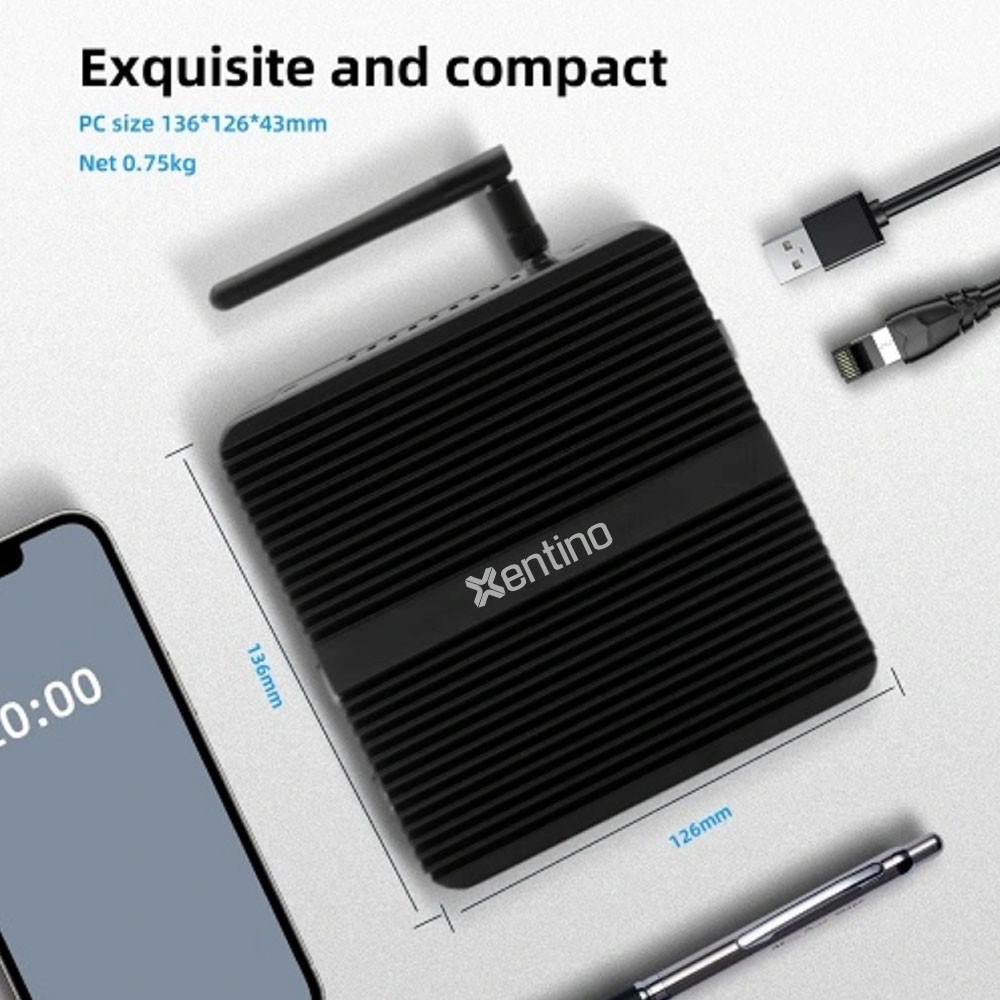

Dimension |
Device size 135*127*39mm Single Package size 305*205*75mm |
Weight |
Net 0.6kg / Gross 1.2kg |
