Prodoct Informations

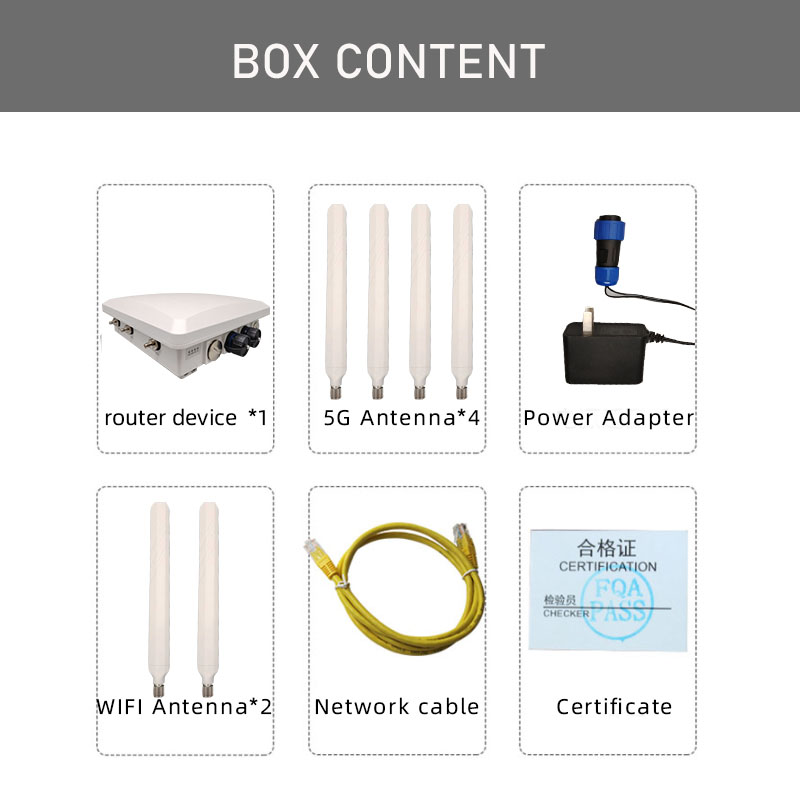

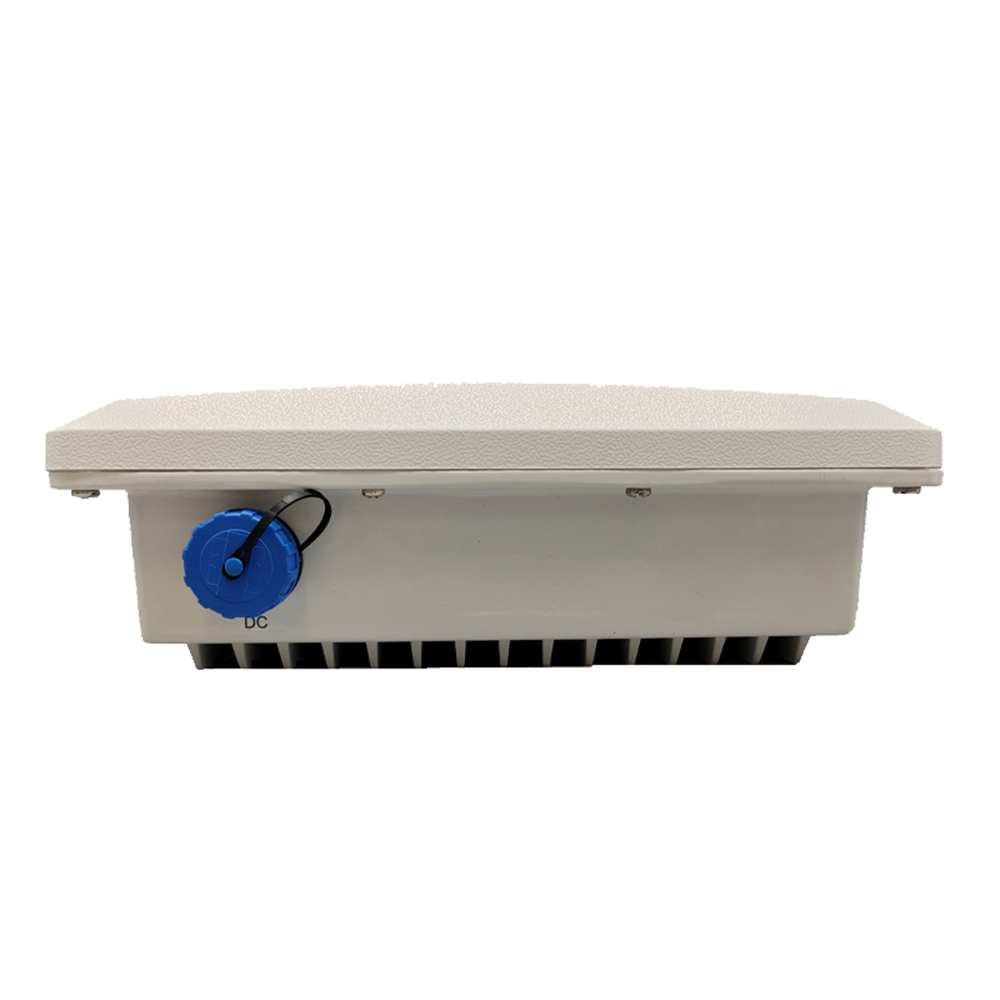

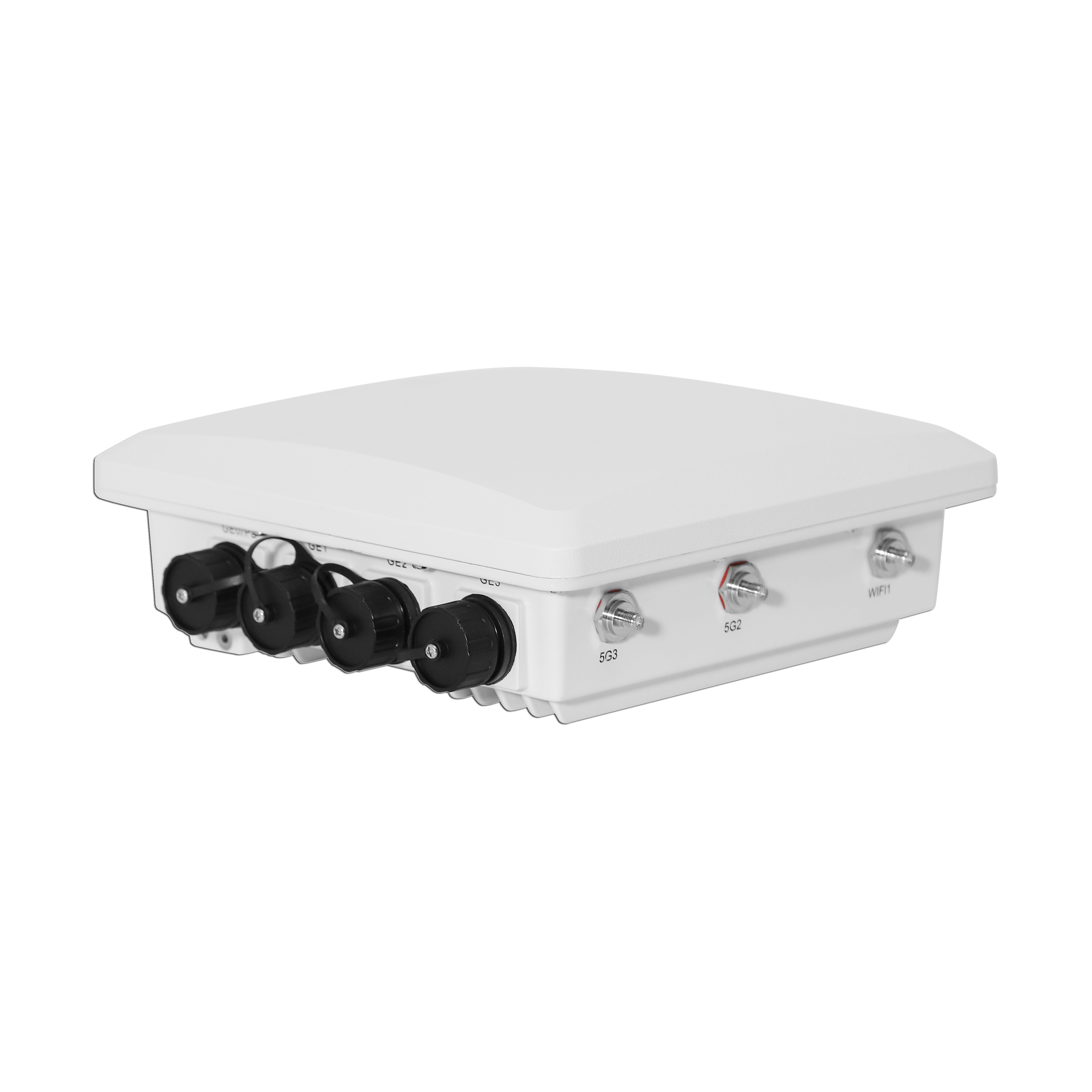

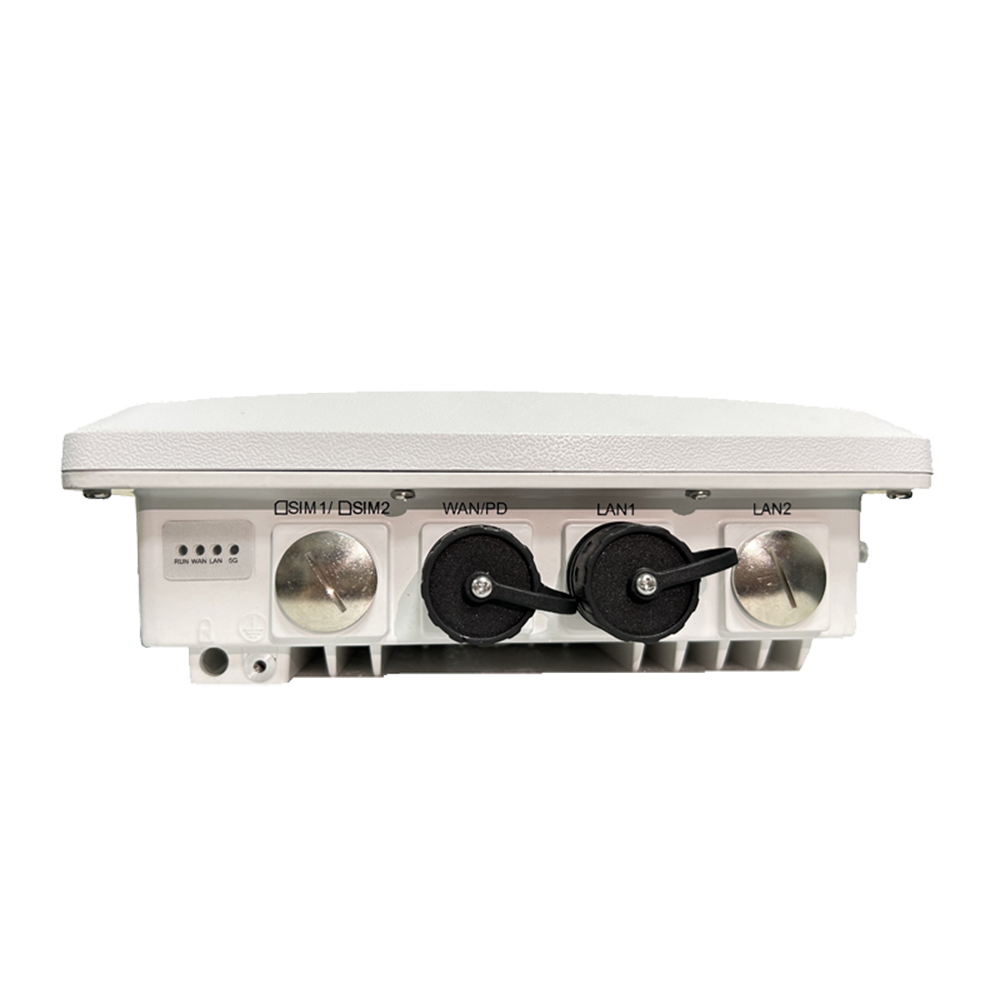

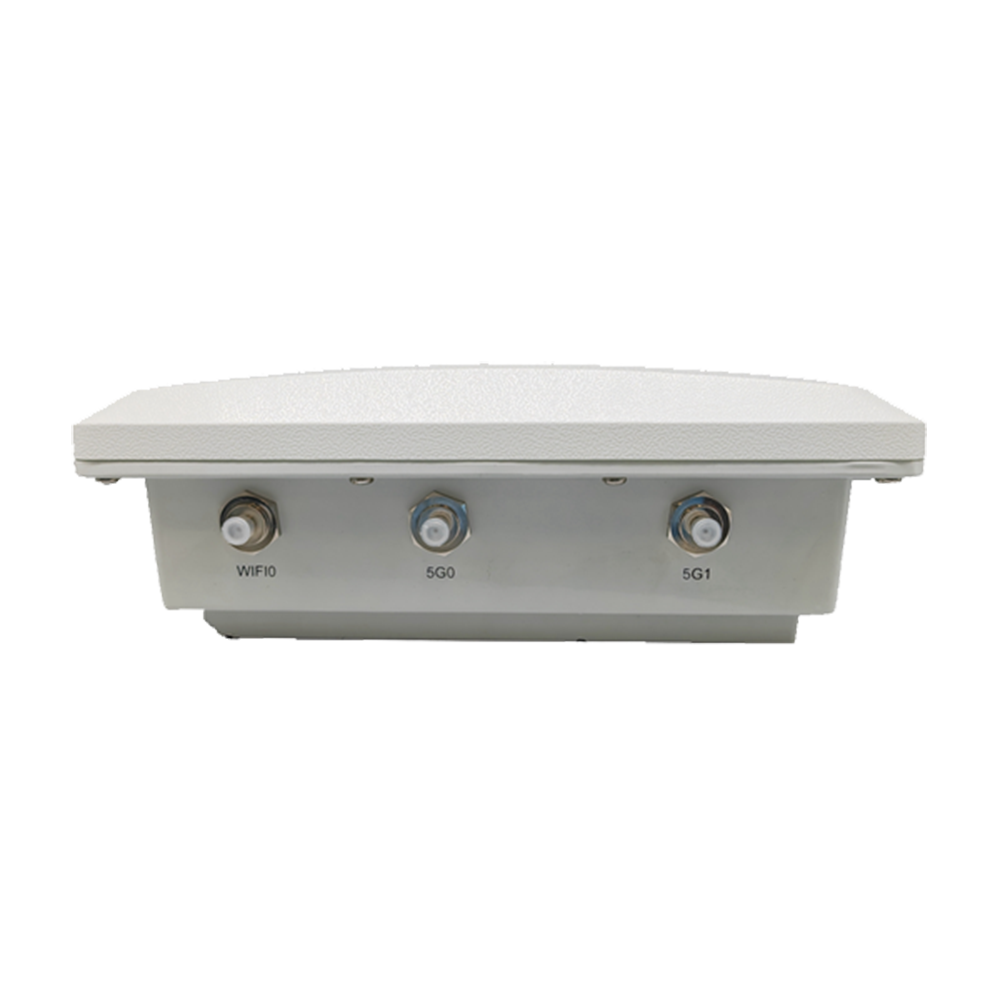

Xentino MR852D Dual SIM 5G/LTE/4G Wireless OutDoor IP65 VPN Router have 2xGigaETH (WAN port PoE Power support), 2xSIM Slot, 4x5G Antenna Interface, 2xWiFi Antenna Interface, 1xDC Power Interface -20 ~ +70°C. It supports to terminate 10xIPSec VPN Tunnel. (No PS Inside of the box)

Product Overview

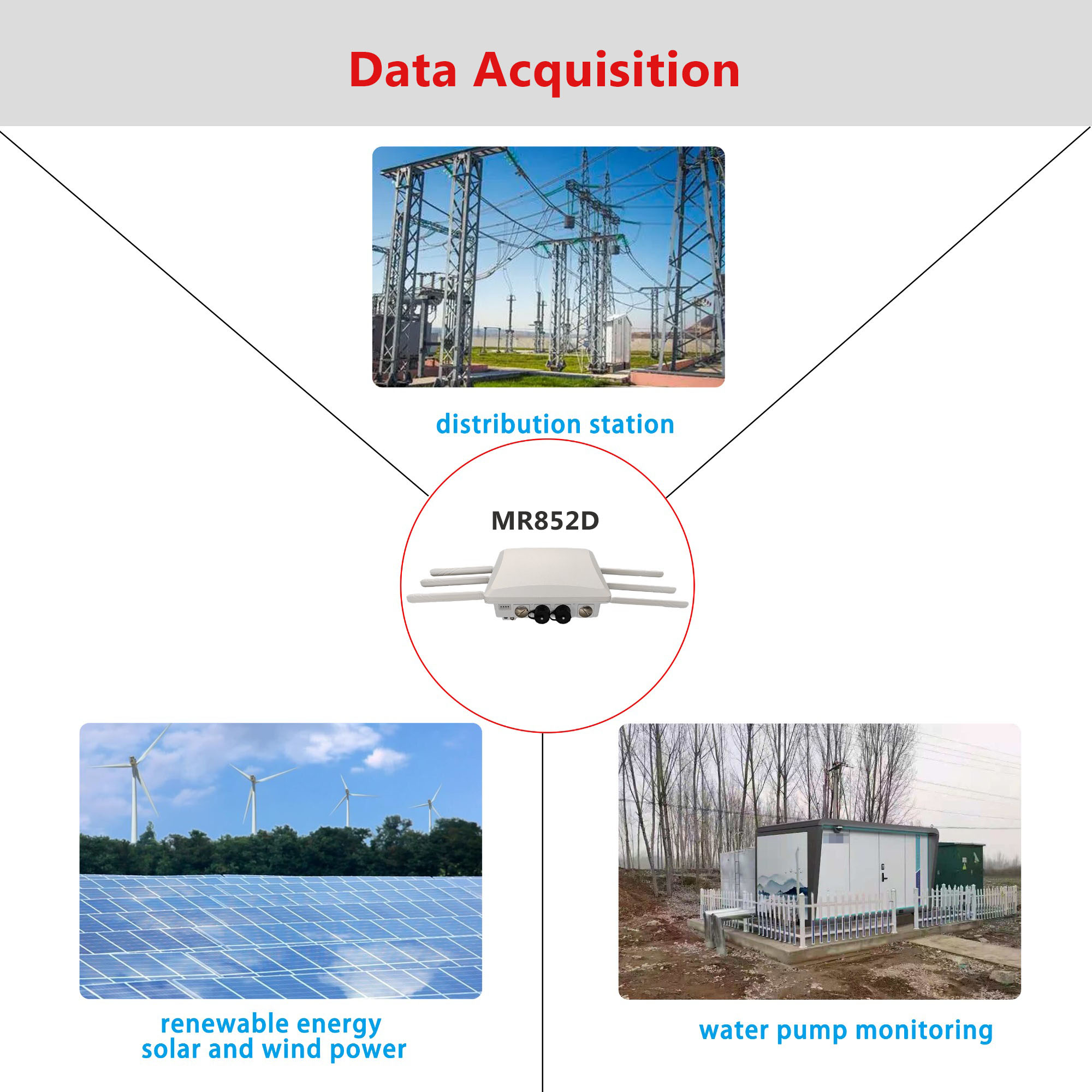

MR852D is an industrial-grade 5G WiFi router, particularly designed for outdoors use. It has waterproof and dust-proof design, with IP65 Ingress Protection Rating, suitable for used in open-air environment. Widely used in various outdoor equipment data access to the Internet, such as video surveillance (solar street lights, lighting poles, base stations, towers), as well as remote control of unmanned vehicles (mining and agricultural unmanned vehicles, patrol robots etc.)

MR852D can usefull for hard outside conditions like forest or high mountains. It has dual SIM slot supported with two different operetor connection. This also can usefull for 5G supported operator backed-up with 4G supported operator.

It is also usefull for for suburban area internet covarage. It supports 3000Mbps WiFi6 connections for the clients. It supports up to 64pcs different devices. Device can supports VPN terminations for remote backbone connections. Its also have PoE supported WAN port.

Product Main Features

• 5G cellular module, compatible with 4G LTE/3G
• Dual SIM slot, avoid data transmission disconnect, auto-reconnect
• 5G to WiFi6 support WiFi sensors and WiFi camera access to internet
• WiFi6 support 3000Mbps
• Excellent wireless transmission capacity,  support up to 64pcs WiFi devices, WiFi transmission distance up to 50 meters

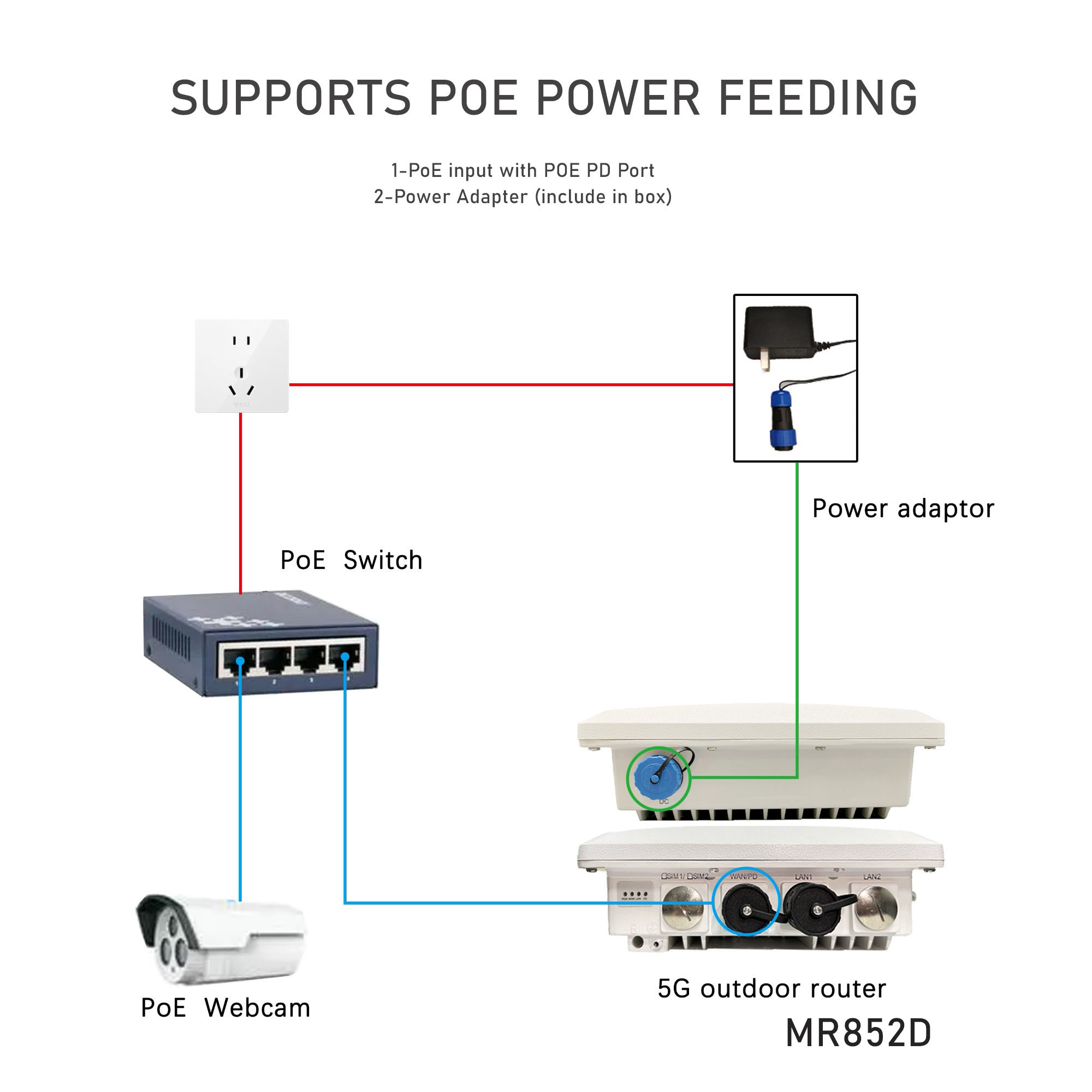

• Support PoE power receiving
• Not only power adapter, you can power the router device by PoE too
• GPS optional, for tracking ships, trains, vehicles etc
• Provide free software for devices batch management, both on-premise and cloud deployment
• Support various VPN and customization
• Built-in firewall, ensure network security
• Ingress Protection Rating IP65, waterproof and dust-proof
• particularly suitable for various outdoors equipment and engineering vehicles

Technical Specs

• Supports 2 Gigabit Ethernet interfaces, of which the WAN port supports PoE power receiving;
• Compatible 5G/4G/3G network；
• Support 802.11a/b/g/n/ac/ax 3000Mbps WIFI, 2.4G/5.8G dual-band;
• Supports multiple protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPOE, DNS, DDNS, etc.;
• Support static routing and RIP/OSPF routing protocols;
• Supports QoS protocols such as priority mapping, traffic policing, traffic shaping, congestion management, and speed limiting;
• Support ACL and NAT functions;
• Supports firewall, packet filtering, URL filtering and other functions;
• Supports configuration of VPN such as GRE, L2TP, IPSEC, OpenVPN, VXLAN, etc.;
• Supports link detection function and can quickly switch to the backup link based on the detection results;
• Support logging function;
• Support CLI, WEB and SNMP/TR069 centralized network management;
• Supports version upgrade and rollback functions.

Technical Features
