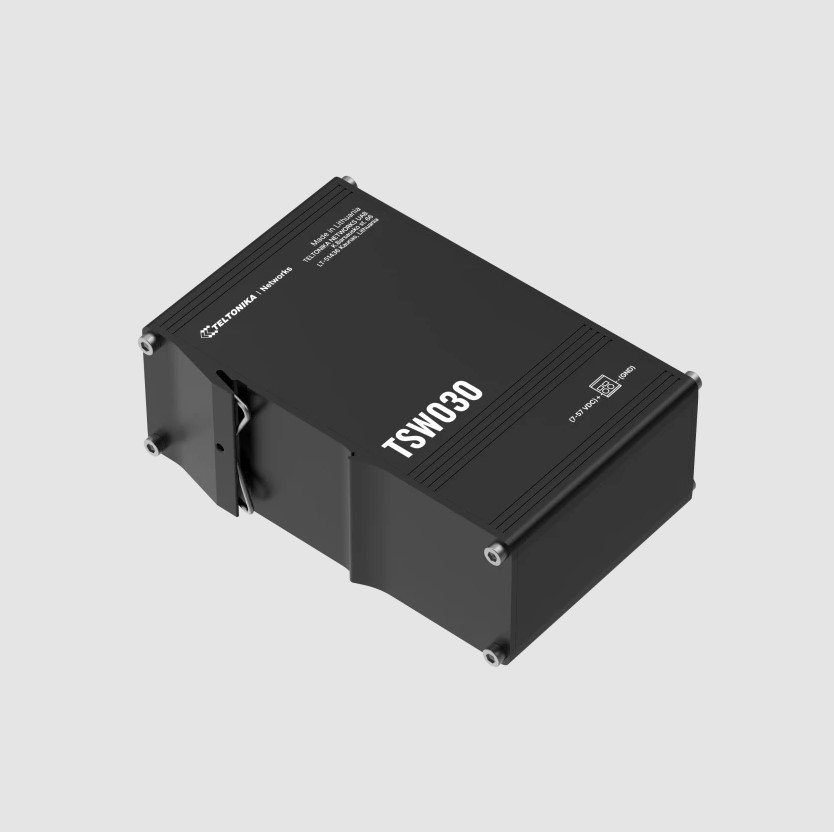

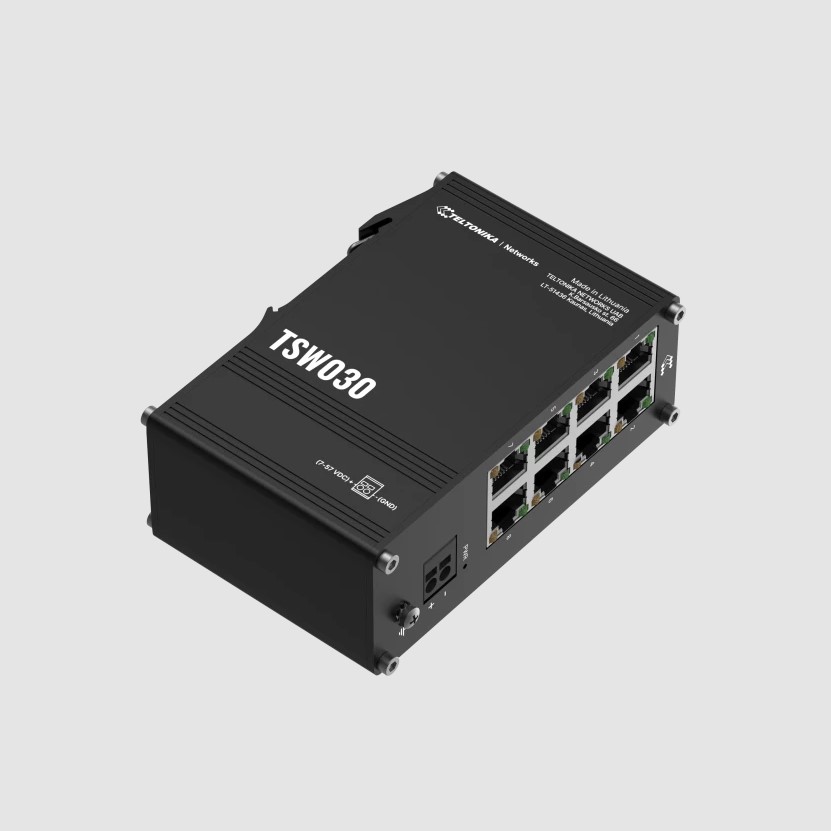

TSW030, 8adet 10/100Mbps Ethernet portu bulunan yönetilemez non-blocking endüstriyel switchtir.
-
Ethernet
8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
-
Bandwidth (Non-blocking)
20 Gbps
-
Packer buffer
128 KB
-
MAC address table size
2K entries
-
Jumbo frame support
9216 bytes
-
Connector
2-pin industrial DC power socket
-
Input voltage range
7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
-
Power consumption
Idle: 0.5 W / Max: 1.5 W
-
Ethernet

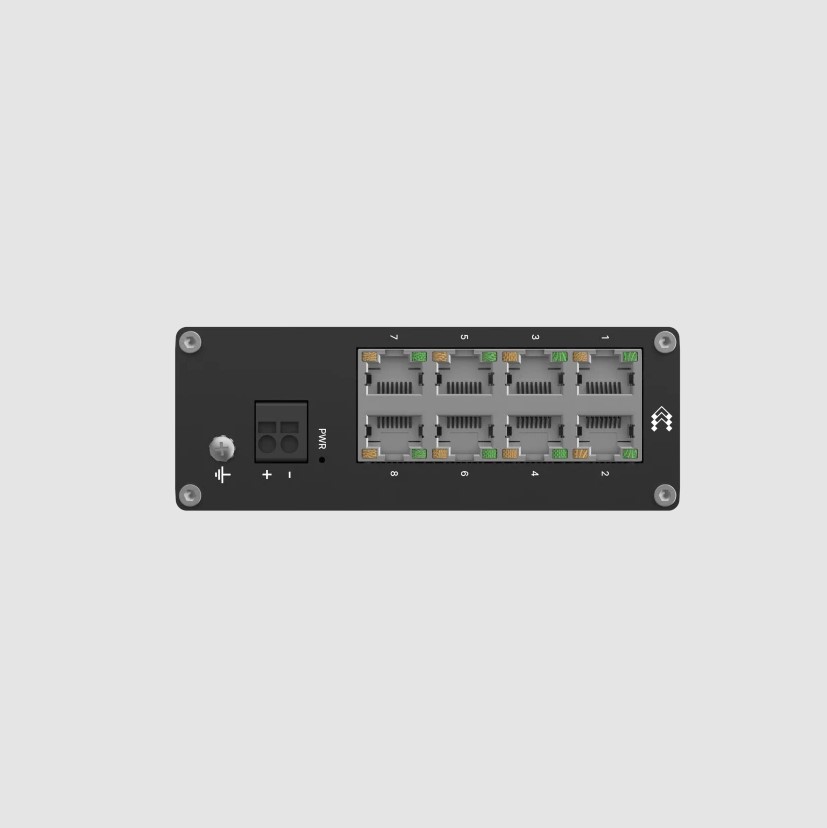

8 x RJ45 ports, 10/100 Mbps
-
Status LEDs
1 x Power LED, 16 x ETH status LEDs
-
Power
1 x 2-pin industrial DC power socket
-
Other
1 x Grounding screw
-
Casing material
Anodized aluminum housing and panels
-
Dimensions (W x H x D)
113.1 x 41.2 x 74.6 mm
-
Weight
256 g
-
Mounting options

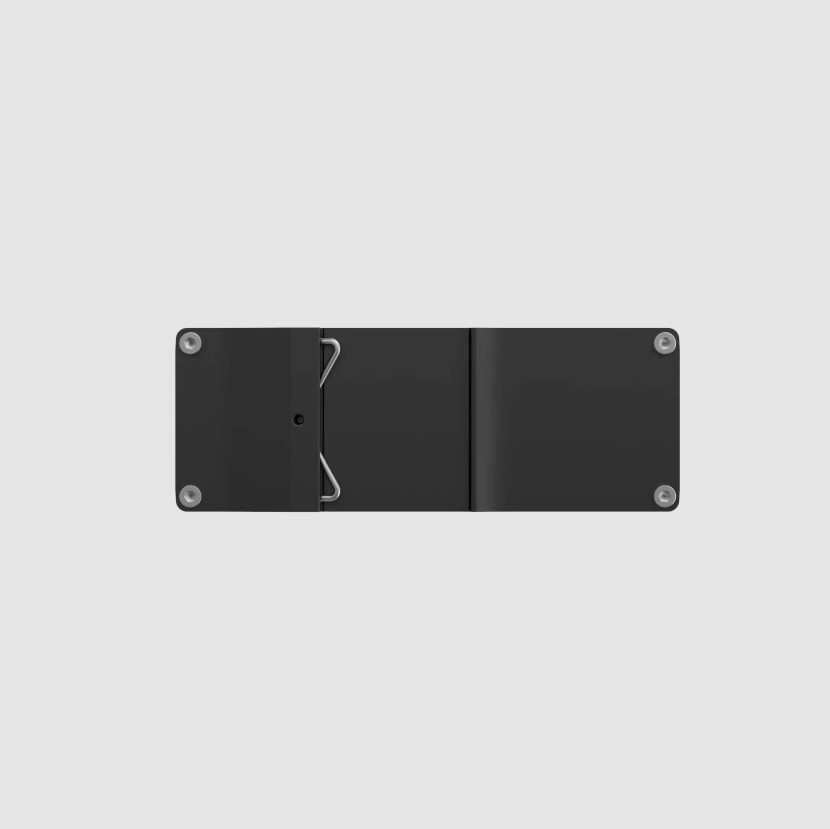

Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
5% to 95% non-condensing
-
Ingress Protection Rating
IP30
