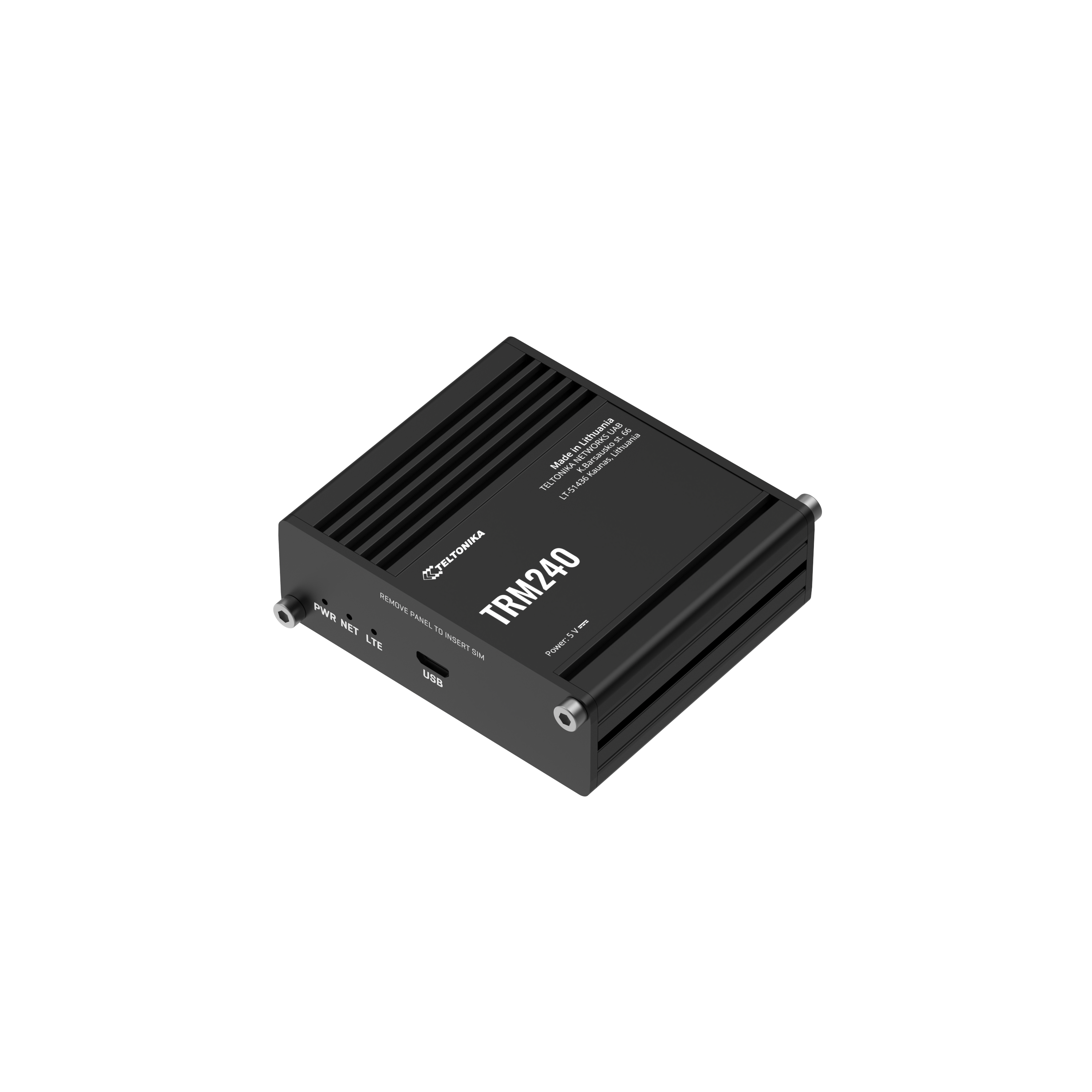

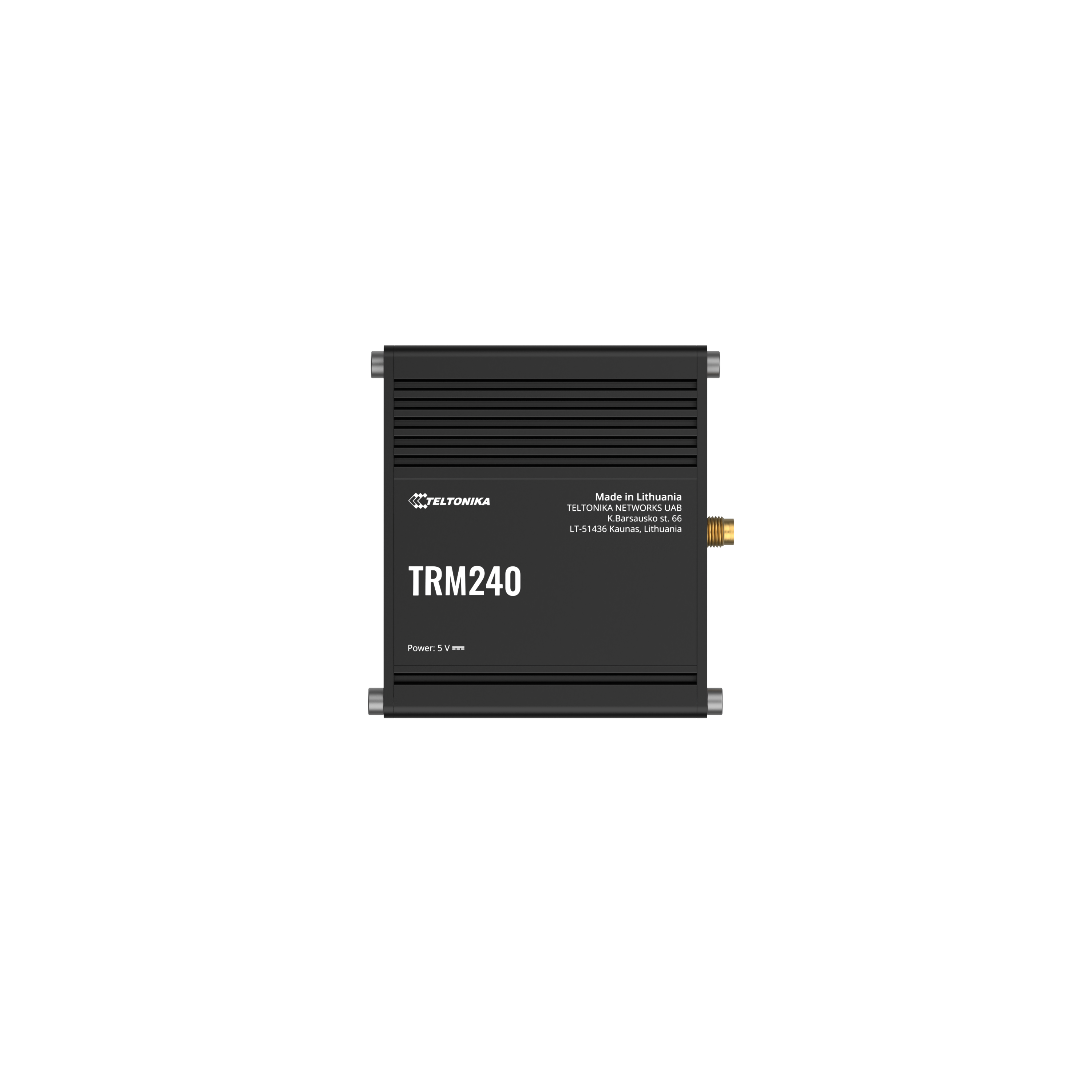

TRM240 is an industrial-grade USB LTE Cat 1 modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for upgrading existing industrial equipment with cost-efficient LTE connectivity.
-
Mobile module
4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps
-
3GPP Release
Release 12
-
Connector
microUSB
-
Input voltage range
5V - powered via microUSB
-
Power consumption
3.2 W Max
-
Status LEDs
1 x Power LED, 1 x Network LED, 1 x Mobile LED
-
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
-
Power
1x microUSB
-
Antennas
1 x SMA for LTE
-
Casing material
Aluminium housing
-
Dimensions (W x H x D)
74.5 x 25 x 64.5 mm
-
Weight
131 g
-
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
-
Management Software
Windows Connection Manager (NDIS driver)
-
USB Driver
Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
-
RIL Driver
Android 4.x/5.x/6.x/7.x/8.x
-
NDIS Driver
Windows 7/8/8.1/10
-
Gobinet Driver
Linux 2.6/3.x/4.1~4.14
-
Linux Driver
3.x (3.4 and later)/4.1~4.14
-
Regulatory
CE, UKCA, EAC, UCRF, Kenya, ICASA
-
Standards
Draft EN 303 446-1 V1.1.0
-
ESD
EN 61000-4-2:2009
-
Radiated Immunity
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
-
Standards
EN 301 511 V12.5.1
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
-
Standards
CE: EN 62368-1:2014 + A11:2017, EN 62311:2008
