Teltonika TSF010 5Port (10/100Mbps) UnManaged Industrial FlatSwitch

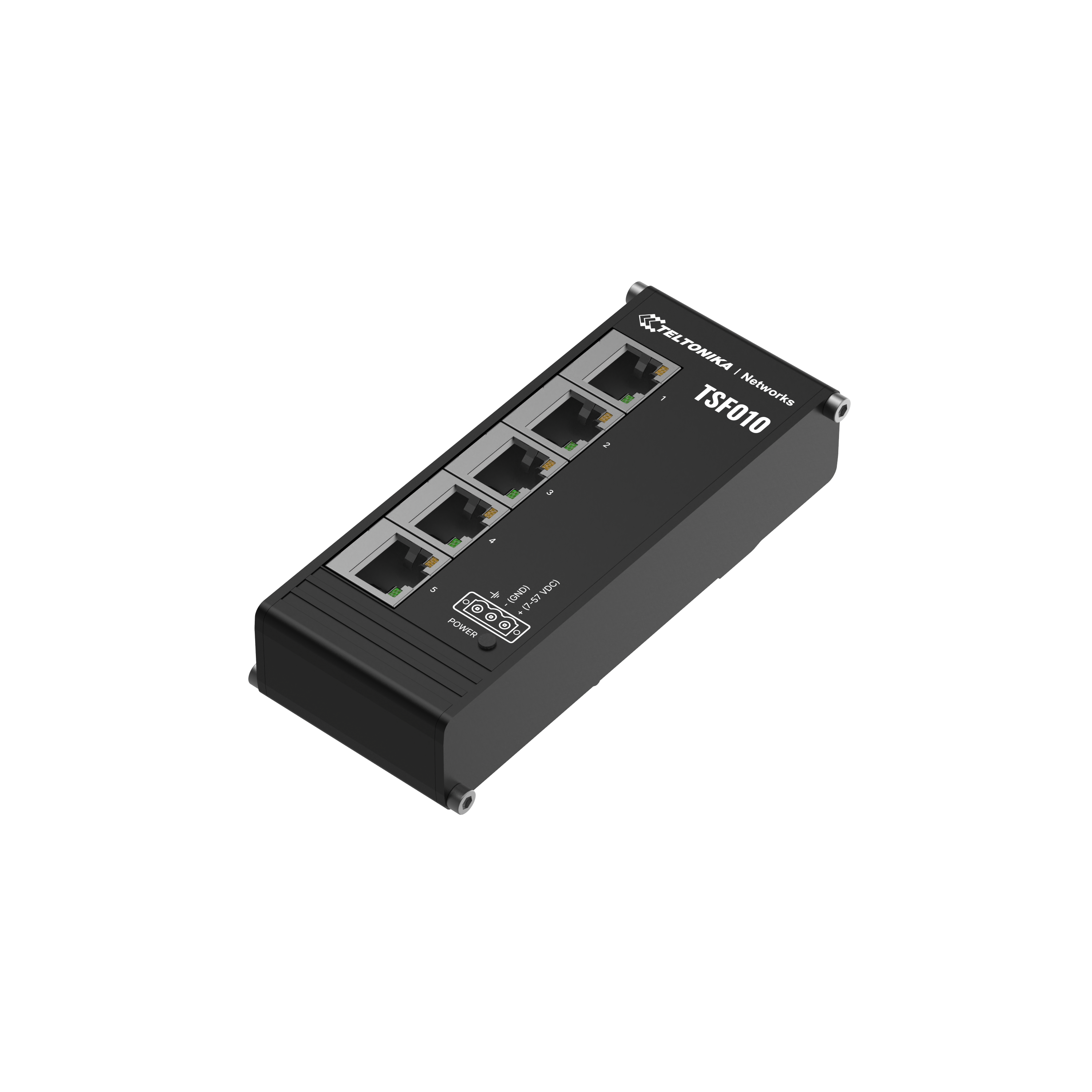

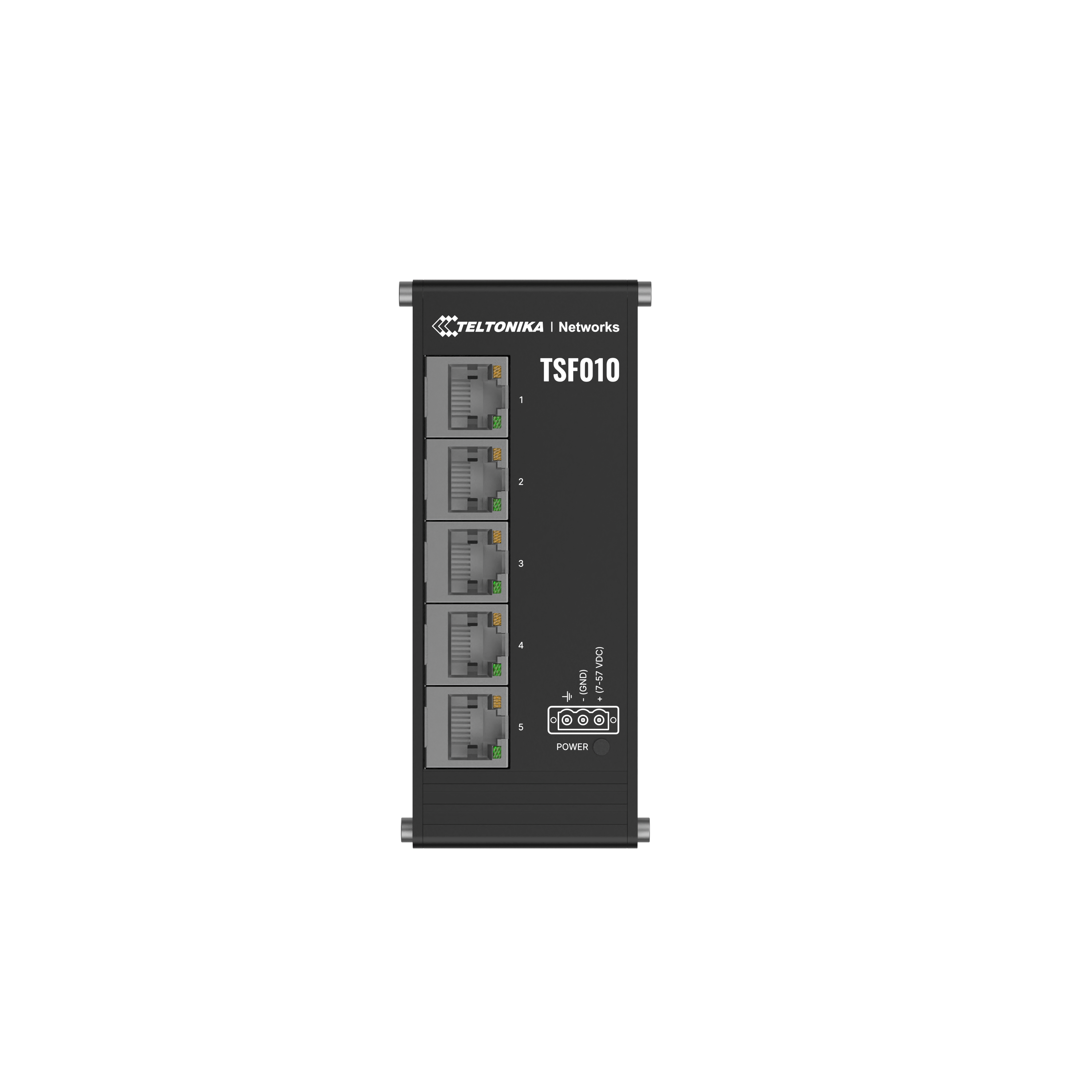

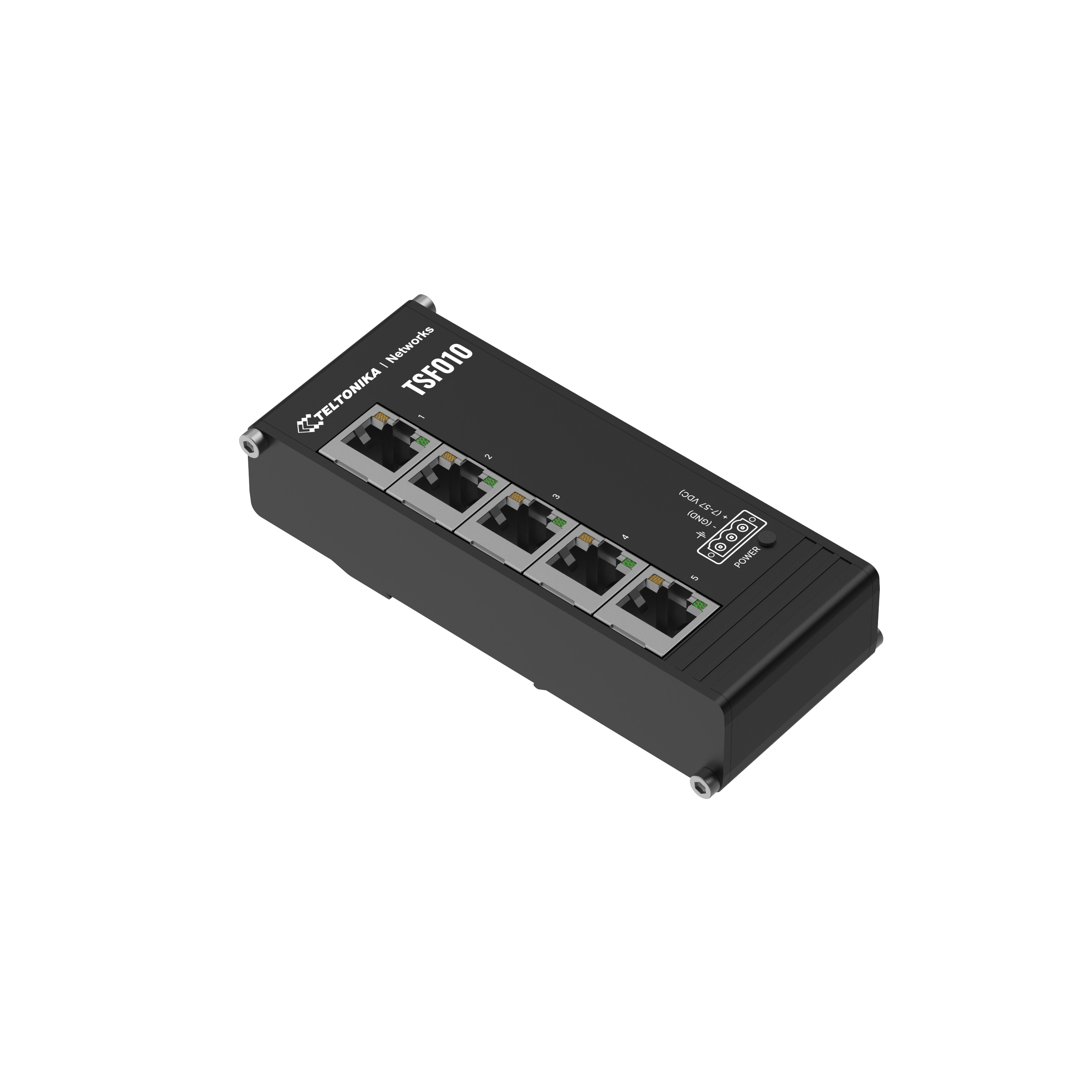

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g.
-
ETHERNET
5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
-
Bandwidth (Non-blocking)
10 Gbps
-
Packer buffer
128 KB
-
MAC address table size
2K entries
-
Jumbo frame support
9216 bytes
-
Connector
3-pin industrial DC power socket
-
Input voltage range
7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,
surge protection: min 64.4V/max 71.2V breakdown voltage,
93.6V maximum reverse voltage @4.3A maximum reverse surge current
-
Power consumption
Idle: 1 W / Max: 1.5 W
-
Ethernet
5 x RJ45 ports, 10/100 Mbps
-
Status LEDs
1 x Power LED, 10 x ETH status LEDs
-
Power

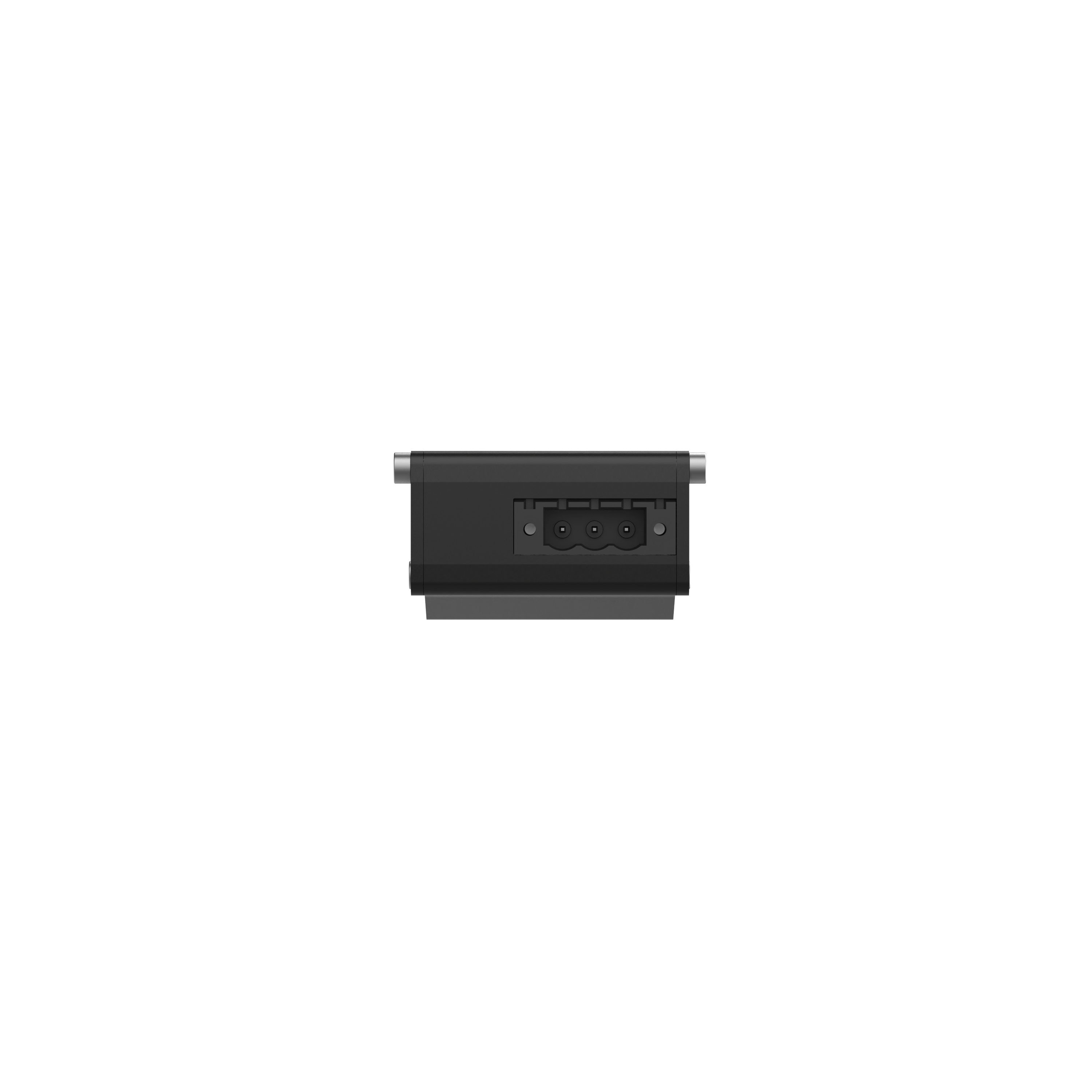

1 x 3-pin industrial DC power socket
-
Grounding
Grounding terminal on power connector
-
Casing material
Anodized aluminum housing and panels
-
Dimensions (W x H x D)
113 x 28 x 50 mm
-
Weight
142 g
-
Mounting options

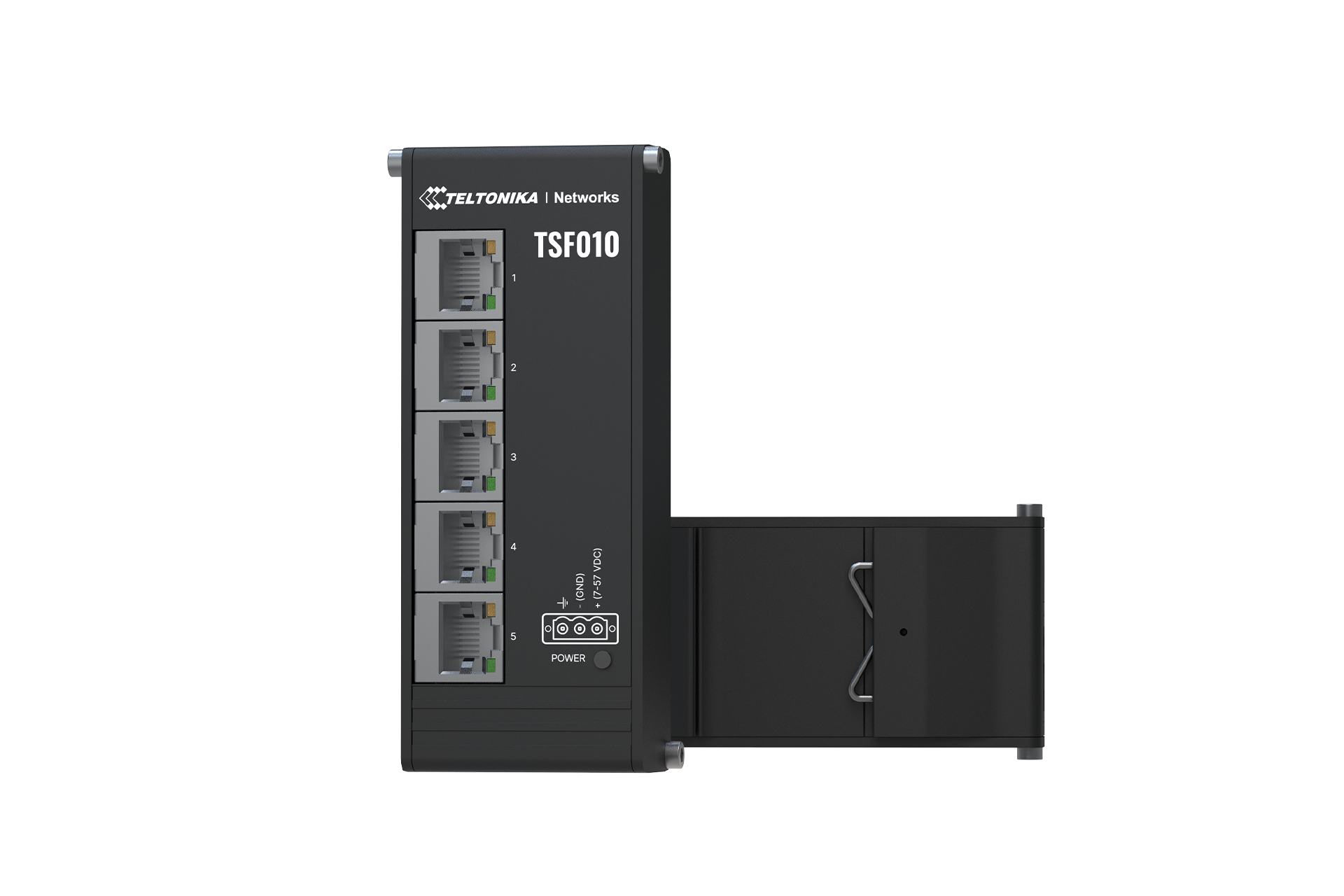

Integrated DIN rail bracket
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
5% to 95% non-condensing
-
Ingress Protection Rating
IP30
