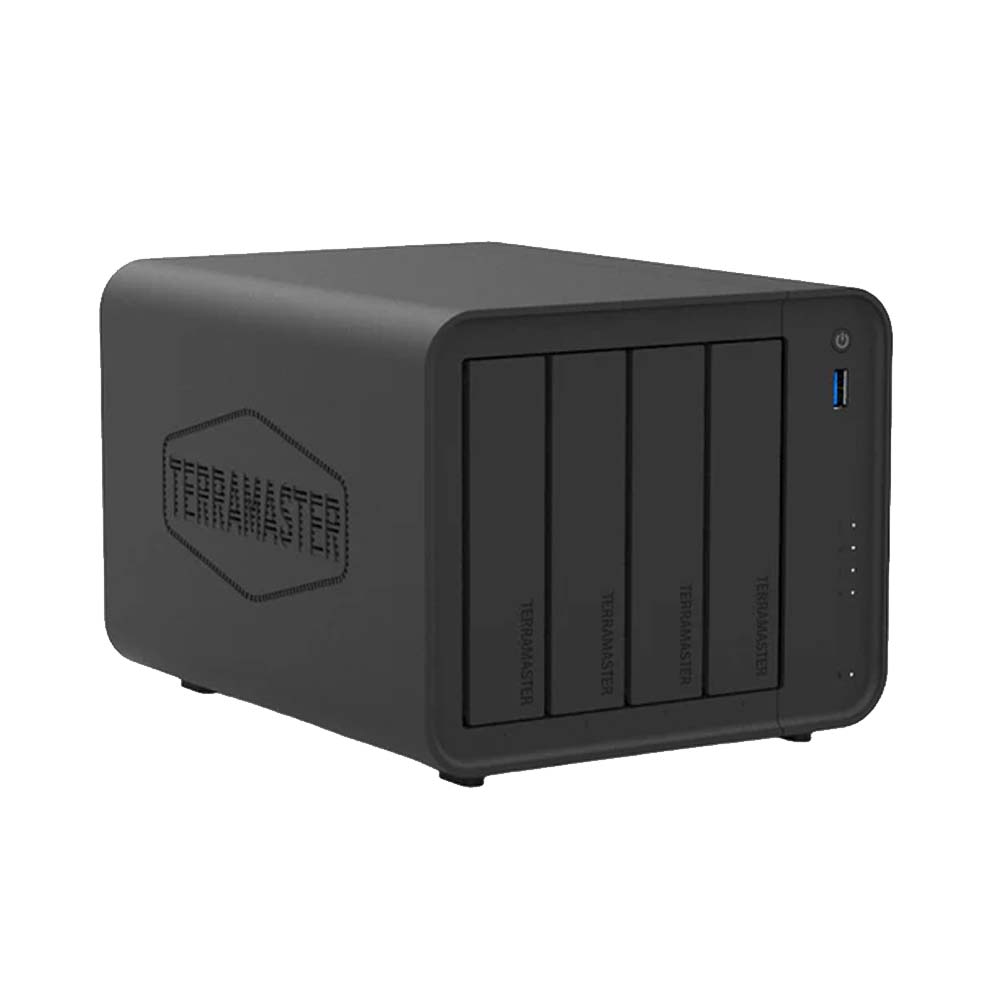

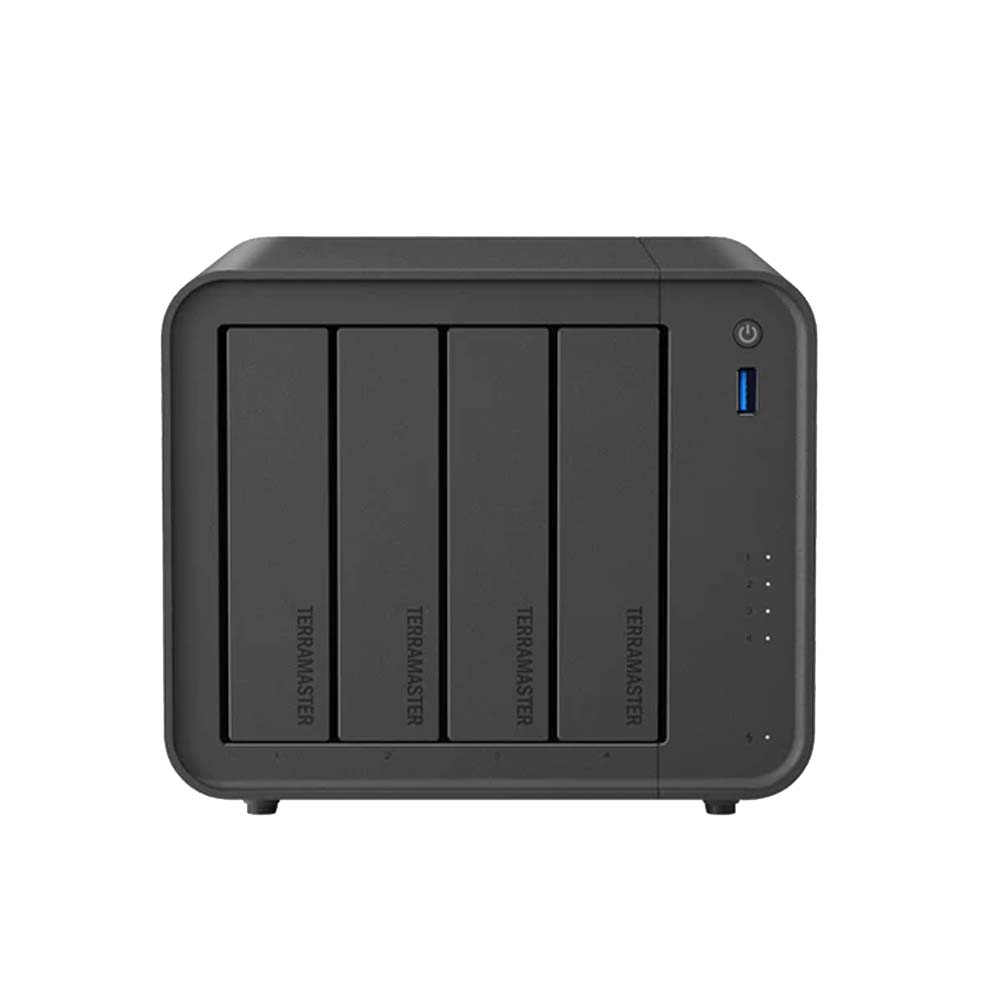

TerraMaster F4-425 all in one 4Bay NAS
TerraMaster F4-425 all in one 4Bay NAS Küçük ve Orta Ölçekli İşletmeler için 4 adet SATA Yuvalı NAS Sunucusu. QuadCore 2.0Ghz İşlemcili, 4GB RAM, 1 adet 2.5G Ethernet portlu, 2adet USB 3.2(10Gbps) 1adet USB 3.2(5Gbps) Port ve RAID yapabilen, ağa bağlanabilen veri depolama ünitesidir.
TerraMaster F4-425 all in one 4Bay NAS Küçük ve Orta Ölçekli İşletmeler için 4 adet SATA Yuvalı NAS Sunucusu. QuadCore 2.0Ghz İşlemcili, 4GB RAM, 1 adet 2.5G Ethernet portlu, 2adet USB 3.2(10Gbps) 1adet USB 3.2(5Gbps) Port ve RAID yapabilen, ağa bağlanabilen veri depolama ünitesidir.
Powerful Performance: Equipped with an Intel x86 quad-core processor and 4GB RAM, the F4-425 network attached storage effortlessly handles 4K transcoding and multitasking. The 2.5GbE port ensures ultra-fast file transfers and supports multi-user concurrent access.
Home Multimedia Hub: The F4-425 media server supports hardware-level 4K H.265 decoding, compatible with Plex, Emby, and Jellyfin for smooth HD video playback, with DLNA for seamless multi-device streaming. The Photos app features AI smart album and efficiently organizes millions of photos.

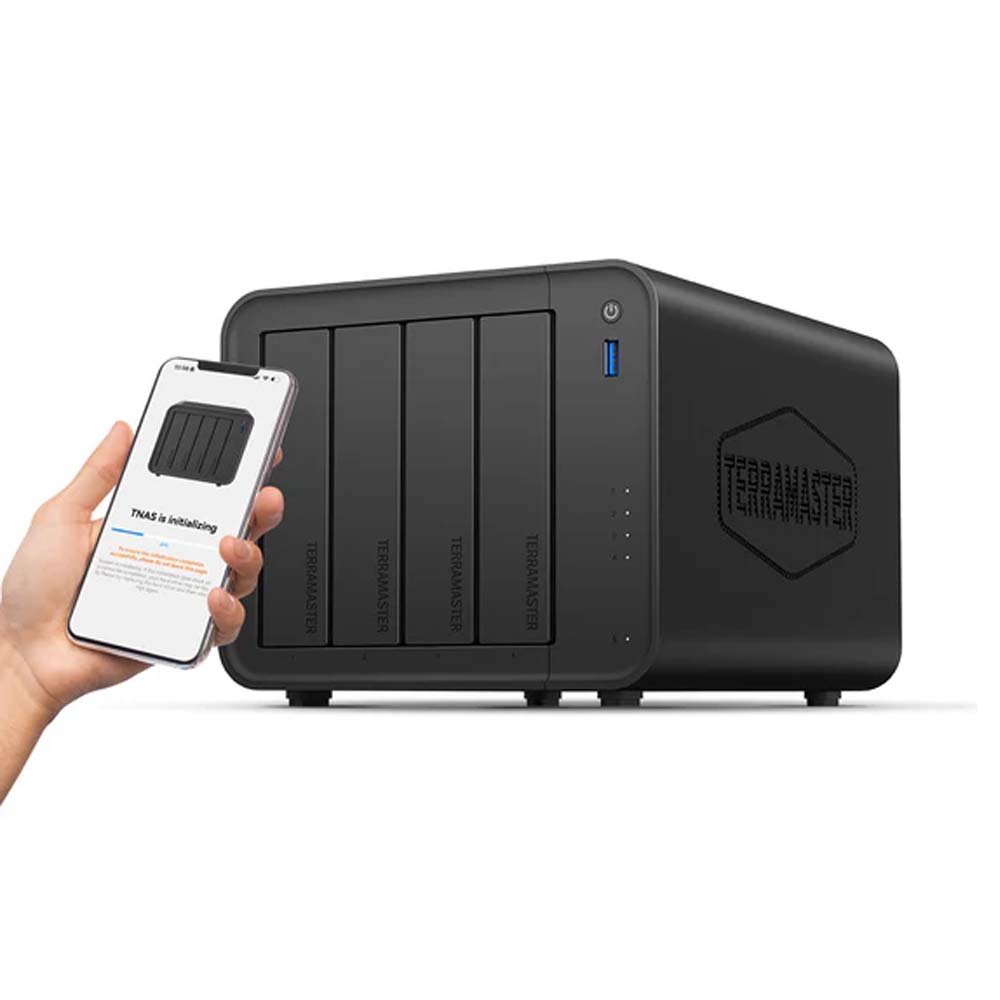

TNAS Mobile Full Control: Initialize setup for your F4-425 NAS storage via the TNAS Mobile app without a PC. The mobile app supports automatic photo and video backups, plus real-time local/remote synchronization, all managed through a single client.
Ultra-Quiet & User-Friendly: The F4-425 NAS server operates at just 21dB(A), ideal for quiet environments like bedrooms. Its tool-free Push-Lock design HDD trays enable to install HDDs in 10 seconds.
Massive Storage & Security: The F4-425 4-bay NAS supports up to 120TB storage (4 x 30TB for each bay), 50+ independent user accounts, and flexible TRAID / TRAID+ arrays, 30% more storage space than traditional RAID while ensuring data redundancy. SPC module and CloudSync (compatible with Google Drive, OneDrive, Dropbox) enable seamless cross-platform synchronization and uninterrupted data access. Additionally, TerraSync enables two-way sync between the F4-425 and PCs/Macs.
Cloud Sync Integration:? Seamlessly connect your cloud drives to TNAS with ??TerraMaster CloudSync??, enabling two-way synchronization between cloud and NAS storage. CloudSync consolidates multiple mainstream cloud services in one app, including ??Google Drive, OneDrive, Amazon S3, Dropbox, Baidu Cloud, and Alibaba Cloud??.
Compatibility Guide: Unlock Top Performance, choose a certified, high-stability hard drive.
2-Year Worry-Free Warranty: Professional Support for Your Data's Future.
Model: F4-425
Specification
|
Processor |
|
|
Processor Model |
Intel® N5095 |
|
Processor Architecture |
x86 64-bit |
|
Processor Frequency |
Quad Core 2.0 GHz (Max burst up to 2.9 GHz) |
|
CPU Single-Core Score |
/ |
|
Hardware Encryption Engine |
? |
|
Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60 |
|
Memory |
|
|
System Memory |
4 GB DDR4 non-ECC SODIMM |
|
Pre-installed Memory Module |
4 GB DDR4 non-ECC SODIMM (1x 4GB) |
|
Total Memory Slot Number |
1 (DDR4 SODIMM) |
|
Maximum Supported Memory |
16GB DDR4 non-ECC SODIMM |
|
Note |
TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
|
Storage |
|
|
Disk Slot Number |
4 |
|
Compatible Drive types |
3.5" SATA HDD |
|
2.5" SATA HDD |
|
|
2.5" SATA SSD |
|
|
Maximum Internal Raw Storage Capacity |
120 TB (30TB x4) (Capacity may vary by RAID types) |
|
Drive Hot Swap |
? |
|
Note |
Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted The maximum single volume size is not directly related to the maximum raw capacity. |
|
File System |
|
|
Internal Drive |
Btrfs, EXT4 |
|
External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS |
|

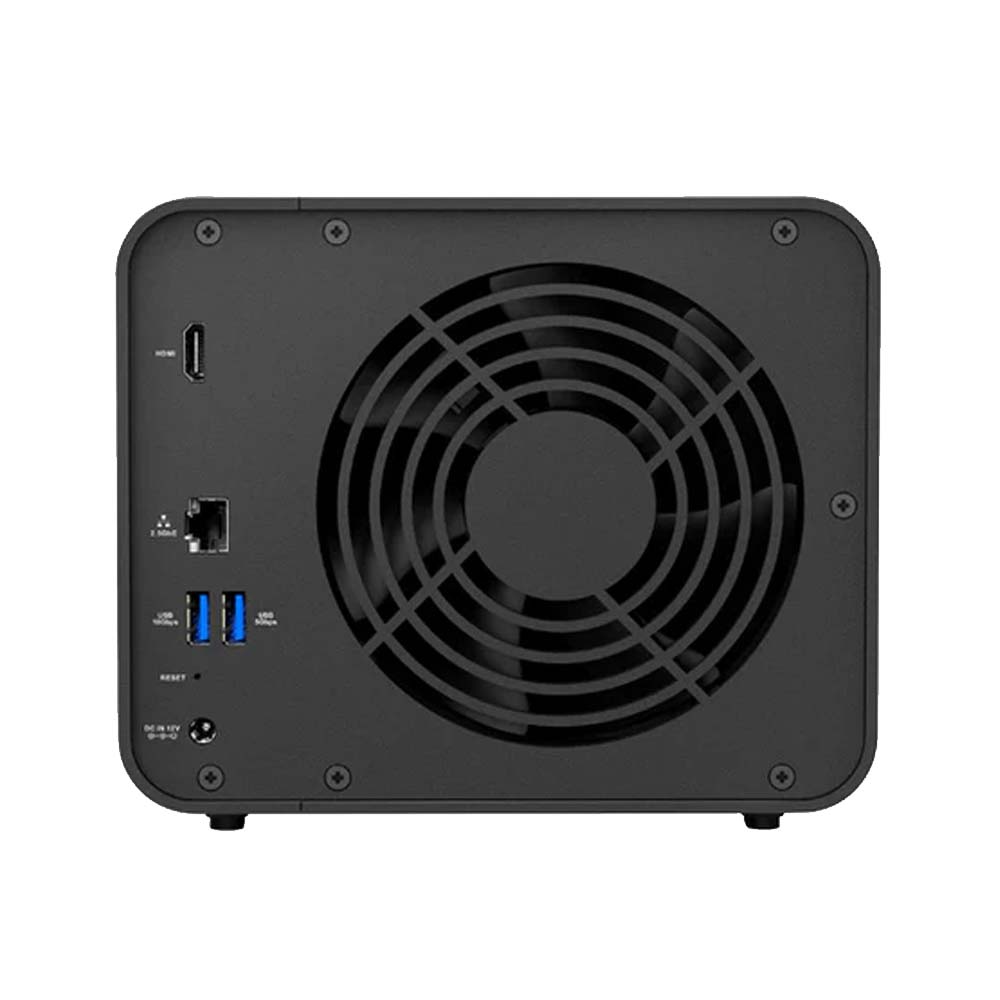

External Ports |
|
|
RJ-45 2.5GbE Network Port |
1 |
|
USB3.2 Host Port |
2 x 10 Gbps + 1 x 5 Gbps |
|
HDMI |
1 x HDMI |
|
Appearance |
|
|
Size (H*W*D) |
222 x 179 x 154 mm |
|
Packaging Size (H*W*D) |
300 x 275 x 186 mm |
|
Weight |
Net Weight: 2.1 Kg , Gross Weight: 3.2 Kg |
|
Others |
|
|
System Fan |
120 x 120 x 25mm 1PCS |
|
Fan Mode |
Smart, High speed, Middle speed, Low speed |
|
Noise Level |
21.0 dB(A) ?Using 2 SATA HDDs/SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m? |
|
Power Supply |
90 W |
|
Redundancy Power Supply |
/ |
|
AC Input Voltage |
100V - 240V AC |
|
Current Frequency |
50/60 Hz, Single frequency |
|
Power Consumption |
33.0 W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state) |
|
|
13.0 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation) |
|
Limited warranty |
2 years |
|
Certificate |
FCC, CE, CCC, KC |
|
Environment |
RoHS, WEEE |
|
Temperature |
|
|
Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
|
Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
|
Relative Humidity |
5% ~ 95% RH |
|
Package Contents |
|
|
|
Host unit (x1) |
|
Power cord (x1) |
|
|
Power Adapter(x1) |
|
|
RJ-45 network cable (x1) |
|
|
Quick Installation Guide (x1) |
|
|
Limited Warranty Note(x1) |
|
|
Screws (a few) |
|
|
TOS Features |
|
|
OS Supported |
|
|
Supported Client OS |
Windows OS, Mac OS, Linux OS |
|
Supported Web Browsers |
Google Chrome 97.0 or later, Mozilla Firefox 9.3, Apple Safari 12.1 ; Microsoft Edge 99.0.000 or later version. |
|
Supported mobile OS |
iOS14.0, Android 10.0 or later version |
|
Storage Management |
|
|
Supported RAID Types |
TRAID, TRAID?, Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID |
|
Maximum Internal Volume Number |
128 |
|
Maximum iSCSI Target |
64 |
|
Maximum iSCSI LUN |
64 |
|
Volume Expansion with Larger HDDs |
TRAID, TRAID?, RAID 5, RAID 6, RAID 10 |
|
Volume Expansion by Adding a HDD |
/ |
|
RAID Migration |
? |
|
SSD Cache |
? |
|
Hot Spare |
? |
|
SSD TRIM |
? |
|
Hard Drive S.M.A.R.T. |
? |
|
Seagate IHM |
? |
|
NVRAM write cache(BBU-protected) |
/ |
|
Shared Folder Snapshot |
? |
|
LUN Snapshot |
? |
|
File Services |
|
|
File Protocol |
SMB/AFP/NFS/FTP/SFTP/WebDAV |
|
|
100 |
|
Windows Access Control List (ACL) Integration |
? |
|
NFS Kerberos Authentication |
? |
|
Account & Shared Folder |
|
|
Maximum local user's account number |
128 |
|
Maximum local group number |
128 |
|
Maximum shared folders number |
128 |
|
Maximum shared folders syncing tasks |
8 |
|
Backup |
|
|
Rsync Backup |
? |
|
Duple Backup |
? |
|
Centralized Backup |
? |
|
Snapshot |
? |
|
USB Backup |
? |
|
Cloud Sync |
? |
|
Time Machine Backup |
? |
|
File System Snapshot |
? |
|
TFM Backup |
? |
|
Networking |
|
|
TCP/IP |
IPv4/IPv6 |
|
Protocols |
CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP |
|
Link Aggregation |
? |
|
DLNA Compliance |
? |
|
VPN Client |
? |
|
VPN Server |
? |
|
Proxy Client |
? |
|
Proxy Server |
/ |
|
UPnP/Bonjour Discovery |
? |
|
TNAS.online Remote Access |
? |
|
DDNS |
? |
|
Access Right Management |
|
|
Batch users creation |
/ |
|
Import/Export users |
? |
|
User Quota Management |
? |
|
Local user access control for CIFS/SAMBA and FTP |
? |
|
Domain Authentication |
|
|
AD Domain |
? |
|
LDAP Client |
? |
|
LDAP Server |
/ |
|
Security |
|
|
Firewall Protection |
? |
|
Account Auto-block Protection |
? |
|
AES Shared Folder Encryption |
? |
|
Importable SSL certificate |
? |
|
Instant Alert via email, Desktop Notification, Beep |
? |
|
RSA 2048 Encryption?TOS 6.0? |
? |
|
PAM (Pluggable Authentication Modules) |
? |
|
OTP Authentication?TOS 6.0? |
? |
|
HyperLock File System?TOS 6.0? |
? |
|
Power Management |
|
|
Power Resume |
? |
|
Scheduled Power On/Off |
? |
|
Wake up On LAN?WOL? |
? |
|
UPS Supported |
? |
|
Administration |
|
|
Multi-window, Multi-task System Management |
? |
|
Custom Desktop |
? |
|
Control Panel |
? |
|
Resource Monitor |
? |
|
Syslog |
? |
|
OS UI Language |
English, German, French, Spanish, Italian, Magyar, Chinese, Japanese, Korean, Turkish, Portuguese, Russian |
|
Applications |
|
|
Application Center |
? |
|
iSCSI Target |
? |
|
Terra Photos |
? |
|
TerraSync |
? |
|
Duple Backup |
? |
|
CloudSync |
? |
|
Centralized Backup |
? |
|
USB Backup |
? |
|
VPN Server |
? |
|
Transmission |
? |
|
qBittorrent |
? |
|
Aria 2 |
? |
|
Surveillance M Bu ürüne ait özellikler veritabanımızda bulunmamamktadır. Bu ürüne alternatif bir ürün bulunmamaktadır. Bu ürünle ilişkili bir ürün bulunmamaktadır. |
