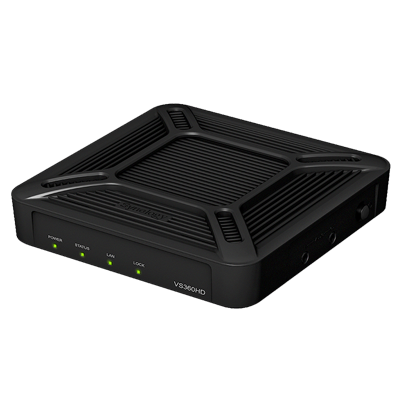

Synology® VisualStation VS360HD is a compact, durable, and high-performance surveillance companion. It supports showing video feeds from up to 36 network cameras within a network when each camera is configured at 720p/10FPS, and dual Full HD mirrored display output via HDMI and VGA.
Live View & Playback at Your Choice
Synology VS360HD makes surveillance monitoring and playback simple. When paired with a Synology NAS running Surveillance Station 7 or later, VS360HD provides Full HD HDMI and VGA simultaneously mirrored display Live View output for up to 36 network cameras configured at 720p/10FPS within a network. Without requiring any costly computer, VS360HD is a powerful all-in-one solution for monitoring live feeds, browsing stored video footage, or capturing screenshots and saving them to an external USB drive.
Hardware | |
USB | USB 3.0 x 1, USB 2.0 x 2 |
Video output | HDMI x 1, VGA x 1 (mirrored display output) |
Supported video output resolution | MAYIS20 x 1080 (1080p), 60 Hz |
Audio input/output | 3.5 mm stereo audio jack x 2 (input/output) |
Size (H x W x D) | 32 x 130 x 130 mm |
Weight | 300 g |
LAN | Gigabit x 1 |
AC input power voltage | 100V to 240V AC |
Power frequency | 50Hz to 60Hz, single phase |
Operating temperature | -10 °C to 50 °C (14 °F to 122 °F) |
Storage temperature | -20 °C to 60 °C (-5 °F to 140 °F) |
Relative humidity | 5% to 95% RH |
Power consumption | 4.76W / 16.24BTU/hr (36 channels), 3.61W / 12.32BTU/hr (Idle) |
Agency certifications | EN45545, EN50155, FCC Class B, CE Class B, BSMI Class B |
Software | |
Maximum IP cam | 36 |
Total FPS (H.264) | 360 FPS @ 720p |
Maximum recordings playback | 4 |
Video compression format | H.264, MPEG4, MJPEG |
Audio codec | AAC, PCM, G711, G726, AMR |
eMap | Yes |
Snapshot | Yes (save to USB disk) |
PTZ | Yes (for PTZ cameras only) |
Patrol | Yes (for Patrol cameras only |
Log Viewer | Yes |
Firmware upgrade | Yes (via USB disk) |
Environment and packaging | |
Environment | RoHS compliant |
Package content | VS360HD main unit, quick installation guide, AC power adapter, RJ-45 LAN cable, VESA mounting kit |
Warranty | 2 years |
Özellik | Açıklama |
---|---|
Harici Bağlantı Noktası | USB 3.0 x 1, USB 2.0 x 2 |
Video çıkışı | HDMI x 1, VGA x 1 (ikizlenmiş ekran çıkışı) |
Çözünürlük | 1920 x 1080 (1080p), 60 Hz |
Ses Özelliği | 3,5 mm stereo ses jakı x 2 (giriş/çıkış) |
Boyutlar (En/Boy/Yükseklik) | 32 x 130 x 130 mm |
Ağırlık (Ürün) | 300 g |
LAN Port Adeti | 1 Port |
LAN Port Tipi | Bakır Ethernet |
LAN Port Veri Hızı | Gigabit |
Çalışma Sıcaklığı | -10°C ila 50°C (14°F ila 122°F) |
Nem | %5 ila %95 Bağıl Nem |
Güç Tüketimi (Çalışırken) | 4,76 W / 16,24 BTU/saat (36 kanal) |
Güç Tüketimi (Standby) | 3,61 W / 12,32 BTU/saat (Bekleme) |
Video Sıkıştırma | H.264, MPEG4, MJPEG |
Ses kodlayıcı | AAC, PCM, G711, G726, AMR |
Satış Garanti Süresi (Ay) | 24 |
