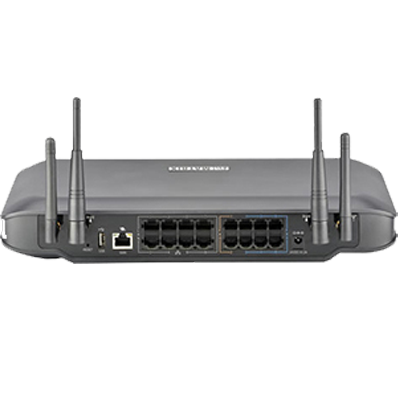

Matrix NAVAN CNX226 2G2 IP PBX (2 GSM, 2 FXO, 6 FXS, WLAN)
NAVAN CNX200 is an all-in-one office solution for small businesses and enterprise branch offices with up to 24 users. It combines the functionalities of IP-PBX, Data router, Wi-Fi access point, VoIP-GSM gateway, VPN and Firewall Security in a compact and converged platform. A true office-in-a-box, CNX200 innovates the way small businesses communicate and manage infrastructure, so that they can increase productivity, lower costs and enhance collaboration with customers and suppliers.
NAVAN CNX200 is an all-in-one office solution for small businesses and enterprise branch offices with up to 24 users. It combines the functionalities of IP-PBX, Data router, Wi-Fi access point, VoIP-GSM gateway, VPN and Firewall Security in a compact and converged platform. A true office-in-a-box, CNX200 innovates the way small businesses communicate and manage infrastructure, so that they can increase productivity, lower costs and enhance collaboration with customers and suppliers.
NAVAN CNX200 is an all-in-one office solution for small businesses and enterprise branch offices with up to 24 users. It combines the functionalities of IP-PBX, Data router, Wi-Fi access point, VoIP-GSM gateway, VPN and Firewall Security in a compact and converged platform. A true office-in-a-box, CNX200 innovates the way small businesses communicate and manage infrastructure, so that they can increase productivity, lower costs and enhance collaboration with customers and suppliers.
| Specifications | |
| Voice Trunks and Extensions | |
| 2 Analog Lines (FXO) | To Connect Analog Telephone Lines |
| 6 Analog Users (FXS) | To Connect Single Line Telephones, Fax, PoS devices |
| 8 VoIP (SIP) Trunks | To Subscribe Services from 8 Different SIP/VoIP Providers Ready Interoperability with leading VoIP Carriers |
| Up to 24 VoIP Users | 24 Users (8 Pre-activated, Another 16 with Licence Key) Matrix SPARSH VP248 IP Phones, SIP Phones, PC Softphones, Mobile Extensions |
| Up to 2 GSM | To Make Voice Calls over Cellular GSM Networks Quad-Band GSM (850/900/1800/MAYIS00 MHz) Support |
| VoIP-GSM-PSTN Gateway | Built-in Gateways for Call Routing between GSM, VoIP and PSTN lines |
| Call Management | Call hold/transfer/forward/park/conference, Toll control, Class of service, Account codes, Hunt groups, Day/Night modes, Speed dial and lot more. |
| VoIP Telephony | |
| Standard | SIPv2 (RFC3261) |
| VoIP Codecs | G.711 (A/μ Law), G.723, G.729AB, GSM-FR and iLBC |
| VoIP Channels | 12 VoIP Channels |
| Concurrent VoIP Calls | 6 Concurrent VoIP Calls |
| Call Forking | Parallel Ringing on Maximum Three IP Devices |
| Fax over IP | T.38 and Pass-Through |
| Quality of Service | SIP and RTP |
| Echo Cancellation | G.168 Line Echo Cancellation |
| Dynamic DNS | Client to subscribe Dynamic DNS service |
| Peer-to-Peer Calls | 1000 Entries |
| NAT and STUN | For IP Devices located behind NAT Router and LAN |
| VoIP Security | TLS/SRTP |
| Data Networking | |
| LAN Switch | 8 10/100 Mbps Switched LAN Ports |
| WAN Options (with Auto Fall-back) | Ethernet WAN - 1 10/100 Mbps WAN Port USB Port – 3G/GSM/CDMA/EVDO USB Modem Connectivity |
| Quality of Service (QoS) | Applications, DSCP, Destination/Source MAC/IP |
| Advance Routing | Port Forwarding/Triggering, Static Route, DNS Proxy, MAC Address Cloning |
| Networking Protocols | TCP/IP, UDP, RTP, SNTP, NAT & STUN, DHCP, DNS, Dynamic DNS |
| Wireless LAN (Wi-Fi) | |
| Standard | IEEE 802.11 b/g/n (2.4 GHz) |
| Security | WEP, WPA,WPA2 |
| Wi-Fi Features | Wireless Multimedia (WMM) MAC Address Access Control Channel Width and Frequency Selection |
| Antenna Type | 2 Omni-directional Antennas with Diversity |
| Firewall & Security | |
| Firewall Protection | SPI Firewall, IDS & IPS, Block Ping/ICMP/IDENT, Port Scan Restriction, DMZ MAC Address Filtering |
| Access Control & Content Filtering | Website blocking by URL and Keyword Block Destination by IP Address and Application Port |
| Certificate Management | Self-signed and Trusted Root Certificate Generation and Management |
| Virtual Private Networking | |
| Virtual Private Network | Remote Access (Server), Site-to-Site (Client) |
| VPN Tunnelling | SSL, IPsec, PPTP, L2TP Protocols |
| VPN Tunnels | Up to 80 VPN Tunnels (20 Tunnels for each SSL, IPsec, PPTP and L2TP) |
| Encryption | Hardware based AES/DES/3DES, MPPE |
| Authentication | MDS, SHA-1 |
| IKE Authentication | Pre-shared Keys, Digital Signature |
| Voice Mail System | |
| Auto-Attendants | Greetings by Day, Night, Break Hours and Holidays Attend 5 Callers at a time 4 Graphs each with 64 Nodes |
| Number of Mailboxes | 32 User and 5 Group Mailboxes |
| Greetings and Messages | Personalized Greetings for Mailbox Users |
| Unified Messaging | Voice Mail to Email Notification |
| Notification Alerts | Message Wait Lamp, Change in Dial Tone, Voice Message, LED indication |
| Conversation Recording | Built-in 4GB Storage for up to 72 Hours Recording (Requires License Activation) |
| Monitoring and Management | |
| Administration | Web-based Remote Management (HTTP/HTTPS) System Engineer and Administrator Mode |
| Localization | Call Progress Tones, CLIP Variants, Impedance Matching, Time Zones, Day Light Saving, Date-Time Format |
| CDR Reports | 12000 Call Records (Incoming, Outgoing, Internal) with Various Call Filters |
| LED Indications | Total 12 LEDs for Power, System, WLAN, WAN, LAN Switch Ports |
| Back-up | System Software, Call Detail Records (CDR) andConfiguration |
| Languages Supported | English, Spanish, Portuguese, French, German, Italian |
| Power Supply | |
| External Power Adaptor | 24VDC, 2A |
| Power Consumption (Typical) | 20W |
| Mechanical | |
| Dimension (WxHxD) | 320x51x200 mm |
| Installation | Wall Mount, Table-Top, Rack Mount |
| Unit Weight | Max. 1.25kg (2.75lbs) |
| Environmental | |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Operating Humidity | 5-95% RH, Non-Condensing |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage Humidity | 0-95% RH, Non-Condensing |
