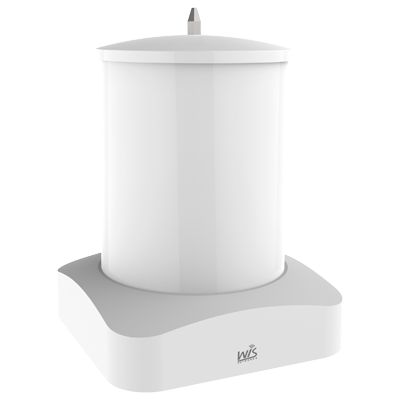

WisNetworks WIS-S806AC 1167Mbps Outdoor Dual-Band Wireless Omni Base Station
WIS-S806AC is a robust outdoor dual-band wireless base station featuring 802.11ac technology for high end wireless coverage.
Featuring 11ac technology, the WIS-S806AC is ideal for hotspot applications with dual-band simultaneous coverage.
Featuring 11ac technology, the WIS-S806AC is ideal for hotspot applications with dual-band simultaneous coverage
Featuring 11ac technology, the WIS-S806AC is ideal for hotspot applications with dual-band simultaneous coverage
WIS-S806AC is a robust outdoor dual-band wireless base station featuring 802.11ac technology for high end wireless coverage. Featuring 11ac technology, the WIS-S806AC is ideal for hotspot applications with dual-band simultaneous coverage. Featuring 11ac technology, the WIS-S806AC is ideal for hotspot applications with dual-band simultaneous coverage Featuring 11ac technology, the WIS-S806AC is ideal for hotspot applications with dual-band simultaneous coverage
WIS-S806AC is a robust outdoor dual-band wireless base station featuring 802.11ac technology for high end wireless coverage. Featuring 11ac technology, the WIS-S806AC is ideal for hotspot applications with dual-band simultaneous coverage. The integrated 2*2 MIMO technology for 300Mbps 2.4GHz and 867Mbps 5GHz makes it 4x speed than legacy 802.11n standard. The tx power is boosted up to 30dBm for both 2.4GHz and 5GHz.
| Physical Characteristics | |
| Dimension | 178*178*250rmm |
| Wight | 2kg |
| Enclosure | UV Outdoor Plastic |
| ESD Protection | 16kV |
| Working Temp | -40 ~ 70°C |
| Storage Temp | -40 ~85°C |
| Power | 48VDC, 0.32A |
| Power Consuption | 15W |
| Button | Reset |
| Certification | CE, RoHS, FCC |
| Working Humidity | 10%~95% non-condensing |
| Processor | Atheros QCA 720MHz |
| LAN port | 1x 10/100/1000 Base-T Ethernet (Gigabit LAN with Active PoE) |
| LED | Power:On/Off; LAN:On/Off/Flashing; WLAN:On/Off/Flashing;RSSI Signal: 1,2,3 |
| Wireless Characteristics | |
| Wi-Fi Standard | 802.11ac/n/a/g/b |
| Frequency | 2.4GHz&5GHz |
| Speed | 1167Mbps |
| Max Tx Power | 30dBm |
| Rx Sensitivity | 11ac: -68dBm@10% PER |
| 11n: -78dBm@10% PER | |
| 11a: -98dBm@10% PER | |
| Antenna | 6dBi dual-band dual-pola omni |
| Wireless Security | WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP |
| Advanced Characteristics | |
| VLAN | 802.1q |
| MAC Filter | Blacklist |
| User QoS | Speed Limit by User Group |
| Trunk Port | Supported |
| Firewall | Integrated Firewall |
| NMS | WiController |
| Physical Characteristics | |
| Lightning Protection | 8kV |
