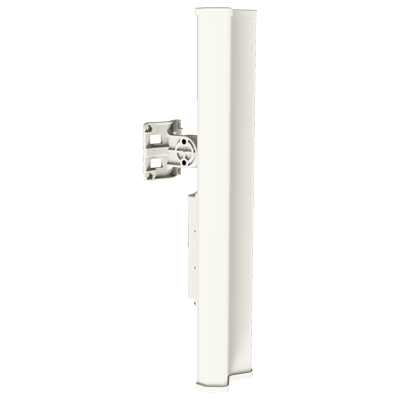

WisNetworks WIS-L5819S 5GHz 2×2 MIMO Outdoor Wireless Sector TDMA Base Station
The WiD TDMA technology allows the access point to get up to 100 wireless users while still maintain reliable connections, even in noisy RF environment.
2*2 MIMO along with Gigabit LAN port would help provide maximum 210Mbps+ throughput, thus ensuring enough network bandwidth to every wireless clients.
The WiD TDMA technology allows the access point to get up to 100 wireless users while still maintain reliable connections, even in noisy RF environment. 2*2 MIMO along with Gigabit LAN port would help provide maximum 210Mbps+ throughput, thus ensuring enough network bandwidth to every wireless clients.
The WiD TDMA technology allows the access point to get up to 100 wireless users while still maintain reliable connections, even in noisy RF environment. 2*2 MIMO along with Gigabit LAN port would help provide maximum 210Mbps+ throughput, thus ensuring enough network bandwidth to every wireless clients. Featuring high gain 19dBi dual-polarized sector antenna, it extends the wireless coverage to more than 25km while using WIS-Q series CPE. Integrated special power amplifier offers 27dBm RF output power both at high and low speed rate to keep stable and robust wireless connection.
| Physical Characteristics | |
| Dimension | 700*133*95mm |
| Wight | 2.9kg |
| Enclosure | IP67 die-cast aluminum |
| ESD Protection | 16kV |
| Lightning Protection | 8kV,GND Terminal |
| Working Temp | -40 ~ 70°C |
| Storage Temp | -40 ~ 85°C |
| Power | 24VDC, 0.75A |
| Power Consuption | 6W |
| Button | Reset |
| Certification | CE, RoHS |
| Working Humidity | 10%~95% non-condensing |
| Processor | Atheros 600MHz |
| LAN port | 1x 10/100/ Base-T Ethernet (Gigabit LAN with Passive PoE) |
| LED | Power:On/Off; LAN:On/Off/Flashing; WLAN:On/Off/Flashing;RSSI Signal: 1,2,3 |
| Wireless Characteristics | |
| Wi-Fi Standard | 802.11a/n |
| Frequency | 5GHz |
| Speed | 300Mbps |
| Max Tx Power | 27dBm |
| Rx Sensitivity | 300M: -74dBm@10% PER 54M: -78dBm@10% PER 1M: -98dBm@10% PER |
| Wireless Security | WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP |
| Antenna | MAYISdBi dual-polarized directional antenna, Horizontal:120° , Vertical:4° |
| Advanced Characteristics | |
| VLAN | 802.1q |
| MAC Filter | Blacklist |
| User QoS | Speed Limit by User Group |
| Trunk Port | Supported |
| Firewall | Integrated Firewall |
| NMS | WiController |
