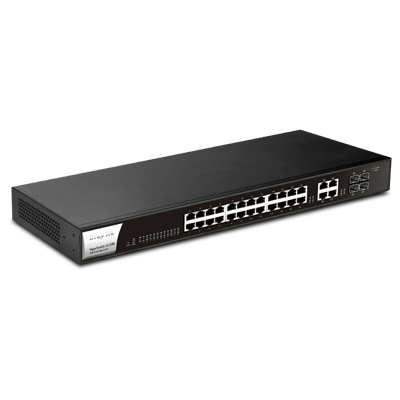

Draytek VigorSwitch G1280 24 Port Web Smart Gigabit Switch

DrayTek

VigorSwitch G1280, SOHO ve küçük işletme ağları için tasarlanmıştır. 24 Port Gigabit Ethernet portu, 4 combo Gigabit SFP / RJ-45 portu, kablosuz AP, IP telefonları ve IP gözetimi olan bir ağ için mükemmeldir. VigorSwitch G1280, VoIP çağrı kalitesini artırmak için otomatik Ses VLAN'sı ve QoS özelliğini sağlar.

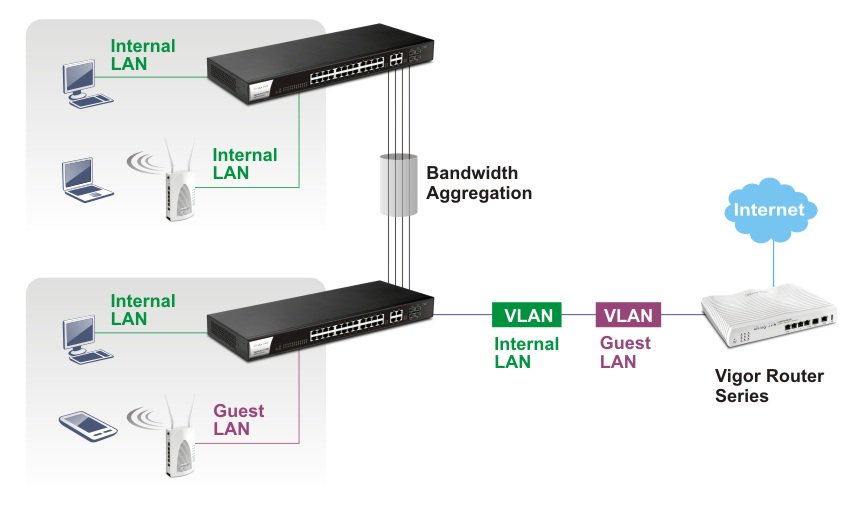

VigorSwitch G1280 is designed for SOHO and small business network that runs various network applications. The 24 Gigabit Ethernet ports are perfect for a network with wireless AP, IP phones, and IP surveillance, and 4 additional combo Gigabit SFP/RJ-45 ports for uplink. VigorSwitch G1280 meets the IEEE 802.3az (Energy-Efficient Ethernet) standard to reduce power consumption and lower the electricity bill, the auto Voice VLAN and QoS feature help to improve the VoIP call quality on the network. All the ports of VigorSwitch G1280 are capable of gigabit speeds, Link Aggregation can be set up to increase the throughput and build a more reliable network.

•24 Gigabit capable ports
•4 combo Gigabit SFP/RJ-45 ports
•Port-based & 802.1Q tag-based VLAN

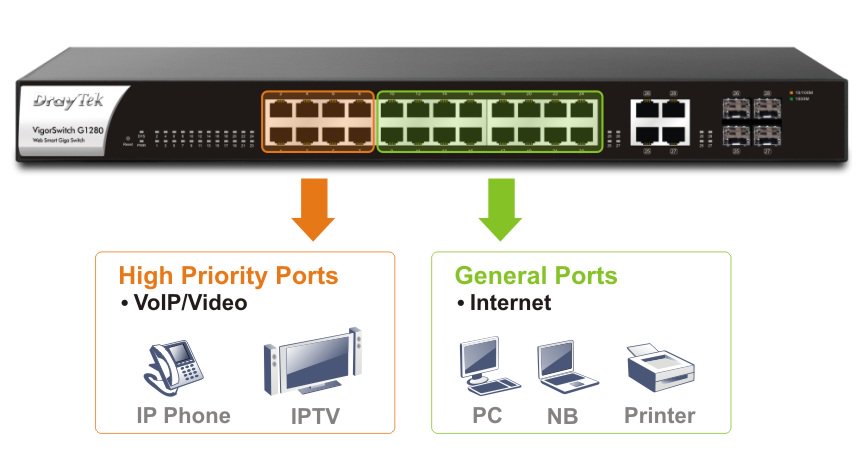

•Auto Voice VLAN for easy VoIP deployment and best call quality
•QoS with 8 priority queues and rate limiting
•Dual-stack IPv4/IPv6 support
•Compliant with Switch Management of Vigor Router

Standard
•802.3 10Base-T
•802.3u 100Base-T
•802.3ab 1000Base-T
•802.3x Flow Control
•802.3 Auto-Negotiation
•802.1p Class of Service
•802.1d STP
•802.1w RSTP
•802.3ad LACP
•802.1AB LLDP
•802.3az EEE

IP version
•IPv4
•IPv6

Performance
•56 Gbps switching capacity
•41.7 Mpps forwarding rate
•8k MAC address table
•Up to 9KB jumbo frame

Hardware
Ports
•24 x 10/100/1000 Gigabit Ethernet RJ-45 capable ports
•4 Gigabit RJ-45/SFP Combo ports

Power
•Max. Power Consumption: 30 watts

VLAN
•802.1q Tag-based VLAN
•Management VLAN
•Voice VLAN
•Port Isolation

QoS
QoS Queues
•8 queues
•Queue Scheduling: SPQ, WRR
Rate Limit
•Ingress Rate Control
•Egress Rate Control

Class of Service
•802.1p CoS
•DSCP
•CoS-DSCP
•IP Precedence

Security
•Storm Control
•DoS Defense

Availability
Link Aggregation
•802.3ad Support
•Up to 8 ports per group
•Up to 8 groups

Spanning Tree
•802.1d (STP)
•802.1w (RSTP)

Multicast
•IGMP v2, v3 Snooping

Management
Configuration & Monitoring

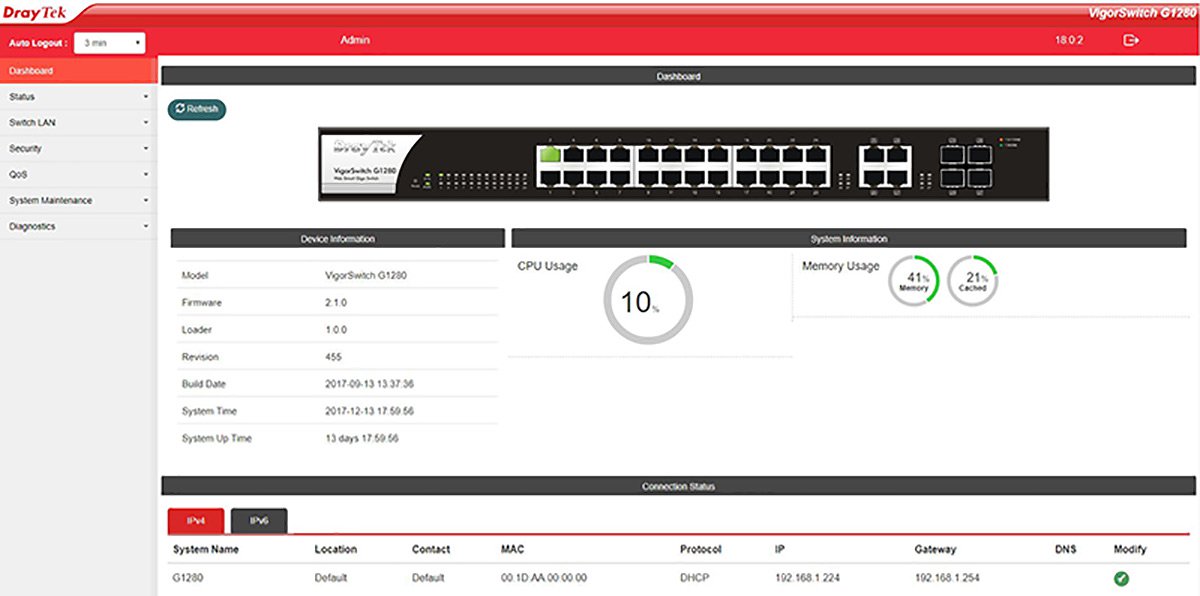

•Web Interface: HTTP, HTTPS
•Command-Line Interface: Telnet, SSH
•SNMP v1, v2c
•802.1AB LLDP
•Vigor Router Switch Management
•Configuration File Export & Import

Access Control
•Multiple admin accounts
•2-level user privilege

Diagnostic Tool
•Syslog
•Port Mirroring
•Port-based Cable Test

Physical Specification
Dimension(mm)
•435(L) x MAYIS6(W) x 44(H)(17.1" x 7.7" x 1.7")

Weight
•2.6 kg (5.7 lb)

Environmental Requirement
Temperature
•Operating: 0°C ~ 40°C
•Storage: -20°C ~ 70°C

Humidity
•Operating: 10% ~ 90% (non-condensing)
•Storage: 5% ~ 90% (non-condensing)





Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.
