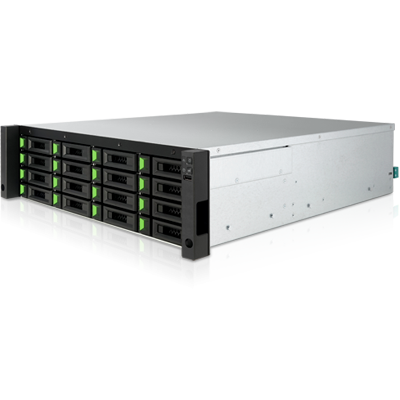

QSAN XCubeNAS XN8016R 16 Bay 3U Rackmount NAS

QSAN

The XN8000R Series are next generation, highly efficient NAS systems which are designed for enterprise applications. The XN8016R and XN8024R are powered by Intel® Kaby Lake processors and up to 128GB of DDR4 ECC RAM.

The XN8000R Series are next generation, highly efficient NAS systems which are designed for enterprise applications. The XN8016R and XN8024R are powered by Intel® Kaby Lake processors and up to 128GB of DDR4 ECC RAM. The PCIe expansion slots give the XN8000R the flexibility to respond to various application demands. 10GbE network adapter card is supported to greatly enhance the data transmission speeds, and two onboard SAS 12Gb/s wide ports are also supported for scalability with our expansion enclosures. Intel® Xeon® 2.2GHz Quad-Core Processor, 8GB DDR4 ECC U-DIMM, up to 128GB RAM, USB 3.0 x2 (Rear), USB 2.0 x1 (Front), Flash 8GB SATA DOM, Drive Bays 16 LFF, No. of Internal Hard Disks 16:16 (LFF disk)

Hardware XN8016R XN8024R
CPU Intel® Xeon® 2.2GHz Quad-Core Processor
RAM 8GB DDR4 ECC U-DIMM, up to 128GB
*Note: The pre-install memory modules may need to be replaced when expanding the memory.
USB USB 3.0 x2 (Rear)
USB 2.0 x1 (Front)
Flash 8GB SATA DOM
Drive Bays 16 LFF 24 LFF
No. of Internal Hard Disks 16:16 (LFF disk) 24:24 (LFF disk)
Max. Raw Capacity 224 TB 336 TB
Hard Drive Interface SAS 12Gb/s and SATA 6Gb/s
(backward compatible with SAS 6Gb/s and SATA 3Gb/s)
Expansion Slot Built-in 2 x 12Gb/s SAS wide ports (SFF-8644)
Optional:
4 x 10GbE iSCSI (SFP+) ports
2 x 10GbE iSCSI (RJ45) ports
4 x 1GbE iSCSI (RJ45) ports
Ethernet Ports 1 GbE LAN (RJ45) x1
10 GbE LAN (RJ45) x2
Power 770W 1+1 redudant
Dimension (H x W x D) 130.4 X 438 X 515 mm 170.3 X 438 X 515 mm
Agency Certifications FCC Class A • CE Class A • BSMI Class A • VCCI Class A • RCM Class A • KCC Class A
Software
Unified Storage NAS application server (Gigabit/10GbE)
iSCSI storage (Gigabit/10GbE)
File Server File sharing across Windows/Mac/Linux/UNIX and centralized management
FTP Server Supports data access from remote location via FTP
FTP with SSL/ TLS (explicit) mode
FXP supported
FTP bandwidth control and connection control
Passive FTP port range control
Backup Server 3rd party backup software support: Acronis True Image, CA Brightstor ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie Silverkeeper
Snapshot replica
Time machine backup server
External storage device backup
Block-level real-time remote replication supports instant, schedule backup management
XMirror (Multi-side data synchronization)
Cloud backup: Amazon S3
Cloud synchronization: Google Drive, Windows OneDrive, Dropbox
Web Server Built-in phpMyAdmin
SQL Server MariaDB database server
VPN Server Supports OpenVPN, PPTP and IPsec+L2TP
Virtualization Server Virtual machine import/export
Virtual machine  backup
Virtual machine  Snapshot
User-based permissions settings
Support virtual switch
Supports access from IE, Safari, Firefox, Chrome
Multiple OS : Windows, Linux, UNIX and Android
Operating System Linux-embedded system
NAS Discovery Utility
Cloud web page
Connection IPv4, IPv6 and DDNS domain name registration (QSAN Cloud)
Auto port forwarding
Networking VLAN
Link aggregation (support 7 bonding modes)
Multi-IP settings
Gigabit Jumbo Frame
File System ZFS file system
EXT2 (Virtual Volume)
EXT3 (Virtual Volume)
EXT4 (Virtual Volume)
FAT (Virtual Volume)
NTFS (Virtual Volume)
Supported Operating Systems Windows
Mac OS X
Linux (2.6 or later) and UNIX
Disk Management Single disk, RAID 0 (Disk Striping), RAID 1 (Disk Mirroring), RAID 5, RAID 5 + hot spare, RAID 6, RAID 10,  RAID 50, RAID 60 and JBOD (Linear Disk Volume)
Multiple volume and storage pool
User defined storage (Generic, Media, Database)
Online pool/volume Capacity Expansion
Pool/ volume usage threshold notification
Self-encrypting drives (SED) pool level protection
Pool write cache
Scrub pool
Convert cloned volume
Virtual volume (mount disk from remote iSCSI target)
Set free and replace disk
HDD S.M.A.R.T.
Built-in iSCSI target and initiator service
External device management
Global and dedicate hot spare disk
Zero time RAID creation and quick rebuilding
Auto Tiering
SSD read/write cache
Deduplication (volume and LUN)
Snapshot (folder and LUN)
Compression (volume and LUN)
Thin Provision for LUN
SSD Trim
*Support up to 256 Volumes, 64 iSCSI targets, 255 iSCSI LUNs
User Management Local / domain user and group management  (Support up to 2048 local user accounts, 1024 local groups)
Local / domain application privilege
User quota for local and domain user
Home folder
Windows AD and LDAP
Trust domain and support up to 200,000 domain users
Folder Management Advance file ACL
Windows ACL
Hide shared folder on Windows network
Unicode support
WORM (Write Once Read Many protection)
Folder usage threshold notification
Folder quota
*Support up to 2048 shared folders
System Tool NTP time settings
Notification: E-mail alert (SMTP authentication), Syslog, and SNMP
System firmware upgrade
Back up, restore, reset system settings
Import system configuration
Antivirus
Smart Fan
IP access control
Policy-based unauthorized IP blocking
Secure remote login by SSH connection
Connection list management
USB, SNMP UPS support
Network recycle bin
Import SSL certificate
Real-time Resource (CPU, Memory, Storage, Disk, Process) / Hardware/ service/ network resource monitor
Power Management HDD hibernation
Power schedule
Wake on LAN
UPS settings
Recover from power outage
System Optimization Setting Service binding
Log System log
System connection and data transfer log
Multilingual Support Chinese (Traditional & Simplified), English, French, German, Italian, Japanese, Korean, Russian, Polish
File Manager File preview
Embedded file player
Filter
Mount Cloud (Google Drive, OneDrive, Dropbox)
ISO image mount
CIFS, FTP, SFTP and WebDAV client
Share link
Team folder sharing
Publish to facebook, twitter, weibo
Media library
Media streaming
Online doc preview and editing
Transcoding (online/offline), compression
Service Data service: CIFS, AFP, NFS, FTP, WebDAV
Backup service: Rsync
Discover service: Bonjour
Virtualization Windows: Hyper-V, storage space
VMware: VMware 6.5 ready, VAAI, SRM
Citrix: Citrix 7.0 ready
Multi-Browser Support Internet Explorer
Safari
Firefox
Google Chrome
Utility XFinder
XRplicator (Windows backup utility)
Warranty
Warranty System: 3 years
Operating Environment
Temperature Operating temperature: 0 to 40°C
Shipping temperature: 10 to 50°C
Relative Humidity Operating relative humidity: 20% to 80% non-condensing
Non-operating relative humidity: 10% to 90%
