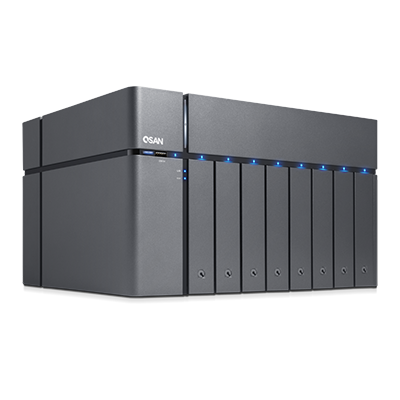

QSAN XCubeNAS XN5008T 8+1 Bay Tower NAS

QSAN

Tower 8+1 Bay with Intel Celeron 2.9 GHz Dual-Core CPU, 8GB DDR4 RAM (Max 32GB).

QSAN XCubeNAS XN5008T Özellikler

Hardware Specifications

Architecture All-in-one
Storage OS QSM Specification Details
CPU
Processor Intel® Celeron®
CPU Architecture 64-bit
CPU Frequency Dual-Core 2.9GHz
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 8GB DDR4 SO-DIMM
Total Memory Slots 2
Memory Expandable up to 32 GB
Notes -
Storage

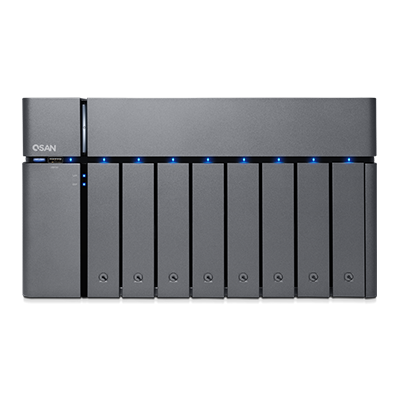

Drive Bays

3.5" Slot x 8

2.5" Slot x 1

Maximum Drive Bays with Expansion Unit -
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)

Maximum Internal Raw Capacity 132TB
Maximum Raw Capacity with Expansion Units -
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 8 + 3.84 TB drive x 1
  • Capacity may vary by RAID types

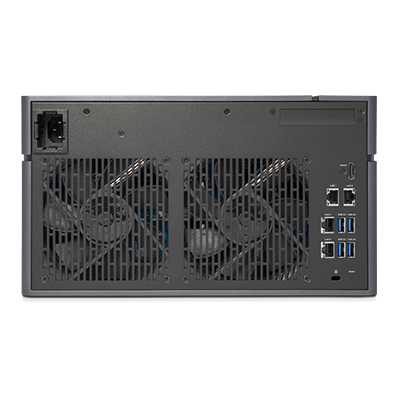

External Port
USB 2.0 Port -
USB 3.0 Port 5 (Front: 1, Rear: 4)
HDMI Port 1
Others -
Notes -
Connectivity Port
1GbE RJ45 LAN Port 4 (Onboard)
10GbE RJ45 LAN Port 2 (Option: THBE10R2)
10GbE SFP+ LAN Port 2 (Option: XN-E1002)
Thunderbolt 3 2 (Option: XN-TB302)
16Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port -
Notes -
PCIe Expansion
Gen3x8 Slot 1
Gen3x4 Slot -
Notes For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 177 x 310 x 235
Chassis Form Factor Tower 8+1 Bay
Net Weight (kg) 4.8
Gross Weight (kg) 6
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 120mm x 120mm x 2 pcs
Replaceable System Fan -
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter FLEX ATX 200W
Redundant Power Supply -
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption -
British Thermal Unit -
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM

KCC

SASO

EAC

Notes -
Warranty
Standard Warranty 2 years
Notes -
