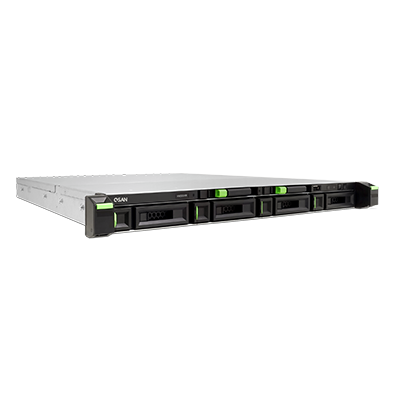

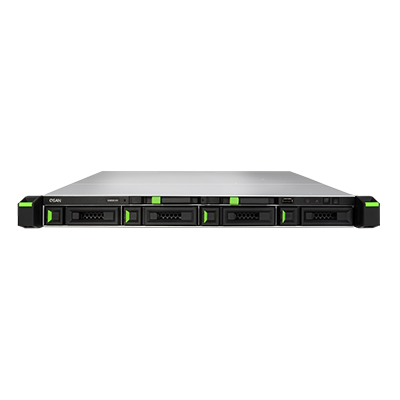

QSAN XCubeNAS XN5004R 4+2 Bay 1U Rackmount NAS

QSAN

Rackmount 1U (4 +2 Yuvalı) Rack Montajlı NAS Cihazı. Intel Celeron 2.9 GHz Dual-Core CPU, 8GB DDR4 RAM (Max 64GB). QSM İşletim sistemi ile maharetli ve çok hızlı.

QSAN XCubeNAS XN5004R Özellikler

Hardware Specifications

Architecture Single Controller
Storage OS QSM  Specification Details
CPU
Processor Intel ® Celeron ®
CPU Architecture 64-bit
CPU Frequency Dual-Core 2.9GHz
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 8GB DDR4 U-DIMM
Total Memory Slots 4
Memory Expandable up to 64 GB
Notes -
Storage
Drive Bays

3.5" Slot x 4

2.5" Slot x 2

Maximum Drive Bays with Expansion Unit 198
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)

Maximum Internal Raw Capacity 72TB
Maximum Raw Capacity with Expansion Units 3138TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 4 + 3.84 TB drive x 2
  • Capacity may vary by RAID types
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 4 (Rear)
HDMI Port 1
Others Console Port x1
Notes -
Connectivity Port
1GbE RJ45 LAN Port 4 (Onboard)
10GbE RJ45 LAN Port 2 (Option: RHBE10R2)
10GbE SFP+ LAN Port 2 (Option: XN-E1002)
Thunderbolt 3 2 (Option: XN-TB302)
16Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port 2 (Option: XN-S1202)
Notes For more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot 1
Gen3x4 Slot -
Notes For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 44 x 438 x 510
Chassis Form Factor 19" Rackmount 1U 4+2 Bay
Net Weight (kg) -
Gross Weight (kg) -
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 40mm x 40mm x 3 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 250W x2
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 107 W (Access)
83 W (HDD Hibernation)
British Thermal Unit 364 BTU/hr (Access)
284 BTU/hr (HDD Hibernation)
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM

SASO

EAC

Notes -
Warranty
Standard Warranty 2 years
Notes -
