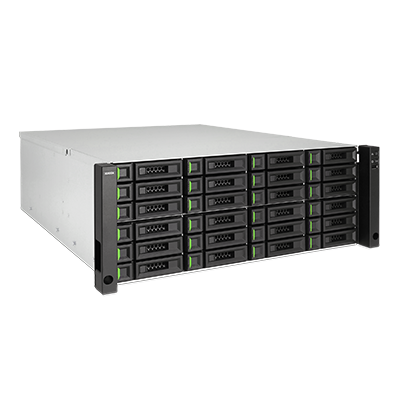

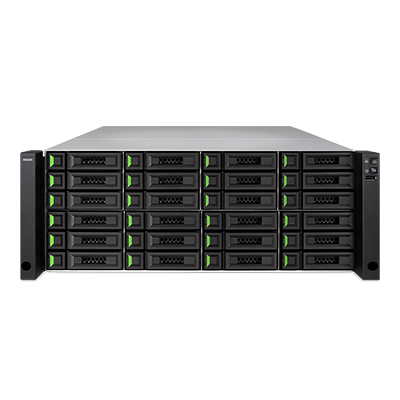

QSAN XCubeNAS XN8024R 24 Bay 4U Rackmount NAS

QSAN XCubeNAS XN8024R 24 Bay 4U Rackmount NAS

QSAN

Rackmount 4U24 Bay with Intel Xeon 2.2GHz Quad-Core CPU, 8GB DDR4 RAM (Max 128GB). 2 slots for optional host cards inclusing 10Gb X 4 ports, 10Gb X2 prots or 1Gb X 4 ports host card.

QSAN XCubeNAS XN8024R Özellikler

Hardware Specifications

Architecture All-in-one
Storage OS QSM Specification Details
CPU
Processor Intel® Xeon®
CPU Architecture 64-bit
CPU Frequency Quad-Core 2.2GHz
Memory
System Flash 8GB SATA DOM
Memory Module Pre-installed 8GB DDR4 ECC U-DIMM
Total Memory Slots 4
Memory Expandable up to 128 GB
Notes -
Storage
Drive Bays

3.5" Slot x 24
Maximum Drive Bays with Expansion Unit 216
Compatible Drive Type

3.5" SAS HDD

3.5" SATA HDD

2.5" SAS SSD

2.5" SATA HDD

2.5" SATA SSD
Drive Interface

SAS 12Gb/s and SATA 6Gb/s
(backward compatible with SAS 6Gb/s and SATA 3Gb/s)
Maximum Internal Raw Capacity 384TB
Maximum Raw Capacity with Expansion Units 3456TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 24
  • Capacity may vary by RAID types

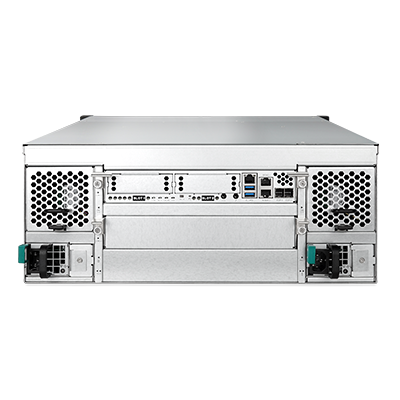

External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 2 (Rear)
HDMI Port -
Others Console Port x1
Notes -
Connectivity Port
1GbE RJ45 LAN Port 1 (Onboard)
4 (Option: HQ-01G4T)
10GbE RJ45 LAN Port 2 (Onboard)
2 (Option: HQ-10G2T)
10GbE SFP+ LAN Port 4 (Option: HQ-10G4S2)
Thunderbolt 3 -
16Gb SFP+ Fibre Channel 4 (Option: HQ-16F4S2)
2 (Option: HQ-16F2S2)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port 2 (Onboard)
Notes -
PCIe Expansion
Gen3x8 Slot -
Gen3x4 Slot -
Notes -
Host Card Expansion
Gen3x8 Slot 1
Gen2x4 Slot 1
Notes Gen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm) 170.3 x 438 x 515
Chassis Form Factor 19" Rackmount 4U 24 Bay
Net Weight (kg) 26
Gross Weight (kg) 30.3
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 80mm x 80mm x 4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 265 W (Access)
257 W (HDD Hibernation)
British Thermal Unit 902 BTU/hr (Access)
876 BTU/hr (HDD Hibernation)
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI
Notes -
Warranty
Standard Warranty 2 years
Notes -

Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.

XN8024R Datasheet
