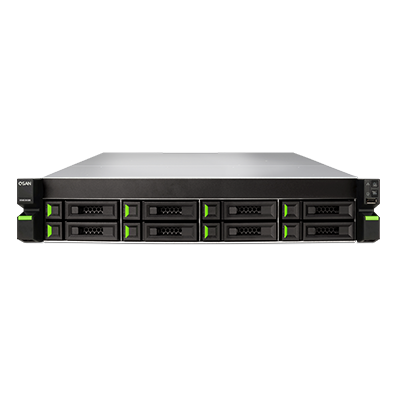

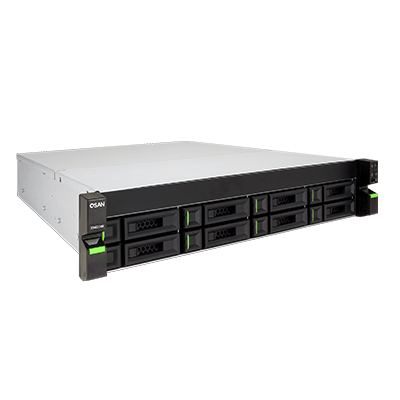

QSAN XCubeNAS XN7008RE 8 Bay 2U Rackmount NAS

QSAN XCubeNAS XN7008RE 8 Bay 2U Rackmount NAS

QSAN

Rackmount 2U 8 Bay with Intel Core i3 3.9 GHz Quad-Core CPU, 8GB DDR4 RAM (Max 64GB).

The XN7000R Series are next generation, highly efficient NAS systems which are designed for SMB and enterprise applications. The XN7000R Series are powered by the latest generation of Intel® Kaby Lake processors and up to 64GB of DDR4 ECC RAM. Intel® Core™ i3 3.9GHz Dual-Core Processor, 8GB DDR4 ECC U-DIMM, up to 64GB RAM, USB 3.0 x4 (Rear), USB 2.0 x1 (Front), Flash 8GB USB DOM Drive Bays 8 LFF with lock / 4 SFF (SATA SSD).

Hardware Specifications

Architecture Single Controller
Storage OS QSM 3 Specification Details
CPU
Processor Intel® Core™ i3
CPU Architecture 64-bit
CPU Frequency Dual-Core 3.9GHz
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 8GB DDR4 U-DIMM
Total Memory Slots 4
Memory Expandable up to 64 GB
Notes -
Storage
Drive Bays

3.5" Slot x 8
Maximum Drive Bays with Expansion Unit 200
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD
Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity 128TB
Maximum Raw Capacity with Expansion Units 3200TB
Hot Swappable Drive YES
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 8
  • Capacity may vary by RAID types
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 4 (Rear)
HDMI Port 1
Others Console Port x1
Notes -
Connectivity Port
1GbE RJ45 LAN Port 4 (Onboard)
10GbE RJ45 LAN Port 2 (Option: THBE10R2)
10GbE SFP+ LAN Port 2 (Option: XN-E1002)
Thunderbolt 3 2 (Option: XN-TB302)
16Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port 2 (Option: XN-S1202)
Notes For more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot 1
Gen3x4 Slot 1
Notes For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 88.5 x 438 x 510
Chassis Form Factor MAYIS" Rackmount 2U 8 Bay
Net Weight (kg) 12.7
Gross Weight (kg) 14.1
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 60mm x 60mm x 3 pcs
Replaceable System Fan YES
Power Recovery YES
Scheduled Power On/Off YES
Wake on LAN/WAN YES
Power Supply Unit / Adapter 250W x2
Redundant Power Supply YES
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 231 W (Access)
111 W (HDD Hibernation)
British Thermal Unit 788 BTU/hr (Access)
379 BTU/hr (HDD Hibernation)
LCM Support YES
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM
Notes -
Warranty
Standard Warranty 3 years
Notes -
