QSAN XN3004R, 1U basit, güçlü ve sitil sahibi 4 yuvalı kabin montajı yapılabilen bir NAS cihazıdır. QSM İşletim sistemi ile maharetli ve çok hızlı.

Açıklamalar
Özellikler
Belgeler
Alternatif Ürünler
İlişkili Ürünler
Görseller

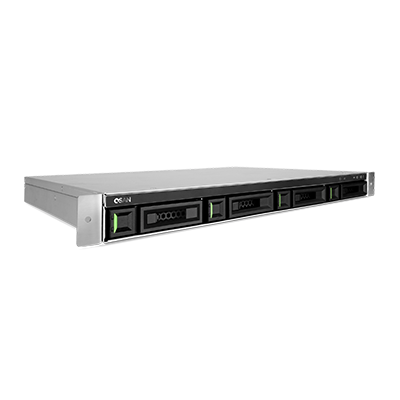

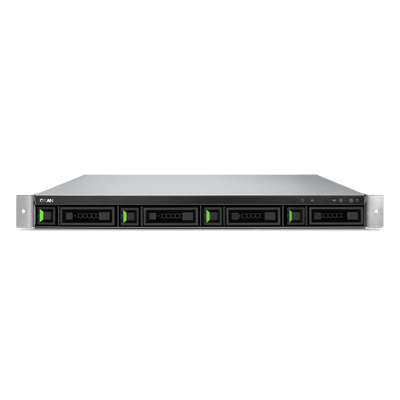

QSAN XN3004R, 1U basit, güçlü ve sitil sahibi 4 yuvalı kabin montajı yapılabilen bir NAS cihazıdır. Intel Atom Processor, 4GB DDR3L RAM (Max 8GB) ve QSM İşletim sistemi ile maharetli ve çok hızlı.

Hardware Specifications

CPU
Architecture	Single Controller
Storage OS	QSM 3
Processor	Intel®
CPU Architecture	64-bit
CPU Frequency	Dual-Core
Memory
System Flash	8GB USB DOM
Memory Module Pre-installed	4GB DDR3L SO-DIMM
Total Memory Slots	1
Memory Expandable up to	8GB
Notes	-
Storage
Drive Bays	3.5" Slot x 4
Maximum Drive Bays with Expansion Unit	-
Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 SSD
Drive Interface	SATA 6Gb/s (backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity	64TB
Maximum Raw Capacity with Expansion Units	-
Hot Swappable Drive	VAR
Notes	For more information, please refer to compatibility matrix and hardware manual Maximum internal raw capacity= 16 TB drive x 4 Capacity may vary by RAID types M.2 SSD can be installed
External Port
USB 2.0 Port	2 (Rear)
USB 3.0 Port	-
HDMI Port	-
Others	Console Port x 1
Notes	-
Connectivity Port
1GbE RJ45 LAN Port	2 (Onboard)
10GbE RJ45 LAN Port	2 (Option:RHBE10R2)
10GbE SFP+ LAN Port	2 (Option:XN-E1002)
Thunderbolt 3	-
16Gb SFP+ Fibre Channel	-
Notes	For more information, please refer to accessory book Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port	-
Notes	-
PCIe Expansion
Gen3x8 Slot	-
Gen3x4 Slot	-
Notes	Gen2x8 Slot x1, For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot	-
Gen2x4 Slot	-
Notes	-
Appearance
Dimension (H x W x D) (mm)	44 x 438 x 370
Chassis Form Factor	12″ Rackmount 1U 4 Bay
Net Weight (kg)	5.97
Gross Weight (kg)	9.9
Notes	-
Memory Protection
Cache-to-Flash Module	-
Battery Backup Module + Flash Module	-
Notes	-
Others
System Fan	40mm x 40mm x 2 pcs
Replaceable System Fan	-
Power Recovery	-
Scheduled Power On/Off	-
Wake on LAN/WAN	-
Power Supply Unit / Adapter	FLEX ATX 200W
Redundant Power Supply	-
AC Input Power Voltage	100V-240V
Power Frequency	50-60 Hz, Single Phase
Power Consumption	105 W (Access) 72 W (HDD Hibernation)
British Thermal Unit	360 BTU/hr (Access) 244 BTU/hr (HDD Hibernation)
LCM Support	VAR
Notes	-
Environment Temperature
Operating Temperature	0 to 40°C
Storage Temperature	-10 °C to 50 °C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	10% to 90%
Notes	-
Certification
Certifications	CE FCC BSMI VCCI RCM
Notes	-
Warranty
Standard Warranty	3 years
Notes	-

Bu ürüne ait özellikler veritabanımızda bulunmamamktadır.

QSAN XCubeNAS XN3004R Datasheet

Bu ürüne alternatif bir ürün bulunmamaktadır.

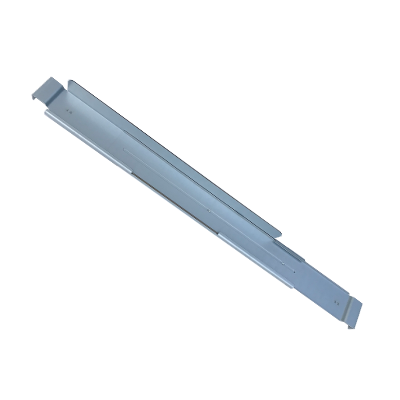

QSAN XN-RKIT02 Rack Mount Kit for XCubeNAS (XN3004R)
