WDC UltraStar DATA102 (SE4U102-60) 102Bay 4U RM Hybrid Storage Platform (nTAA He SAS)(JBOD)

Western Digital

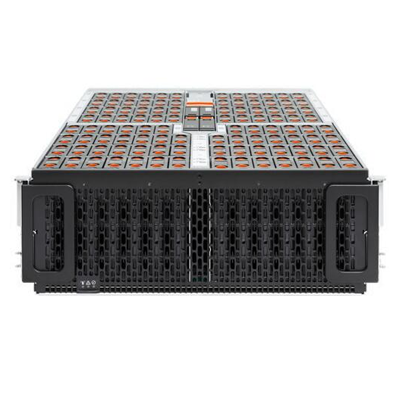

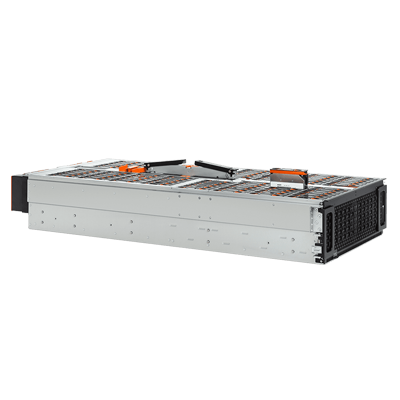

The Ultrastar Data102 hybrid storage platform (JBOD) is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. 1.4PB (102x14TB) raw capacity with 4U.

The Ultrastar Data102 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The extremely dense form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, and resellers/integrators that require dense, shared HDD or hybrid storage. (JBOD)

Highlights

  • Up to 102 Ultrastar HDDs (SAS or SATA)
  • Up to 2.0PB1 raw capacity in 4U using 20TB SMR HDDs
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of the drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty



Applications and Workloads

  • SDS Environments
  • Big Data
  • Private Cloud
  • Data Analytics
  • Cloud Infrastructure



IsoVibe™ Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow™ Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Learn how these innovations reduce drive field returns by 62%2

Maximum Capacity

2.0PB1

Max # of Drives

102

Interface

SAS or SATA



Drive Type

Hybrid

Rack Height

4U
