QSAN XCubeNAS XN5008RE 8 Bay 2U Rackmount NAS | Simet Bilişim Teknolojileri A.Ş.

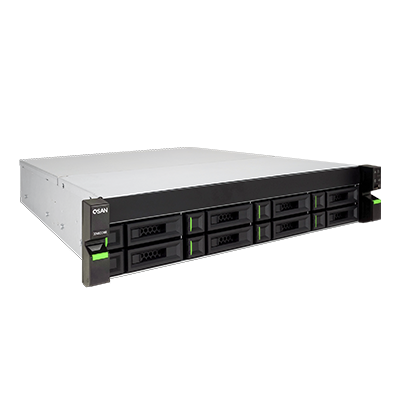

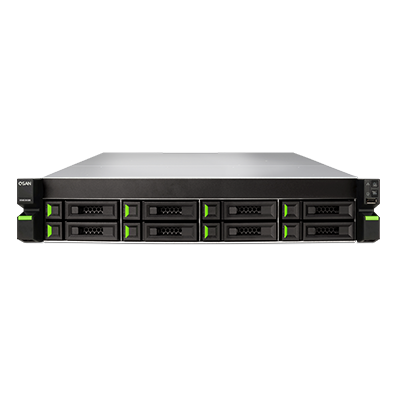

QSAN XCubeNAS XN5008RE 8 Bay 2U Rackmount NAS

QSAN

Rackmount 2U 8 Bay NAS with Intel Celeron 2.9 GHz Dual-Core CPU, 8GB DDR4 RAM (Max 64GB).

QSAN XCubeNAS XN5008RE Özellikler

Hardware Specifications

Architecture Single Controller
Storage OS QSM Specification Details
CPU
Processor Intel ® Celeron ®
CPU Architecture 64-bit
CPU Frequency Dual-Core 2.9GHz
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 8GB DDR4 U-DIMM
Total Memory Slots 4
Memory Expandable up to 64 GB
Notes -
Storage
Drive Bays

3.5" Slot x 8

Maximum Drive Bays with Expansion Unit 200
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)

Maximum Internal Raw Capacity 128TB
Maximum Raw Capacity with Expansion Units 3200TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 14 TB drive x 8
  • Capacity may vary by RAID types
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 4 (Rear)
HDMI Port 1
Others Console Port x1
Notes -
Connectivity Port
1GbE RJ45 LAN Port 4 (Onboard)
10GbE RJ45 LAN Port 2 (Option: RHBE10R2)
10GbE SFP+ LAN Port 2 (Option: XN-E1002)
Thunderbolt 3 2 (Option: XN-TB302)
16Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port 2 (Option: XN-S1202)
Notes For more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot 1
Gen3x4 Slot 1
Notes For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 88.5 x 438 x 510
Chassis Form Factor 19" Rackmount 2U 8 Bay
Net Weight (kg) 12.7
Gross Weight (kg) 14.1
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 60mm x 60mm x 3 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 250W x2
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 231 W (Access)
111 W (HDD Hibernation)
British Thermal Unit 788 BTU/hr (Access)
379 BTU/hr (HDD Hibernation)
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM

Notes -
Warranty
Standard Warranty 2 years
Notes -
