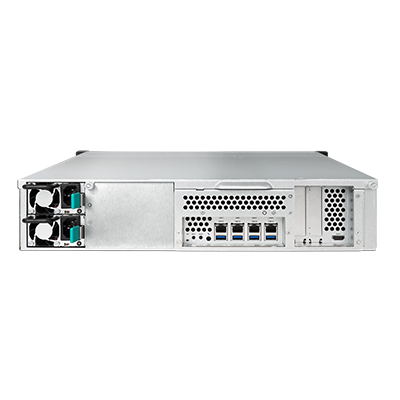

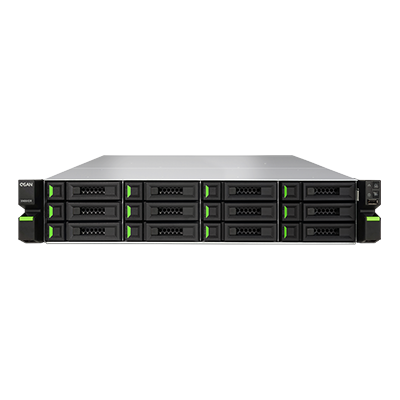

QSAN XCubeNAS XN5112RE 12 Bay 2U Rackmount NAS

Architecture	Single Controller
Storage OS	QSM Specification Details
CPU
Processor	Intel® Xeon® 64-bit 2-core
Memory
Memory Module Pre-installed	8 GB DDR4 ECC DIMM
Total Memory Slots	4
Memory Expandable up to	256 GB
Storage
Drive Bays	3.5" Slot x 12 M.2 Slot x 2
Maximum Drive Bays with Expansion Unit	422
Compatible Drive Type	3.5" SATA HDD & 2.5" SATA SSD NVMe M.2 SSD
Drive Interface	SATA x 12 (6 Gb/s) M.2 NVMe x 2 (PCIe Gen 3x2)
Maximum Internal Raw Capacity	272 TB
Maximum Raw Capacity with Expansion Units	9,248 TB
Hot Swappable Drive
Notes	M.2 slot does not support hot plugging
Connectivity Port
PCIe Expansion	(Gen 4x8 Slot) x 1, (Gen 4x4 Slot) x 1
2.5 GbE RJ45 LAN Port	4 (onboard)
10 GbE SFP+ LAN Port	2 (option)
10 GbE RJ45 LAN Port	2 (option)
25 GbE SFP28 LAN Port	2 (option)
Expansion and External Port
12 Gb/s SAS Wide Port	2 (option)
USB Port	1 (front) / 2 (rear)
Others	Console Port x 1
Software Specification
Storage OS	QSM
RAID Type	0 / 1 / 5 / 6 / Z3 / 10 / 50 / 60
Storage Efficiency	Thin Provisioning / Deduplication / Compression
Software Acceleration	Hybrid SSD Cache / Auto Tiering
Data Protection	Snapshot / Local Volume Clone
Remote Replication	Rsync / Xmirror / Asynchronous
Security	SED / WORM / Pool Encryption
Support Protocols	AFP / CIFS / FTP / iSCSI / NFS / WebDAV
Management	Web UI / Serial Console / RESTful API / S.E.S. / LCM
Appearance
Dimension (H x W x D) (mm)	88.5 x 438 x 515
Net Weight (kg)	11.1
Gross Weight (kg)	15.7
Notes	-
Others
System Fan	2 pcs
Power Supply Unit	450W x 2 (80 PLUS Platinum)
Power Input	100 - 240 VAC, 50 - 60 Hz
Power Consumption	255 W
British Thermal Unit	869 BTU
Environment Temperature
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 50°C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	10% to 90%
Certification
Certifications	CE / FCC / BSMI
Warranty
Standard Warranty	System: 3 years

Architecture

Single Controller

Storage OS

QSM Specification Details

CPU

Processor

Intel® Xeon® 64-bit 2-core

Memory

Memory Module Pre-installed

8 GB DDR4 ECC DIMM

Total Memory Slots

Memory Expandable up to

256 GB

Storage

Drive Bays

3.5" Slot x 12

M.2 Slot x 2

Maximum Drive Bays with Expansion Unit

422

Compatible Drive Type

3.5" SATA HDD & 2.5" SATA SSD

NVMe M.2 SSD

Drive Interface

SATA x 12 (6 Gb/s)

M.2 NVMe x 2 (PCIe Gen 3x2)

Maximum Internal Raw Capacity

272 TB

Maximum Raw Capacity with Expansion Units

9,248 TB

Hot Swappable Drive

Notes

M.2 slot does not support hot plugging

Connectivity Port

PCIe Expansion

(Gen 4x8 Slot) x 1, (Gen 4x4 Slot) x 1

2.5 GbE RJ45 LAN Port

4 (onboard)

10 GbE SFP+ LAN Port

2 (option)

10 GbE RJ45 LAN Port

2 (option)

25 GbE SFP28 LAN Port

2 (option)

Expansion and External Port

12 Gb/s SAS Wide Port

2 (option)

USB Port

1 (front) / 2 (rear)

Others

Console Port x 1

Software Specification

Storage OS

QSM

RAID Type

0 / 1 / 5 / 6 / Z3 / 10 / 50 / 60

Storage Efficiency

Thin Provisioning / Deduplication / Compression

Software Acceleration

Hybrid SSD Cache / Auto Tiering

Data Protection

Snapshot / Local Volume Clone

Remote Replication

Rsync / Xmirror / Asynchronous

Security

SED / WORM / Pool Encryption

Support Protocols

AFP / CIFS / FTP / iSCSI / NFS / WebDAV

Management

Web UI / Serial Console / RESTful API / S.E.S. / LCM

Appearance

Dimension (H x W x D) (mm)

88.5 x 438 x 515

Net Weight (kg)

11.1

Gross Weight (kg)

15.7

Notes

Others

System Fan

2 pcs

Power Supply Unit

450W x 2 (80 PLUS Platinum)

Power Input

100 - 240 VAC, 50 - 60 Hz

Power Consumption

255 W

British Thermal Unit

869 BTU

Environment Temperature

Operating Temperature

0°C to 40°C

Storage Temperature

-10°C to 50°C

Operating Relative Humidity

20% to 80% non-condensing

Non-operating Relative Humidity

10% to 90%

Certification

Certifications

CE / FCC / BSMI

Warranty

Standard Warranty

System: 3 years
