Xentino VS90T, MSA SFF uyumlu entegre SFP G.Fast (ITU-T G.9701/ G.9700 G.Fast Standard) modem cihazıdır. SFP Modül şeklinde üretilmiş olan cihaz Ethernet Switch, Media Converter, Firewall, Router ve benzeri ağ cihazların SFP slotuna takılarak İnternet Servis Sağlayıcıdan gelen G.Fast Standardına uygun bakır hattınızı sonlandırabilir. SFP Modül büyüklüğündeki G.Fast Modem tüm G.Fast DSLAM 'lar ile tam uyumlu olarak çalışabilmektedir.
Xentino VS90T, MSA SFF uyumlu entegre SFP G.Fast (ITU-T G.9701/ G.9700 G.Fast Standard) modem cihazıdır. SFP Modül şeklinde üretilmiş olan cihaz Ethernet Switch, Media Converter, Firewall, Router ve benzeri ağ cihazların SFP slotuna takılarak İnternet Servis Sağlayıcıdan gelen G.Fast Standardına uygun bakır hattınızı sonlandırabilir. SFP Modül büyüklüğündeki G.Fast Modem tüm G.Fast DSLAM 'lar ile tam uyumlu olarak çalışabilmektedir.

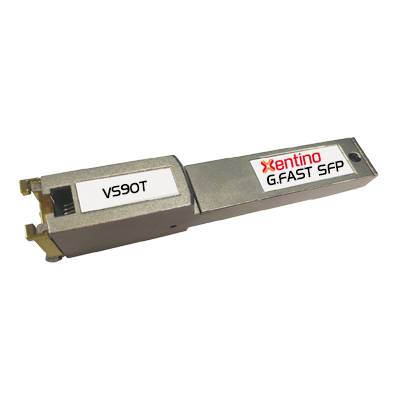

Xentino VS90T is a compact G.Fast SFP (Small Form-factor Pluggable) modem with electrical interface specified by a MSA (Multi-Source Agreement) that can be integrated with any switch/router platform and end devices.
Xentino VS90T G.Fast SFP modem complies with the ITU-T G.9701/ G.9700 G.fast standard which can deliver data rate up to 1Gbps. This G.fast SFP can be easily plugged into any CPE Gateway which has a SFP cage on board. In order to be recognized by the host device after inserting to SFP slot, Xentino VS90T G.fast SFP follows SFF-8472 first 128 byte format and let Host to read these 128 bytes information prior to loading the program into SFP device through 2-wire I2C interface.
Xentino VS90T SFP has an ultra-low power dissipation design in a small form factor SFP package and it can co-exist with legacy xDSL deployments using programmable bandwidth and PSD which allows Service Providers tooffer different access technology within One Box. Realizing the modulation of broadband access technology will help ISPs prevent any possible increase on the management cost. On the other hand, using the same user interface will make the upgrade easier and more attractive to end users.
Xentino VS90T SFP completes the One Box solution for broadband access which enables users to upgrade their existing Home Gateways to Gigabit speed without paying for the expensive hardware upgrades. Leveraging Xentino xDSL SFP modules will be the most cost-efficient solution for ISPs to upgrade their network service.
G.fast Features |
OAM Features |
Advanced ITU Features |
|||
Frequency band |
2.2MHz to 106MHz |
SOC, EOC, RMC |
Compliant |
G.inp |
Retransmission |
Modulation |
Discrete Multi Tone (DMT) |
SRA |
Seamless Rate Adaption |
Vectoring |
Linear vectoring (CPE) |
Duplexing |
TDD (Time Division Duplexing) |
Bit Swapping |
Compliant |
NTR |
NTR transport on G.fast |
Sub carriers |
2048 carriers with 12 bits/carrier |
RPA |
RMC Parameter Adjustment |
ToD |
Frequency synchronize and Time synchronize |
Sub carrier spacing |
51.75kHz |
FRA |
Fast Rate Adaptation |
Other Features |
|
ANDR |
1Gbps (Aggregate Net Data Rate) |
TIGA |
Transmitted Initiated Gain Adjustment |
QoS |
Flexible packet classify based on Ether Type, VLAN ID or VLAN |
FEC |
Trellis coding |
Priority (supports QinQ) |
|||
Reed-Solomon coding |
EBM |
Ethernet Boot & Management |
|||
Maximum TX power |
4dBm |
||||
Handshake |
ITU-T G.994.1 |
Hardware |
Compact&Robust RJ-45 Female Connector |
|
SGMII / SERDES connect to host |
||
Access to transceiver function via I2C (SFF-8472) or Ethernet bus for management & configuration |
||
LED1 : MT5321 G.fast SFP link status LED (YELLOW) |
||
LED2 : SGMII activity LED (GREEN) |
||
Software |
Support Ethernet Boot mode and Management (EBM) |
|
Linux SDP driver for managed device |
||
Power Requirement |
3.3V, 2W |
|
Environment |
Operating Temperature |
-0 ~ +75°C (SFP cage) |
Storage Temperature |
-20 ~ +85°C |
|
Operating Humidity |
10% to 90% |
|
(non-condensed) |
||
Storage Humidity |
5% to 95% |
|
(non-condensed) |
||
Surge Protection |
4KV |
|
Certification |
CE / FCC |
