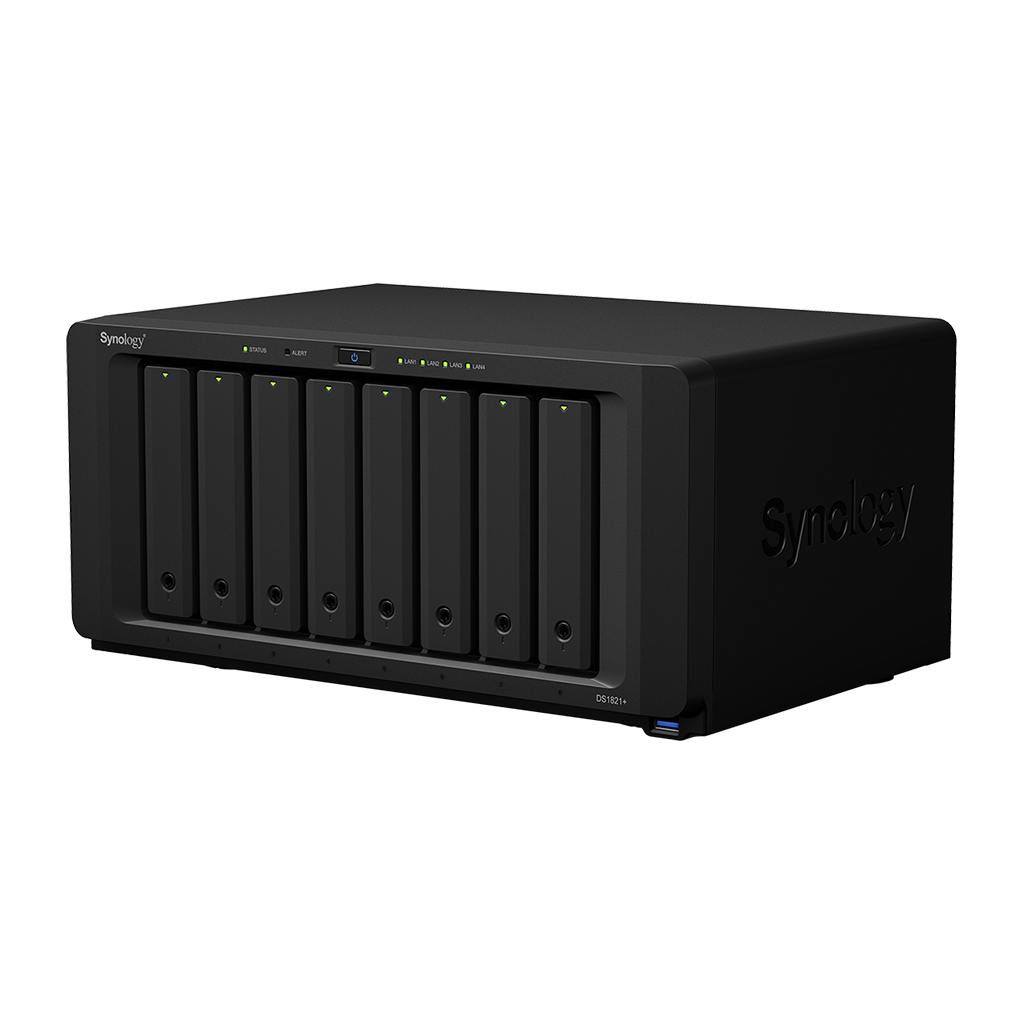

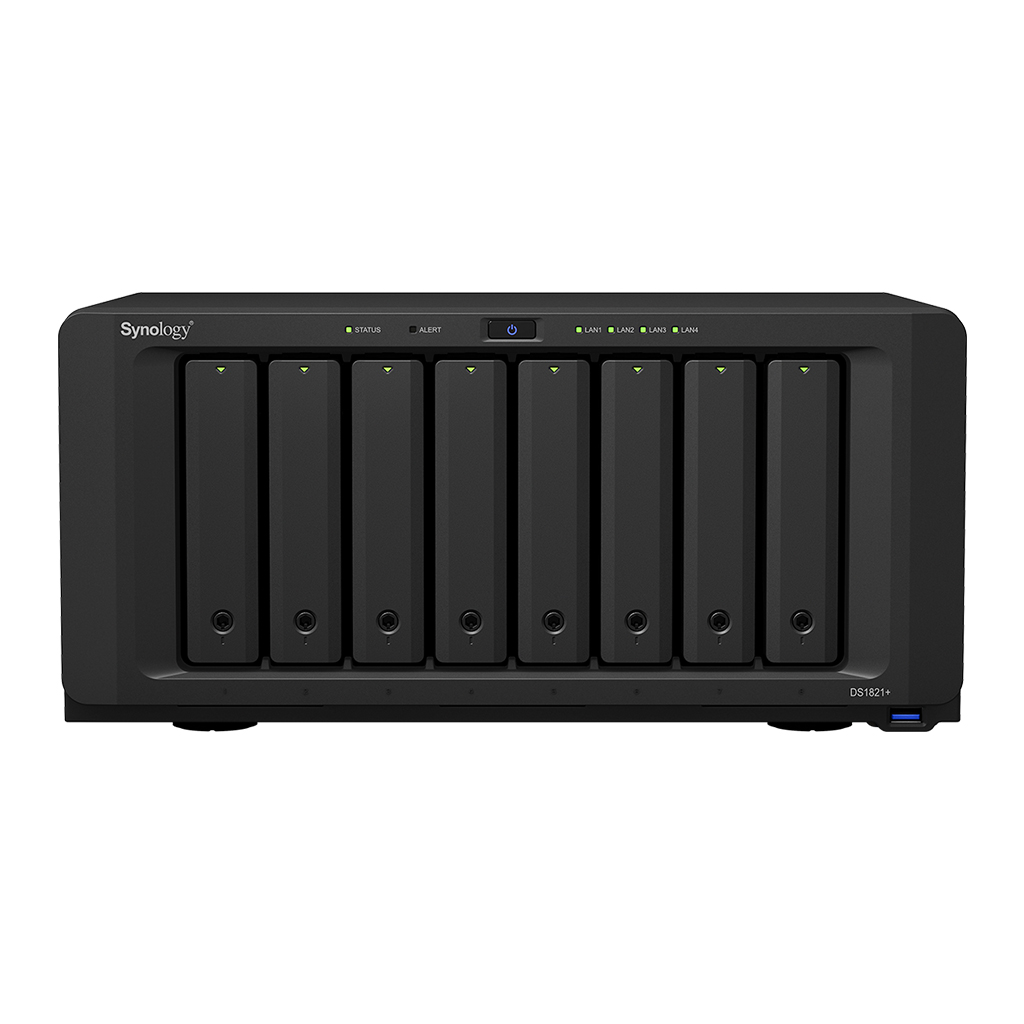

Synology DS1821Plus all in one 8Bay NAS

Synology DS1821Plus all in one 8Bay NAS

Synology

Synology DiskStation DS1821+, 8 dahili yuvalı güçlü ve ölçeklenebilir bir veri depolama çözümüdür. 8 adet dahili 3,5"/2,5" SATAIII/II HDD/SSD Hotswap HDD Yuvası, NVMe önbelleği için çift M.2 2280 yuvası, AMD Ryzen Dört Çekirdekli 2,2 GHz CPU, 4GB DDR4 ECC SODIMM Bellek ve 4 adet Gigabit Ethernet portuna sahiptir. DX517 ile 108TB kapasiteye kadar genişleyebilir.

Synology DiskStation DS1821+, 8 dahili yuvalı güçlü ve ölçeklenebilir bir veri depolama çözümüdür. 8 adet dahili 3,5"/2,5" SATAIII/II HDD/SSD Hotswap HDD Yuvası, NVMe önbelleği için çift M.2 2280 yuvası, AMD Ryzen Dört Çekirdekli 2,2 GHz CPU, 4GB DDR4 ECC SODIMM Bellek ve 4 adet Gigabit Ethernet portuna sahiptir. DX517 ile 108TB kapasiteye kadar genişleyebilir.

Designed for scalability and performance

The 8-bay Synology DS1821+ is aimed at IT enthusiast and SMB customers looking for a powerful and scalable storage solution, its business-grade backup solutions keep users safe and protected from potential data loss, while major improvements to compute capabilities and throughput means workloads are finished faster than ever before.





CPU
 CPU Model AMD Ryzen V1500B
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 4-core 2.2 GHz
  Hardware Encryption Engine (AES-NI)
Memory
 System Memory 4 GB DDR4 ECC SODIMM
  Memory Module Pre-installed 4 GB (4 GB x 1)
  Total Memory Slots 2
  Maximum Memory Capacity 32 GB (16 GB x 2)
  Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
 Drive Bays 8
  Maximum Drive Bays with Expansion Unit 18 (DX517 x 2)
  M.2 Drive Slots 2 (NVMe)
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
  Hot Swappable Drive*
  Notes
  • The hot swappable drive feature is not supported by M.2 SSD slots.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
 RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
  USB 3.2 Gen 1 Port* 4
  eSATA Port 2
  Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 1 x Gen3 x8 slot (x4 link)
File System
 Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
  Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
 Size (Height x Width x Depth) 166 mm x 343 mm x 243 mm
  Weight 6 kg
Others
 System Fan 120 mm x 120 mm x 2 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Easy Replacement System Fan
  Brightness Adjustable Front LED Indicators
  Power Recovery
  Noise Level* 22.2 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 250 W
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption 59.8 W (Access)
26.18 W (HDD Hibernation)
  British Thermal Unit 204.05 BTU/hr (Access)
89.33 BTU/hr (HDD Hibernation)
  Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • CCC
  • KC
  • VCCI
  • RCM
Warranty
 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
  Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
