Synology SA3600 all in one 12Bay 2U NAS

Synology SA3600 all in one 12Bay 2U NAS

Synology

Synology SA3600, esnek depolama ölçeklenebilirliği ve performansı sunan 2U raf tipi bir sunucudur. 12 çekirdekli CPU ve yüksek hızlı ağ desteği ile donatılmış SA3600, 5561 MB/sn'den fazla sıralı kapasite sağlar1. SAS ve SATA sürücülerini destekleyen SA3600, en uygun toplam sahip olma maliyetiyle (TCO) esnek ve genişletilebilir depolama çözümü sunar.

Synology SA3600, esnek depolama ölçeklenebilirliği ve performansı sunan 2U raf tipi bir sunucudur. 12 çekirdekli CPU ve yüksek hızlı ağ desteği ile donatılmış SA3600, 5561 MB/sn'den fazla sıralı kapasite sağlar1. SAS ve SATA sürücülerini destekleyen SA3600, en uygun toplam sahip olma maliyetiyle (TCO) esnek ve genişletilebilir depolama çözümü sunar.

CPU
 CPU Model Intel Xeon D-1567
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 12-core 2.1 (base) / 2.7 (turbo) GHz
  Hardware Encryption Engine (AES-NI)
Memory
 System Memory 16 GB DDR4 ECC RDIMM
  Memory Module Pre-installed 16 GB (16 GB x 1)
  Total Memory Slots 4
  Maximum Memory Capacity 128 GB (32 GB x 4)
  Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
  • For more information on memory upgrade limitations, visit here.
Storage
 Drive Bays 12
  Maximum Drive Bays with Expansion Unit 96 (RX1222sas/RX1217sas x 7) / 180 (RX2417sas x 7)
  Compatible Drive Type* (See all supported drives)
  • 3.5" SAS HDD
  • 2.5" SAS HDD
  • 2.5" SAS SSD
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  Hot Swappable Drive*
  Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

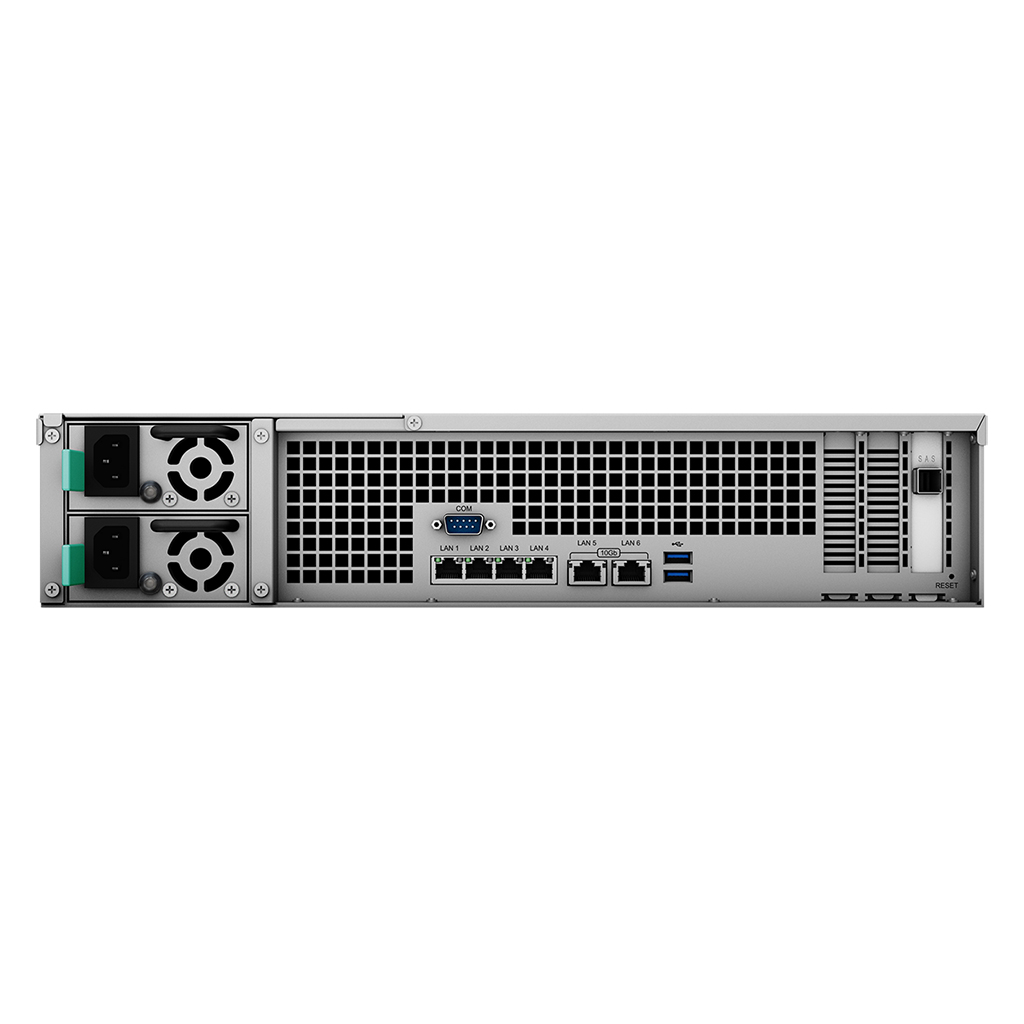

External Ports
 RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
  RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
  USB 3.2 Gen 1 Port* 2
  Expansion Port 1
  Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 2 x Gen3 x8 slots (x8 link)
File System
 Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
  Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
 Form Factor (RU) 2U
  Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
  Weight 14.5 kg
  Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)
  Notes The rail kit is sold separately
Others
 System Fan 80 mm x 80 mm x 4 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Easy Replacement System Fan
  Power Recovery
  Noise Level* 49.8 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 500 W
  Redundant Power Supply
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption 156.23 W (Access)
72.37 W (HDD Hibernation)
  British Thermal Unit 533.08 BTU/hr (Access)
246.94 BTU/hr (HDD Hibernation)
  Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • CCC
  • KC
  • VCCI
  • RCM
Warranty
 5 Years
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  Notes
  • All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
  • It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency. For more information, visit here.

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
