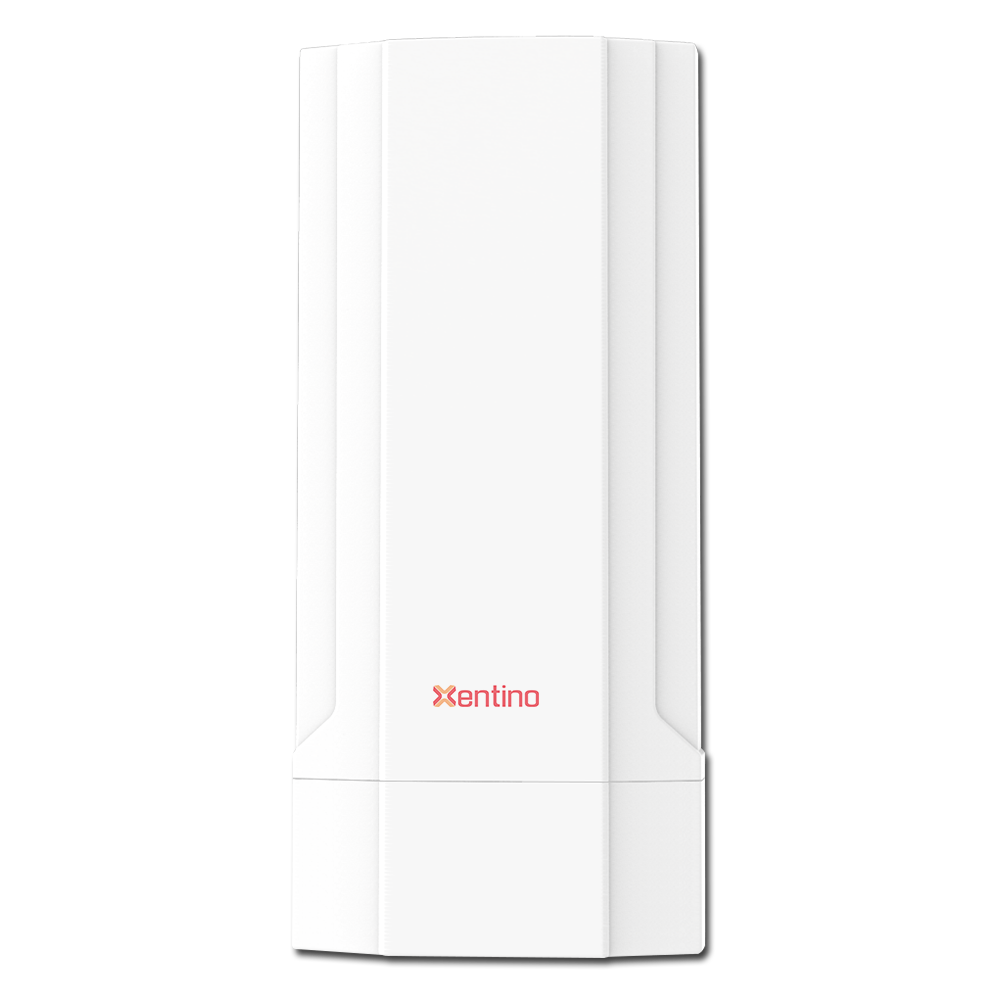

Xentino DC890 11AC 900Mbps 5.8G High Power Outdoor CPE (10Km)..

Xentino

DC850 10KM PTP(Noktadan noktaya) veya PTMP(Noktadan çok noktaya) erişim özelliğine sahip yüksek güçlü bir endüstriyel 5Ghz dış mekan CPE'dir. Qualcomm chipsetli 802.11ac Wi-Fi standardına uygun, birleşik 5Ghz ile 900 Mbps hıza sahiptir. Gigabit WAN ve LAN portuna sahip cihaz 50'den fazla son kullanıcının erişebilmesini sağlar. CPE'nin çalışma modunu, Kanalını, IP adresini ve Sinyal Gücünü gösterebilen LED ekrana sahiptir. (Kutu içeriğinde Adaptör ve POE injector YOKTUR)

DC890 is an high power industrial 5G outdoor CPE with 10KM PTP/PTMP range. Comply with the next generation 802.11ac Wi-Fi standard, Qualcomm Chipset, combined 900Mbps high speed in 5.8G, equipped Gigabit WAN port, 3 times Ethernet data rate faster than 300Mbps model; It with LED display to show and configure CPE’s operation mode, Channel, IP address and Signal Strength, simple to do the Point to Point connection by reset button, no need to access into GUI.

Main Features

  • Comply with IEEE 802.11ac/a/n, 5GHz, 900Mbps Data Rate
  • 1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port
  • 300mW high power, build in 15dBi MIMO panel antenna, stronger signal strength, more wireless coverage
  • Support 48V IEEE 802.3af PoE
  • Support SSID broadcasting, Muiti SSID up to 4, then support tag VLAN based on SSID.
  • Support Wireless AP, Repeater operation mode
  • With function of build in firewall, IP filter, URL filter and MAC filter
  • Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
  • Support DDNS, VPN pass through, Port forwarding and DMZ host
  • Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security



900Mbps Data Rate & Gigabit WAN/LAN Ports

DC890 features 802.11ac Wi-Fi and 2*2 MIMO technology, 900Mbps wireless speed. Equipped with Gigabit Ethernet port ensures high speed internet access and more end users access.

5GHz frequency, more channels, lower latency, higher stability

DC890 with full frequency of 5020~6100MHz, more than 200 channels available, it avoid the frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.

10KM PTP/PTMP Distance

Designed in two line Power Amplifier on PCB board, the power can be 300mW high power, 15dBi MIMO high gain panel antenna, greatly increase the Wi-Fi range to 10KM distance, then supply the stable Wi-Fi signal for users.

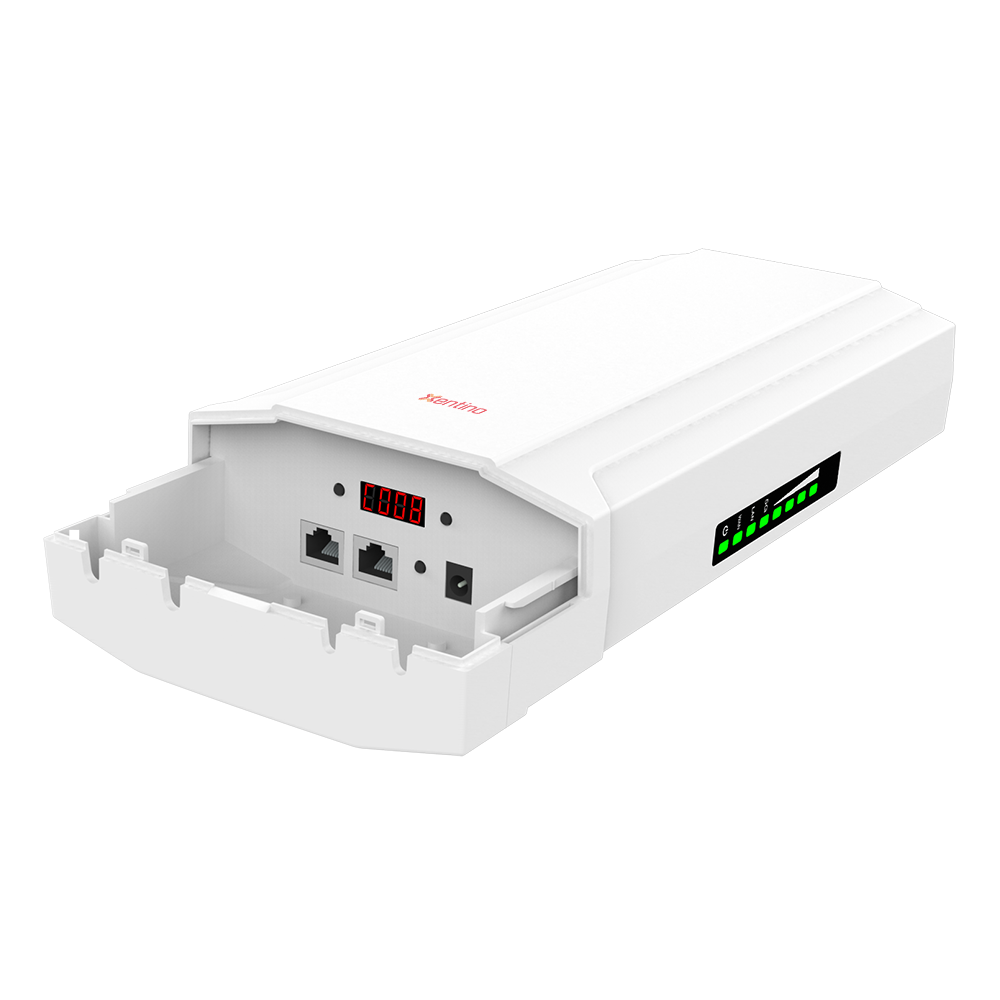

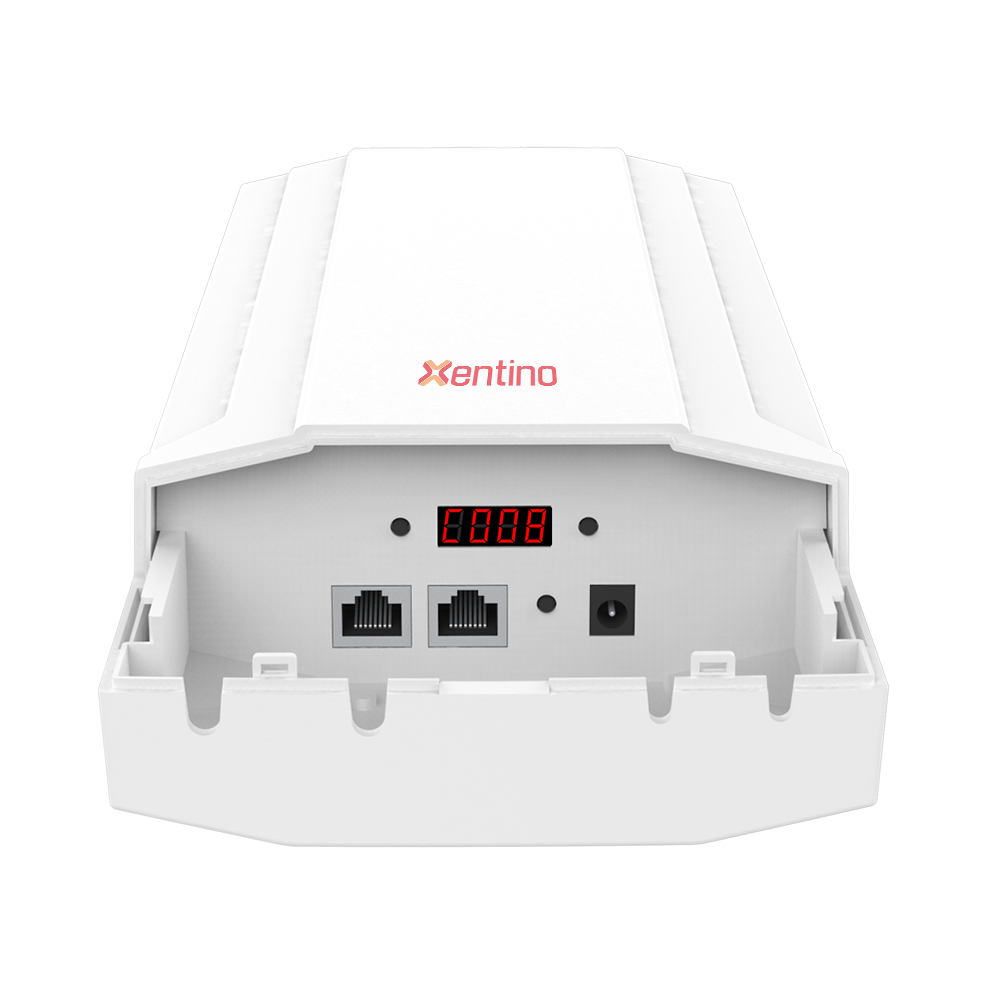

LED Display

DC890 with LED display to show AP/Client operation mode, Channels, IP address and RF Power; What’s more, it is easy to setup DC890 operation mode, IP address, Channels by set switch on product, no need to access into GUI, avoid the complex setup program, simple to check the working status.

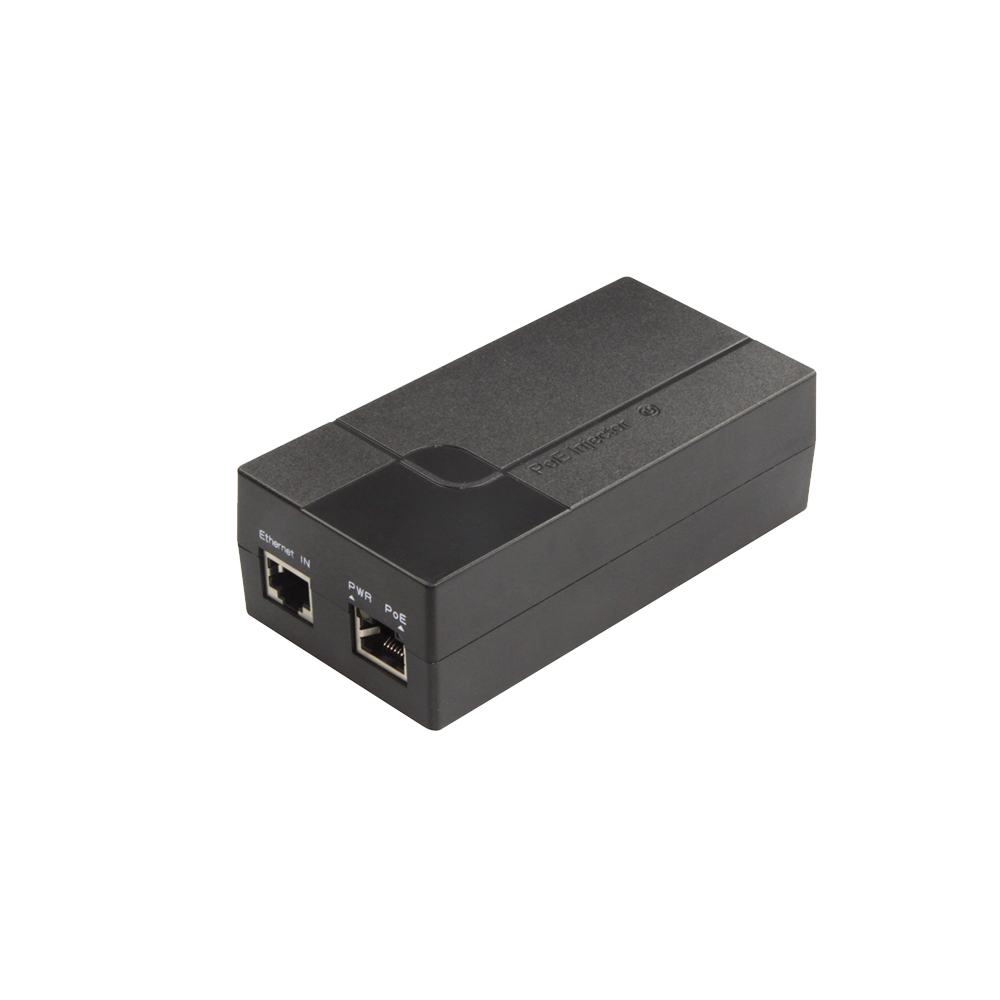

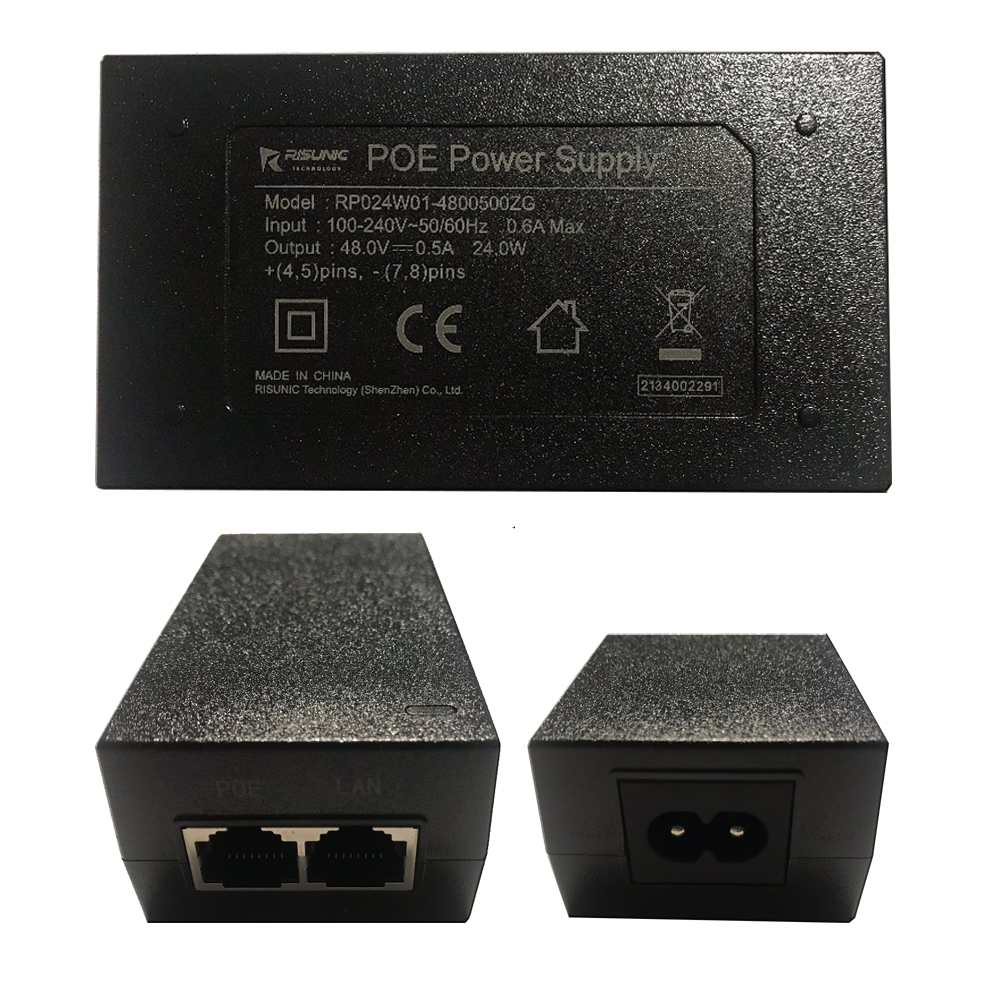

Power over Ethernet

DC890 has integrated IEEE802.3af 48V PoE, (passive Power over Ethernet is optional), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.



Hardware

Chipset

Qualcomm QCA9563+QCA9886+QCA8334

Standard

802.11ac/a, MIMO technology

Memory

128MB DDR2 RAM

Flash

16MB

Interface

1 * 10/100/1000Mbps RJ45 WAN Port

1 * 10/100/1000Mbps RJ45 LAN Port

1 * LED display, 1 * F(Function) switch button, 1 * S(Select) button,  press it to setup WDS PTP/PTMP connection

1 * Reset button, press 15 seconds to revert to default setting/press 1 seconds to finish the WDS PTP/PTMP connection

Antenna

Build in 15dBi MIMO Panel Antenna

Power consumption

48V PoE, <15W

ESD

±6KV

Surge

±2KV

Water Proof Level

IP65

Size

260mm * 85 mm * 45mm

RF Data





Frequency

5GHz: 802.11a/ac

5GHz: Standard: 5150~5825MHz, Debug: 5020~6100MHz

Throughput

900Mbps

Modulation

OFDM = BPSK,QPSK, 16-QAM, 64-QAM

DSSS = DBPSK, DQPSK, CCK

Receive Sensitivity& RF Power

RF Power

802.11a

54M

22±2dBm

6M

25±2dBm

802.11n HT20

MCS7

21±2dBm

MCS0

24±2dBm

802.11n HT40

MCS7

20±2dBm

MCS0

23±2dBm

802.11ac HT80

MCS9

19±2dBm

MCS0

22±2dBm

Receive Sensitivity

802.11a

54M

-72dBm

6M

-90dBm

802.11n HT20

MCS7

-70dBm

MCS0 .

-88dBm

802.11n HT40

MCS7

-68dBm

MCS0 .

-86dBm

802.11ac HT80

MCS9

-58dBm

MCS0 .

-85dBm

EVM

802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB

Firmware Features

Operation mode

Wireless AP, Client

Wireless Security

64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

SSID

Multiple SSID up to 4

Firewall

DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Protocols

IPv4

Others

Package Contents

900Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux

Environment

Operating Temperature: -30~55 ℃

Storage Temperature: -40~70 ℃

Humidity: 5%~95% non-condensing

Management

Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System

Antenna Specification

Frequency Range

5.8GHz

Impedance

50 Ohms nominal

Gain

18dBi

Radiation

Directional

Polarization

Vertical and Horizonal

S-Parameters (5.8G)
