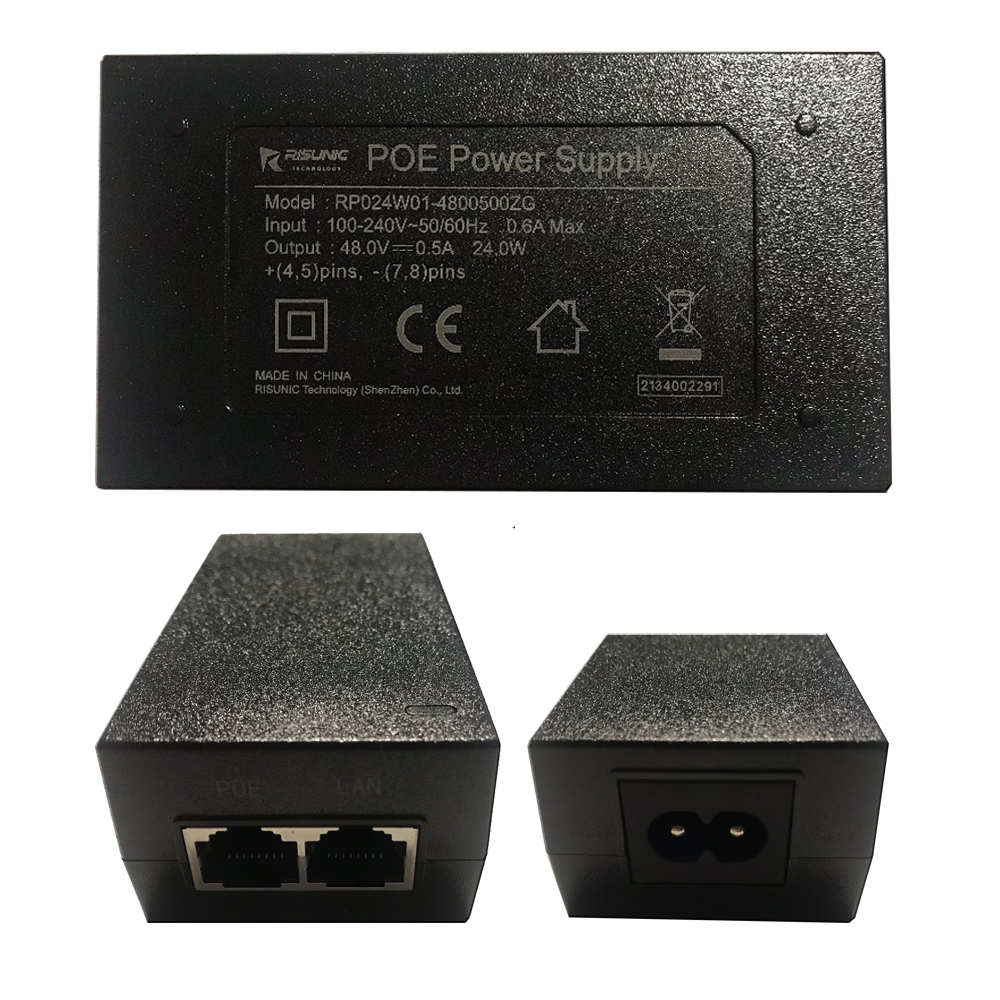

Xentino RP024W01 802.3at Gigabit PoE Injector. (24W) Input AC100 ~ 240V 50/60 HZ 0,6A Max Output DC 48V 0,5A 24W. Supports IEEE 802.3at Ethernet Port Rate?10/100/1000Mbps
OVERVIEW
Xentino RP024W01 802.3at Gigabit PoE Injector. (24W) Input AC100 ~ 240V 50/60 HZ 0,6A Max Output DC 48V 0,5A 24W. Supports IEEE 802.3at Ethernet Port Rate 10/100/1000Mbps
FEATURES
- Supply power to HD network surveillance cameras with Cat5e (PoE)
- 2x 10/100/1000M RJ45 ports; 1x AC input port
- AC input: 100~240V
- Compatible with IEEE 802.3af standard
- Coming with the Ethernet network port and PoE output port, and the power input port with lighting-proof function (meet the secondary lightning protection)
- Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method
- No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall
TECHNICAL SPECIFICATION
|
XENTINO PS2G35W |
|
|
Port Description |
2x copper cable RJ45 ports, 1x AC input port |
|
Power Supply Pin |
Default: 1/2 (+), 3/6 (-),optional:4/5(+), 7/8(-) |
|
Network Medium |
1000Base-T: 5Cat and more UTP (≤100 meters) |
|
Thermal Protection |
>100°C |
|
Working Rate |
10/100/1000Mbps |
|
Network Port Protection |
IEC61000-4-2(ESD) |
|
MTBF |
100,000 hours |
|
LEDs Indicator |
PoE working status |
|
Total Power |
24W |
|
PoE Port Power |
24W |
|
AC Input Voltage |
100~240V, 50~60Hz 0.5A |
|
DC Output Voltage |
52V |
|
Dimensions |
117*51*33mm (L*W*H) |
|
Net /Gross Weight |
0.14kg |
|
Operation TEMP / Humidity |
-20°～ 55°C;10%～90%% RH Non condensing |
|
Certification |
CE mark, commercial, FCC Part 15 Class B, RoHS |
|
Warranty |
2 years, lifelong maintenance. |
